Toyota Kluger

2003-08 → 2007-05 · chassis MCU28 · catalogue 522310 · General

Discontinued model Data version 2007-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

7 part groups · 2 illustrations

Illustrations

Figure 581886A

581886A 2003-08 → —

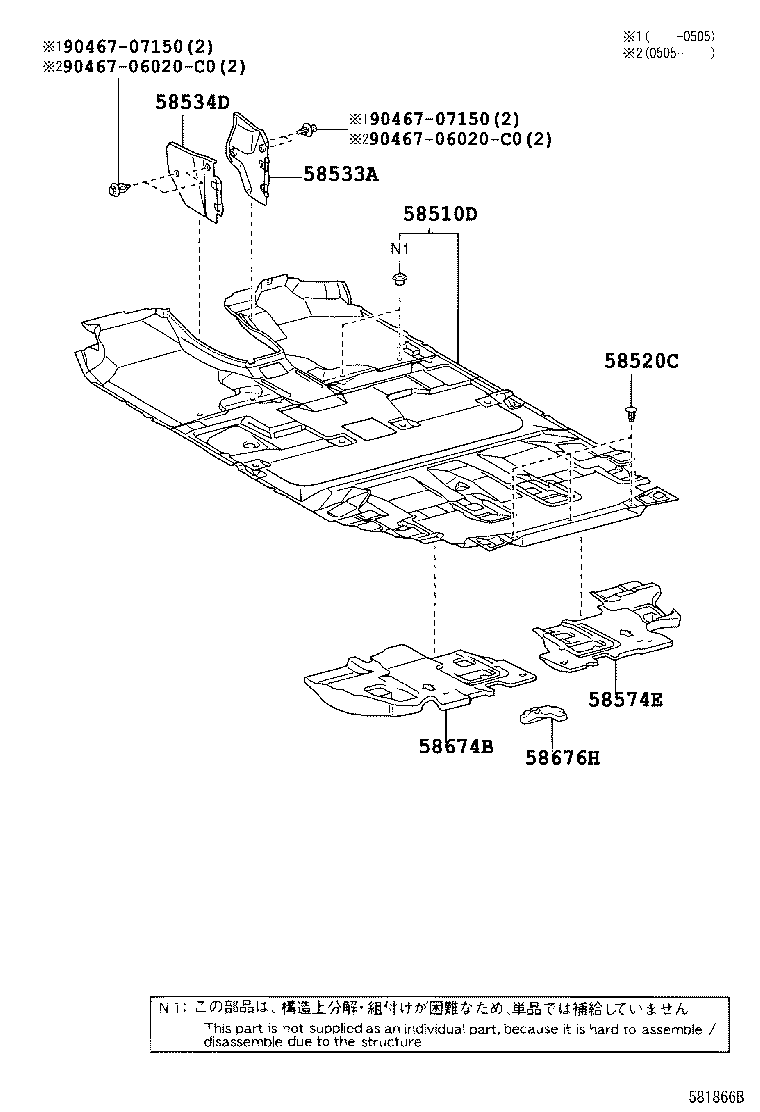

Figure 581866B

581866B 2003-08 → —

Part groups

PNC	Description
58510D	Carpet Assy, Floor, Front
58520C	Clip(FOR FRONT FLOOR CARPET)
58533A	Cover, Floor Carpet, Center RH
58534D	Cover, Floor Carpet, Center LH
58574E	Pad, Rear Floor Silencer, NO.1
58674B	Pad, Rear Floor Silencer, NO.2
58676H	Pad, Rear Floor Silencer

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
