Toyota Kluger
2003-08 → 2007-05 · chassis MCU28 · catalogue 522310 · General
Discontinued model
Data version 2007-10

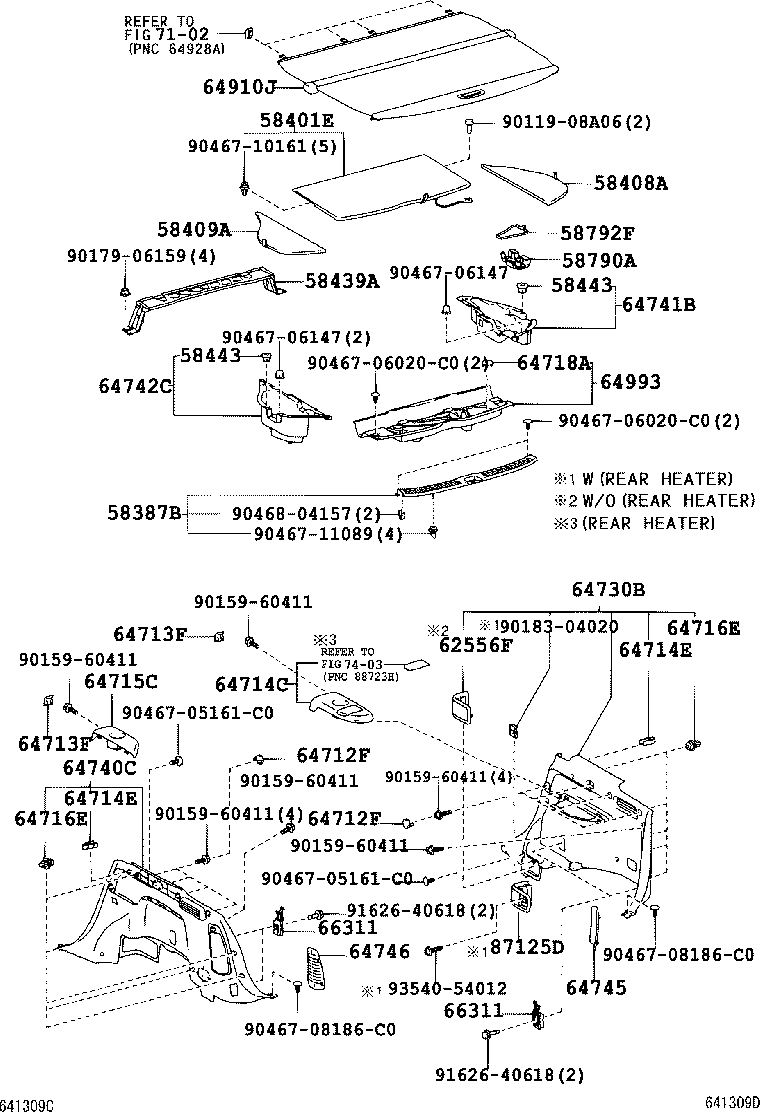

Deck Board & Deck Trim Cover
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58401E | Board Sub-assy, Deck |
| 58408A | Board Sub-assy, Deck, NO.2 |
| 58409A | Board Sub-assy, Deck, NO.3 |
| 58439A | Check, Deck Board, NO.1 |
| 58443 | Cushion, Deck Board, NO.1 |
| 58790A | Carrier Assy, Jack |
| 58792F | Support, Jack Carrier |
| 62556F | Cap, Rear Seat Side Garnish |
| 64712F | Cover, Deck Side Trim, Front RH |
| 64713F | Cover, Deck Side Trim, Front LH |
| 64714C | Cover, Deck Side Trim, RH |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64715C | Cover, Deck Side Trim, LH |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64718A | Cover, Deck Trim Service Hole |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64742C | Box, Deck Side Trim, LH |
| 64745 | Cover, Rear Combination Lamp Service, RH |
| 64746 | Cover, Rear Combination Lamp Service, LH |
| 64910J | Cover Assy, Tonneau |
| 64991 | Box, Deck Floor, Front |
| 64993 | Box, Deck Floor, Rear |
| 66311 | Hook, Rope |
| 73530D | Panel Assy, Rear Seat Sub Floor |
| 87125D | Grille, Heater Air Outlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
