Toyota Kluger

2003-08 → 2007-05 · chassis MCU28 · catalogue 522310 · General

Discontinued model Data version 2007-10

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

5 part groups · 2 illustrations

Illustrations

Figure 862057A

862057A 2003-08 → —

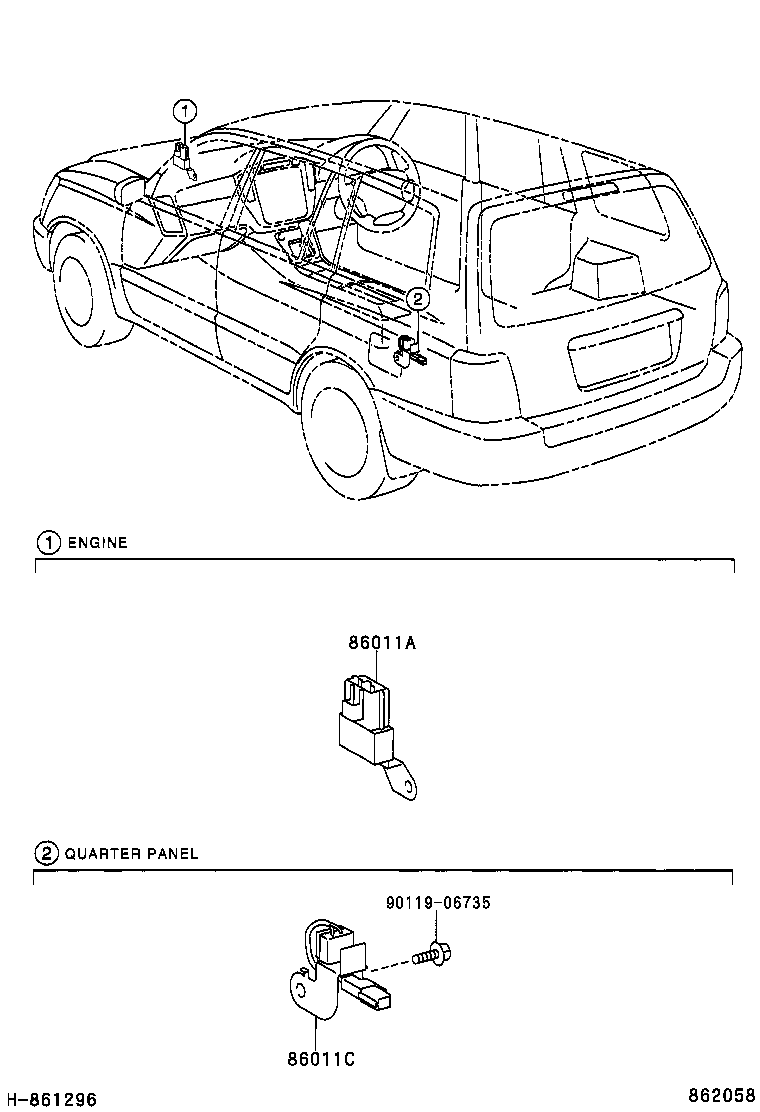

862058 2003-08 → —

Part groups

PNC	Description
86011A	Condenser, Radio Setting
86011C	Filter, Noise
86120	Receiver Assy, Radio
86211	Bracket, Radio, NO.1
86212	Bracket, Radio, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
