Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

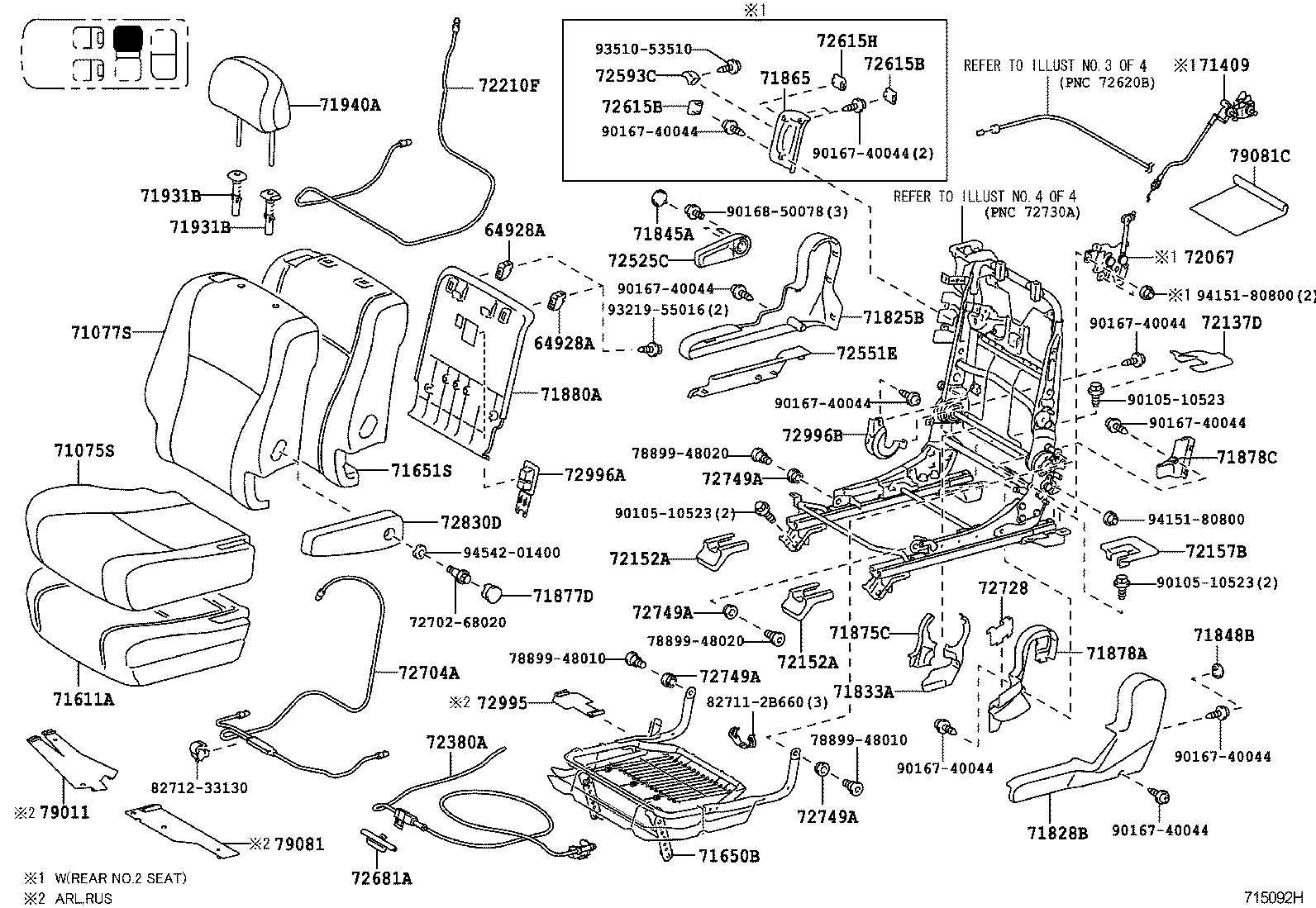

Exploded illustration 715092H 71865 — BEZEL, REAR SEAT COVER, NO.1 (11 parts) 72615H — COVER, REAR SEATBACK LOCK STRIKER, NO.1 (6 parts) 72615B — COVER, REAR SEAT LOCK STRIKER, RH (8 parts) 72593C — KNOB, RECLINING REMOTE CONTROL LEVER, NO.2 (11 parts) 72551E — COVER, RECLINING HINGE, RH (4 parts) 72615B — COVER, REAR SEAT LOCK STRIKER, RH (8 parts) 72996A — COVER, REAR SEATBACK (11 parts) 71880A — CARPET ASSY, REAR SEATBACK BOARD, RH (23 parts) 71611A — PAD, REAR SEAT CUSHION, RH (7 parts) 72681A — HOOK, REAR SEAT (6 parts) 72380A — CABLE ASSY, SEAT ADJUSTER CONTROL, NO.2 (6 parts) 71825B — MOULDING, REAR SEAT CUSHION, RH (6 parts) 71828B — MOULDING, REAR SEAT CUSHION, REAR RH (23 parts) 71848B — CAP, SEAT ADJUSTER COVER, RH (6 parts) 71833A — COVER, REAR SEAT RECLINING, NO.1 RH (6 parts) 72996B — COVER, REAR SEATBACK, INNER RH (6 parts) 71875C — COVER, RECLINING ADJUSTER INSIDE, RH (6 parts) 71845A — COVER, REAR SEAT RECLINING, UPPER RH (19 parts) 71878A — COVER, REAR SEAT RECLINING, INNER RH (20 parts) 72728 — PROTECTOR, REAR SEAT RECLINING, INNER RH (14 parts) 71878C — COVER, REAR SEAT RECLINING, INNER RH (14 parts) 72137D — COVER, REAR SEAT TRACK, RH (7 parts) 72157B — COVER, REAR SEAT TRACK BRACKET, INNER RH (18 parts) 71409 — STOPPER SUB-ASSY, REAR SEATBACK (4 parts) 72067 — LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH (2 parts) 72525C — HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH (6 parts) 71075S — COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) (41 parts) 71651S — PAD, REAR SEATBACK, RH(FOR SEPARATE TYPE) (8 parts) 64928A — HOLDER, TONNEAU COVER HOOK (6 parts) 64928A — HOLDER, TONNEAU COVER HOOK (6 parts) 71077S — COVER, REAR SEATBACK, RH (FOR SEPARATE TYPE) (43 parts) 71940A — HEADREST ASSY, REAR SEAT (30 parts) 71931B — SUPPORT ASSY, REAR NO.1 SEAT HEADREST (12 parts) 71931B — SUPPORT ASSY, REAR NO.1 SEAT HEADREST (12 parts) 72749A — SPACER, REAR SEAT RECLINING (2 parts) 72749A — SPACER, REAR SEAT RECLINING (2 parts) 72152A — COVER, REAR SEAT TRACK BRACKET, INNER (15 parts) 72152A — COVER, REAR SEAT TRACK BRACKET, INNER (15 parts) 72749A — SPACER, REAR SEAT RECLINING (2 parts) 7889948010 — not listed in this catalogue 7889948020 — not listed in this catalogue 827112B660 — not listed in this catalogue 8271233130 — not listed in this catalogue 7889948010 — not listed in this catalogue 72749A — SPACER, REAR SEAT RECLINING (2 parts) 7889948020 — not listed in this catalogue 7270268020 — not listed in this catalogue 9010510523 — not listed in this catalogue 9010510523 — not listed in this catalogue 9010510523 — not listed in this catalogue 71650B — SPRING ASSY, REAR SEAT CUSHION, RH (7 parts) 9454201400 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9415180800 — not listed in this catalogue 9415180800 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016850078 — not listed in this catalogue 9351053510 — not listed in this catalogue 72830D — ARMREST ASSY, REAR SEAT, RH (23 parts) 71877D — COVER, REAR SEAT ARMREST HOLE (6 parts) 72704A — CABLE, REAR SEAT RECLINING CONTROL (6 parts) 72210F — CABLE ASSY, SEAT TRACK CONTROL (2 parts) 79081 — COVER SUB-ASSY, NO.8 SEAT CUSHION, RH (2 parts) 72995 — COVER, REAR SEAT CUSHION, RH (2 parts) 79011 — COVER SUB-ASSY, NO.1 SEAT CUSHION, RH (2 parts) 79081C — COVER, REAR SEAT, NO.1 (7 parts) 9321955016 — not listed in this catalogue
715092H · 49 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
464 parts on this figure
Part number Description Fitment Price
64928A — Holder, Tonneau Cover Hook
64928-48050-B0 note Holder, Tonneau Cover Hook
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
64928-48050-C0 note Holder, Tonneau Cover Hook
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
64928-48050-E0 note Holder, Tonneau Cover Hook
2007-05 → 2010-07 ended
GSU4# —
64928-48050-B0 note Holder, Tonneau Cover Hook
2010-07 → 2013-12 ended
GSU4# ARL —
64928-48050-C0 note Holder, Tonneau Cover Hook
2010-07 → 2013-12 ended
GSU4# —
64928-48050-E0 note Holder, Tonneau Cover Hook
2010-07 → 2013-12 ended
GSU4# —
71075S — Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
71075-48320-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU40 CHI —
71075-48320-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU40 CHI —
71075-48330-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48330-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48330-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48330-C0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48330-C0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48330-C0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48330-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48330-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48330-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48340-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 LIMD —
71075-48340-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48340-B1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48340-C1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48340-C1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48340-C1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 LIMD —
71075-48340-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48340-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 LIMD —
71075-48340-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71075-48360-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48360-C0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48360-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48370-C1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# GD —
71075-48370-C1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48370-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# GD —
71075-48370-E1 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71075-48361-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71075-48361-C0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71075-48361-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71075-48460-C2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU45 LIMD —
71075-48460-E2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU45 LIMD —
71075-48470-C2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# GD —
71075-48470-C2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71075-48470-E2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# GD —
71075-48470-E2 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71075-48500-B0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71075-48500-C0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU45 STD RUS —
71075-48500-C0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71075-48500-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU45 STD RUS —
71075-48500-E0 note Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71077S — Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71077-48480-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU40 CHI —
71077-48480-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU40 CHI —
71077-48490-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU40 CHI —
71077-48490-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU40 CHI —
71077-48500-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71077-48500-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71077-48500-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71077-48500-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71077-48500-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71077-48500-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71077-48510-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48510-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48510-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48520-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48520-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 LIMD —
71077-48520-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48520-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 LIMD —
71077-48520-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 LIMD —
71077-48520-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48530-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48530-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48530-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71077-48540-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71077-48540-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71077-48540-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71077-48550-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# GD —
71077-48550-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71077-48550-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# GD —
71077-48550-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71077-48541-B1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71077-48541-C1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71077-48541-E1 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71077-48690-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU45 LIMD —
71077-48690-E2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU45 LIMD —
71077-48700-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71077-48700-C2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# GD —
71077-48700-E2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# GD —
71077-48700-E2 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71077-48740-B0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD ARL —
71077-48740-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD —
71077-48740-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU4# STD —
71077-48750-C0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU45 STD RUS —
71077-48750-E0 note Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
2010-07 → 2013-12 ended
GSU45 STD RUS —
71409 — Stopper Sub-assy, Rear Seatback
71409-48010 Stopper Sub-assy, Rear Seatback
2007-05 → 2009-01 ended
GSU4# CHI —
71409-48020 Stopper Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# ARL —
71409-48010 Stopper Sub-assy, Rear Seatback
2010-07 → —
GSU45 RUS —
71409-48020 Stopper Sub-assy, Rear Seatback
2010-07 → —
GSU4# ARL —
71611A — Pad, Rear Seat Cushion, RH
71611-48190 note Pad, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71611-48190 note Pad, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71611-48190 Pad, Rear Seat Cushion, RH
2007-05 → 2009-01 ended
GSU4# CHI —
71611-48200 Pad, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# ARL —
71611-48190 Pad, Rear Seat Cushion, RH
2010-07 → —
GSU45 RUS —
71611-48190 note Pad, Rear Seat Cushion, RH
2010-07 → —
GSU4# STD ARL —
71611-48200 Pad, Rear Seat Cushion, RH
2010-07 → —
GSU4# ARL —
71650B — Spring Assy, Rear Seat Cushion, RH
71650-48070 Spring Assy, Rear Seat Cushion, RH
2007-05 → 2009-01 ended
GSU4# CHI —
71650-48070 note Spring Assy, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71650-48070 note Spring Assy, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71650-48080 Spring Assy, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# ARL —
71650-48070 note Spring Assy, Rear Seat Cushion, RH
2010-07 → —
GSU4# STD ARL —
71650-48070 Spring Assy, Rear Seat Cushion, RH
2010-07 → —
GSU45 RUS —
71650-48080 Spring Assy, Rear Seat Cushion, RH
2010-07 → —
GSU4# ARL —
71651S — Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71651-48110 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU45 SPO —
71651-48110 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
71651-48110 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
71651-48120 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2007-05 → 2009-01 ended
GSU4# CHI —
71651-48130 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2007-05 → 2010-07 ended
GSU4# ARL —
71651-48110 note Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2010-07 → —
GSU4# STD —
71651-48120 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2010-07 → —
GSU45 RUS —
71651-48130 Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
2010-07 → —
GSU4# ARL —
71825B — Moulding, Rear Seat Cushion, RH
71825-48050-B0 note Moulding, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71825-48050-C0 note Moulding, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71825-48050-E0 note Moulding, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# —
71825-48050-B0 note Moulding, Rear Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# ARL —
71825-48050-C0 note Moulding, Rear Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# —
71825-48050-E0 note Moulding, Rear Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# —
71828B — Moulding, Rear Seat Cushion, Rear RH
71828-48080-B0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71828-48080-B0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71828-48080-B0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2009-01 ended
GSU4# CHI —
71828-48080-C0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2009-01 ended
GSU45 CHI —
71828-48080-C0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71828-48080-C0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71828-48080-E0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2009-01 ended
GSU4# CHI —
71828-48080-E0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71828-48080-E0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71828-48090-B0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71828-48090-C0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# ARL —
71828-48090-E0 note Moulding, Rear Seat Cushion, Rear RH
2007-05 → 2010-07 ended
GSU4# ARL —
71828-48080-B0 note Moulding, Rear Seat Cushion, Rear RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71828-48080-C0 note Moulding, Rear Seat Cushion, Rear RH
2010-07 → 2013-12 ended
GSU45 RUS —
71828-48080-C0 note Moulding, Rear Seat Cushion, Rear RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71828-48080-E0 note Moulding, Rear Seat Cushion, Rear RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71828-48080-E0 note Moulding, Rear Seat Cushion, Rear RH
2010-07 → 2013-12 ended
GSU45 RUS —
71828-48090-B0 note Moulding, Rear Seat Cushion, Rear RH
2010-07 → 2012-07 ended
GSU4# ARL —
71828-48090-C0 note Moulding, Rear Seat Cushion, Rear RH
2010-07 → 2012-07 ended
GSU4# ARL —
71828-48090-E0 note Moulding, Rear Seat Cushion, Rear RH
2010-07 → 2012-07 ended
GSU4# ARL —
71828-48091-B0 note Moulding, Rear Seat Cushion, Rear RH
2012-08 → 2013-12 ended
GSU4# STD ARL —
71828-48091-C0 note Moulding, Rear Seat Cushion, Rear RH
2012-08 → 2013-12 ended
GSU4# ARL —
71828-48091-E0 note Moulding, Rear Seat Cushion, Rear RH
2012-08 → 2013-12 ended
GSU4# ARL —
71833A — Cover, Rear Seat Reclining, NO.1 RH
71833-48060-B0 note Cover, Rear Seat Reclining, NO.1 RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71833-48060-C0 note Cover, Rear Seat Reclining, NO.1 RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71833-48060-E0 note Cover, Rear Seat Reclining, NO.1 RH
2007-05 → 2010-07 ended
GSU4# —
71833-48060-B0 note Cover, Rear Seat Reclining, NO.1 RH
2010-07 → 2013-12 ended
GSU4# ARL —
71833-48060-C0 note Cover, Rear Seat Reclining, NO.1 RH
2010-07 → 2013-12 ended
GSU4# —
71833-48060-E0 note Cover, Rear Seat Reclining, NO.1 RH
2010-07 → 2013-12 ended
GSU4# —
71845A — Cover, Rear Seat Reclining, Upper RH
71845-48010-B0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU4# (SPO,STD) CHI —
71845-48010-B0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU45 SPO —
71845-48010-B0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71845-48010-C0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU45 SPO —
71845-48010-C0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU45 SPO —
71845-48010-C0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2010-07 ended
GSU4# ARL —
71845-48010-E0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2010-07 ended
GSU4# ARL —
71845-48010-E0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU45 SPO —
71845-48010-E0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU4# (SPO,STD) CHI —
71845-48050-B0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU4# CHI —
71845-48050-C0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU45 CHI —
71845-48050-E0 note Cover, Rear Seat Reclining, Upper RH
2007-05 → 2009-01 ended
GSU4# CHI —
71845-48010-B0 note Cover, Rear Seat Reclining, Upper RH
2010-07 → 2013-12 ended
GSU4# ARL —
71845-48010-C0 note Cover, Rear Seat Reclining, Upper RH
2010-07 → 2013-12 ended
GSU4# ARL —
71845-48010-C0 note Cover, Rear Seat Reclining, Upper RH
2010-07 → 2013-12 ended
GSU45 STD RUS —
71845-48010-E0 note Cover, Rear Seat Reclining, Upper RH
2010-07 → 2013-12 ended
GSU45 STD RUS —
71845-48010-E0 note Cover, Rear Seat Reclining, Upper RH
2010-07 → 2013-12 ended
GSU4# ARL —
71845-48050-C0 note Cover, Rear Seat Reclining, Upper RH
2010-07 → 2013-12 ended
GSU45 RUS —
71845-48050-E0 note Cover, Rear Seat Reclining, Upper RH
2010-07 → 2013-12 ended
GSU45 RUS —
71848B — Cap, Seat Adjuster Cover, RH
71848-48020-B0 note Cap, Seat Adjuster Cover, RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71848-48020-C0 note Cap, Seat Adjuster Cover, RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71848-48020-E0 note Cap, Seat Adjuster Cover, RH
2007-05 → 2010-07 ended
GSU4# —
71848-48020-B0 note Cap, Seat Adjuster Cover, RH
2010-07 → 2013-12 ended
GSU4# ARL —
71848-48020-C0 note Cap, Seat Adjuster Cover, RH
2010-07 → 2013-12 ended
GSU4# —
71848-48020-E0 note Cap, Seat Adjuster Cover, RH
2010-07 → 2013-12 ended
GSU4# —
71865 — Bezel, Rear Seat Cover, NO.1
71865-48040-B0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2009-01 ended
GSU4# CHI —
71865-48040-C0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2009-01 ended
GSU45 CHI —
71865-48040-E0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2009-01 ended
GSU4# CHI —
71865-48050-B0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
71865-48050-C0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU4# ARL —
71865-48050-E0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU4# ARL —
71865-48040-C0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU45 RUS —
71865-48040-E0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU45 RUS —
71865-48050-B0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# ARL —
71865-48050-C0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# ARL —
71865-48050-E0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# ARL —
71875C — Cover, Reclining Adjuster Inside, RH
71875-48080-B0 note Cover, Reclining Adjuster Inside, RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71875-48080-C0 note Cover, Reclining Adjuster Inside, RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71875-48080-E0 note Cover, Reclining Adjuster Inside, RH
2007-05 → 2010-07 ended
GSU4# —
71875-48080-B0 note Cover, Reclining Adjuster Inside, RH
2010-07 → 2013-12 ended
GSU4# ARL —
71875-48080-C0 note Cover, Reclining Adjuster Inside, RH
2010-07 → 2013-12 ended
GSU4# —
71875-48080-E0 note Cover, Reclining Adjuster Inside, RH
2010-07 → 2013-12 ended
GSU4# —
71877D — Cover, Rear Seat Armrest Hole
71877-26020-C0 note Cover, Rear Seat Armrest Hole
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71877-26020-E4 note Cover, Rear Seat Armrest Hole
2007-05 → 2010-07 ended
GSU4# —
71877-26020-P8 note Cover, Rear Seat Armrest Hole
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71877-26020-C0 note Cover, Rear Seat Armrest Hole
2010-07 → 2013-12 ended
GSU4# —
71877-26020-E4 note Cover, Rear Seat Armrest Hole
2010-07 → 2013-12 ended
GSU4# —
71877-26020-P8 note Cover, Rear Seat Armrest Hole
2010-07 → 2013-12 ended
GSU4# STD ARL —
71878A — Cover, Rear Seat Reclining, Inner RH
71878-48050-B0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU4# CHI —
71878-48050-B0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48050-B0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48050-C0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48050-C0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48050-C0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU45 CHI —
71878-48050-E0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48050-E0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48050-E0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU4# CHI —
71878-48060-B0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48060-C0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# ARL —
71878-48060-E0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# ARL —
71878-48050-B0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71878-48050-C0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU45 RUS —
71878-48050-C0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71878-48050-E0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU45 RUS —
71878-48050-E0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71878-48060-B0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# ARL —
71878-48060-C0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# ARL —
71878-48060-E0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# ARL —
71878C — Cover, Rear Seat Reclining, Inner RH
71878-48070-B0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU4# CHI —
71878-48070-B0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48070-B0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48070-C0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU45 CHI —
71878-48070-C0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48070-C0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48070-E0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU4# CHI —
71878-48070-E0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48070-E0 note Cover, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71878-48070-B0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71878-48070-C0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU45 RUS —
71878-48070-C0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71878-48070-E0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71878-48070-E0 note Cover, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU45 RUS —
71880A — Carpet Assy, Rear Seatback Board, RH
71880-48210-B0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2009-01 ended
GSU45 SPO —
71880-48210-B0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71880-48210-B0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU4# SPO,STD —
71880-48210-C0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2009-01 ended
GSU45 SPO —
71880-48210-C0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71880-48210-C0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71880-48210-E0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2009-01 ended
GSU45 SPO —
71880-48210-E0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU4# SPO,STD —
71880-48210-E0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71880-48220-B0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71880-48220-C0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU4# ARL —
71880-48220-E0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2010-07 ended
GSU4# ARL —
71880-48230-B0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2009-01 ended
GSU4# CHI —
71880-48230-C0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2009-01 ended
GSU45 CHI —
71880-48230-E0 note Carpet Assy, Rear Seatback Board, RH
2007-05 → 2009-01 ended
GSU4# CHI —
71880-48210-B0 note Carpet Assy, Rear Seatback Board, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71880-48210-C0 note Carpet Assy, Rear Seatback Board, RH
2010-07 → 2013-12 ended
GSU4# STD —
71880-48210-E0 note Carpet Assy, Rear Seatback Board, RH
2010-07 → 2013-12 ended
GSU4# STD —
71880-48220-B0 note Carpet Assy, Rear Seatback Board, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
71880-48220-C0 note Carpet Assy, Rear Seatback Board, RH
2010-07 → 2013-12 ended
GSU4# ARL —
71880-48220-E0 note Carpet Assy, Rear Seatback Board, RH
2010-07 → 2013-12 ended
GSU4# ARL —
71880-48230-C0 note Carpet Assy, Rear Seatback Board, RH
2010-07 → 2013-12 ended
GSU45 RUS —
71880-48230-E0 note Carpet Assy, Rear Seatback Board, RH
2010-07 → 2013-12 ended
GSU45 RUS —
71931B — Support Assy, Rear NO.1 Seat Headrest
71930-44020-B2 note Support Assy, Rear NO.1 Seat Headrest
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71930-44020-C0 note Support Assy, Rear NO.1 Seat Headrest
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71930-44020-E2 note Support Assy, Rear NO.1 Seat Headrest
2007-05 → 2010-07 ended
GSU4# —
71931-47010-C0 note Support Assy, Rear NO.1 Seat Headrest
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71931-47010-E8 note Support Assy, Rear NO.1 Seat Headrest
2007-05 → 2010-07 ended
GSU4# —
71931-47010-P4 note Support Assy, Rear NO.1 Seat Headrest
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71930-44020-B2 note Support Assy, Rear NO.1 Seat Headrest
2010-07 → 2013-12 ended
GSU4# ARL —
71930-44020-C0 note Support Assy, Rear NO.1 Seat Headrest
2010-07 → 2013-12 ended
GSU4# —
71930-44020-E2 note Support Assy, Rear NO.1 Seat Headrest
2010-07 → 2013-12 ended
GSU4# —
71931-47010-C0 note Support Assy, Rear NO.1 Seat Headrest
2010-07 → 2013-12 ended
GSU4# —
71931-47010-E8 note Support Assy, Rear NO.1 Seat Headrest
2010-07 → 2013-12 ended
GSU4# —
71931-47010-P4 note Support Assy, Rear NO.1 Seat Headrest
2010-07 → 2013-12 ended
GSU4# ARL —
71940A — Headrest Assy, Rear Seat
71940-48270-B0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU40 CHI —
71940-48270-E0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU40 CHI —
71940-48280-B0 note Headrest Assy, Rear Seat
2007-05 → 2009-02 ended
GSU45 SPO,STD;GSU40 STD ARL —
71940-48280-C0 note Headrest Assy, Rear Seat
2007-05 → 2009-02 ended
GSU45 SPO,STD;GSU40 STD ARL —
71940-48280-E0 note Headrest Assy, Rear Seat
2007-05 → 2009-02 ended
GSU45 SPO,STD;GSU40 STD ARL —
71940-48281-B0 note Headrest Assy, Rear Seat
2009-02 → 2010-07 ended
GSU4# STD —
71940-48281-C0 note Headrest Assy, Rear Seat
2009-02 → 2010-07 ended
GSU4# STD —
71940-48281-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-07 ended
GSU4# STD —
71940-48290-B0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 LIMD —
71940-48290-B0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71940-48290-B0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71940-48290-C0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71940-48290-C0 note Headrest Assy, Rear Seat
2007-05 → 2009-02 ended
GSU4# GD,LIMD —
71940-48290-C0 note Headrest Assy, Rear Seat
2007-05 → 2009-02 ended
GSU4# STD ARL —
71940-48290-C0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71940-48290-E0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71940-48290-E0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71940-48290-E0 note Headrest Assy, Rear Seat
2007-05 → 2009-02 ended
GSU4# GD,LIMD —
71940-48290-E0 note Headrest Assy, Rear Seat
2007-05 → 2009-02 ended
GSU4# STD ARL —
71940-48291-C0 note Headrest Assy, Rear Seat
2009-02 → 2010-07 ended
GSU4# GD —
71940-48291-C0 note Headrest Assy, Rear Seat
2009-02 → 2010-07 ended
GSU4# STD —
71940-48291-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-07 ended
GSU4# GD —
71940-48291-E0 note Headrest Assy, Rear Seat
2009-02 → 2010-07 ended
GSU4# STD —
71940-48281-B1 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71940-48281-C1 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD —
71940-48281-E1 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD —
71940-48291-C1 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
71940-48291-C1 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71940-48291-E2 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
71940-48291-E2 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
72067 — Lever Sub-assy, Rear Back Lock Control, RH
72067-48020 Lever Sub-assy, Rear Back Lock Control, RH
2007-05 → 2009-01 ended
GSU4# CHI —
72067-48020 Lever Sub-assy, Rear Back Lock Control, RH
2010-07 → —
GSU45 RUS —
72137D — Cover, Rear Seat Track, RH
72137-48090-B0 note Cover, Rear Seat Track, RH
2007-05 → 2010-01 ended
GSU4# LIMD,SPO,STD —
72137-48090-C0 note Cover, Rear Seat Track, RH
2007-05 → 2010-01 ended
GSU45;GSU40 ARL —
72137-48090-E0 note Cover, Rear Seat Track, RH
2007-05 → 2010-01 ended
GSU4# —
72137-48091-B0 note Cover, Rear Seat Track, RH
2010-01 → 2010-07 ended
GSU4# STD —
72137-48091-C0 note Cover, Rear Seat Track, RH
2010-01 → 2010-07 ended
GSU4# —
72137-48091-E0 note Cover, Rear Seat Track, RH
2010-01 → 2010-07 ended
GSU4# —
72137-48090-C0 note Cover, Rear Seat Track, RH
2010-07 → 2013-12 ended
GSU4# —
72152A — Cover, Rear Seat Track Bracket, Inner
72152-48080-B0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU4# CHI —
72152-48080-C0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU45 CHI —
72152-48080-E0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU4# CHI —
72152-48120-B0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU4# (SPO,STD) CHI —
72152-48120-B0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU45 SPO —
72152-48120-B0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2010-07 ended
GSU4# STD ARL —
72152-48120-C0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU45 SPO —
72152-48120-C0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU45 SPO —
72152-48120-C0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2010-07 ended
GSU4# ARL —
72152-48120-E0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU4# (SPO,STD) CHI —
72152-48120-E0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2009-01 ended
GSU45 SPO —
72152-48120-E0 note Cover, Rear Seat Track Bracket, Inner
2007-05 → 2010-07 ended
GSU4# ARL —
72152-48080-C0 note Cover, Rear Seat Track Bracket, Inner
2010-07 → 2013-12 ended
GSU45 RUS —
72152-48120-C0 note Cover, Rear Seat Track Bracket, Inner
2010-07 → 2013-12 ended
GSU45 STD RUS —
72152-48120-C0 note Cover, Rear Seat Track Bracket, Inner
2010-07 → 2013-12 ended
GSU4# ARL —
72157B — Cover, Rear Seat Track Bracket, Inner RH
72157-48080-B0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2009-01 ended
GSU4# CHI —
72157-48080-B0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2010-01 ended
GSU4# STD ARL —
72157-48080-C0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2009-01 ended
GSU45 CHI —
72157-48080-C0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2010-01 ended
GSU4# STD ARL —
72157-48080-E0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2009-01 ended
GSU4# CHI —
72157-48080-E0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2010-01 ended
GSU4# STD ARL —
72157-48081-B0 note Cover, Rear Seat Track Bracket, Inner RH
2010-01 → 2010-07 ended
GSU4# STD —
72157-48081-C0 note Cover, Rear Seat Track Bracket, Inner RH
2010-01 → 2010-07 ended
GSU4# STD —
72157-48081-E0 note Cover, Rear Seat Track Bracket, Inner RH
2010-01 → 2010-07 ended
GSU4# STD —
72157-48090-B0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2010-01 ended
GSU4# STD ARL —
72157-48090-C0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2010-01 ended
GSU4# ARL —
72157-48090-E0 note Cover, Rear Seat Track Bracket, Inner RH
2007-05 → 2010-01 ended
GSU4# ARL —
72157-48091-B0 note Cover, Rear Seat Track Bracket, Inner RH
2010-01 → 2010-07 ended
GSU4# STD —
72157-48091-C0 note Cover, Rear Seat Track Bracket, Inner RH
2010-01 → 2010-07 ended
GSU4# —
72157-48091-E0 note Cover, Rear Seat Track Bracket, Inner RH
2010-01 → 2010-07 ended
GSU4# —
72157-48080-C0 note Cover, Rear Seat Track Bracket, Inner RH
2010-07 → 2013-12 ended
GSU45 RUS —
72157-48080-C0 note Cover, Rear Seat Track Bracket, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
72157-48090-C0 note Cover, Rear Seat Track Bracket, Inner RH
2010-07 → 2013-12 ended
GSU4# ARL —
72210F — Cable Assy, Seat Track Control
72210-48010 Cable Assy, Seat Track Control
2007-05 → 2010-07 ended
GSU4# —
72210-48010 Cable Assy, Seat Track Control
2010-07 → —
GSU4# —
72380A — Cable Assy, Seat Adjuster Control, NO.2
72380-48010 Cable Assy, Seat Adjuster Control, NO.2
2007-05 → 2010-07 ended
GSU40 CHI;GSU4# GD,LIMD,SPO —
72380-48010 note Cable Assy, Seat Adjuster Control, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72380-48010 note Cable Assy, Seat Adjuster Control, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72380-48010 Cable Assy, Seat Adjuster Control, NO.2
2010-07 → —
GSU4# GD,LIMD —
72380-48010 note Cable Assy, Seat Adjuster Control, NO.2
2010-07 → —
GSU4# STD ARL —
72380-48010 note Cable Assy, Seat Adjuster Control, NO.2
2010-07 → —
GSU4# STD ARL —
72525C — Handle, Reclining Adjuster Release, NO.1 RH
72525-48030-B0 note Handle, Reclining Adjuster Release, NO.1 RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72525-48030-C0 note Handle, Reclining Adjuster Release, NO.1 RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72525-48030-E0 note Handle, Reclining Adjuster Release, NO.1 RH
2007-05 → 2010-07 ended
GSU4# —
72525-48030-B0 note Handle, Reclining Adjuster Release, NO.1 RH
2010-07 → 2013-12 ended
GSU4# ARL —
72525-48030-C0 note Handle, Reclining Adjuster Release, NO.1 RH
2010-07 → 2013-12 ended
GSU4# —
72525-48030-E0 note Handle, Reclining Adjuster Release, NO.1 RH
2010-07 → 2013-12 ended
GSU4# —
72551E — Cover, Reclining Hinge, RH
72551-48030-B0 note Cover, Reclining Hinge, RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72551-48030-C0 note Cover, Reclining Hinge, RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72551-48030-E0 note Cover, Reclining Hinge, RH
2007-05 → 2010-07 ended
GSU4# —
72551-48030-C0 note Cover, Reclining Hinge, RH
2010-07 → 2013-12 ended
GSU4# —
72593C — Knob, Reclining Remote Control Lever, NO.2
72593-48010-B0 note Knob, Reclining Remote Control Lever, NO.2
2007-05 → 2009-01 ended
GSU4# CHI —
72593-48010-C0 note Knob, Reclining Remote Control Lever, NO.2
2007-05 → 2009-01 ended
GSU45 CHI —
72593-48010-E0 note Knob, Reclining Remote Control Lever, NO.2
2007-05 → 2009-01 ended
GSU4# CHI —
72593-48020-B0 note Knob, Reclining Remote Control Lever, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72593-48020-C0 note Knob, Reclining Remote Control Lever, NO.2
2007-05 → 2010-07 ended
GSU4# ARL —
72593-48020-E0 note Knob, Reclining Remote Control Lever, NO.2
2007-05 → 2010-07 ended
GSU4# ARL —
72593-48010-C0 note Knob, Reclining Remote Control Lever, NO.2
2010-07 → 2013-12 ended
GSU45 RUS —
72593-48010-E0 note Knob, Reclining Remote Control Lever, NO.2
2010-07 → 2013-12 ended
GSU45 RUS —
72593-48020-B0 note Knob, Reclining Remote Control Lever, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
72593-48020-C0 note Knob, Reclining Remote Control Lever, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
72593-48020-E0 note Knob, Reclining Remote Control Lever, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
72615B — Cover, Rear Seat Lock Striker, RH
72615-48070-B0 note Cover, Rear Seat Lock Striker, RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72615-48070-C0 note Cover, Rear Seat Lock Striker, RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72615-48070-E0 note Cover, Rear Seat Lock Striker, RH
2007-05 → 2010-07 ended
GSU4# —
72615-48070-B0 note Cover, Rear Seat Lock Striker, RH
2010-07 → 2013-12 ended
GSU4# ARL —
72615-48070-C0 note Cover, Rear Seat Lock Striker, RH
2010-07 → 2013-12 ended
GSU45 RUS —
72615-48070-C0 note Cover, Rear Seat Lock Striker, RH
2010-07 → 2013-12 ended
GSU4# ARL —
72615-48070-E0 note Cover, Rear Seat Lock Striker, RH
2010-07 → 2013-12 ended
GSU45 RUS —
72615-48070-E0 note Cover, Rear Seat Lock Striker, RH
2010-07 → 2013-12 ended
GSU4# ARL —
72615H — Cover, Rear Seatback Lock Striker, NO.1
72615-48080-B0 note Cover, Rear Seatback Lock Striker, NO.1
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72615-48080-C0 note Cover, Rear Seatback Lock Striker, NO.1
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72615-48080-E0 note Cover, Rear Seatback Lock Striker, NO.1
2007-05 → 2010-07 ended
GSU4# —
72615-48080-B0 note Cover, Rear Seatback Lock Striker, NO.1
2010-07 → 2013-12 ended
GSU4# ARL —
72615-48080-C0 note Cover, Rear Seatback Lock Striker, NO.1
2010-07 → 2013-12 ended
GSU4# —
72615-48080-E0 note Cover, Rear Seatback Lock Striker, NO.1
2010-07 → 2013-12 ended
GSU4# —
72681A — Hook, Rear Seat
72681-48010 Hook, Rear Seat
2007-05 → 2010-07 ended
GSU40 CHI;GSU4# GD,LIMD,SPO —
72681-48010 note Hook, Rear Seat
2007-05 → 2010-07 ended
GSU4# STD ARL —
72681-48010 note Hook, Rear Seat
2007-05 → 2010-07 ended
GSU4# STD ARL —
72681-48010 Hook, Rear Seat
2010-07 → —
GSU4# GD,LIMD —
72681-48010 note Hook, Rear Seat
2010-07 → —
GSU4# STD ARL —
72681-48010 note Hook, Rear Seat
2010-07 → —
GSU4# STD ARL —
72704A — Cable, Rear Seat Reclining Control
72704-48080 note Cable, Rear Seat Reclining Control
2007-05 → 2009-01 ended
GSU45 SPO —
72704-48080 note Cable, Rear Seat Reclining Control
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72704-48080 note Cable, Rear Seat Reclining Control
2007-05 → 2010-07 ended
GSU4# STD ARL —
72704-48090 Cable, Rear Seat Reclining Control
2007-05 → 2010-07 ended
GSU4# —
72704-48080 note Cable, Rear Seat Reclining Control
2010-07 → —
GSU4# STD —
72704-48090 Cable, Rear Seat Reclining Control
2010-07 → —
GSU4# —
72728 — Protector, Rear Seat Reclining, Inner RH
72728-48010-B0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU4# CHI —
72728-48010-B0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72728-48010-B0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72728-48010-C0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU45 CHI —
72728-48010-C0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72728-48010-C0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72728-48010-E0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2009-01 ended
GSU4# CHI —
72728-48010-E0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72728-48010-E0 note Protector, Rear Seat Reclining, Inner RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72728-48010-B0 note Protector, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
72728-48010-C0 note Protector, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
72728-48010-C0 note Protector, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU45 RUS —
72728-48010-E0 note Protector, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU45 RUS —
72728-48010-E0 note Protector, Rear Seat Reclining, Inner RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
72749A — Spacer, Rear Seat Reclining
72749-48010 Spacer, Rear Seat Reclining
2007-05 → 2010-07 ended
GSU4# —
72749-48010 Spacer, Rear Seat Reclining
2010-07 → —
GSU4# —
72830D — Armrest Assy, Rear Seat, RH
72830-48250-B0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU40 CHI —
72830-48250-E0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU40 CHI —
72830-48260-B0 note Armrest Assy, Rear Seat, RH
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
72830-48260-C0 note Armrest Assy, Rear Seat, RH
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
72830-48260-E0 note Armrest Assy, Rear Seat, RH
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
72830-48270-B0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU45 SPO —
72830-48270-B0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU45 SPO —
72830-48270-B0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU45 LIMD —
72830-48270-C0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU45 SPO —
72830-48270-C0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU45 SPO —
72830-48270-C0 note Armrest Assy, Rear Seat, RH
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
72830-48270-C0 note Armrest Assy, Rear Seat, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72830-48270-E0 note Armrest Assy, Rear Seat, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72830-48270-E0 note Armrest Assy, Rear Seat, RH
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
72830-48270-E0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU45 SPO —
72830-48270-E0 note Armrest Assy, Rear Seat, RH
2007-05 → 2009-01 ended
GSU45 SPO —
72830-48260-B0 note Armrest Assy, Rear Seat, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
72830-48260-C0 note Armrest Assy, Rear Seat, RH
2010-07 → 2013-12 ended
GSU4# STD —
72830-48260-E0 note Armrest Assy, Rear Seat, RH
2010-07 → 2013-12 ended
GSU4# STD —
72830-48270-C0 note Armrest Assy, Rear Seat, RH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
72830-48270-C0 note Armrest Assy, Rear Seat, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
72830-48270-E0 note Armrest Assy, Rear Seat, RH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
72830-48270-E0 note Armrest Assy, Rear Seat, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
72995 — Cover, Rear Seat Cushion, RH
79081-48240 Cover, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# ARL —
79081-48240 Cover, Rear Seat Cushion, RH
2010-07 → —
GSU4# —
72996A — Cover, Rear Seatback
72996-12320-B1 note Cover, Rear Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
72996-12320-B1 note Cover, Rear Seatback
2007-05 → 2009-01 ended
GSU4# CHI —
72996-12320-C0 note Cover, Rear Seatback
2007-05 → 2009-01 ended
GSU45 CHI —
72996-12320-C0 note Cover, Rear Seatback
2007-05 → 2010-07 ended
GSU4# ARL —
72996-12320-E0 note Cover, Rear Seatback
2007-05 → 2009-01 ended
GSU4# CHI —
72996-12320-E0 note Cover, Rear Seatback
2007-05 → 2010-07 ended
GSU4# ARL —
72996-12320-B1 note Cover, Rear Seatback
2010-07 → 2013-12 ended
GSU4# ARL —
72996-12320-C0 note Cover, Rear Seatback
2010-07 → 2013-12 ended
GSU45 RUS —
72996-12320-C0 note Cover, Rear Seatback
2010-07 → 2013-12 ended
GSU4# ARL —
72996-12320-E0 note Cover, Rear Seatback
2010-07 → 2013-12 ended
GSU45 RUS —
72996-12320-E0 note Cover, Rear Seatback
2010-07 → 2013-12 ended
GSU4# ARL —
72996B — Cover, Rear Seatback, Inner RH
72996-48060-B0 note Cover, Rear Seatback, Inner RH
2007-05 → 2007-12 ended
GSU4# LIMD,SPO,STD —
72996-48060-C0 note Cover, Rear Seatback, Inner RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72996-48060-C0 note Cover, Rear Seatback, Inner RH
2007-12 → 2009-01 ended
GSU40 CHI —
72996-48060-E0 note Cover, Rear Seatback, Inner RH
2007-05 → 2007-12 ended
GSU4# —
72996-48060 Cover, Rear Seatback, Inner RH
2011-03 → —
GSU4# —
72996-48060-C0 note Cover, Rear Seatback, Inner RH
2010-07 → 2011-03 ended
GSU4# —
79011 — Cover Sub-assy, NO.1 Seat Cushion, RH
79081-48200 Cover Sub-assy, NO.1 Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# ARL —
79081-48200 Cover Sub-assy, NO.1 Seat Cushion, RH
2010-07 → —
GSU4# —
79081 — Cover Sub-assy, NO.8 Seat Cushion, RH
79081-48220 Cover Sub-assy, NO.8 Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# ARL —
79081-48220 Cover Sub-assy, NO.8 Seat Cushion, RH
2010-07 → —
GSU4# —
79081C — Cover, Rear Seat, NO.1
79081-48110 Cover, Rear Seat, NO.1
2007-05 → 2009-01 ended
GSU4# CHI —
79081-48110 note Cover, Rear Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
79081-48110 note Cover, Rear Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
79081-48120 Cover, Rear Seat, NO.1
2007-05 → 2010-07 ended
GSU4# ARL —
79081-48110 Cover, Rear Seat, NO.1
2010-07 → —
GSU45 RUS —
79081-48110 note Cover, Rear Seat, NO.1
2010-07 → —
GSU4# STD ARL —
79081-48120 Cover, Rear Seat, NO.1
2010-07 → —
GSU4# ARL —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
