Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

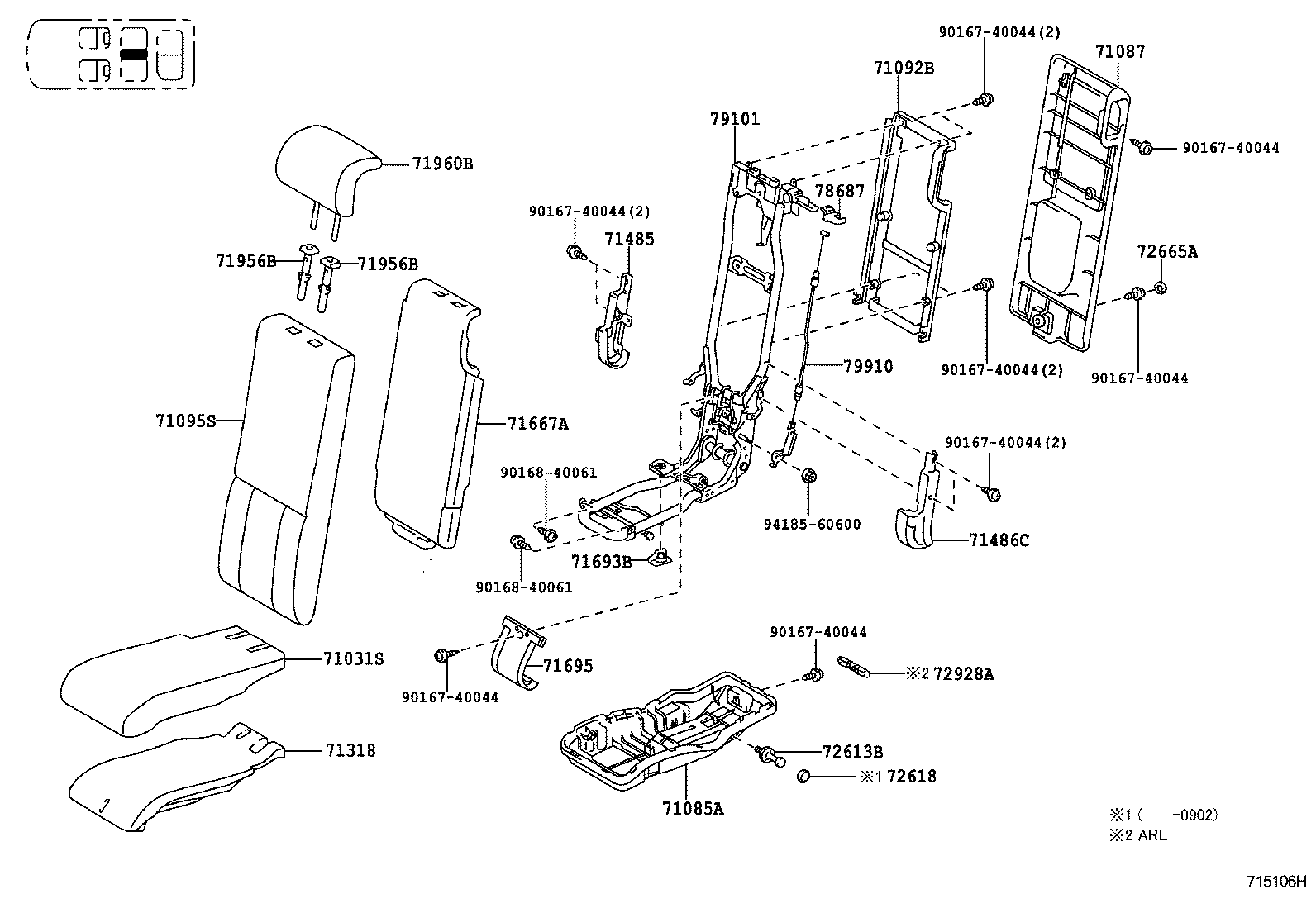

Exploded illustration 715106H 72928A — COVER, REAR SEAT CUSHION UNDER, NO.2 (9 parts) 71095S — COVER SUB-ASSY, CENTER SEATBACK (41 parts) 71667A — PAD, REAR SEATBACK, CENTER A (7 parts) 71031S — COVER SUB-ASSY, CENTER SEAT CUSHION (41 parts) 71318 — PAD, CENTER SEAT CUSHION (7 parts) 71085A — COVER SUB-ASSY, REAR SEAT CUSHION, NO.2 (20 parts) 71693B — CAP, REAR SEAT CUSHION HINGE (20 parts) 71695 — PROTECTOR, REAR SEATBACK (6 parts) 71486C — COVER, REAR SEAT HINGE, LH (6 parts) 71092B — COVER SUB-ASSY, NO.2 SEATBACK (19 parts) 79101 — FRAME SUB-ASSY, NO.1 SEAT CUSHION (7 parts) 78687 — COVER, REAR SEAT LEGREST LOCK (6 parts) 71087 — BOARD SUB-ASSY, REAR SEATBACK (20 parts) 72665A — CAP(FOR REAR SEATBACK LOCK COVER) (6 parts) 79910 — CABLE ASSY, REAR SEAT TURN, NO.1 (5 parts) 72613B — STRIKER, REAR SEAT LOCK (2 parts) 72618 — PROTECTOR, REAR SEATBACK LOCK STRIKER (1 parts) 71956B — SUPPORT, REAR SEAT HEADREST (12 parts) 71956B — SUPPORT, REAR SEAT HEADREST (12 parts) 71960B — HEADREST ASSY, REAR SEAT, CENTER (23 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9418560600 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016840061 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016840061 — not listed in this catalogue 71485 — COVER, REAR SEAT HINGE (6 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue
715106H · 21 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
264 parts on this figure
Part number Description Fitment Price
71031S — Cover Sub-assy, Center Seat Cushion
71097-48050-B0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU40 CHI —
71097-48050-E0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU40 CHI —
71097-48060-B0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48060-B0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48060-B0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48060-C0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48060-C0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48060-C0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48060-E0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48060-E0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48060-E0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48070-B1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 LIMD —
71097-48070-B1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48070-B1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48070-C1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48070-C1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 LIMD —
71097-48070-C1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48070-E1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48070-E1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 LIMD —
71097-48070-E1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
71097-48090-B0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48090-C0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48090-E0 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48100-C1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# GD —
71097-48100-C1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48100-E1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# GD —
71097-48100-E1 note Cover Sub-assy, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71097-48060-B0 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
71097-48060-C0 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU45 STD RUS —
71097-48060-C0 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
71097-48060-E0 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU45 STD RUS —
71097-48060-E0 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
71097-48070-C1 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU45 LIMD —
71097-48070-E1 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU45 LIMD —
71097-48090-B0 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
71097-48090-C0 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
71097-48090-E0 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
71097-48100-C1 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
71097-48100-C1 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# GD —
71097-48100-E1 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# GD —
71097-48100-E1 note Cover Sub-assy, Center Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
71085A — Cover Sub-assy, Rear Seat Cushion, NO.2
79117-48010-B0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2009-01 ended
GSU4# CHI —
79117-48010-B0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
79117-48010-B0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
79117-48010-C0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2009-01 ended
GSU45 CHI —
79117-48010-C0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
79117-48010-C0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
79117-48010-E0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2009-01 ended
GSU4# CHI —
79117-48010-E0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
79117-48010-E0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
79117-48020-B0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
79117-48020-C0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# ARL —
79117-48020-E0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2007-05 → 2010-07 ended
GSU4# ARL —
79117-48010-B0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2010-07 → 2013-12 ended
GSU4# STD ARL —
79117-48010-C0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2010-07 → 2013-12 ended
GSU45 RUS —
79117-48010-C0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2010-07 → 2013-12 ended
GSU4# STD ARL —
79117-48010-E0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2010-07 → 2013-12 ended
GSU45 RUS —
79117-48010-E0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2010-07 → 2013-12 ended
GSU4# STD ARL —
79117-48020-B0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
79117-48020-C0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
79117-48020-E0 note Cover Sub-assy, Rear Seat Cushion, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
71087 — Board Sub-assy, Rear Seatback
71087-48030-B0 note Board Sub-assy, Rear Seatback
2007-05 → 2009-01 ended
GSU4# CHI —
71087-48030-C0 note Board Sub-assy, Rear Seatback
2007-05 → 2009-01 ended
GSU45 CHI —
71087-48030-E0 note Board Sub-assy, Rear Seatback
2007-05 → 2009-01 ended
GSU4# CHI —
71087-48040-B0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71087-48040-C0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# ARL —
71087-48040-E0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# ARL —
71087-48050-B0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71087-48050-B0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71087-48050-C0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71087-48050-C0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71087-48050-E0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71087-48050-E0 note Board Sub-assy, Rear Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71087-48030-C0 note Board Sub-assy, Rear Seatback
2010-07 → 2013-12 ended
GSU45 RUS —
71087-48030-E0 note Board Sub-assy, Rear Seatback
2010-07 → 2013-12 ended
GSU45 RUS —
71087-48040-B0 note Board Sub-assy, Rear Seatback
2010-07 → 2013-12 ended
GSU4# ARL —
71087-48040-C0 note Board Sub-assy, Rear Seatback
2010-07 → 2013-12 ended
GSU4# ARL —
71087-48040-E0 note Board Sub-assy, Rear Seatback
2010-07 → 2013-12 ended
GSU4# ARL —
71087-48050-B0 note Board Sub-assy, Rear Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71087-48050-C0 note Board Sub-assy, Rear Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71087-48050-E0 note Board Sub-assy, Rear Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71092B — Cover Sub-assy, NO.2 Seatback
71757-48020-B0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2007-12 ended
GSU4# STD ARL —
71757-48020-C0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# ARL —
71757-48020-E0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2007-12 ended
GSU4# ARL —
71758-48010-B0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2007-12 ended
GSU4# STD ARL —
71758-48010-B0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2007-12 ended
GSU4# STD ARL —
71758-48010-B0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2007-12 ended
GSU4# CHI —
71758-48010-C0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2009-01 ended
GSU45 CHI —
71758-48010-C0 note Cover Sub-assy, NO.2 Seatback
2007-12 → 2009-01 ended
GSU40 CHI —
71758-48010-C0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71758-48010-C0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71758-48010-E0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2007-12 ended
GSU4# CHI —
71758-48010-E0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2007-12 ended
GSU4# STD ARL —
71758-48010-E0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2007-12 ended
GSU4# STD ARL —
71757-48020 Cover Sub-assy, NO.2 Seatback
2013-01 → —
GSU4# ARL —
71757-48020-C0 note Cover Sub-assy, NO.2 Seatback
2010-07 → 2013-01 ended
GSU4# ARL —
71758-48010 Cover Sub-assy, NO.2 Seatback
2013-01 → —
GSU45 RUS —
71758-48010 note Cover Sub-assy, NO.2 Seatback
2013-01 → —
GSU4# STD ARL —
71758-48010-C0 note Cover Sub-assy, NO.2 Seatback
2010-07 → 2013-01 ended
GSU45 RUS —
71758-48010-C0 note Cover Sub-assy, NO.2 Seatback
2010-07 → 2013-01 ended
GSU4# STD ARL —
71095S — Cover Sub-assy, Center Seatback
71095-48010-B0 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU40 CHI —
71095-48010-E0 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU40 CHI —
71095-48020-B0 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48020-B0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48020-B0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48020-C0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48020-C0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48020-C0 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48020-E0 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48020-E0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48020-E0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48030-B1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48030-B1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 LIMD —
71095-48030-B1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48030-C1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 LIMD —
71095-48030-C1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48030-C1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48030-E1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 LIMD —
71095-48030-E1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48030-E1 note Cover Sub-assy, Center Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
71095-48050-B0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48050-C0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48050-E0 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48060-C1 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# GD —
71095-48060-C1 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48060-E1 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# GD —
71095-48060-E1 note Cover Sub-assy, Center Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
71095-48020-B0 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71095-48020-C0 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU45 STD RUS —
71095-48020-C0 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71095-48020-E0 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU45 STD RUS —
71095-48020-E0 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71095-48030-C1 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU45 LIMD —
71095-48030-E1 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU45 LIMD —
71095-48050-B0 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71095-48050-C0 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71095-48050-E0 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71095-48060-C1 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71095-48060-C1 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# GD —
71095-48060-E1 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# GD —
71095-48060-E1 note Cover Sub-assy, Center Seatback
2010-07 → 2013-12 ended
GSU4# STD ARL —
71318 — Pad, Center Seat Cushion
71316-48010 Pad, Center Seat Cushion
2007-05 → 2009-01 ended
GSU4# CHI —
71316-48010 note Pad, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71316-48010 note Pad, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
71316-48020 Pad, Center Seat Cushion
2007-05 → 2010-07 ended
GSU4# ARL —
71316-48010 note Pad, Center Seat Cushion
2010-07 → —
GSU4# STD ARL —
71316-48010 Pad, Center Seat Cushion
2010-07 → —
GSU45 RUS —
71316-48020 Pad, Center Seat Cushion
2010-07 → —
GSU4# ARL —
71485 — Cover, Rear Seat Hinge
71485-48010-B0 note Cover, Rear Seat Hinge
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71485-48010-C0 note Cover, Rear Seat Hinge
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71485-48010-E0 note Cover, Rear Seat Hinge
2007-05 → 2010-07 ended
GSU4# —
71485-48010-B0 note Cover, Rear Seat Hinge
2010-07 → 2013-12 ended
GSU4# ARL —
71485-48010-C0 note Cover, Rear Seat Hinge
2010-07 → 2013-12 ended
GSU4# —
71485-48010-E0 note Cover, Rear Seat Hinge
2010-07 → 2013-12 ended
GSU4# —
71486C — Cover, Rear Seat Hinge, LH
71486-48010-B0 note Cover, Rear Seat Hinge, LH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71486-48010-C0 note Cover, Rear Seat Hinge, LH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71486-48010-E0 note Cover, Rear Seat Hinge, LH
2007-05 → 2010-07 ended
GSU4# —
71486-48010-B0 note Cover, Rear Seat Hinge, LH
2010-07 → 2013-12 ended
GSU4# ARL —
71486-48010-C0 note Cover, Rear Seat Hinge, LH
2010-07 → 2013-12 ended
GSU4# —
71486-48010-E0 note Cover, Rear Seat Hinge, LH
2010-07 → 2013-12 ended
GSU4# —
71667A — Pad, Rear Seatback, Center A
71667-48040 Pad, Rear Seatback, Center A
2007-05 → 2010-07 ended
GSU4# ARL —
71668-48040 Pad, Rear Seatback, Center A
2007-05 → 2009-01 ended
GSU4# CHI —
71668-48040 note Pad, Rear Seatback, Center A
2007-05 → 2010-07 ended
GSU4# STD ARL —
71668-48040 note Pad, Rear Seatback, Center A
2007-05 → 2010-07 ended
GSU4# STD ARL —
71667-48040 Pad, Rear Seatback, Center A
2010-07 → —
GSU4# ARL —
71668-48040 Pad, Rear Seatback, Center A
2010-07 → —
GSU45 RUS —
71668-48040 note Pad, Rear Seatback, Center A
2010-07 → —
GSU4# STD ARL —
71693B — Cap, Rear Seat Cushion Hinge
71845-48030-B0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# STD ARL —
71845-48030-C0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# ARL —
71845-48030-E0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# ARL —
71846-48030-B0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2009-01 ended
GSU4# CHI —
71846-48030-B0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# STD ARL —
71846-48030-B0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# STD ARL —
71846-48030-C0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2009-01 ended
GSU45 CHI —
71846-48030-C0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# STD ARL —
71846-48030-C0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# STD ARL —
71846-48030-E0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# STD ARL —
71846-48030-E0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2010-07 ended
GSU4# STD ARL —
71846-48030-E0 note Cap, Rear Seat Cushion Hinge
2007-05 → 2009-01 ended
GSU4# CHI —
71845-48030-B0 note Cap, Rear Seat Cushion Hinge
2010-07 → 2013-12 ended
GSU4# ARL —
71845-48030-C0 note Cap, Rear Seat Cushion Hinge
2010-07 → 2013-12 ended
GSU4# ARL —
71845-48030-E0 note Cap, Rear Seat Cushion Hinge
2010-07 → 2013-12 ended
GSU4# ARL —
71846-48030-B0 note Cap, Rear Seat Cushion Hinge
2010-07 → 2013-12 ended
GSU4# STD ARL —
71846-48030-C0 note Cap, Rear Seat Cushion Hinge
2010-07 → 2013-12 ended
GSU45 RUS —
71846-48030-C0 note Cap, Rear Seat Cushion Hinge
2010-07 → 2013-12 ended
GSU4# STD ARL —
71846-48030-E0 note Cap, Rear Seat Cushion Hinge
2010-07 → 2013-12 ended
GSU4# STD ARL —
71846-48030-E0 note Cap, Rear Seat Cushion Hinge
2010-07 → 2013-12 ended
GSU45 RUS —
71695 — Protector, Rear Seatback
71695-48010-B0 note Protector, Rear Seatback
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71695-48010-C0 note Protector, Rear Seatback
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71695-48010-E0 note Protector, Rear Seatback
2007-05 → 2010-07 ended
GSU4# —
71695-48010-B0 note Protector, Rear Seatback
2010-07 → 2013-12 ended
GSU4# ARL —
71695-48010-C0 note Protector, Rear Seatback
2010-07 → 2013-12 ended
GSU4# —
71695-48010-E0 note Protector, Rear Seatback
2010-07 → 2013-12 ended
GSU4# —
71956B — Support, Rear Seat Headrest
71930-44020-B2 note Support, Rear Seat Headrest
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71930-44020-C0 note Support, Rear Seat Headrest
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71930-44020-E2 note Support, Rear Seat Headrest
2007-05 → 2010-07 ended
GSU4# —
71931-47010-C0 note Support, Rear Seat Headrest
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71931-47010-E8 note Support, Rear Seat Headrest
2007-05 → 2010-07 ended
GSU4# —
71931-47010-P4 note Support, Rear Seat Headrest
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71930-44020-B2 note Support, Rear Seat Headrest
2010-07 → 2013-12 ended
GSU4# ARL —
71930-44020-C0 note Support, Rear Seat Headrest
2010-07 → 2013-12 ended
GSU4# —
71930-44020-E2 note Support, Rear Seat Headrest
2010-07 → 2013-12 ended
GSU4# —
71931-47010-C0 note Support, Rear Seat Headrest
2010-07 → 2013-12 ended
GSU4# —
71931-47010-E8 note Support, Rear Seat Headrest
2010-07 → 2013-12 ended
GSU4# —
71931-47010-P4 note Support, Rear Seat Headrest
2010-07 → 2013-12 ended
GSU4# ARL —
71960B — Headrest Assy, Rear Seat, Center
71960-48300-B0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU40 CHI —
71960-48300-E0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU40 CHI —
71960-48310-B0 note Headrest Assy, Rear Seat, Center
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71960-48310-C0 note Headrest Assy, Rear Seat, Center
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71960-48310-E0 note Headrest Assy, Rear Seat, Center
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71960-48320-B0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU45 SPO —
71960-48320-B0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU45 SPO —
71960-48320-B0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU45 LIMD —
71960-48320-C0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU45 SPO —
71960-48320-C0 note Headrest Assy, Rear Seat, Center
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
71960-48320-C0 note Headrest Assy, Rear Seat, Center
2007-05 → 2010-07 ended
GSU4# STD ARL —
71960-48320-C0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU45 SPO —
71960-48320-E0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU45 SPO —
71960-48320-E0 note Headrest Assy, Rear Seat, Center
2007-05 → 2009-01 ended
GSU45 SPO —
71960-48320-E0 note Headrest Assy, Rear Seat, Center
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
71960-48320-E0 note Headrest Assy, Rear Seat, Center
2007-05 → 2010-07 ended
GSU4# STD ARL —
71960-48310-B1 note Headrest Assy, Rear Seat, Center
2010-07 → 2013-12 ended
GSU4# STD ARL —
71960-48310-C1 note Headrest Assy, Rear Seat, Center
2010-07 → 2013-12 ended
GSU4# STD —
71960-48310-E1 note Headrest Assy, Rear Seat, Center
2010-07 → 2013-12 ended
GSU4# STD —
71960-48320-C1 note Headrest Assy, Rear Seat, Center
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
71960-48320-C1 note Headrest Assy, Rear Seat, Center
2010-07 → 2013-12 ended
GSU4# STD ARL —
71960-48320-E2 note Headrest Assy, Rear Seat, Center
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
71960-48320-E2 note Headrest Assy, Rear Seat, Center
2010-07 → 2013-12 ended
GSU4# STD ARL —
72613B — Striker, Rear Seat Lock
72613-48010 Striker, Rear Seat Lock
2007-05 → 2010-07 ended
GSU4# —
72613-48010 Striker, Rear Seat Lock
2010-07 → —
GSU4# —
72618 — Protector, Rear Seatback Lock Striker
72618-48010 Protector, Rear Seatback Lock Striker
2007-05 → 2009-02 ended
GSU4# —
72665A — Cap(FOR REAR SEATBACK LOCK COVER)
71848-48020-B0 note Cap(FOR REAR SEATBACK LOCK COVER)
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71848-48020-C0 note Cap(FOR REAR SEATBACK LOCK COVER)
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71848-48020-E0 note Cap(FOR REAR SEATBACK LOCK COVER)
2007-05 → 2010-07 ended
GSU4# —
71848-48020-B0 note Cap(FOR REAR SEATBACK LOCK COVER)
2010-07 → 2013-12 ended
GSU4# ARL —
71848-48020-C0 note Cap(FOR REAR SEATBACK LOCK COVER)
2010-07 → 2013-12 ended
GSU4# —
71848-48020-E0 note Cap(FOR REAR SEATBACK LOCK COVER)
2010-07 → 2013-12 ended
GSU4# —
72928A — Cover, Rear Seat Cushion Under, NO.2
72927-48010-B0 note Cover, Rear Seat Cushion Under, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72927-48010-B0 note Cover, Rear Seat Cushion Under, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72927-48010-C0 note Cover, Rear Seat Cushion Under, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72927-48010-C0 note Cover, Rear Seat Cushion Under, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72927-48010-E0 note Cover, Rear Seat Cushion Under, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72927-48010-E0 note Cover, Rear Seat Cushion Under, NO.2
2007-05 → 2010-07 ended
GSU4# STD ARL —
72927-48010-B0 note Cover, Rear Seat Cushion Under, NO.2
2010-07 → 2013-12 ended
GSU4# STD ARL —
72927-48010-C0 note Cover, Rear Seat Cushion Under, NO.2
2010-07 → 2013-12 ended
GSU4# STD ARL —
72927-48010-E0 note Cover, Rear Seat Cushion Under, NO.2
2010-07 → 2013-12 ended
GSU4# STD ARL —
78687 — Cover, Rear Seat Legrest Lock
78687-48010-B0 note Cover, Rear Seat Legrest Lock
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
78687-48010-C0 note Cover, Rear Seat Legrest Lock
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
78687-48010-E0 note Cover, Rear Seat Legrest Lock
2007-05 → 2010-07 ended
GSU4# —
78687-48010-B0 note Cover, Rear Seat Legrest Lock
2010-07 → 2013-12 ended
GSU4# ARL —
78687-48010-C0 note Cover, Rear Seat Legrest Lock
2010-07 → 2013-12 ended
GSU4# —
78687-48010-E0 note Cover, Rear Seat Legrest Lock
2010-07 → 2013-12 ended
GSU4# —
79101 — Frame Sub-assy, NO.1 Seat Cushion
79101-48010 Frame Sub-assy, NO.1 Seat Cushion
2007-05 → 2010-07 ended
GSU4# ARL —
79102-48010 Frame Sub-assy, NO.1 Seat Cushion
2007-05 → 2009-01 ended
GSU4# CHI —
79102-48020 note Frame Sub-assy, NO.1 Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
79102-48020 note Frame Sub-assy, NO.1 Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
79101-48010 Frame Sub-assy, NO.1 Seat Cushion
2010-07 → —
GSU4# ARL —
79102-48010 Frame Sub-assy, NO.1 Seat Cushion
2010-07 → —
GSU45 RUS —
79102-48020 note Frame Sub-assy, NO.1 Seat Cushion
2010-07 → —
GSU4# STD ARL —
79910 — Cable Assy, Rear Seat Turn, NO.1
79910-48010 Cable Assy, Rear Seat Turn, NO.1
2007-05 → 2009-01 ended
GSU4# CHI —
79910-48010 note Cable Assy, Rear Seat Turn, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
79910-48010 note Cable Assy, Rear Seat Turn, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
79910-48010 Cable Assy, Rear Seat Turn, NO.1
2010-07 → —
GSU45 RUS —
79910-48010 note Cable Assy, Rear Seat Turn, NO.1
2010-07 → —
GSU4# STD ARL —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
