Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

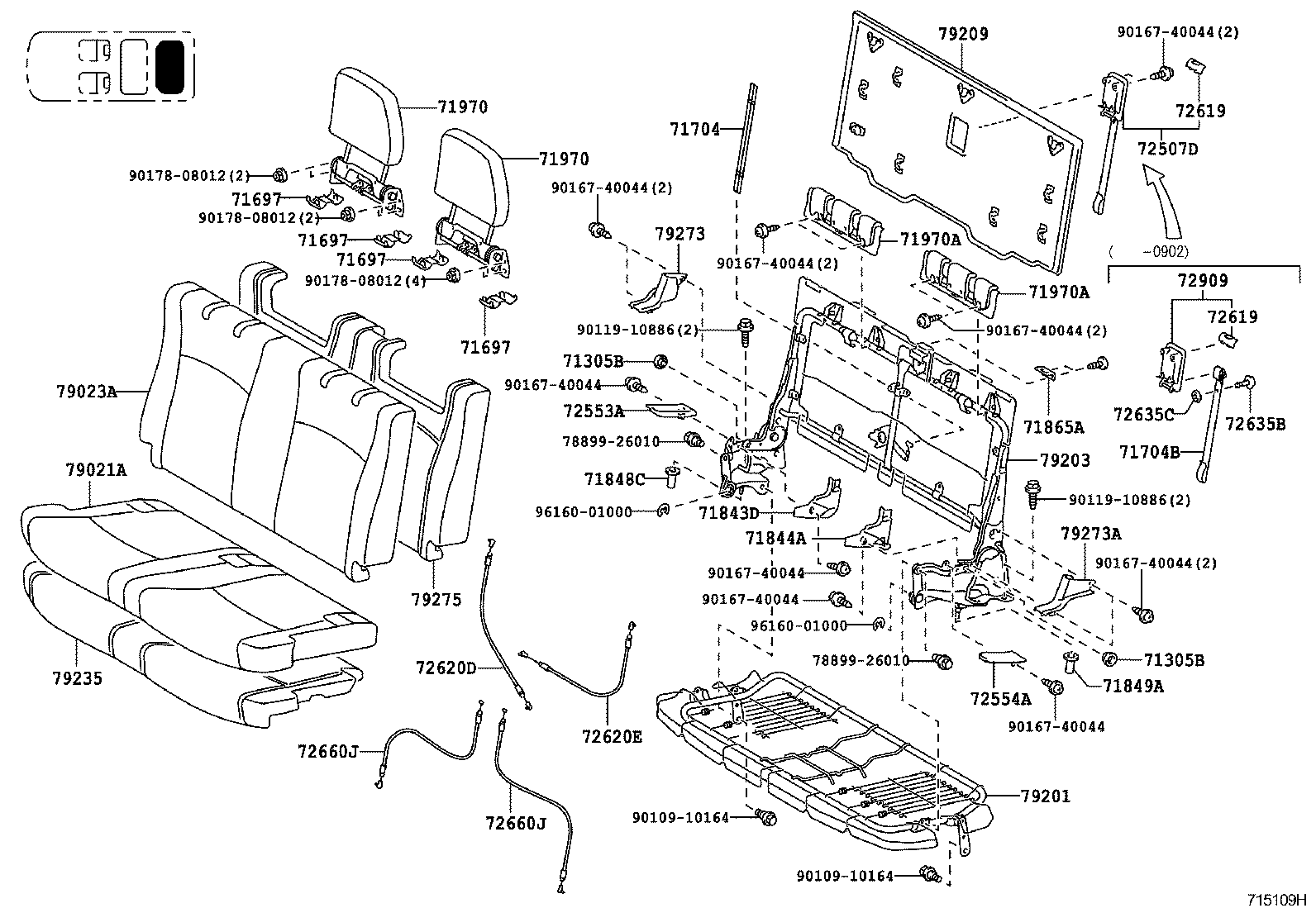

Exploded illustration 715109H 7889926010 — not listed in this catalogue 7889926010 — not listed in this catalogue 79021A — COVER SUB-ASSY, NO.2 SEAT CUSHION (13 parts) 71970 — HEADREST ASSY, REAR SEAT (20 parts) 71970 — HEADREST ASSY, REAR SEAT (20 parts) 79275 — PAD, NO.2 SEATBACK (1 parts) 79023A — COVER SUB-ASSY, NO.2 SEATBACK (13 parts) 79209 — BOARD SUB-ASSY, NO.2 SEATBACK (3 parts) 71843D — COVER, REAR SEAT RECLINING, NO.2 RH (5 parts) 71844A — COVER, REAR SEAT RECLINING, NO.2 LH (5 parts) 72553A — PROTECTOR, RECLINING COVER, RH (6 parts) 79273 — COVER, NO.2 SEAT HINGE (6 parts) 79273A — COVER, NO.2 SEAT HINGE, NO.2 (6 parts) 79203 — FRAME SUB-ASSY, NO.2 SEATBACK (1 parts) 72554A — PROTECTOR, RECLINING COVER, LH (6 parts) 79201 — FRAME SUB-ASSY, NO.2 SEAT CUSHION (1 parts) 72620D — CABLE ASSY, REAR NO.1 SEAT LOCK (1 parts) 72620E — CABLE ASSY, REAR NO.1 SEAT LOCK (1 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9010910164 — not listed in this catalogue 9010910164 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9011910886 — not listed in this catalogue 9011910886 — not listed in this catalogue 9016740044 — not listed in this catalogue 72660J — CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK (2 parts) 72660J — CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK (2 parts) 79235 — PAD, NO.2 SEAT CUSHION (1 parts) 71697 — PROTECTOR, REAR SEATBACK EDGE (2 parts) 71697 — PROTECTOR, REAR SEATBACK EDGE (2 parts) 71697 — PROTECTOR, REAR SEATBACK EDGE (2 parts) 71697 — PROTECTOR, REAR SEATBACK EDGE (2 parts) 71848C — CAP, SEAT ADJUSTER COVER, RH (2 parts) 71849A — CAP, SEAT ADJUSTER COVER, LH (2 parts) 71865A — BEZEL, REAR SEAT COVER, NO.1 (6 parts) 9616001000 — not listed in this catalogue 71704 — BAND SUB-ASSY, REAR SIDE SEAT (6 parts) 71305B — SPACER, REAR SEATBACK HINGE (1 parts) 71305B — SPACER, REAR SEATBACK HINGE (1 parts) 9616001000 — not listed in this catalogue 9017808012 — not listed in this catalogue 9017808012 — not listed in this catalogue 9017808012 — not listed in this catalogue 72507D — HANDLE SUB-ASSY, NO.2 SEAT RECLINING RELEASE (3 parts) 72619 — COVER, REAR SEATBACK LOCK STRIKER (3 parts) 72619 — COVER, REAR SEATBACK LOCK STRIKER (3 parts) 72909 — HANDLE 3RD SEAT (3 parts) 72635B — HOOK, REAR SEATBACK LOCK(MALE) (18 parts) 72635C — HOOK, REAR SEATBACK LOCK(FEMALE) (18 parts) 71704B — BAND SUB-ASSY, REAR SIDE SEAT, NO.2 (6 parts) 9016740044 — not listed in this catalogue 71970A — COVER, REAR SEAT HEADREST (2 parts) 71970A — COVER, REAR SEAT HEADREST (2 parts)
715109H · 38 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
163 parts on this figure
Part number Description Fitment Price
71305B — Spacer, Rear Seatback Hinge
72749-48020 Spacer, Rear Seatback Hinge
2007-05 → 2010-07 ended
GSU4# —
71697 — Protector, Rear Seatback Edge
71697-48030 Protector, Rear Seatback Edge
2007-05 → 2010-07 ended
GSU4# —
71697-48030 Protector, Rear Seatback Edge
2010-07 → —
GSU4# —
71704 — Band Sub-assy, Rear Side Seat
71704-48020-B0 note Band Sub-assy, Rear Side Seat
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71704-48020-C0 note Band Sub-assy, Rear Side Seat
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71704-48020-E0 note Band Sub-assy, Rear Side Seat
2007-05 → 2010-07 ended
GSU4# —
71704-48020-A0 note Band Sub-assy, Rear Side Seat
2010-07 → 2013-12 ended
GSU4# —
71704-48020-B1 note Band Sub-assy, Rear Side Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71704-48020-C2 note Band Sub-assy, Rear Side Seat
2010-07 → 2013-12 ended
GSU4# —
71704B — Band Sub-assy, Rear Side Seat, NO.2
71704-48030-B0 note Band Sub-assy, Rear Side Seat, NO.2
2007-05 → 2009-02 ended
GSU4# LIMD,SPO,STD —
71704-48030-C0 note Band Sub-assy, Rear Side Seat, NO.2
2007-05 → 2009-02 ended
GSU45;GSU40 ARL —
71704-48030-E0 note Band Sub-assy, Rear Side Seat, NO.2
2007-05 → 2009-02 ended
GSU4# —
71704-48040-A0 note Band Sub-assy, Rear Side Seat, NO.2
2010-07 → 2013-12 ended
GSU4# —
71704-48040-B0 note Band Sub-assy, Rear Side Seat, NO.2
2010-07 → 2013-12 ended
GSU4# STD ARL —
71704-48040-C0 note Band Sub-assy, Rear Side Seat, NO.2
2010-07 → 2013-12 ended
GSU4# —
71843D — Cover, Rear Seat Reclining, NO.2 RH
71843-48020-C2 note Cover, Rear Seat Reclining, NO.2 RH
2007-05 → 2009-01 ended
GSU40 CHI —
71843-48020-C2 note Cover, Rear Seat Reclining, NO.2 RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71843-48040-B0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# ARL —
71843-48040-C0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# —
71843-48040-E0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# —
71844A — Cover, Rear Seat Reclining, NO.2 LH
71844-48020-C2 note Cover, Rear Seat Reclining, NO.2 LH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71844-48020-C2 note Cover, Rear Seat Reclining, NO.2 LH
2007-05 → 2009-01 ended
GSU40 CHI —
71844-48030-B0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# ARL —
71844-48030-C0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# —
71844-48030-E0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# —
71848C — Cap, Seat Adjuster Cover, RH
71848-33010 Cap, Seat Adjuster Cover, RH
2007-05 → 2010-07 ended
GSU4# —
71848-33010 Cap, Seat Adjuster Cover, RH
2010-07 → —
GSU4# —
71849A — Cap, Seat Adjuster Cover, LH
71848-33010 Cap, Seat Adjuster Cover, LH
2007-05 → 2010-07 ended
GSU4# —
71848-33010 Cap, Seat Adjuster Cover, LH
2010-07 → —
GSU4# —
71865A — Bezel, Rear Seat Cover, NO.1
71865-48030-B0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71865-48030-C0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71865-48030-E0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU4# —
71865-48030-B0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# STD ARL —
71865-48030-C0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# —
71865-48030-E0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# —
71970 — Headrest Assy, Rear Seat
71970-48030-B0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU40 CHI —
71970-48030-E0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU40 CHI —
71970-48040-B0 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71970-48040-C0 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71970-48040-E0 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71970-48050-B1 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71970-48050-B1 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 LIMD —
71970-48050-C1 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71970-48050-C1 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
71970-48050-C1 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU4# STD ARL —
71970-48050-E1 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71970-48050-E1 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU4# STD ARL —
71970-48050-E1 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
71970-48070-B0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71970-48070-C0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD —
71970-48070-E0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD —
71970-48080-C0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
71970-48080-C0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71970-48080-E0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
71970-48080-E0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71970A — Cover, Rear Seat Headrest
72985-48010 Cover, Rear Seat Headrest
2007-05 → 2010-07 ended
GSU4# —
72985-48030 Cover, Rear Seat Headrest
2010-07 → —
GSU4# —
72507D — Handle Sub-assy, NO.2 Seat Reclining Release
72507-48010-B1 note Handle Sub-assy, NO.2 Seat Reclining Release
2009-02 → 2010-07 ended
GSU4# STD —
72507-48010-C1 note Handle Sub-assy, NO.2 Seat Reclining Release
2009-02 → 2010-07 ended
GSU4# —
72507-48010-E1 note Handle Sub-assy, NO.2 Seat Reclining Release
2009-02 → 2010-07 ended
GSU4# —
72553A — Protector, Reclining Cover, RH
72553-48090-B3 note Protector, Reclining Cover, RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72553-48090-C2 note Protector, Reclining Cover, RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72553-48090-E3 note Protector, Reclining Cover, RH
2007-05 → 2010-07 ended
GSU4# —
72553-48090-B3 note Protector, Reclining Cover, RH
2010-07 → 2013-12 ended
GSU4# ARL —
72553-48090-C2 note Protector, Reclining Cover, RH
2010-07 → 2013-12 ended
GSU4# —
72553-48090-E3 note Protector, Reclining Cover, RH
2010-07 → 2013-12 ended
GSU4# —
72554A — Protector, Reclining Cover, LH
72554-48080-B3 note Protector, Reclining Cover, LH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72554-48080-C2 note Protector, Reclining Cover, LH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72554-48080-E3 note Protector, Reclining Cover, LH
2007-05 → 2010-07 ended
GSU4# —
72554-48080-B3 note Protector, Reclining Cover, LH
2010-07 → 2013-12 ended
GSU4# ARL —
72554-48080-C2 note Protector, Reclining Cover, LH
2010-07 → 2013-12 ended
GSU4# —
72554-48080-E3 note Protector, Reclining Cover, LH
2010-07 → 2013-12 ended
GSU4# —
72619 — Cover, Rear Seatback Lock Striker
72615-48100-B0 note Cover, Rear Seatback Lock Striker
2007-05 → 2010-07 ended
GSU4# STD ARL —
72615-48100-C0 note Cover, Rear Seatback Lock Striker
2007-05 → 2010-07 ended
GSU4# ARL —
72615-48100-E0 note Cover, Rear Seatback Lock Striker
2007-05 → 2010-07 ended
GSU4# ARL —
72620D — Cable Assy, Rear NO.1 Seat Lock
72620-48060 Cable Assy, Rear NO.1 Seat Lock
2007-05 → 2010-07 ended
GSU4# —
72620E — Cable Assy, Rear NO.1 Seat Lock
72620-48070 Cable Assy, Rear NO.1 Seat Lock
2007-05 → 2010-07 ended
GSU4# —
72635B — Hook, Rear Seatback Lock(MALE)
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2009-02 → 2010-07 ended
GSU4# STD —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-02 ended
GSU4# LIMD,SPO,STD —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2009-02 → 2010-07 ended
GSU4# —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-02 ended
GSU45;GSU40 ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-02 ended
GSU4# —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2009-02 → 2010-07 ended
GSU4# —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2010-07 → 2013-12 ended
GSU4# ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2010-07 → 2013-12 ended
GSU4# —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2010-07 → 2013-12 ended
GSU4# —
72635C — Hook, Rear Seatback Lock(FEMALE)
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2009-02 → 2010-07 ended
GSU4# STD —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-02 ended
GSU4# LIMD,SPO,STD —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-02 ended
GSU45;GSU40 ARL —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2009-02 → 2010-07 ended
GSU4# —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2009-02 → 2010-07 ended
GSU4# —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-02 ended
GSU4# —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2010-07 → 2013-12 ended
GSU4# ARL —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2010-07 → 2013-12 ended
GSU4# —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2010-07 → 2013-12 ended
GSU4# —
72660J — Cable Assy, Rear NO.2 Seat Cushion Lock
72660-48010 Cable Assy, Rear NO.2 Seat Cushion Lock
2007-05 → 2010-07 ended
GSU4# —
72660-48020 Cable Assy, Rear NO.2 Seat Cushion Lock
2010-07 → —
GSU4# —
72909 — Handle 3RD Seat
72909-48010-B0 note Handle 3RD Seat
2007-05 → 2009-02 ended
GSU4# LIMD,SPO,STD —
72909-48010-C0 note Handle 3RD Seat
2007-05 → 2009-02 ended
GSU45;GSU40 ARL —
72909-48010-E3 note Handle 3RD Seat
2007-05 → 2009-02 ended
GSU4# —
79021A — Cover Sub-assy, NO.2 Seat Cushion
79021-48030-B0 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2009-01 ended
GSU40 CHI —
79021-48030-E0 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2009-01 ended
GSU40 CHI —
79021-48040-B0 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
79021-48040-C0 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
79021-48040-E0 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
79021-48050-B1 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
79021-48050-B1 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2009-01 ended
GSU45 LIMD —
79021-48050-C1 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
79021-48050-C1 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
79021-48050-C1 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
79021-48050-E1 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2009-01 ended
GSU45 SPO —
79021-48050-E1 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
79021-48050-E1 note Cover Sub-assy, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU4# STD ARL —
79023A — Cover Sub-assy, NO.2 Seatback
79023-48030-B0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2009-01 ended
GSU40 CHI —
79023-48030-E0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2009-01 ended
GSU40 CHI —
79023-48040-B0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
79023-48040-C0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
79023-48040-E0 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
79023-48050-B1 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2009-01 ended
GSU45 LIMD —
79023-48050-B1 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
79023-48050-C1 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
79023-48050-C1 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
79023-48050-C1 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
79023-48050-E1 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# STD ARL —
79023-48050-E1 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
79023-48050-E1 note Cover Sub-assy, NO.2 Seatback
2007-05 → 2009-01 ended
GSU45 SPO —
79201 — Frame Sub-assy, NO.2 Seat Cushion
79201-48020 Frame Sub-assy, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU4# —
79203 — Frame Sub-assy, NO.2 Seatback
79203-48020 Frame Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# —
79209 — Board Sub-assy, NO.2 Seatback
79207-48020-B0 note Board Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
79207-48020-C0 note Board Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
79207-48020-E0 note Board Sub-assy, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# —
79235 — Pad, NO.2 Seat Cushion
79235-48020 Pad, NO.2 Seat Cushion
2007-05 → 2010-07 ended
GSU4# —
79273 — Cover, NO.2 Seat Hinge
79273-48010-B3 note Cover, NO.2 Seat Hinge
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
79273-48010-C2 note Cover, NO.2 Seat Hinge
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
79273-48010-E3 note Cover, NO.2 Seat Hinge
2007-05 → 2010-07 ended
GSU4# —
79273-48010-B3 note Cover, NO.2 Seat Hinge
2010-07 → 2013-12 ended
GSU4# ARL —
79273-48010-C2 note Cover, NO.2 Seat Hinge
2010-07 → 2013-12 ended
GSU4# —
79273-48010-E3 note Cover, NO.2 Seat Hinge
2010-07 → 2013-12 ended
GSU4# —
79273A — Cover, NO.2 Seat Hinge, NO.2
79273-48020-B3 note Cover, NO.2 Seat Hinge, NO.2
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
79273-48020-C2 note Cover, NO.2 Seat Hinge, NO.2
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
79273-48020-E3 note Cover, NO.2 Seat Hinge, NO.2
2007-05 → 2010-07 ended
GSU4# —
79273-48020-B3 note Cover, NO.2 Seat Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
79273-48020-C2 note Cover, NO.2 Seat Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# —
79273-48020-E3 note Cover, NO.2 Seat Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# —
79275 — Pad, NO.2 Seatback
79275-48020 Pad, NO.2 Seatback
2007-05 → 2010-07 ended
GSU4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
