Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

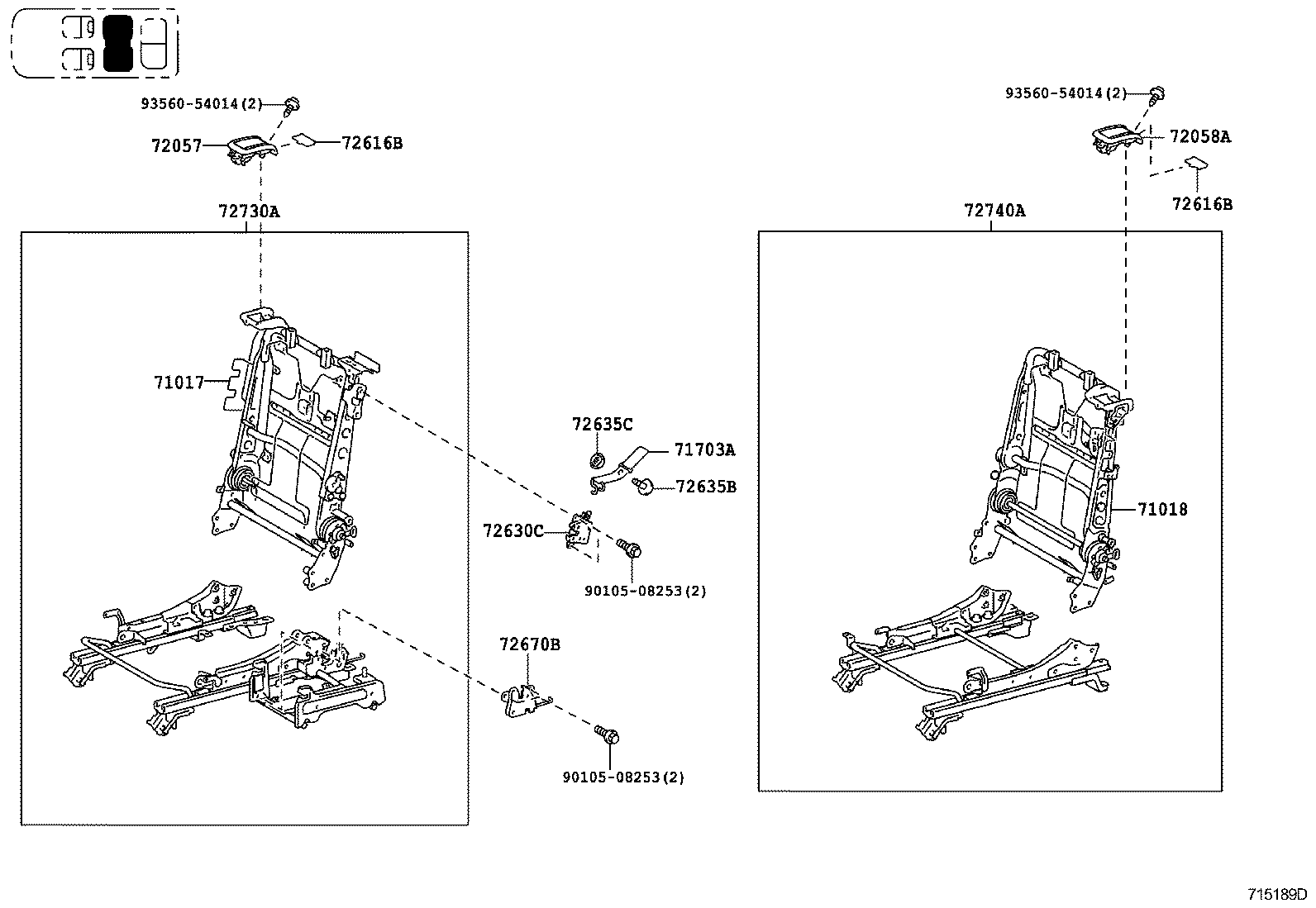

Exploded illustration 715189D 72730A — ADJUSTER ASSY, REAR SEAT RECLINING, RH (8 parts) 72740A — ADJUSTER ASSY, REAR SEAT RECLINING, LH (7 parts) 71017 — FRAME SUB-ASSY, REAR SEATBACK, RH (8 parts) 9356054014 — not listed in this catalogue 71018 — FRAME SUB-ASSY, REAR SEATBACK, LH (7 parts) 72630C — LOCK ASSY, REAR SEATBACK, RH (2 parts) 9010508253 — not listed in this catalogue 9010508253 — not listed in this catalogue 72057 — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH (6 parts) 9356054014 — not listed in this catalogue 72616B — COVER, REAR SEAT LOCK STRIKER (6 parts) 72616B — COVER, REAR SEAT LOCK STRIKER (6 parts) 72058A — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH (6 parts) 72670B — LOCK ASSY, REAR SEAT CUSHION, RH (2 parts) 72635B — HOOK, REAR SEATBACK LOCK(MALE) (18 parts) 72635C — HOOK, REAR SEATBACK LOCK(FEMALE) (18 parts) 71703A — BAND SUB-ASSY, REAR SIDE SEAT, NO.1 (20 parts)
715189D · 13 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
108 parts on this figure
Part number Description Fitment Price
71017 — Frame Sub-assy, Rear Seatback, RH
71017-48150 note Frame Sub-assy, Rear Seatback, RH
2007-05 → 2009-01 ended
GSU45 SPO —
71017-48150 note Frame Sub-assy, Rear Seatback, RH
2007-05 → 2010-07 ended
GSU4# SPO,STD —
71017-48150 note Frame Sub-assy, Rear Seatback, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71017-48160 Frame Sub-assy, Rear Seatback, RH
2007-05 → 2010-07 ended
GSU4# ARL —
71017-48170 Frame Sub-assy, Rear Seatback, RH
2007-05 → 2009-01 ended
GSU4# CHI —
71017-48150 note Frame Sub-assy, Rear Seatback, RH
2010-07 → —
GSU4# STD —
71017-48160 Frame Sub-assy, Rear Seatback, RH
2010-07 → —
GSU4# ARL —
71017-48170 Frame Sub-assy, Rear Seatback, RH
2010-07 → —
GSU45 RUS —
71018 — Frame Sub-assy, Rear Seatback, LH
71018-48110 Frame Sub-assy, Rear Seatback, LH
2007-05 → 2009-01 ended
GSU4# CHI —
71018-48110 note Frame Sub-assy, Rear Seatback, LH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71018-48110 note Frame Sub-assy, Rear Seatback, LH
2007-05 → 2010-07 ended
GSU4# STD ARL —
71018-48130 Frame Sub-assy, Rear Seatback, LH
2007-05 → 2010-07 ended
GSU4# ARL —
71018-48110 Frame Sub-assy, Rear Seatback, LH
2010-07 → —
GSU45 RUS —
71018-48110 note Frame Sub-assy, Rear Seatback, LH
2010-07 → —
GSU4# STD ARL —
71018-48130 Frame Sub-assy, Rear Seatback, LH
2010-07 → —
GSU4# ARL —
71703A — Band Sub-assy, Rear Side Seat, NO.1
71703-48010-A0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
71703-48010-A0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
71703-48010-A0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2009-01 ended
GSU4# CHI —
71703-48010-B0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2009-01 ended
GSU4# CHI —
71703-48010-B0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
71703-48010-B0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
71703-48010-C0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2009-01 ended
GSU45 CHI —
71703-48010-C0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
71703-48010-C0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
71703-48020-B0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# STD ARL —
71703-48020-C0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# ARL —
71703-48020-E0 note Band Sub-assy, Rear Side Seat, NO.1
2007-05 → 2010-07 ended
GSU4# ARL —
71703-48010-A0 note Band Sub-assy, Rear Side Seat, NO.1
2010-07 → 2013-12 ended
GSU45 RUS —
71703-48010-A0 note Band Sub-assy, Rear Side Seat, NO.1
2010-07 → 2013-12 ended
GSU4# STD ARL —
71703-48010-B0 note Band Sub-assy, Rear Side Seat, NO.1
2010-07 → 2013-12 ended
GSU4# STD ARL —
71703-48010-C1 note Band Sub-assy, Rear Side Seat, NO.1
2010-07 → 2013-12 ended
GSU45 RUS —
71703-48010-C1 note Band Sub-assy, Rear Side Seat, NO.1
2010-07 → 2013-12 ended
GSU4# STD ARL —
71703-48020-B0 note Band Sub-assy, Rear Side Seat, NO.1
2010-07 → 2013-12 ended
GSU4# ARL —
71703-48020-C0 note Band Sub-assy, Rear Side Seat, NO.1
2010-07 → 2013-12 ended
GSU4# ARL —
71703-48020-E0 note Band Sub-assy, Rear Side Seat, NO.1
2010-07 → 2013-12 ended
GSU4# ARL —
72057 — Lever Sub-assy, Rear Seat Lock Control, RH
72057-48040-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72057-48040-C0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72057-48040-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2007-05 → 2010-07 ended
GSU4# —
72057-48040-B0 note Lever Sub-assy, Rear Seat Lock Control, RH
2010-07 → 2013-12 ended
GSU4# ARL —
72057-48040-C0 note Lever Sub-assy, Rear Seat Lock Control, RH
2010-07 → 2013-12 ended
GSU4# —
72057-48040-E0 note Lever Sub-assy, Rear Seat Lock Control, RH
2010-07 → 2013-12 ended
GSU4# —
72058A — Lever Sub-assy, Rear Seat Lock Control, LH
72058-48020-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72058-48020-C0 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72058-48020-E0 note Lever Sub-assy, Rear Seat Lock Control, LH
2007-05 → 2010-07 ended
GSU4# —
72058-48020-B0 note Lever Sub-assy, Rear Seat Lock Control, LH
2010-07 → 2013-12 ended
GSU4# ARL —
72058-48020-C0 note Lever Sub-assy, Rear Seat Lock Control, LH
2010-07 → 2013-12 ended
GSU4# —
72058-48020-E0 note Lever Sub-assy, Rear Seat Lock Control, LH
2010-07 → 2013-12 ended
GSU4# —
72616B — Cover, Rear Seat Lock Striker
72615-48020-B1 note Cover, Rear Seat Lock Striker
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72615-48020-C0 note Cover, Rear Seat Lock Striker
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72615-48020-E1 note Cover, Rear Seat Lock Striker
2007-05 → 2010-07 ended
GSU4# —
72615-48020-B1 note Cover, Rear Seat Lock Striker
2010-07 → 2013-12 ended
GSU4# ARL —
72615-48020-C0 note Cover, Rear Seat Lock Striker
2010-07 → 2013-12 ended
GSU4# —
72615-48020-E1 note Cover, Rear Seat Lock Striker
2010-07 → 2013-12 ended
GSU4# —
72630C — Lock Assy, Rear Seatback, RH
72630-48020 Lock Assy, Rear Seatback, RH
2007-05 → 2010-07 ended
GSU4# ARL —
72630-48020 Lock Assy, Rear Seatback, RH
2010-07 → —
GSU4# ARL —
72635B — Hook, Rear Seatback Lock(MALE)
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-02 ended
GSU4# LIMD,SPO,STD —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2009-02 → 2010-07 ended
GSU4# STD —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2009-02 → 2010-07 ended
GSU4# —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-02 ended
GSU45;GSU40 ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-02 ended
GSU4# —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2009-02 → 2010-07 ended
GSU4# —
72635-13010-B3 note Hook, Rear Seatback Lock(MALE)
2010-07 → 2013-12 ended
GSU4# ARL —
72635-13010-C0 note Hook, Rear Seatback Lock(MALE)
2010-07 → 2013-12 ended
GSU4# —
72635-13010-E3 note Hook, Rear Seatback Lock(MALE)
2010-07 → 2013-12 ended
GSU4# —
72635C — Hook, Rear Seatback Lock(FEMALE)
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2009-02 → 2010-07 ended
GSU4# STD —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-02 ended
GSU4# LIMD,SPO,STD —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2009-02 → 2010-07 ended
GSU4# —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-02 ended
GSU45;GSU40 ARL —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2010-07 ended
GSU4# STD ARL —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-01 ended
GSU45 SPO —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2009-02 → 2010-07 ended
GSU4# —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2007-05 → 2009-02 ended
GSU4# —
72635-13020-B3 note Hook, Rear Seatback Lock(FEMALE)
2010-07 → 2013-12 ended
GSU4# ARL —
72635-13020-C0 note Hook, Rear Seatback Lock(FEMALE)
2010-07 → 2013-12 ended
GSU4# —
72635-13020-E3 note Hook, Rear Seatback Lock(FEMALE)
2010-07 → 2013-12 ended
GSU4# —
72670B — Lock Assy, Rear Seat Cushion, RH
72670-48010 Lock Assy, Rear Seat Cushion, RH
2007-05 → 2010-07 ended
GSU4# ARL —
72670-48010 Lock Assy, Rear Seat Cushion, RH
2010-07 → —
GSU4# ARL —
72730A — Adjuster Assy, Rear Seat Reclining, RH
72730-48130 note Adjuster Assy, Rear Seat Reclining, RH
2007-05 → 2009-01 ended
GSU45 SPO —
72730-48130 note Adjuster Assy, Rear Seat Reclining, RH
2007-05 → 2010-07 ended
GSU4# SPO,STD —
72730-48130 note Adjuster Assy, Rear Seat Reclining, RH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72730-48140 Adjuster Assy, Rear Seat Reclining, RH
2007-05 → 2009-01 ended
GSU4# CHI —
72730-48150 Adjuster Assy, Rear Seat Reclining, RH
2007-05 → 2010-07 ended
GSU4# ARL —
72730-48130 note Adjuster Assy, Rear Seat Reclining, RH
2010-07 → —
GSU4# STD —
72730-48140 Adjuster Assy, Rear Seat Reclining, RH
2010-07 → —
GSU45 RUS —
72730-48150 Adjuster Assy, Rear Seat Reclining, RH
2010-07 → —
GSU4# ARL —
72740A — Adjuster Assy, Rear Seat Reclining, LH
72740-48110 Adjuster Assy, Rear Seat Reclining, LH
2007-05 → 2009-01 ended
GSU4# CHI —
72740-48110 note Adjuster Assy, Rear Seat Reclining, LH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72740-48110 note Adjuster Assy, Rear Seat Reclining, LH
2007-05 → 2010-07 ended
GSU4# STD ARL —
72740-48120 Adjuster Assy, Rear Seat Reclining, LH
2007-05 → 2010-07 ended
GSU4# ARL —
72740-48110 Adjuster Assy, Rear Seat Reclining, LH
2010-07 → —
GSU45 RUS —
72740-48110 note Adjuster Assy, Rear Seat Reclining, LH
2010-07 → —
GSU4# STD ARL —
72740-48120 Adjuster Assy, Rear Seat Reclining, LH
2010-07 → —
GSU4# ARL —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
