Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

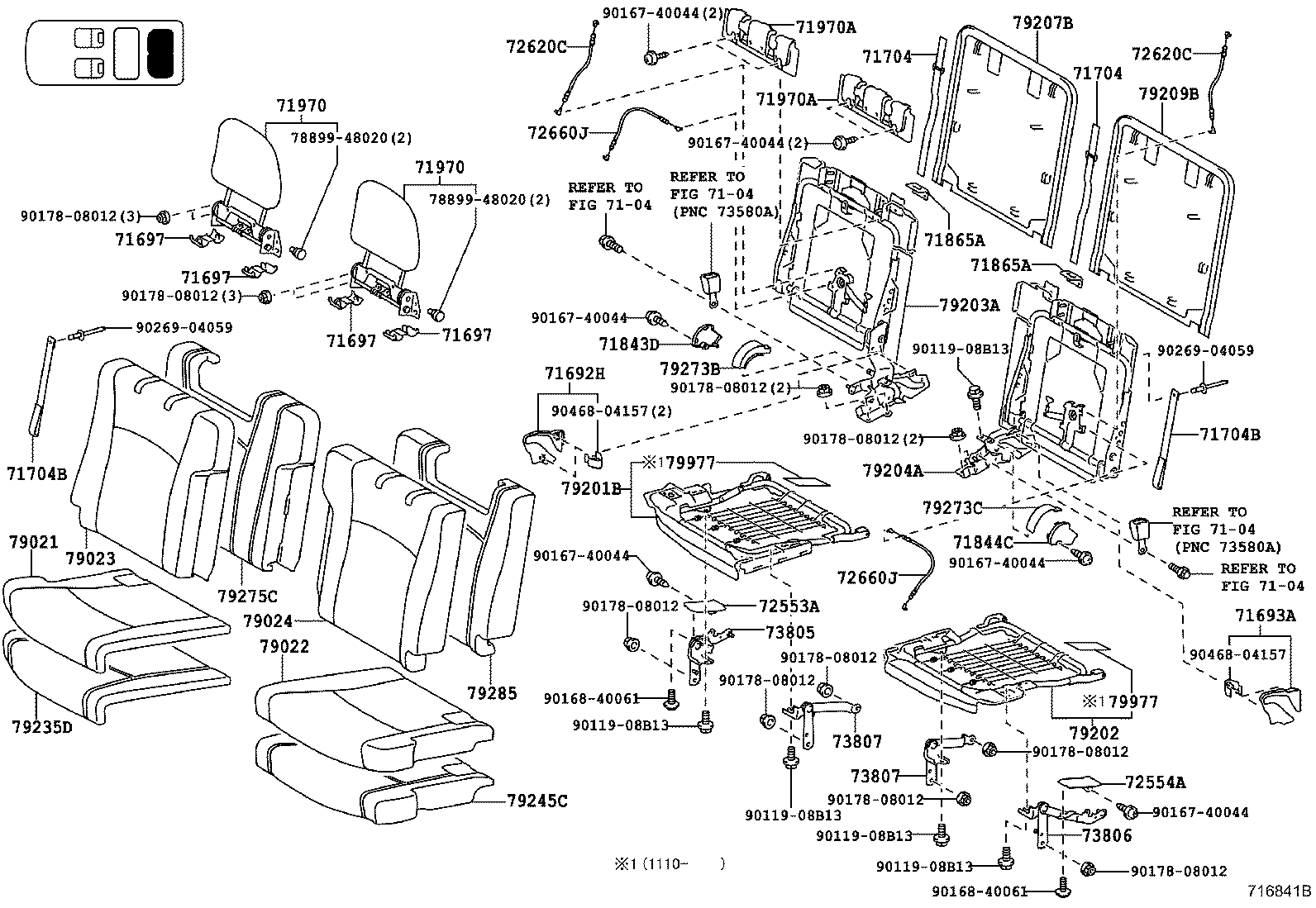

Exploded illustration 716841B 79235D — PAD, NO.2 SEAT CUSHION, RH (1 parts) 79245C — PAD, NO.2 SEAT CUSHION, LH (1 parts) 71693A — COVER, REAR SEAT CUSHION HINGE, NO.3 (1 parts) 79977 — FELT, SEATBACK (1 parts) 79977 — FELT, SEATBACK (1 parts) 71692H — COVER, REAR SEAT CUSHION HINGE, NO.3 (1 parts) 79203A — FRAME SUB-ASSY, NO.2 SEATBACK, RH (1 parts) 79275C — PAD, NO.2 SEATBACK, RH (1 parts) 79285 — PAD, NO.2 SEATBACK, LH (1 parts) 79207B — BOARD SUB-ASSY, NO.2 SEATBACK, RH (6 parts) 79209B — BOARD SUB-ASSY, NO.2 SEATBACK, LH (3 parts) 79023 — COVER SUB-ASSY, NO.2 SEATBACK, RH (7 parts) 79024 — COVER SUB-ASSY, NO.2 SEATBACK, LH (7 parts) 79204A — FRAME SUB-ASSY, NO.2 SEATBACK, LH (1 parts) 71865A — BEZEL, REAR SEAT COVER, NO.1 (6 parts) 71865A — BEZEL, REAR SEAT COVER, NO.1 (6 parts) 79022 — COVER SUB-ASSY, NO.2 SEAT CUSHION, LH (7 parts) 79021 — COVER SUB-ASSY, NO.2 SEAT CUSHION, RH (7 parts) 71970 — HEADREST ASSY, REAR SEAT (20 parts) 72620C — CABLE ASSY, REAR NO.1 SEAT LOCK (1 parts) 72620C — CABLE ASSY, REAR NO.1 SEAT LOCK (1 parts) 72660J — CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK (2 parts) 72660J — CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK (2 parts) 71970A — COVER, REAR SEAT HEADREST (2 parts) 71970A — COVER, REAR SEAT HEADREST (2 parts) 71697 — PROTECTOR, REAR SEATBACK EDGE (2 parts) 71697 — PROTECTOR, REAR SEATBACK EDGE (2 parts) 71697 — PROTECTOR, REAR SEATBACK EDGE (2 parts) 71697 — PROTECTOR, REAR SEATBACK EDGE (2 parts) 71704B — BAND SUB-ASSY, REAR SIDE SEAT, NO.2 (6 parts) 71704 — BAND SUB-ASSY, REAR SIDE SEAT (6 parts) 71704 — BAND SUB-ASSY, REAR SIDE SEAT (6 parts) 71843D — COVER, REAR SEAT RECLINING, NO.2 RH (5 parts) 79273B — COVER, NO.2 SEAT HINGE, NO.3 (3 parts) 79273C — COVER, NO.2 SEAT HINGE, NO.4 (3 parts) 71844C — COVER, REAR SEAT RECLINING, NO.2 LH (3 parts) 73805 — LINK SUB-ASSY, REAR SEAT SUSPENSION, OUTER RH (1 parts) 72553A — PROTECTOR, RECLINING COVER, RH (6 parts) 73807 — LINK SUB-ASSY, REAR SEAT SUSPENSION, INNER (1 parts) 73807 — LINK SUB-ASSY, REAR SEAT SUSPENSION, INNER (1 parts) 73806 — LINK SUB-ASSY, REAR SEAT SUSPENSION, OUTER LH (1 parts) 72554A — PROTECTOR, RECLINING COVER, LH (6 parts) 79202 — FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH (2 parts) 79201B — FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH (2 parts) 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9017808012 — not listed in this catalogue 9011908B13 — not listed in this catalogue 9011908B13 — not listed in this catalogue 9011908B13 — not listed in this catalogue 9011908B13 — not listed in this catalogue 9016840061 — not listed in this catalogue 9016840061 — not listed in this catalogue 9011908B13 — not listed in this catalogue 9046804157 — not listed in this catalogue 9046804157 — not listed in this catalogue 9017808012 — not listed in this catalogue 9017808012 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9017808012 — not listed in this catalogue 9017808012 — not listed in this catalogue 9017808012 — not listed in this catalogue 9017808012 — not listed in this catalogue 9026904059 — not listed in this catalogue 71704B — BAND SUB-ASSY, REAR SIDE SEAT, NO.2 (6 parts) 9026904059 — not listed in this catalogue 7889948020 — not listed in this catalogue 9017808012 — not listed in this catalogue 9017808012 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 71970 — HEADREST ASSY, REAR SEAT (20 parts) 7889948020 — not listed in this catalogue 9017808012 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue
716841B · 46 callouts, 33 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
124 parts on this figure
Part number Description Fitment Price
71692H — Cover, Rear Seat Cushion Hinge, NO.3
71693-48010 Cover, Rear Seat Cushion Hinge, NO.3
2010-07 → —
GSU4# —
71693A — Cover, Rear Seat Cushion Hinge, NO.3
71694-48010 Cover, Rear Seat Cushion Hinge, NO.3
2010-07 → —
GSU4# —
71697 — Protector, Rear Seatback Edge
71697-48030 Protector, Rear Seatback Edge
2007-05 → 2010-07 ended
GSU4# —
71697-48030 Protector, Rear Seatback Edge
2010-07 → —
GSU4# —
71704 — Band Sub-assy, Rear Side Seat
71704-48020-B0 note Band Sub-assy, Rear Side Seat
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71704-48020-C0 note Band Sub-assy, Rear Side Seat
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71704-48020-E0 note Band Sub-assy, Rear Side Seat
2007-05 → 2010-07 ended
GSU4# —
71704-48020-A0 note Band Sub-assy, Rear Side Seat
2010-07 → 2013-12 ended
GSU4# —
71704-48020-B1 note Band Sub-assy, Rear Side Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71704-48020-C2 note Band Sub-assy, Rear Side Seat
2010-07 → 2013-12 ended
GSU4# —
71704B — Band Sub-assy, Rear Side Seat, NO.2
71704-48030-B0 note Band Sub-assy, Rear Side Seat, NO.2
2007-05 → 2009-02 ended
GSU4# LIMD,SPO,STD —
71704-48030-C0 note Band Sub-assy, Rear Side Seat, NO.2
2007-05 → 2009-02 ended
GSU45;GSU40 ARL —
71704-48030-E0 note Band Sub-assy, Rear Side Seat, NO.2
2007-05 → 2009-02 ended
GSU4# —
71704-48040-A0 note Band Sub-assy, Rear Side Seat, NO.2
2010-07 → 2013-12 ended
GSU4# —
71704-48040-B0 note Band Sub-assy, Rear Side Seat, NO.2
2010-07 → 2013-12 ended
GSU4# STD ARL —
71704-48040-C0 note Band Sub-assy, Rear Side Seat, NO.2
2010-07 → 2013-12 ended
GSU4# —
71843D — Cover, Rear Seat Reclining, NO.2 RH
71843-48020-C2 note Cover, Rear Seat Reclining, NO.2 RH
2007-05 → 2009-01 ended
GSU40 CHI —
71843-48020-C2 note Cover, Rear Seat Reclining, NO.2 RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71843-48040-B0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# ARL —
71843-48040-C0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# —
71843-48040-E0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# —
71844C — Cover, Rear Seat Reclining, NO.2 LH
71844-48040-B0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# ARL —
71844-48040-C0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# —
71844-48040-E0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# —
71865A — Bezel, Rear Seat Cover, NO.1
71865-48030-B0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
71865-48030-C0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71865-48030-E0 note Bezel, Rear Seat Cover, NO.1
2007-05 → 2010-07 ended
GSU4# —
71865-48030-B0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# STD ARL —
71865-48030-C0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# —
71865-48030-E0 note Bezel, Rear Seat Cover, NO.1
2010-07 → 2013-12 ended
GSU4# —
71970 — Headrest Assy, Rear Seat
71970-48030-B0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU40 CHI —
71970-48030-E0 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU40 CHI —
71970-48040-B0 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71970-48040-C0 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71970-48040-E0 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU45 SPO,STD;GSU40 STD ARL —
71970-48050-B1 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 LIMD —
71970-48050-B1 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71970-48050-C1 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71970-48050-C1 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
71970-48050-C1 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU4# STD ARL —
71970-48050-E1 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU4# GD,LIMD —
71970-48050-E1 note Headrest Assy, Rear Seat
2007-05 → 2010-07 ended
GSU4# STD ARL —
71970-48050-E1 note Headrest Assy, Rear Seat
2007-05 → 2009-01 ended
GSU45 SPO —
71970-48070-B0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71970-48070-C0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD —
71970-48070-E0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD —
71970-48080-C0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
71970-48080-C0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71970-48080-E0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# STD ARL —
71970-48080-E0 note Headrest Assy, Rear Seat
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
71970A — Cover, Rear Seat Headrest
72985-48010 Cover, Rear Seat Headrest
2007-05 → 2010-07 ended
GSU4# —
72985-48030 Cover, Rear Seat Headrest
2010-07 → —
GSU4# —
72553A — Protector, Reclining Cover, RH
72553-48090-B3 note Protector, Reclining Cover, RH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72553-48090-C2 note Protector, Reclining Cover, RH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72553-48090-E3 note Protector, Reclining Cover, RH
2007-05 → 2010-07 ended
GSU4# —
72553-48090-B3 note Protector, Reclining Cover, RH
2010-07 → 2013-12 ended
GSU4# ARL —
72553-48090-C2 note Protector, Reclining Cover, RH
2010-07 → 2013-12 ended
GSU4# —
72553-48090-E3 note Protector, Reclining Cover, RH
2010-07 → 2013-12 ended
GSU4# —
72554A — Protector, Reclining Cover, LH
72554-48080-B3 note Protector, Reclining Cover, LH
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
72554-48080-C2 note Protector, Reclining Cover, LH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
72554-48080-E3 note Protector, Reclining Cover, LH
2007-05 → 2010-07 ended
GSU4# —
72554-48080-B3 note Protector, Reclining Cover, LH
2010-07 → 2013-12 ended
GSU4# ARL —
72554-48080-C2 note Protector, Reclining Cover, LH
2010-07 → 2013-12 ended
GSU4# —
72554-48080-E3 note Protector, Reclining Cover, LH
2010-07 → 2013-12 ended
GSU4# —
72620C — Cable Assy, Rear NO.1 Seat Lock
72620-48110 Cable Assy, Rear NO.1 Seat Lock
2010-07 → —
GSU4# —
72660J — Cable Assy, Rear NO.2 Seat Cushion Lock
72660-48010 Cable Assy, Rear NO.2 Seat Cushion Lock
2007-05 → 2010-07 ended
GSU4# —
72660-48020 Cable Assy, Rear NO.2 Seat Cushion Lock
2010-07 → —
GSU4# —
73805 — Link Sub-assy, Rear Seat Suspension, Outer RH
73805-48010 Link Sub-assy, Rear Seat Suspension, Outer RH
2010-07 → —
GSU4# —
73806 — Link Sub-assy, Rear Seat Suspension, Outer LH
73806-48010 Link Sub-assy, Rear Seat Suspension, Outer LH
2010-07 → —
GSU4# —
73807 — Link Sub-assy, Rear Seat Suspension, Inner
73807-48010 Link Sub-assy, Rear Seat Suspension, Inner
2010-07 → —
GSU4# —
79021 — Cover Sub-assy, NO.2 Seat Cushion, RH
79021-48081-B0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79021-48081-C0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# STD —
79021-48081-E0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# STD —
79021-48090-C0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
79021-48090-C0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79021-48090-E0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
79021-48090-E0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79022 — Cover Sub-assy, NO.2 Seat Cushion, LH
79022-48021-B0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79022-48021-C0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2010-07 → 2013-12 ended
GSU4# STD —
79022-48021-E0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2010-07 → 2013-12 ended
GSU4# STD —
79022-48030-C0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
79022-48030-C0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79022-48030-E0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
79022-48030-E0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79023 — Cover Sub-assy, NO.2 Seatback, RH
79023-48081-B0 note Cover Sub-assy, NO.2 Seatback, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79023-48081-C0 note Cover Sub-assy, NO.2 Seatback, RH
2010-07 → 2013-12 ended
GSU4# STD —
79023-48081-E0 note Cover Sub-assy, NO.2 Seatback, RH
2010-07 → 2013-12 ended
GSU4# STD —
79023-48090-C0 note Cover Sub-assy, NO.2 Seatback, RH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
79023-48090-C0 note Cover Sub-assy, NO.2 Seatback, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79023-48090-E0 note Cover Sub-assy, NO.2 Seatback, RH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
79023-48090-E0 note Cover Sub-assy, NO.2 Seatback, RH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79024 — Cover Sub-assy, NO.2 Seatback, LH
79024-48021-B0 note Cover Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79024-48021-C0 note Cover Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# STD —
79024-48021-E0 note Cover Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# STD —
79024-48030-C0 note Cover Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79024-48030-C0 note Cover Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
79024-48030-E0 note Cover Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# GD,LIMD —
79024-48030-E0 note Cover Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# STD ARL —
79201B — Frame Sub-assy, NO.2 Seat Cushion, RH
79201-48030 Frame Sub-assy, NO.2 Seat Cushion, RH
2010-07 → 2010-08 ended
GSU4# —
79201-48031 Frame Sub-assy, NO.2 Seat Cushion, RH
2010-08 → —
GSU4# —
79202 — Frame Sub-assy, NO.2 Seat Cushion, LH
79202-48010 Frame Sub-assy, NO.2 Seat Cushion, LH
2010-07 → 2010-08 ended
GSU4# —
79202-48011 Frame Sub-assy, NO.2 Seat Cushion, LH
2010-08 → —
GSU4# —
79203A — Frame Sub-assy, NO.2 Seatback, RH
79203-48030 Frame Sub-assy, NO.2 Seatback, RH
2010-07 → —
GSU4# —
79204A — Frame Sub-assy, NO.2 Seatback, LH
79203-48040 Frame Sub-assy, NO.2 Seatback, LH
2010-07 → —
GSU4# —
79207B — Board Sub-assy, NO.2 Seatback, RH
79207-48030-B0 note Board Sub-assy, NO.2 Seatback, RH
2010-07 → 2012-08 ended
GSU4# ARL —
79207-48030-C0 note Board Sub-assy, NO.2 Seatback, RH
2010-07 → 2012-08 ended
GSU4# —
79207-48030-E0 note Board Sub-assy, NO.2 Seatback, RH
2010-07 → 2012-08 ended
GSU4# —
79207-48031-B0 note Board Sub-assy, NO.2 Seatback, RH
2012-08 → 2013-12 ended
GSU4# STD ARL —
79207-48031-C0 note Board Sub-assy, NO.2 Seatback, RH
2012-08 → 2013-12 ended
GSU4# —
79207-48031-E0 note Board Sub-assy, NO.2 Seatback, RH
2012-08 → 2013-12 ended
GSU4# —
79209B — Board Sub-assy, NO.2 Seatback, LH
79207-48040-B0 note Board Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# ARL —
79207-48040-C0 note Board Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# —
79207-48040-E0 note Board Sub-assy, NO.2 Seatback, LH
2010-07 → 2013-12 ended
GSU4# —
79235D — Pad, NO.2 Seat Cushion, RH
79235-48040 Pad, NO.2 Seat Cushion, RH
2010-07 → —
GSU4# —
79245C — Pad, NO.2 Seat Cushion, LH
79235-48050 Pad, NO.2 Seat Cushion, LH
2010-07 → —
GSU4# —
79273B — Cover, NO.2 Seat Hinge, NO.3
79273-48030-B0 note Cover, NO.2 Seat Hinge, NO.3
2010-07 → 2013-12 ended
GSU4# ARL —
79273-48030-C0 note Cover, NO.2 Seat Hinge, NO.3
2010-07 → 2013-12 ended
GSU4# —
79273-48030-E0 note Cover, NO.2 Seat Hinge, NO.3
2010-07 → 2013-12 ended
GSU4# —
79273C — Cover, NO.2 Seat Hinge, NO.4
79273-48040-B0 note Cover, NO.2 Seat Hinge, NO.4
2010-07 → 2013-12 ended
GSU4# ARL —
79273-48040-C0 note Cover, NO.2 Seat Hinge, NO.4
2010-07 → 2013-12 ended
GSU4# —
79273-48040-E0 note Cover, NO.2 Seat Hinge, NO.4
2010-07 → 2013-12 ended
GSU4# —
79275C — Pad, NO.2 Seatback, RH
79275-48040 Pad, NO.2 Seatback, RH
2010-07 → —
GSU4# —
79285 — Pad, NO.2 Seatback, LH
79275-48050 Pad, NO.2 Seatback, LH
2010-07 → —
GSU4# —
79977 — Felt, Seatback
79977-48020 Felt, Seatback
2011-10 → —
GSU4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
