Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

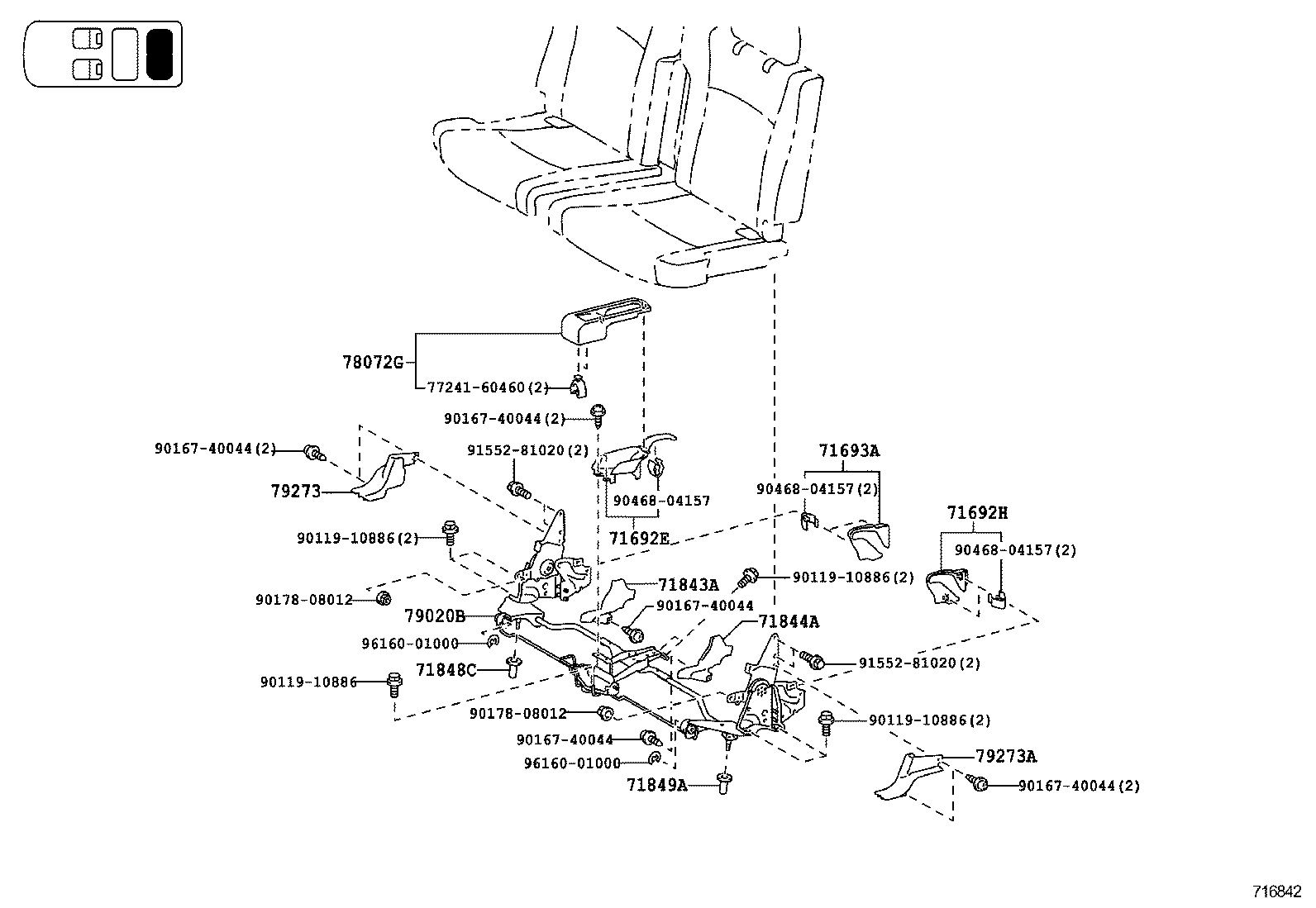

Exploded illustration 716842 79020B — LEG ASSY, NO.2 SEAT (1 parts) 79273 — COVER, NO.2 SEAT HINGE (6 parts) 79273A — COVER, NO.2 SEAT HINGE, NO.2 (6 parts) 71843A — COVER, REAR SEAT RECLINING, NO.2 RH (3 parts) 71844A — COVER, REAR SEAT RECLINING, NO.2 LH (5 parts) 71692E — COVER, REAR SEAT CUSHION HINGE, NO.2 (3 parts) 78072G — COVER SUB-ASSY, CENTER SUB SEAT CUSHION (3 parts) 71693A — COVER, REAR SEAT CUSHION HINGE, NO.3 (1 parts) 71692H — COVER, REAR SEAT CUSHION HINGE, NO.3 (1 parts) 71849A — CAP, SEAT ADJUSTER COVER, LH (2 parts) 71848C — CAP, SEAT ADJUSTER COVER, RH (2 parts) 9046804157 — not listed in this catalogue 7724160460 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9616001000 — not listed in this catalogue 9616001000 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9016740044 — not listed in this catalogue 9155281020 — not listed in this catalogue 9011910886 — not listed in this catalogue 9011910886 — not listed in this catalogue 9011910886 — not listed in this catalogue 9011910886 — not listed in this catalogue 9155281020 — not listed in this catalogue 9046804157 — not listed in this catalogue 9046804157 — not listed in this catalogue 9017808012 — not listed in this catalogue 9017808012 — not listed in this catalogue
716842 · 11 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
33 parts on this figure
Part number Description Fitment Price
71692E — Cover, Rear Seat Cushion Hinge, NO.2
71692-48020-B0 note Cover, Rear Seat Cushion Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
71692-48020-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# —
71692-48020-E0 note Cover, Rear Seat Cushion Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# —
71692H — Cover, Rear Seat Cushion Hinge, NO.3
71693-48010 Cover, Rear Seat Cushion Hinge, NO.3
2010-07 → —
GSU4# —
71693A — Cover, Rear Seat Cushion Hinge, NO.3
71694-48010 Cover, Rear Seat Cushion Hinge, NO.3
2010-07 → —
GSU4# —
71843A — Cover, Rear Seat Reclining, NO.2 RH
71843-48030-B0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# ARL —
71843-48030-C0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# —
71843-48030-E0 note Cover, Rear Seat Reclining, NO.2 RH
2010-07 → 2013-12 ended
GSU4# —
71844A — Cover, Rear Seat Reclining, NO.2 LH
71844-48020-C2 note Cover, Rear Seat Reclining, NO.2 LH
2007-05 → 2009-01 ended
GSU40 CHI —
71844-48020-C2 note Cover, Rear Seat Reclining, NO.2 LH
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
71844-48030-B0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# ARL —
71844-48030-C0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# —
71844-48030-E0 note Cover, Rear Seat Reclining, NO.2 LH
2010-07 → 2013-12 ended
GSU4# —
71848C — Cap, Seat Adjuster Cover, RH
71848-33010 Cap, Seat Adjuster Cover, RH
2007-05 → 2010-07 ended
GSU4# —
71848-33010 Cap, Seat Adjuster Cover, RH
2010-07 → —
GSU4# —
71849A — Cap, Seat Adjuster Cover, LH
71848-33010 Cap, Seat Adjuster Cover, LH
2007-05 → 2010-07 ended
GSU4# —
71848-33010 Cap, Seat Adjuster Cover, LH
2010-07 → —
GSU4# —
78072G — Cover Sub-assy, Center Sub Seat Cushion
78072-48010-B0 note Cover Sub-assy, Center Sub Seat Cushion
2010-07 → 2013-12 ended
GSU4# STD ARL —
78072-48010-C0 note Cover Sub-assy, Center Sub Seat Cushion
2010-07 → 2013-12 ended
GSU4# —
78072-48010-E0 note Cover Sub-assy, Center Sub Seat Cushion
2010-07 → 2013-12 ended
GSU4# —
79020B — Leg Assy, NO.2 Seat
79030-48010 Leg Assy, NO.2 Seat
2010-07 → —
GSU4# —
79273 — Cover, NO.2 Seat Hinge
79273-48010-B3 note Cover, NO.2 Seat Hinge
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
79273-48010-C2 note Cover, NO.2 Seat Hinge
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
79273-48010-E3 note Cover, NO.2 Seat Hinge
2007-05 → 2010-07 ended
GSU4# —
79273-48010-B3 note Cover, NO.2 Seat Hinge
2010-07 → 2013-12 ended
GSU4# ARL —
79273-48010-C2 note Cover, NO.2 Seat Hinge
2010-07 → 2013-12 ended
GSU4# —
79273-48010-E3 note Cover, NO.2 Seat Hinge
2010-07 → 2013-12 ended
GSU4# —
79273A — Cover, NO.2 Seat Hinge, NO.2
79273-48020-B3 note Cover, NO.2 Seat Hinge, NO.2
2007-05 → 2010-07 ended
GSU4# LIMD,SPO,STD —
79273-48020-C2 note Cover, NO.2 Seat Hinge, NO.2
2007-05 → 2010-07 ended
GSU45;GSU40 ARL —
79273-48020-E3 note Cover, NO.2 Seat Hinge, NO.2
2007-05 → 2010-07 ended
GSU4# —
79273-48020-B3 note Cover, NO.2 Seat Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# ARL —
79273-48020-C2 note Cover, NO.2 Seat Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# —
79273-48020-E3 note Cover, NO.2 Seat Hinge, NO.2
2010-07 → 2013-12 ended
GSU4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
