Toyota Highlander/Kluger
2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General
Supported model
Data version 2014-06

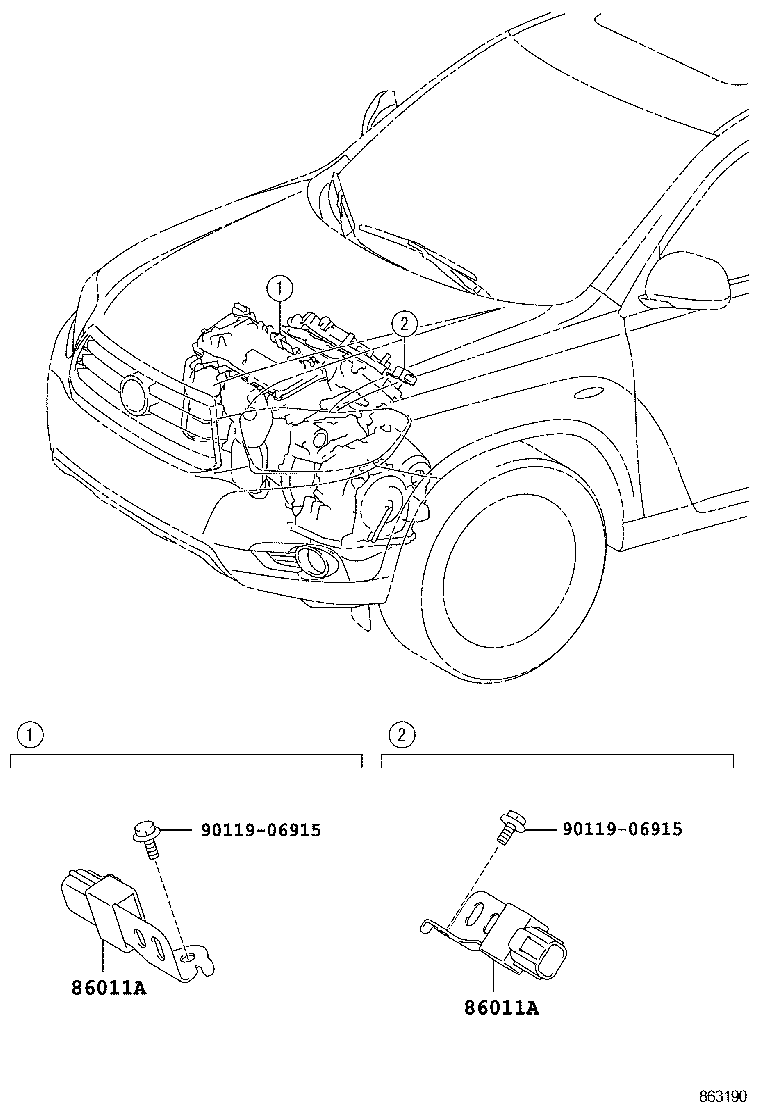

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04182 |
Condenser, Radio Setting
2007-05 → 2009-01
ended
|
GSU4# CHI | — | |
| 90980-04182 |
Condenser, Radio Setting
2007-05 → 2010-07
ended
|
GSU4# ARL | — | |
| 90980-04177 |
Condenser, Radio Setting
2010-07 → —
|
GSU4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
