Toyota Highlander/Kluger
2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General
Supported model
Data version 2014-06

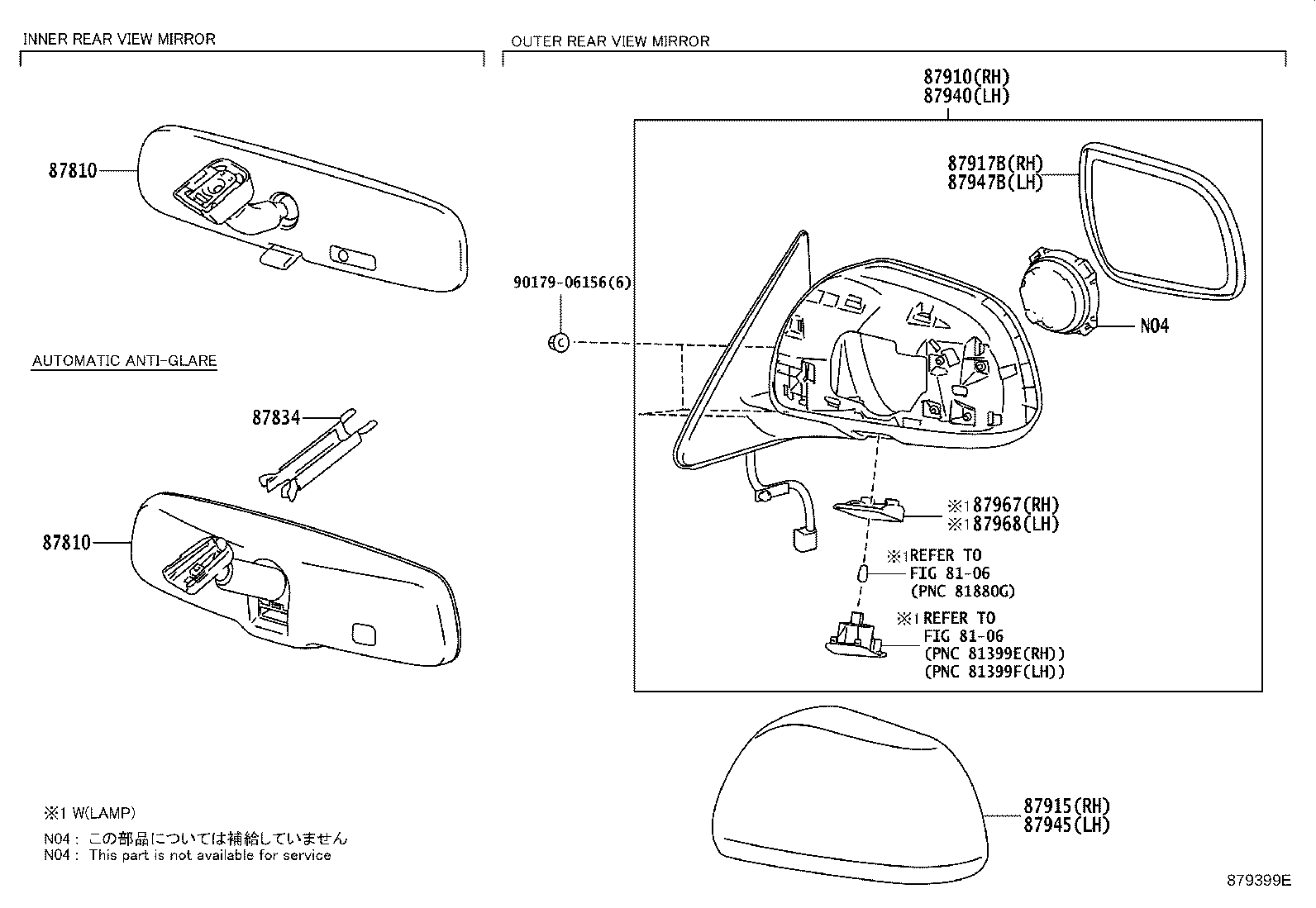

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87810 — Mirror Assy, Inner Rear View | ||||
| 87810-0W061 note |
Mirror Assy, Inner Rear View
2007-05 → 2009-01
ended
|
GSU45 LIMD | — | |
| 87810-0W061 note |
Mirror Assy, Inner Rear View
2007-05 → 2010-01
ended
|
GSU4# GD | — | |
| 87810-0W062 note |
Mirror Assy, Inner Rear View
2010-02 → 2010-07
ended
|
GSU4# GD | — | |
| 87810-0W160 |
Mirror Assy, Inner Rear View
2007-05 → 2010-07
ended
|
GSU4# GD | — | |
| 87810-60191 |
Mirror Assy, Inner Rear View
2007-05 → 2010-07
ended
|
GSU4# SPO,STD | — | |
| 87810-AC091 |
Mirror Assy, Inner Rear View
2007-05 → 2009-01
ended
|
GSU45 LIMD | — | |
| 87810-0T010 |
Mirror Assy, Inner Rear View
2010-07 → 2013-12
ended
|
GSU45 RUS | — | |
| 87810-0W062 |
Mirror Assy, Inner Rear View
2010-07 → 2013-12
ended
|
GSU4# GD | — | |
| 87810-0W062 note |
Mirror Assy, Inner Rear View
2010-07 → 2013-12
ended
|
GSU45 LIMD | — | |
| 87810-60191 |
Mirror Assy, Inner Rear View
2010-07 → 2013-12
ended
|
GSU4# STD ARL | — | |
| 87834 — Cover, Inner Rear View Mirror Stay Holder | ||||
| 87818-AC010 |
Cover, Inner Rear View Mirror Stay Holder
2007-05 → 2009-01
ended
|
GSU45 LIMD | — | |
| 87818-AC010 |
Cover, Inner Rear View Mirror Stay Holder
2007-05 → 2010-07
ended
|
GSU4# GD | — | |
| 87818-35020 |
Cover, Inner Rear View Mirror Stay Holder
2011-01 → —
|
GSU4# GD,LIMD;GSU45 STD RUS | — | |
| 87818-AC010 |
Cover, Inner Rear View Mirror Stay Holder
2010-07 → 2010-12
ended
|
GSU4# GD,LIMD;GSU45 STD RUS | — | |
| 87910 — Mirror Assy, Outer Rear View, RH | ||||
| 87910-48370 note |
Mirror Assy, Outer Rear View, RH
2007-05 → 2010-07
ended
|
GSU4# ARL | — | |
| 87910-48380 note |
Mirror Assy, Outer Rear View, RH
2007-05 → 2009-01
ended
|
GSU4# (SPO,STD) CHI | — | |
| 87910-48390 note |
Mirror Assy, Outer Rear View, RH
2007-05 → 2008-12
ended
|
GSU45 LIMD | — | |
| 87910-48390 note |
Mirror Assy, Outer Rear View, RH
2007-05 → 2008-12
ended
|
GSU45 SPO | — | |
| 87910-48210 note |
Mirror Assy, Outer Rear View, RH
2010-07 → —
|
GSU4# ARL | — | |
| 87910-48221 note |
Mirror Assy, Outer Rear View, RH
2010-07 → —
|
GSU45 RUS | — | |
| 87915 — Cover, Outer Mirror, RH | ||||
| 87915-48020-A0 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-B0 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-B1 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-C0 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-D0 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-E0 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-G0 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-J0 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-J1 note |
Cover, Outer Mirror, RH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87915-48020-K0 note |
Cover, Outer Mirror, RH
2007-08 → 2010-07
ended
|
GSU4# ARL | — | |
| 87915-48020-A0 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87915-48020-B0 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87915-48020-B1 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87915-48020-C0 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87915-48020-D1 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87915-48020-E0 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87915-48020-J1 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87915-48020-J2 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87915-48020-J3 note |
Cover, Outer Mirror, RH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87917B — Mirror, Outer Rear View, RH | ||||
| 87931-28A60 |
Mirror, Outer Rear View, RH
2009-12 → 2010-07
ended
|
GSU4# | — | |
| 87931-48370 |
Mirror, Outer Rear View, RH
2007-05 → 2009-01
ended
|
GSU4# (SPO,STD) CHI | — | |
| 87931-48370 |
Mirror, Outer Rear View, RH
2007-05 → 2009-11
ended
|
GSU4# ARL | — | |
| 87931-48390 note |
Mirror, Outer Rear View, RH
2007-05 → 2008-12
ended
|
GSU45 SPO | — | |
| 87931-48390 |
Mirror, Outer Rear View, RH
2007-05 → 2008-12
ended
|
GSU45 LIMD | — | |
| 87931-28A60 |
Mirror, Outer Rear View, RH
2010-07 → —
|
GSU4# ARL | — | |
| 87931-28A71 |
Mirror, Outer Rear View, RH
2010-07 → —
|
GSU45 RUS | — | |
| 87940 — Mirror Assy, Outer Rear View, LH | ||||
| 87940-48350 note |
Mirror Assy, Outer Rear View, LH
2007-05 → 2010-07
ended
|
GSU4# ARL | — | |
| 87940-48360 note |
Mirror Assy, Outer Rear View, LH
2007-05 → 2009-01
ended
|
GSU4# (SPO,STD) CHI | — | |
| 87940-48370 note |
Mirror Assy, Outer Rear View, LH
2007-05 → 2008-12
ended
|
GSU45 LIMD | — | |
| 87940-48370 note |
Mirror Assy, Outer Rear View, LH
2007-05 → 2008-12
ended
|
GSU45 SPO | — | |
| 87940-48550 note |
Mirror Assy, Outer Rear View, LH
2010-07 → —
|
GSU4# ARL | — | |
| 87940-48561 note |
Mirror Assy, Outer Rear View, LH
2010-07 → —
|
GSU45 RUS | — | |
| 87945 — Cover, Outer Mirror, LH | ||||
| 87945-48020-A0 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-B0 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-B1 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-C0 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-D0 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-E0 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-G0 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-J0 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-J1 note |
Cover, Outer Mirror, LH
2007-05 → 2010-07
ended
|
GSU4# | — | |
| 87945-48020-K0 note |
Cover, Outer Mirror, LH
2007-08 → 2010-07
ended
|
GSU4# ARL | — | |
| 87945-48020-A0 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87945-48020-B0 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87945-48020-B1 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87945-48020-C0 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87945-48020-D1 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87945-48020-E0 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87945-48020-J1 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87945-48020-J2 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87945-48020-J3 note |
Cover, Outer Mirror, LH
2010-07 → 2013-12
ended
|
GSU4# | — | |
| 87947B — Mirror, Outer Rear View, LH | ||||
| 87961-28A60 |
Mirror, Outer Rear View, LH
2009-12 → 2010-07
ended
|
GSU4# | — | |
| 87961-48350 |
Mirror, Outer Rear View, LH
2007-05 → 2009-01
ended
|
GSU4# (SPO,STD) CHI | — | |
| 87961-48350 |
Mirror, Outer Rear View, LH
2007-05 → 2009-11
ended
|
GSU4# ARL | — | |
| 87961-48370 |
Mirror, Outer Rear View, LH
2007-05 → 2008-12
ended
|
GSU45 LIMD | — | |
| 87961-48370 note |
Mirror, Outer Rear View, LH
2007-05 → 2008-12
ended
|
GSU45 SPO | — | |
| 87961-28A60 |
Mirror, Outer Rear View, LH
2010-07 → —
|
GSU4# ARL | — | |
| 87961-28A71 |
Mirror, Outer Rear View, LH
2010-07 → —
|
GSU45 RUS | — | |
| 87967 — Holder, Mirror, Outer RH | ||||
| 87967-48010 |
Holder, Mirror, Outer RH
2010-07 → —
|
GSU4# | — | |
| 87968 — Holder, Mirror, Outer LH | ||||
| 87968-48010 |
Holder, Mirror, Outer LH
2010-07 → —
|
GSU4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
