Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

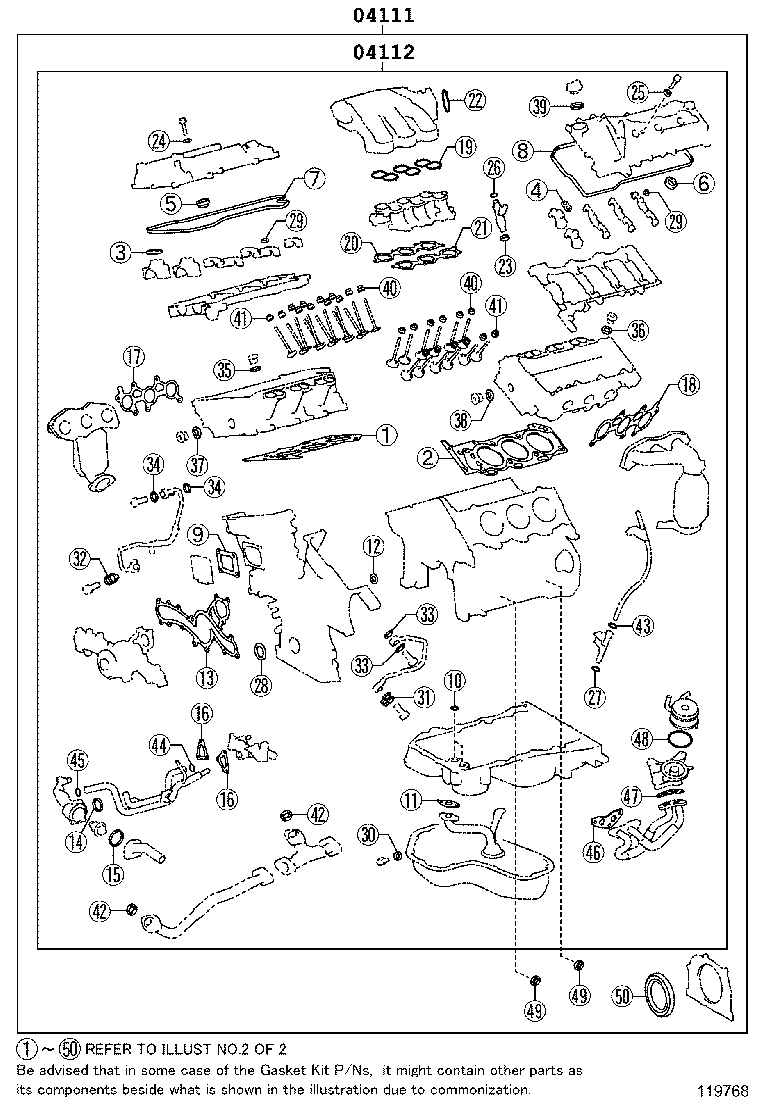

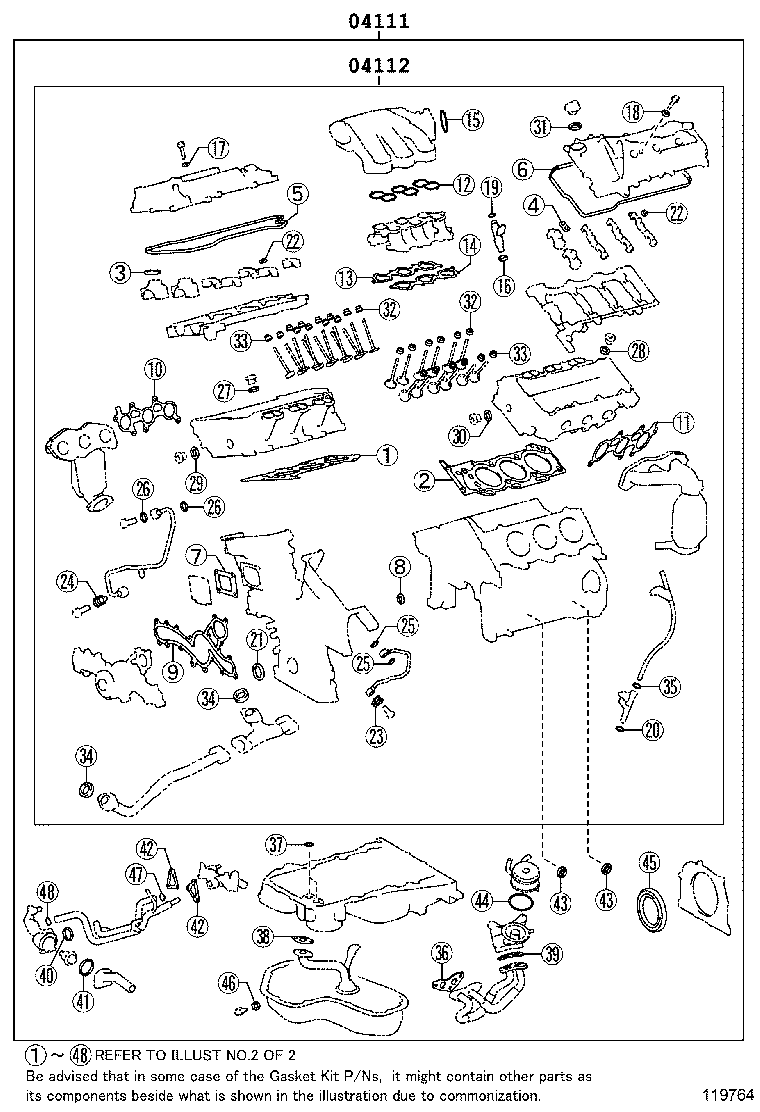

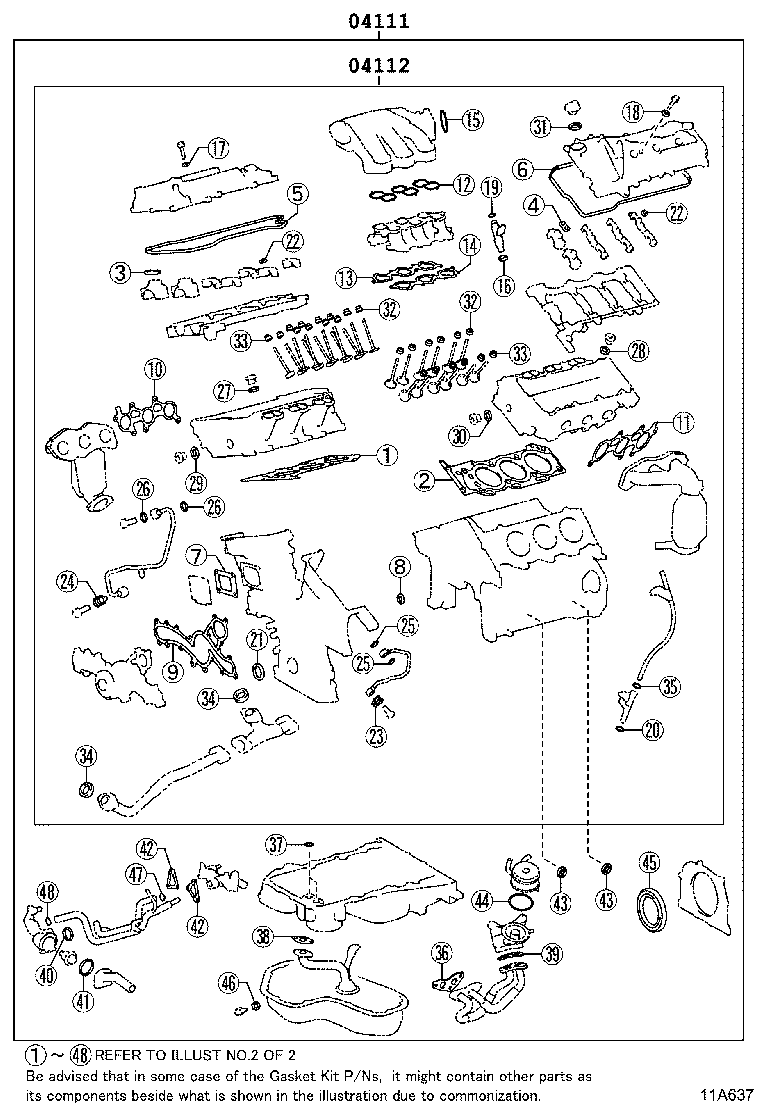

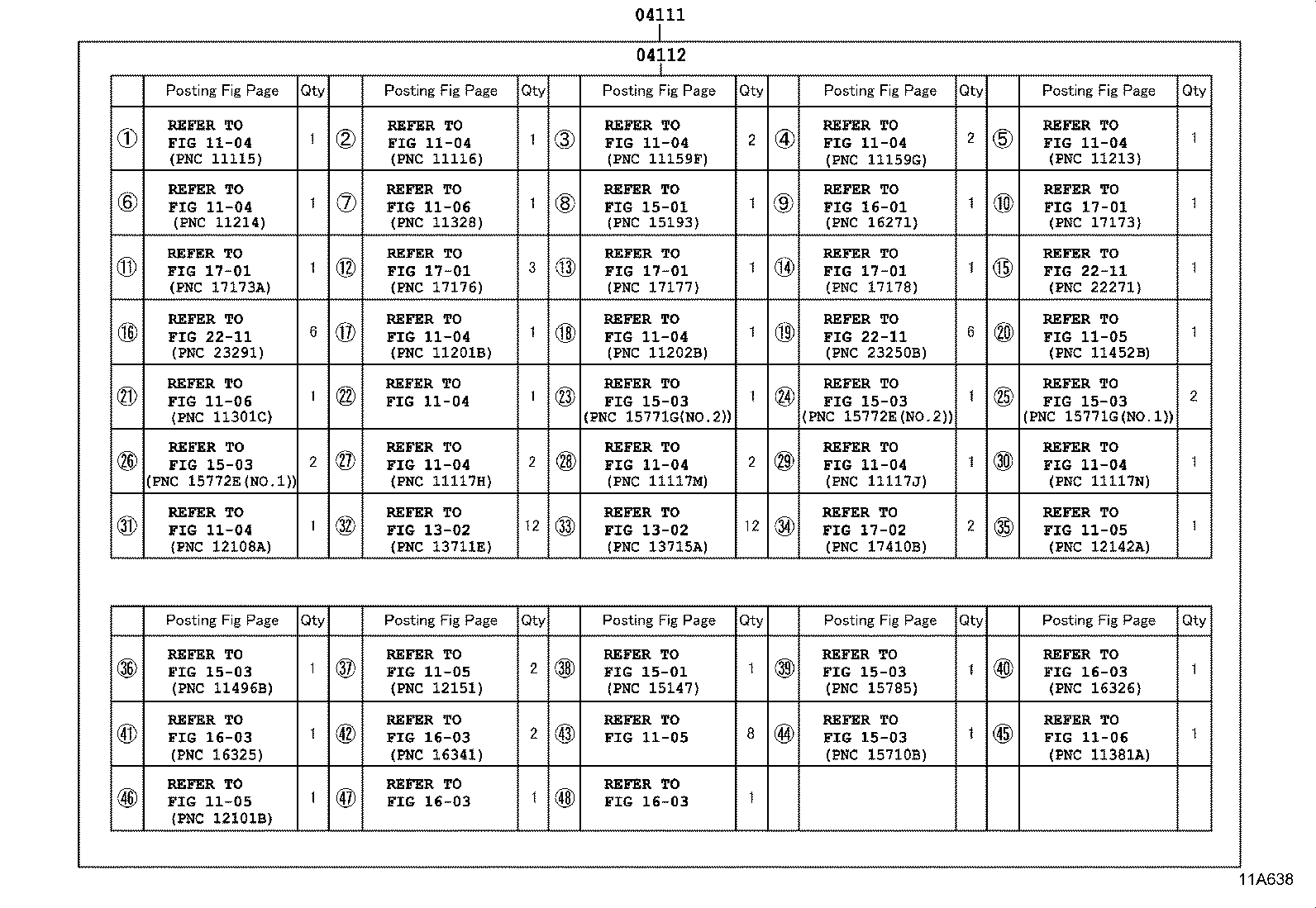

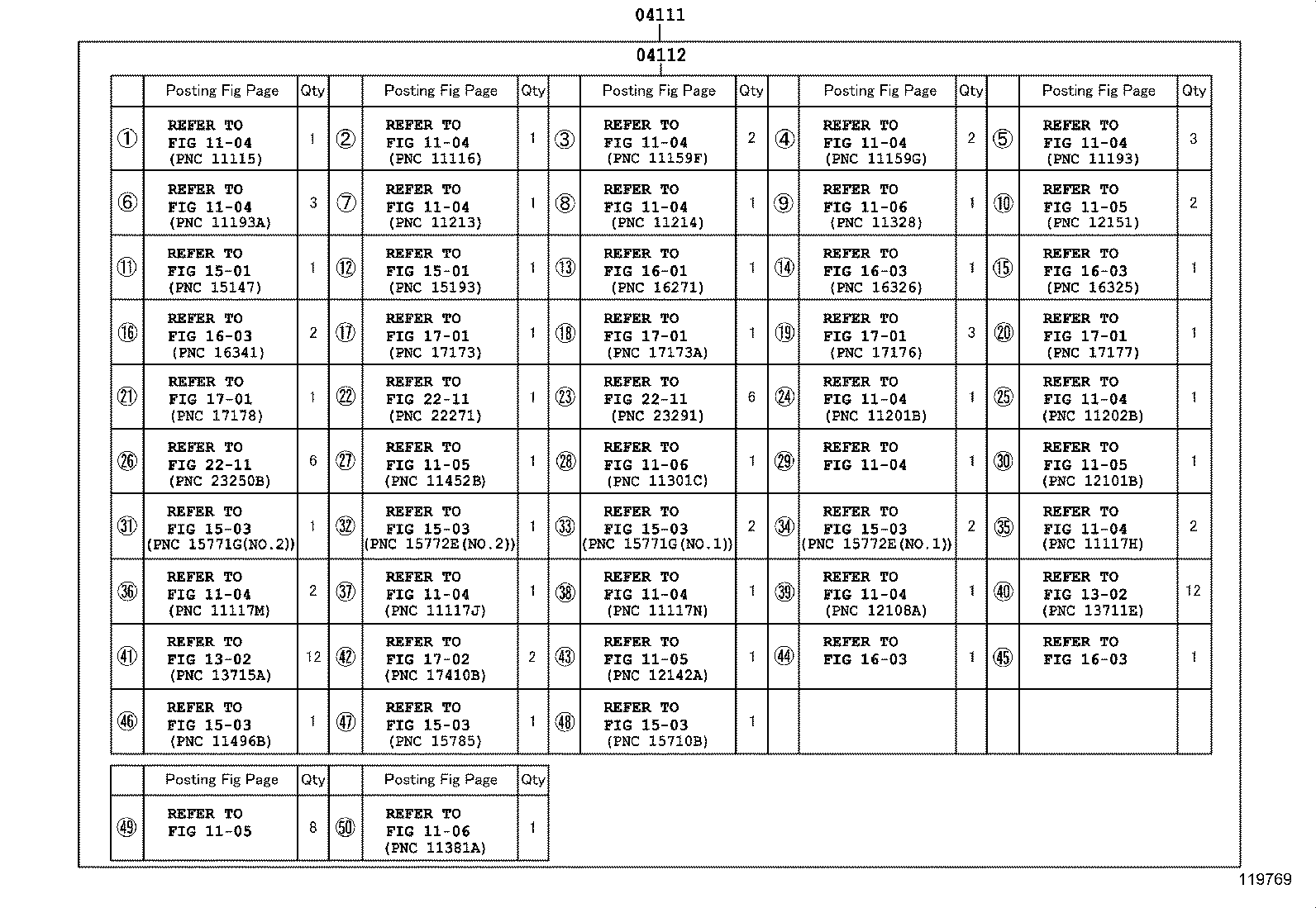

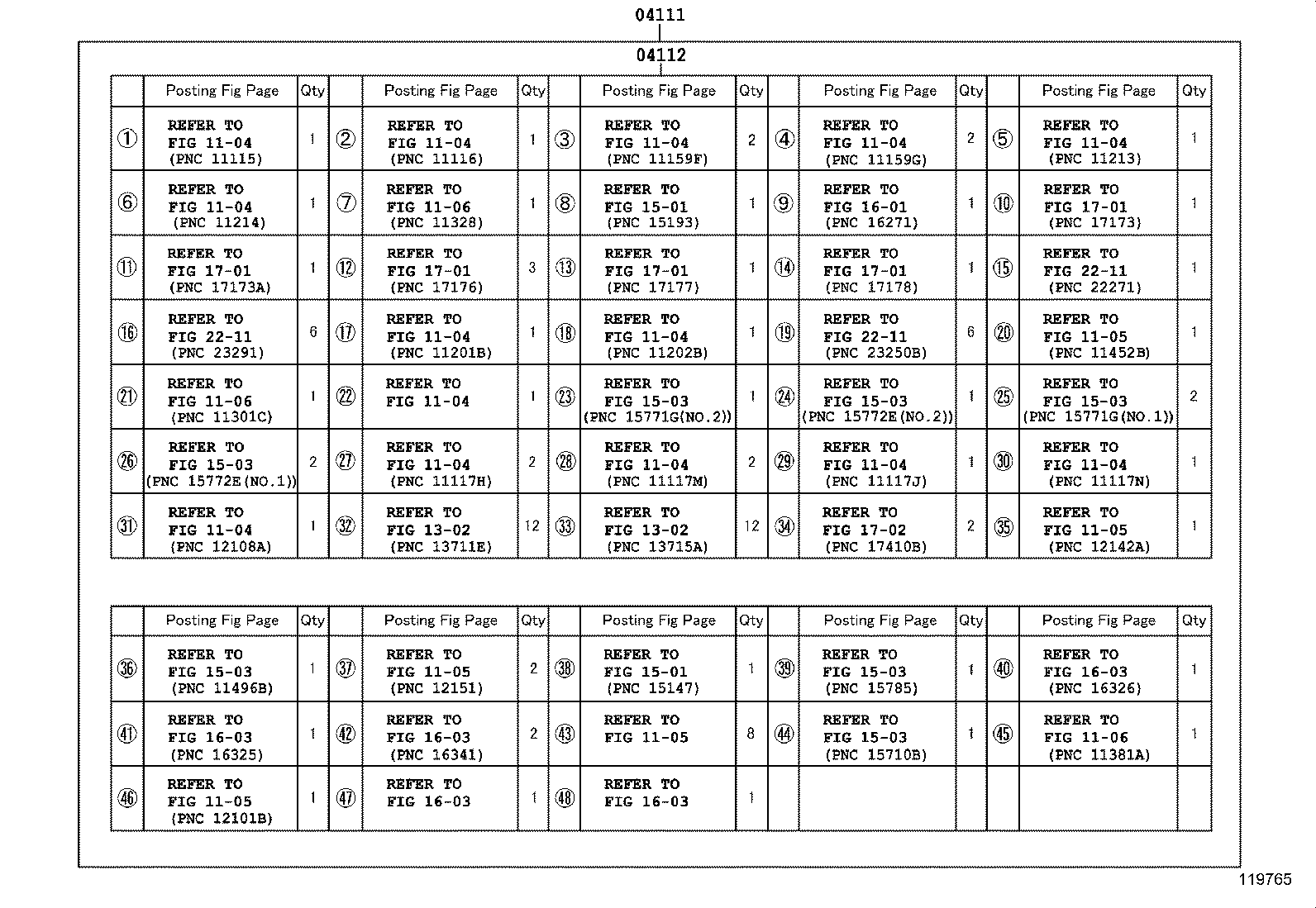

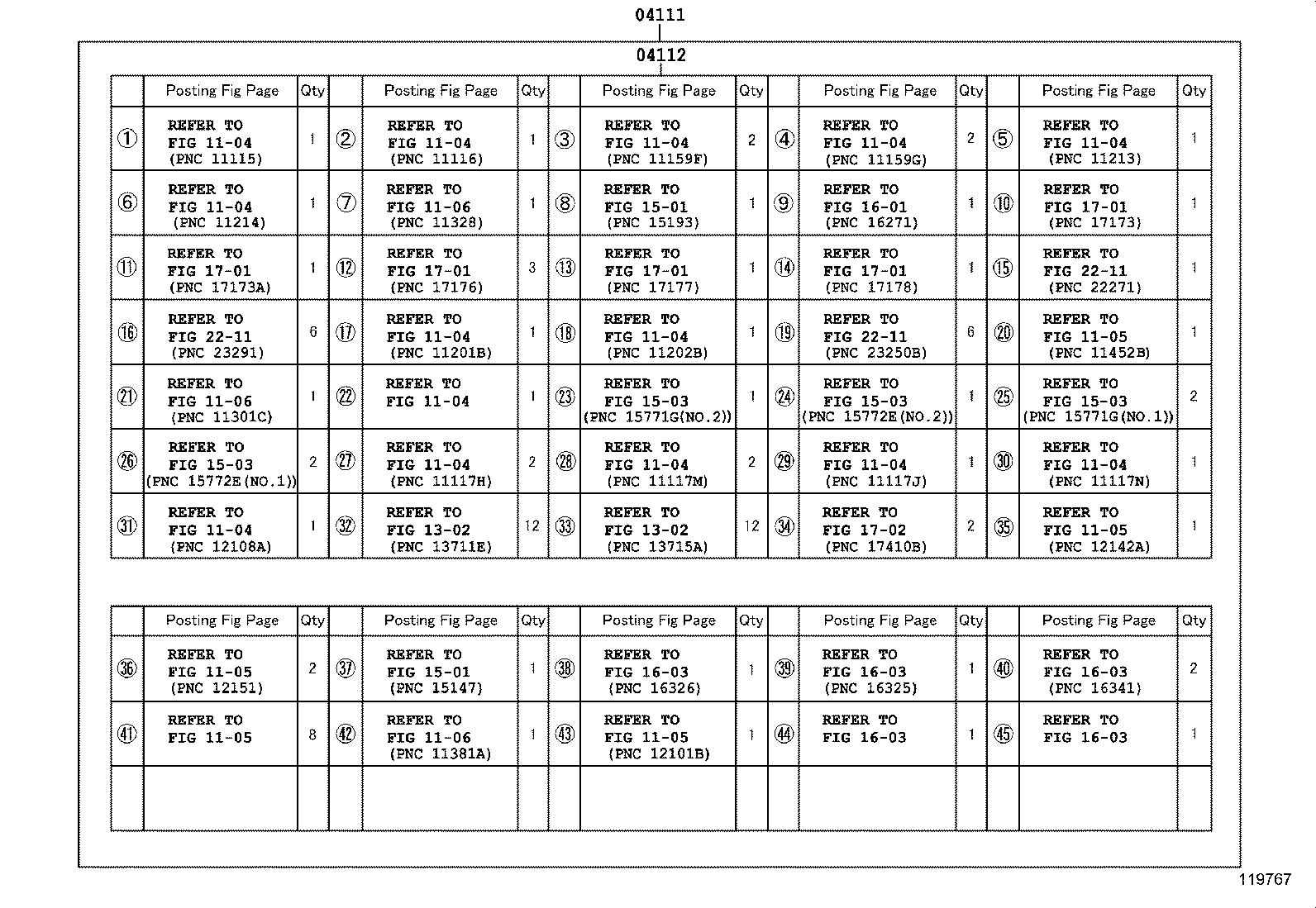

Figure 119766 119766 2007-05 → 2009-01 Figure 119767 119767 2007-05 → 2009-01 Figure 119764 119764 2007-05 → 2011-08 Figure 119765 119765 2007-05 → 2011-08 Figure 11A637 11A637 2010-07 → 2011-08 Figure 11A638 11A638 2010-07 → 2011-08 Figure 119768 119768 2011-08 → — Figure 119769 119769 2011-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
