Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

15 part groups · 2 illustrations

Illustrations

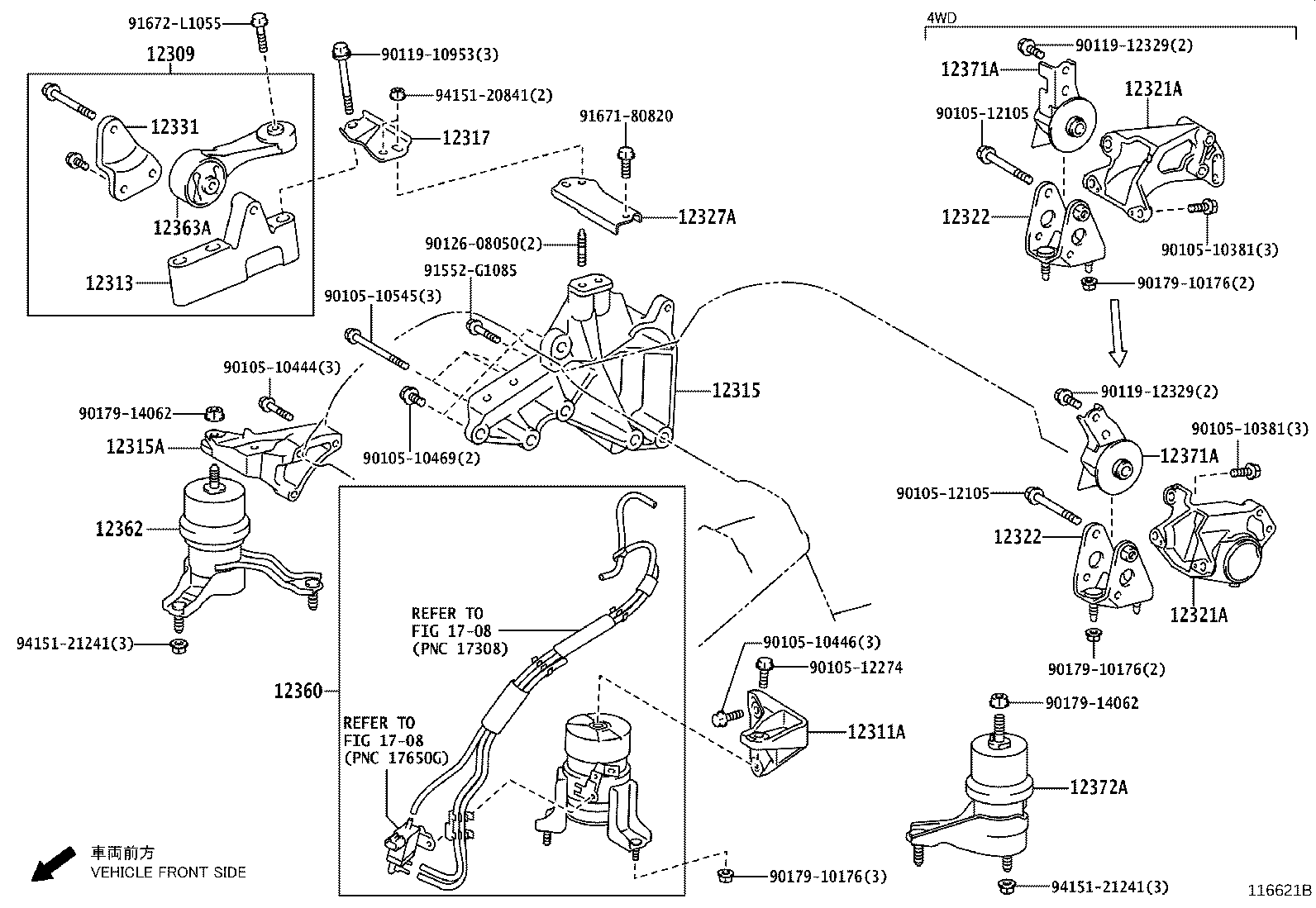

Figure 116620B 116620B 2007-05 → 2010-05 Figure 116621B 116621B 2010-05 → —

Part groups

PNCDescription
12309 Rod Sub-assy, Engine Moving Control
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12313 Bracket, Engine Mounting Control(FOR TRANSVERSE ENGINE)
12315 Bracket, Engine Mounting, Front NO.1 LH
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12317 Stay, Engine Mounting, RH
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12327A Stay, Engine Mounting, NO.2 RH
12331 Stay, Engine Mounting, NO.3 RH
12360 Insulator Assy, Engine Mounting, Front
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12363A Rod, Engine Moving Control
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
