Toyota Highlander/Kluger
2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General
Supported model
Data version 2014-06
Starter
11 part groups · 2 illustrations

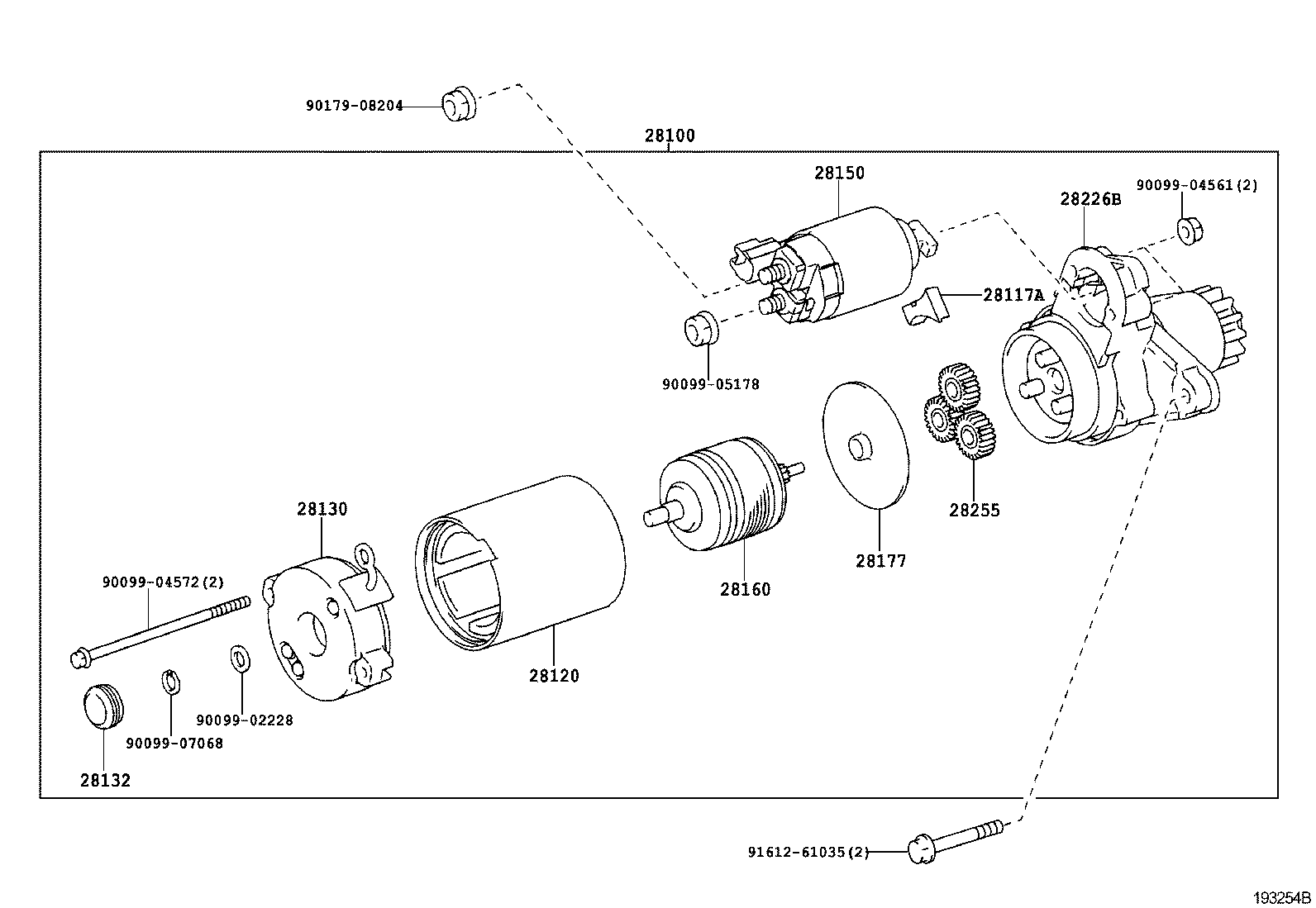

Part groups
| PNC | Description |
|---|---|
| 28100 | Starter Assy |
| 28117A | Seal, Rubber |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28132 | Cover, Starter Bearing(FOR DRIVE HOUSING) |
| 28150 | Switch Assy, Magnet Starter |
| 28160 | Armature Assy, Starter |
| 28177 | Plate(FOR STARTER ARMATURE) |
| 28226A | Starter Kit, Motor Terminal |
| 28226B | Starter Kit, Repair Service |
| 28255 | Gear, Planet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
