Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

16 part groups · 3 illustrations

Illustrations

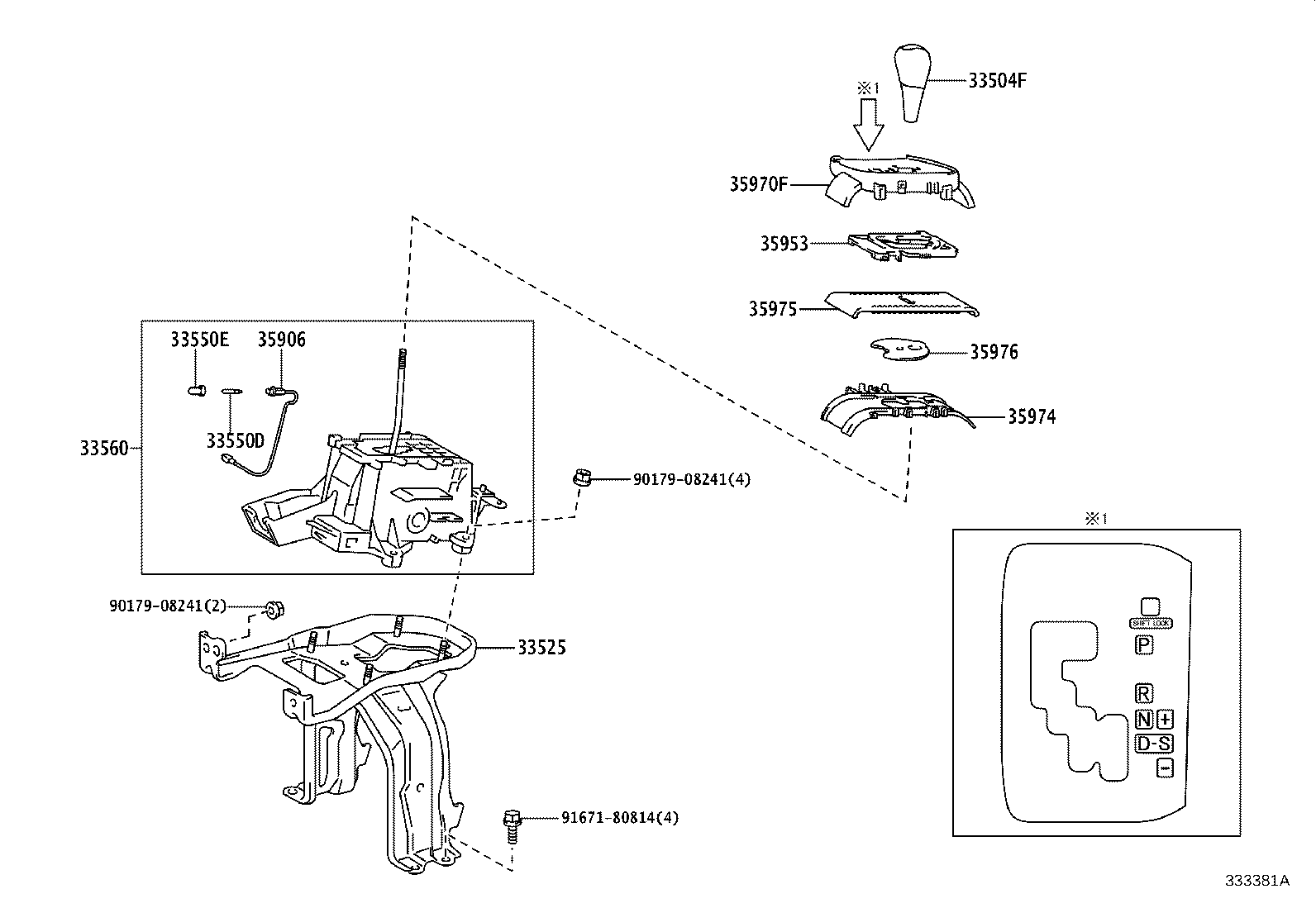

Figure 333396B 333396B 2007-05 → — Figure 333381A 333381A 2007-05 → — Figure 333382B 333382B 2007-05 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33525 Support, Shift Lever
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33560 Unit Assy, Shift Lock Control
33723Q Nut (FOR CONNECTING ROD SWIVEL)
33820B Cable Assy, Transmission Control
33823 Bracket, Transmission Control Cable, NO.1
33826A Bracket, Transmission Control Cable, NO.2
33827 Bracket, Transmission Control Cable, NO.3
35906 Wire Sub-assy, Indicator Lamp
35953 Guide, Position Indicator Light
35970F Housing Assy, Position Indicator
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
