Toyota Highlander/Kluger
2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General
Supported model
Data version 2014-06

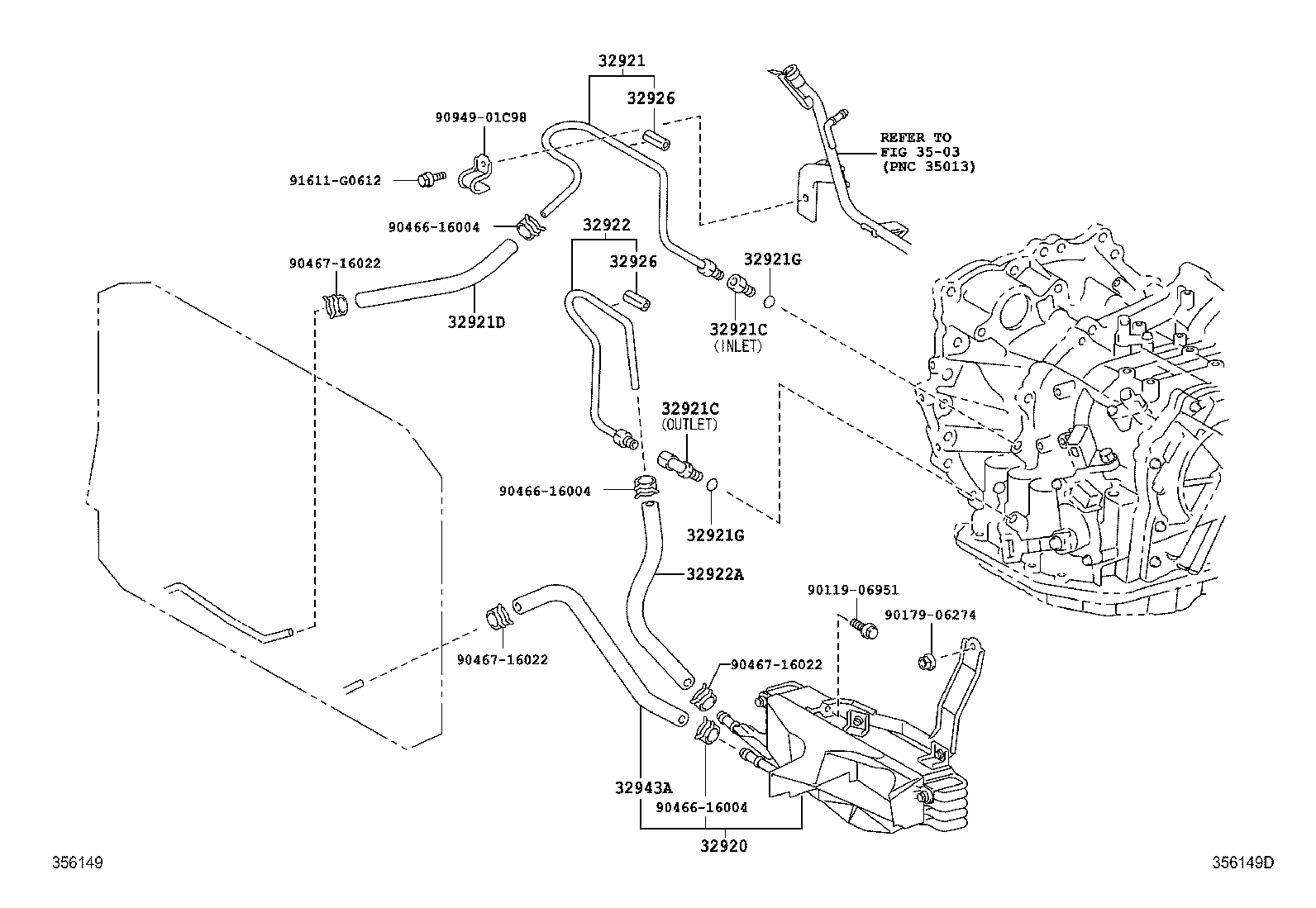

Oil Cooler & Tube (ATM)
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 32920 | Cooler Assy, Oil W/Hose |
| 32921 | Tube, Oil Cooler Inlet, NO.1 |
| 32921C | Union(FOR OIL COOLER TUBE) |
| 32921D | Hose(FOR OIL COOLER INLET) |
| 32921G | Ring, O(FOR OIL COOLER TUBE UNION) |
| 32922 | Tube, Oil Cooler Outlet, NO.1 |
| 32922A | Hose(FOR OIL COOLER OUTLET) |
| 32926 | Cushion, Oil Cooler Tube(ATM) |
| 32943A | Hose, Transmission Oil Cooler, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
