Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

7 part groups · 2 illustrations

Illustrations

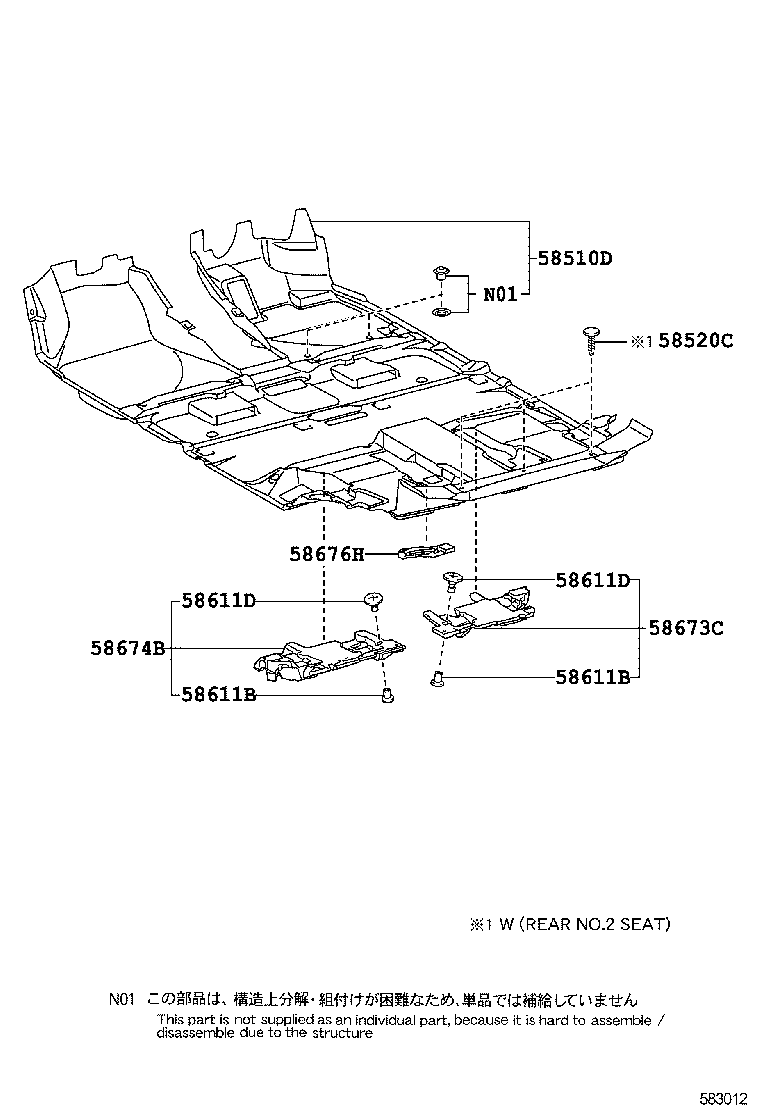

Figure 583011 583011 2007-05 → — Figure 583012 583012 2007-05 → —

Part groups

PNCDescription
58510D Carpet Assy, Floor, Front
58520C Clip(FOR FRONT FLOOR CARPET)
58611B Plate, Mat Set, NO.1
58611D Plate, Mat Set, NO.1 B
58673C Pad, Rear Floor Silencer, NO.1
58674B Pad, Rear Floor Silencer, NO.2
58676H Pad, Rear Floor Silencer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
