Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

20 part groups · 2 illustrations

Illustrations

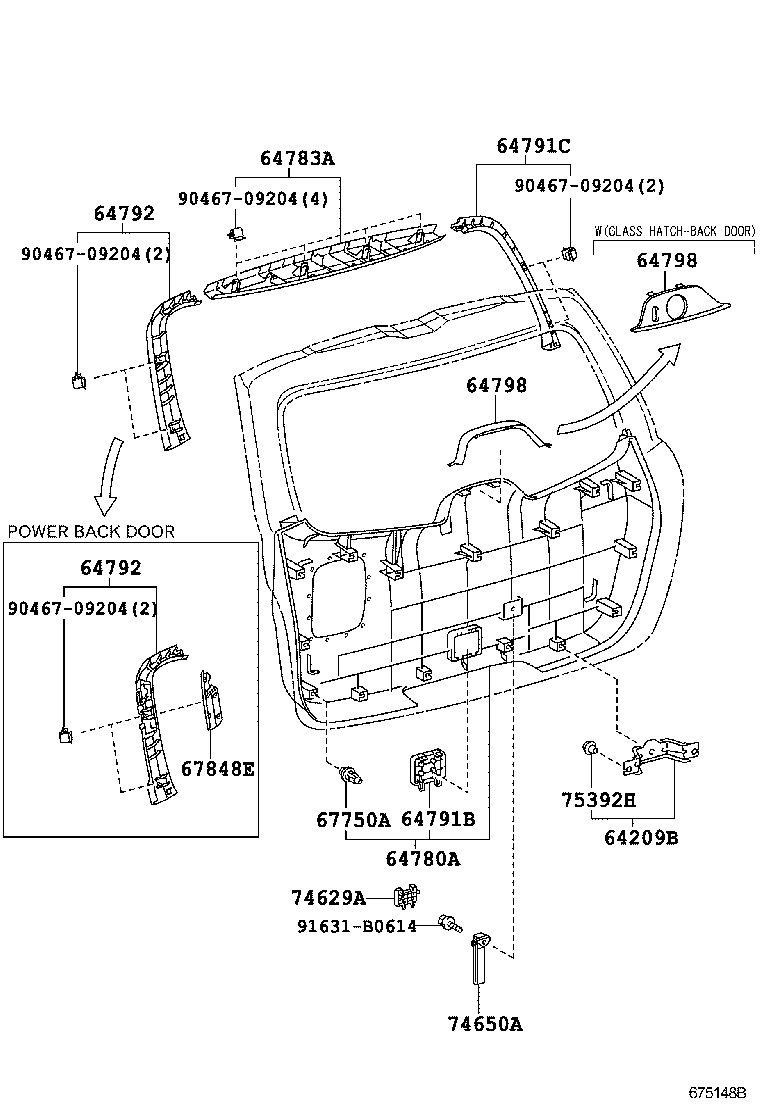

Figure 675149E 675149E 2007-05 → — Figure 675148B 675148B 2007-05 → —

Part groups

PNCDescription
64209B Bracket Sub-assy, Back Panel Trim
64780A Panel Assy, Back Door Trim
64783A Trim, Back Window Panel, Upper
64791B Cover, Back Door Trim
64791C Cover, Back Door Trim, RH
64792 Cover, Back Door Trim, LH
64798 Cover, Back Door Lock
67005 Panel Sub-assy, Back Door
67750A Clip(FOR BACK DOOR TRIM)
67848E Cover, Back Door Service Hole, LH
67881A Weatherstrip, Back Door
67882D Weatherstrip, Back Door, NO.2
67891A Seal, Back Door
68131 Glass, Back Door
68678 Protector, Back Door Window
69806 Bracket Sub-assy, Back Door Glass Guide
74629A Cover, Assist Strap Hole
74650A Strap Assy, Assist
75129C Cushion, Rear Licence Plate
75392H Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
