Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

20 part groups · 2 illustrations

Illustrations

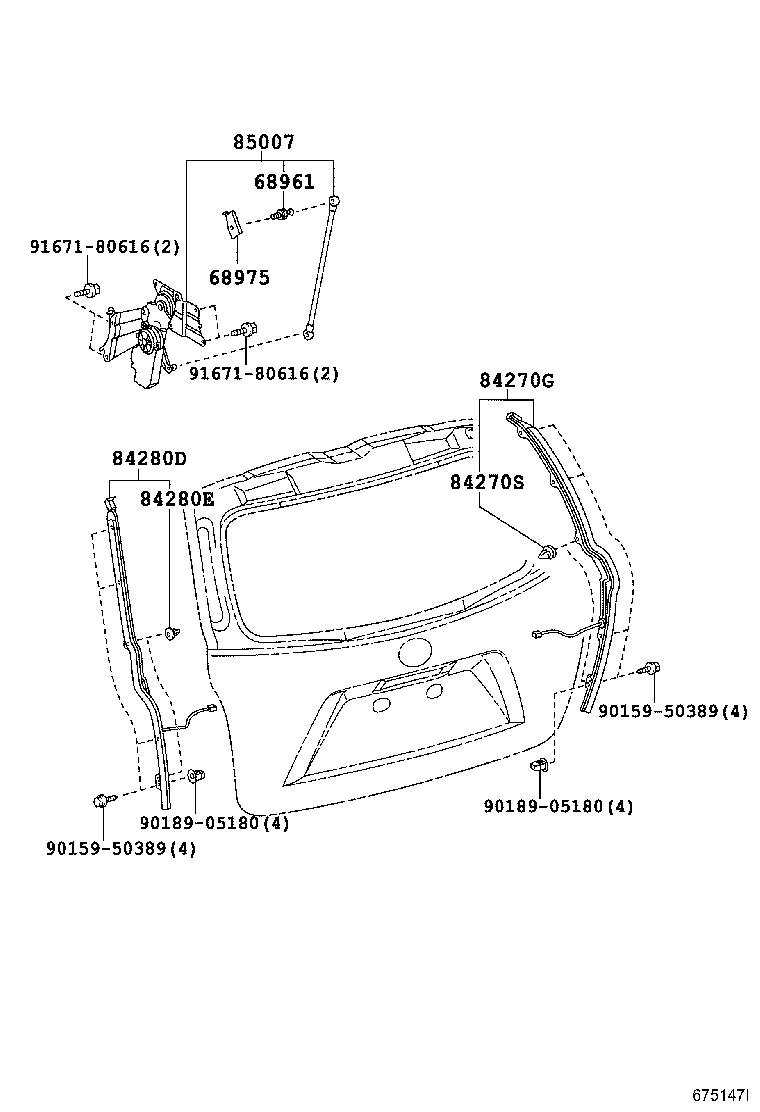

Figure 675146H 675146H 2007-05 → — Figure 675147I 675147I 2007-05 → —

Part groups

PNCDescription
68810C Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68930 Stay Assy, Back Window, RH
68940 Stay Assy, Back Window, LH
68945 Bracket, Back Door Damper Stay, Upper RH
68946 Bracket, Back Door Damper Stay, Upper LH
68950C Stay Assy, Back Door, RH
68957B Bracket, Back Door Stay, Lower
68960 Stay Assy, Back Door, LH
68961 Bolt, Back Door Stay
68961J Bolt, Back Window Stay
68975 Plate, Back Door Stay
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69370E Lock Assy, Back Window
69430C Striker Assy, Back Door Lock
84270G Sensor Assy, Power Back Door, RH
84270S Clip(POWER BACK DOOR SENSOR, RH)
84280D Sensor Assy, Power Back Door, LH
84280E Clip (FOR POWER BACK DOOR SENSOR, LH)
85007 Motor Unit, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
