Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

70 part groups · 11 illustrations

Illustrations

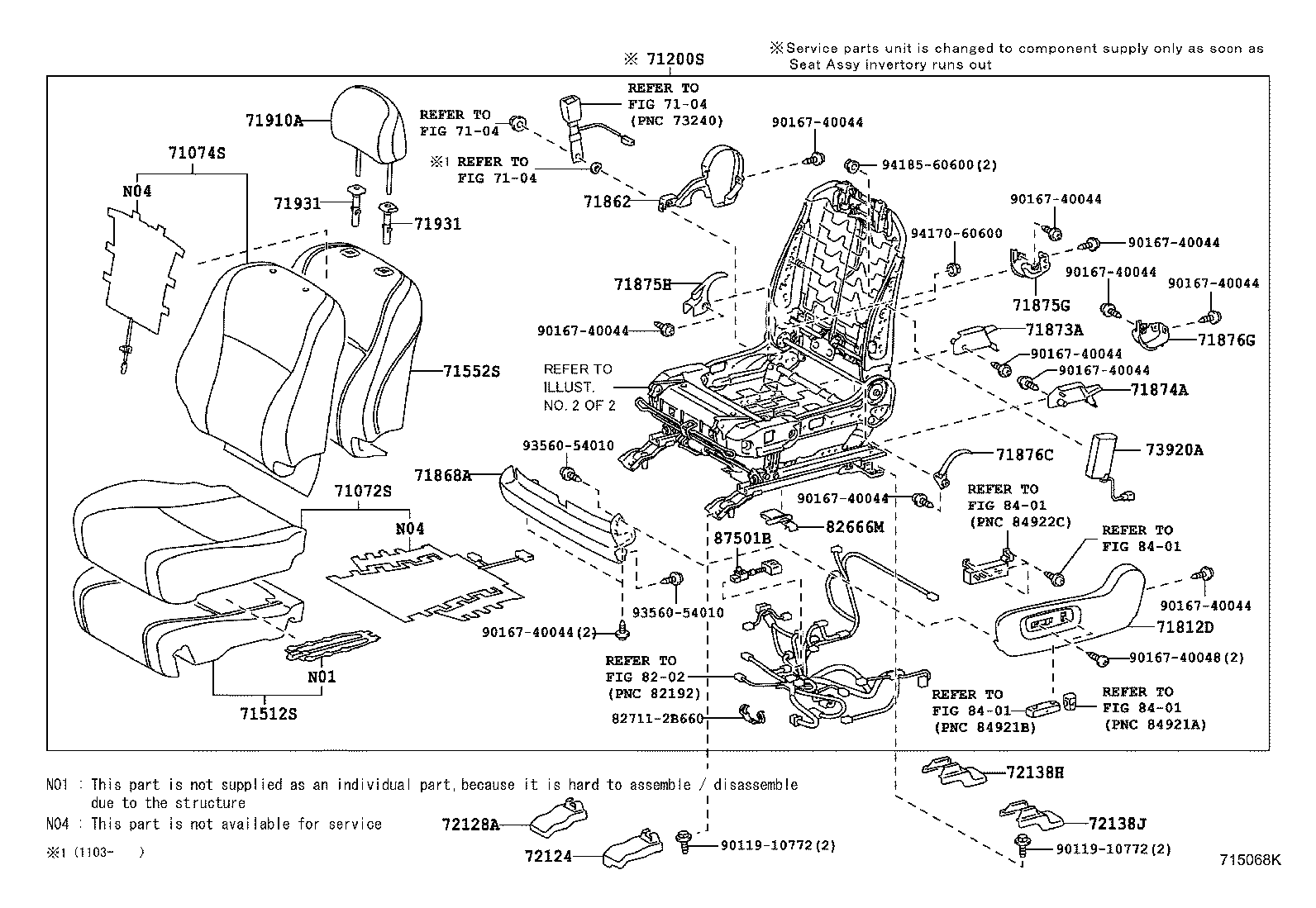

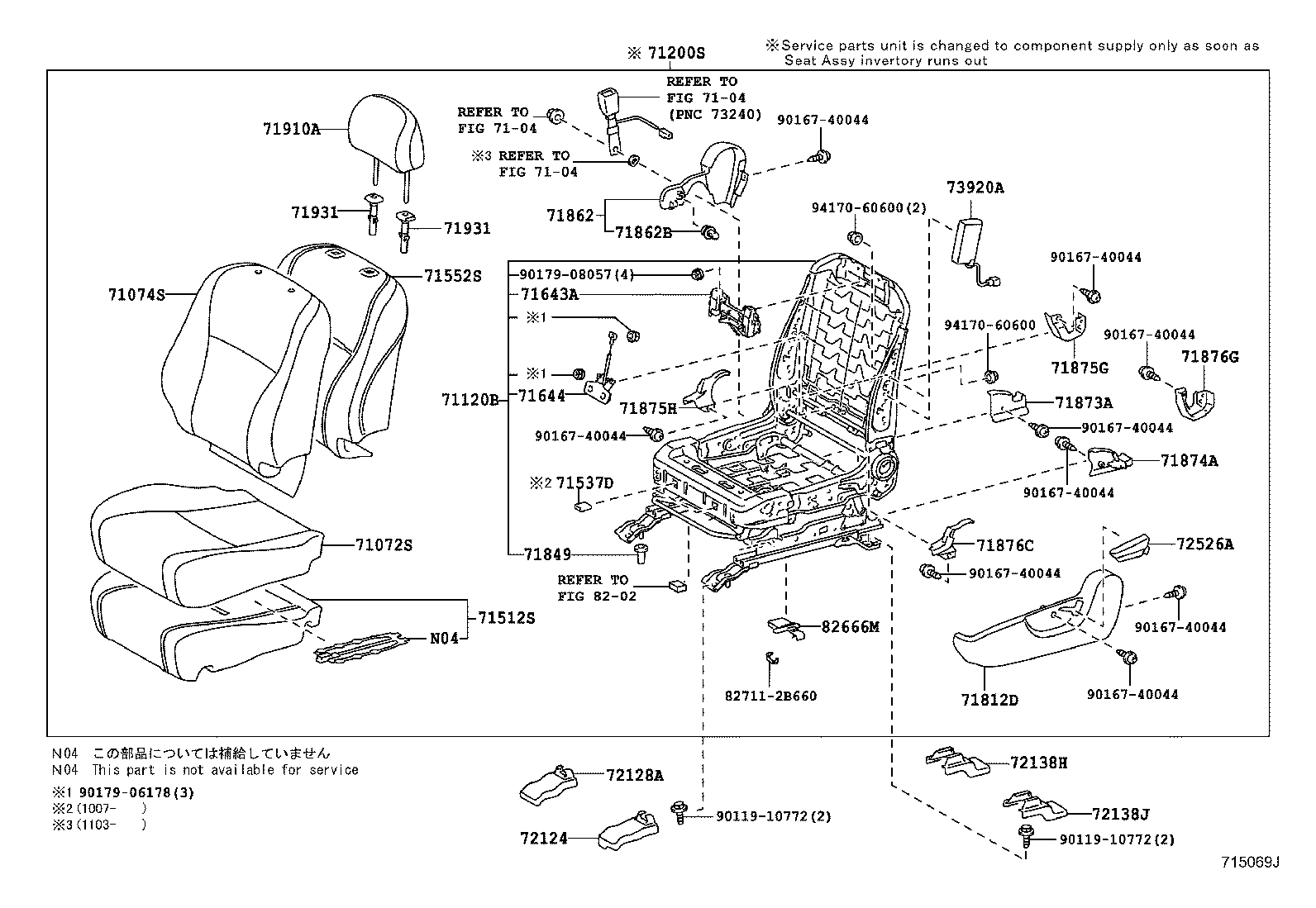

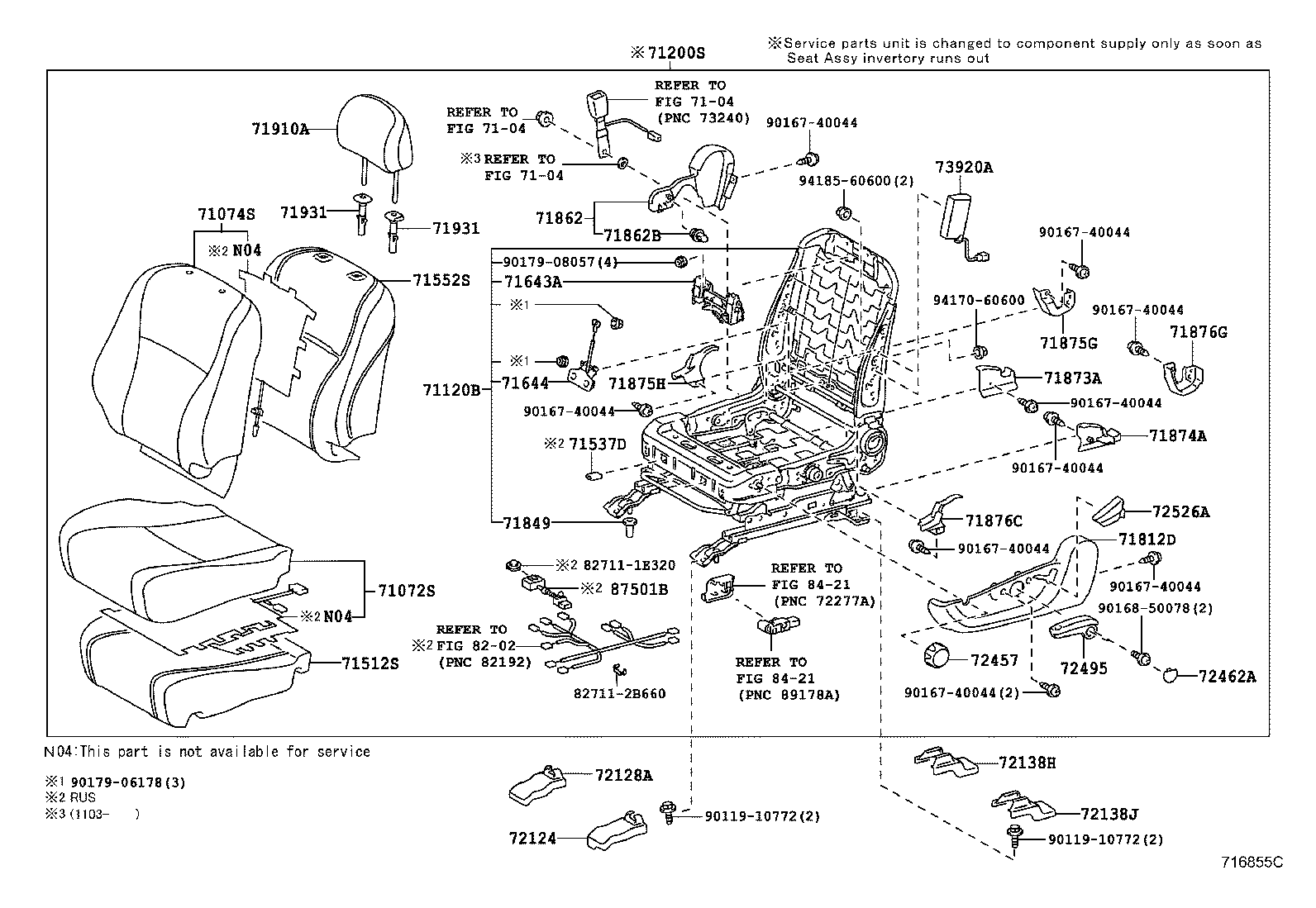

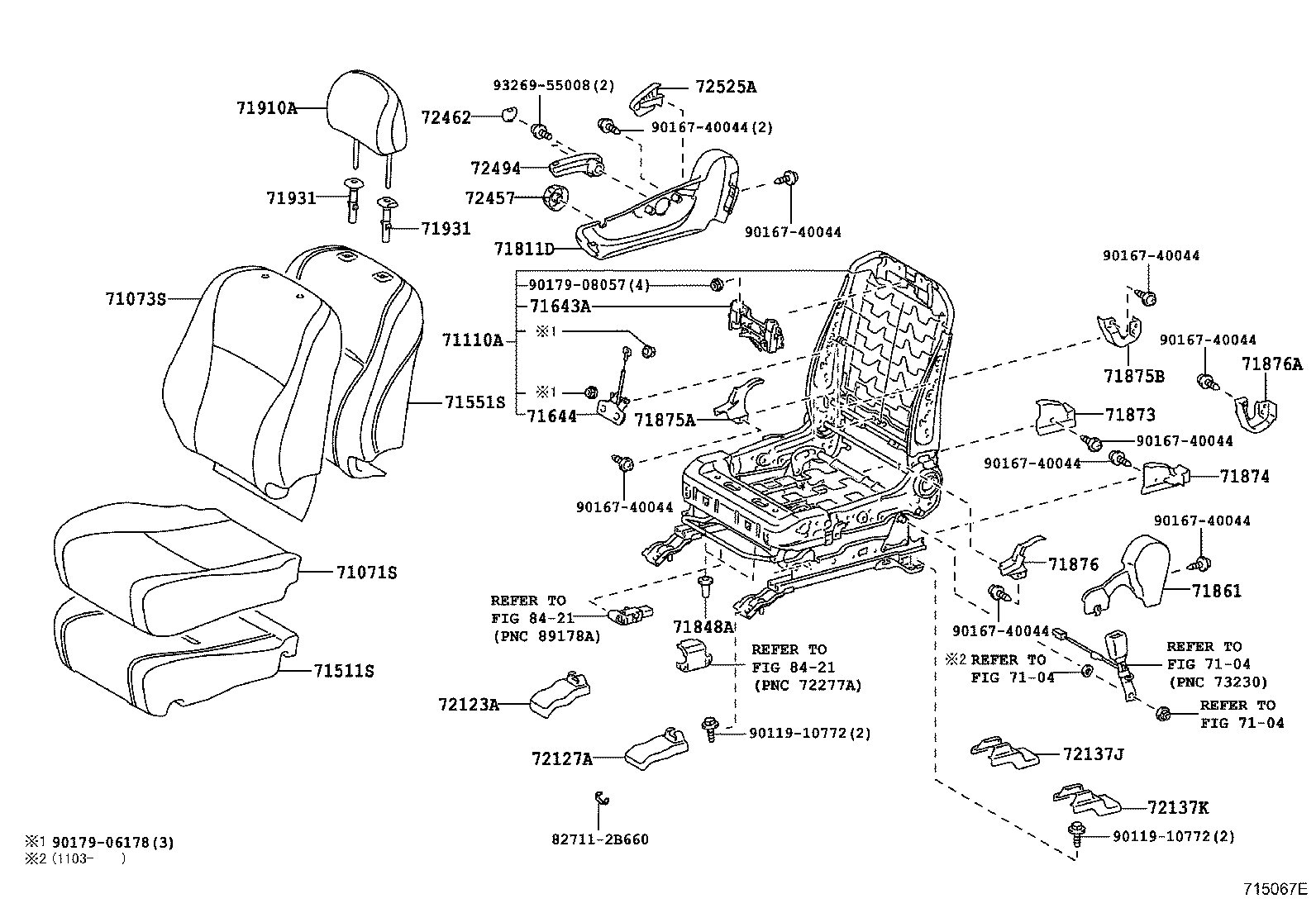

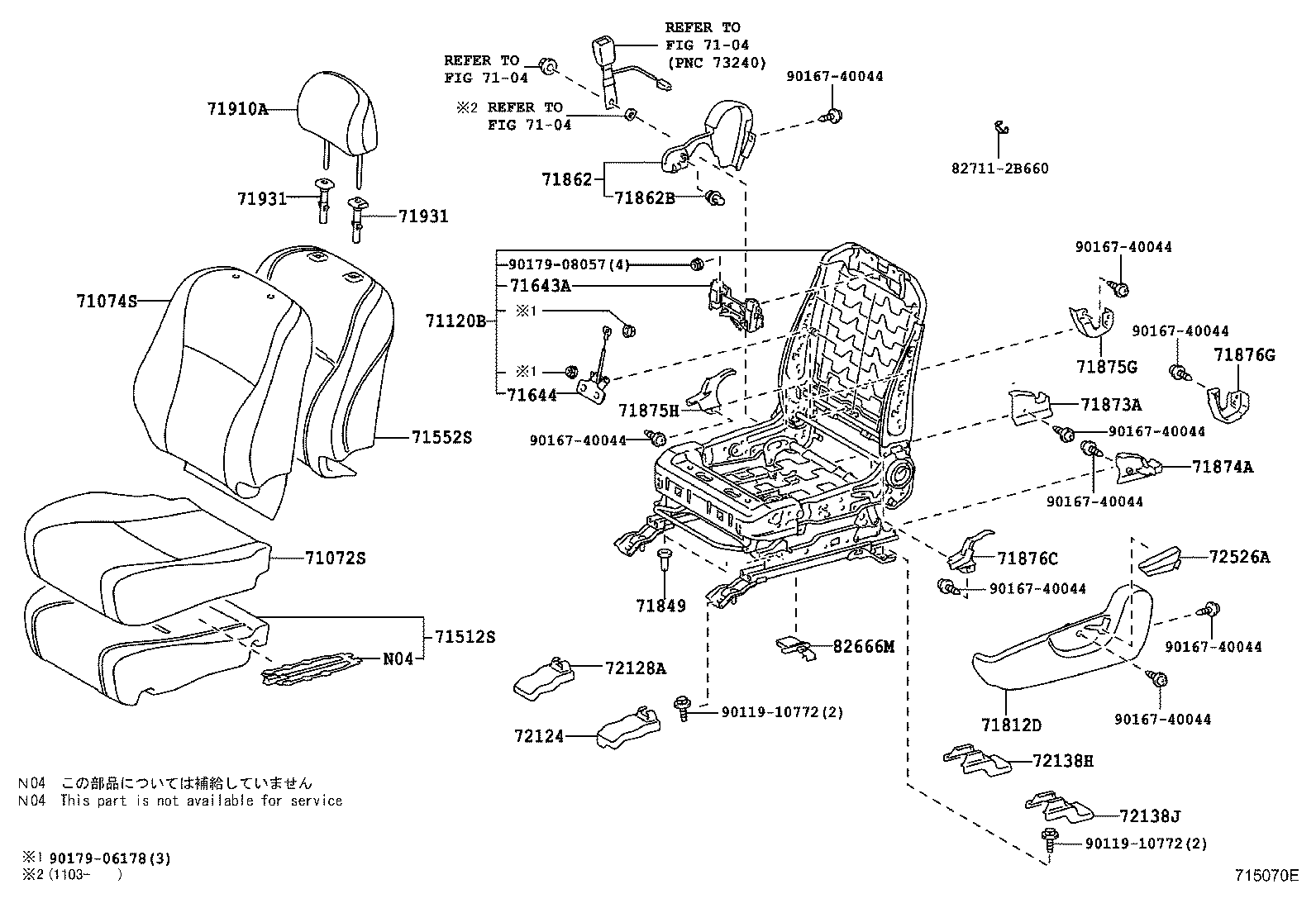

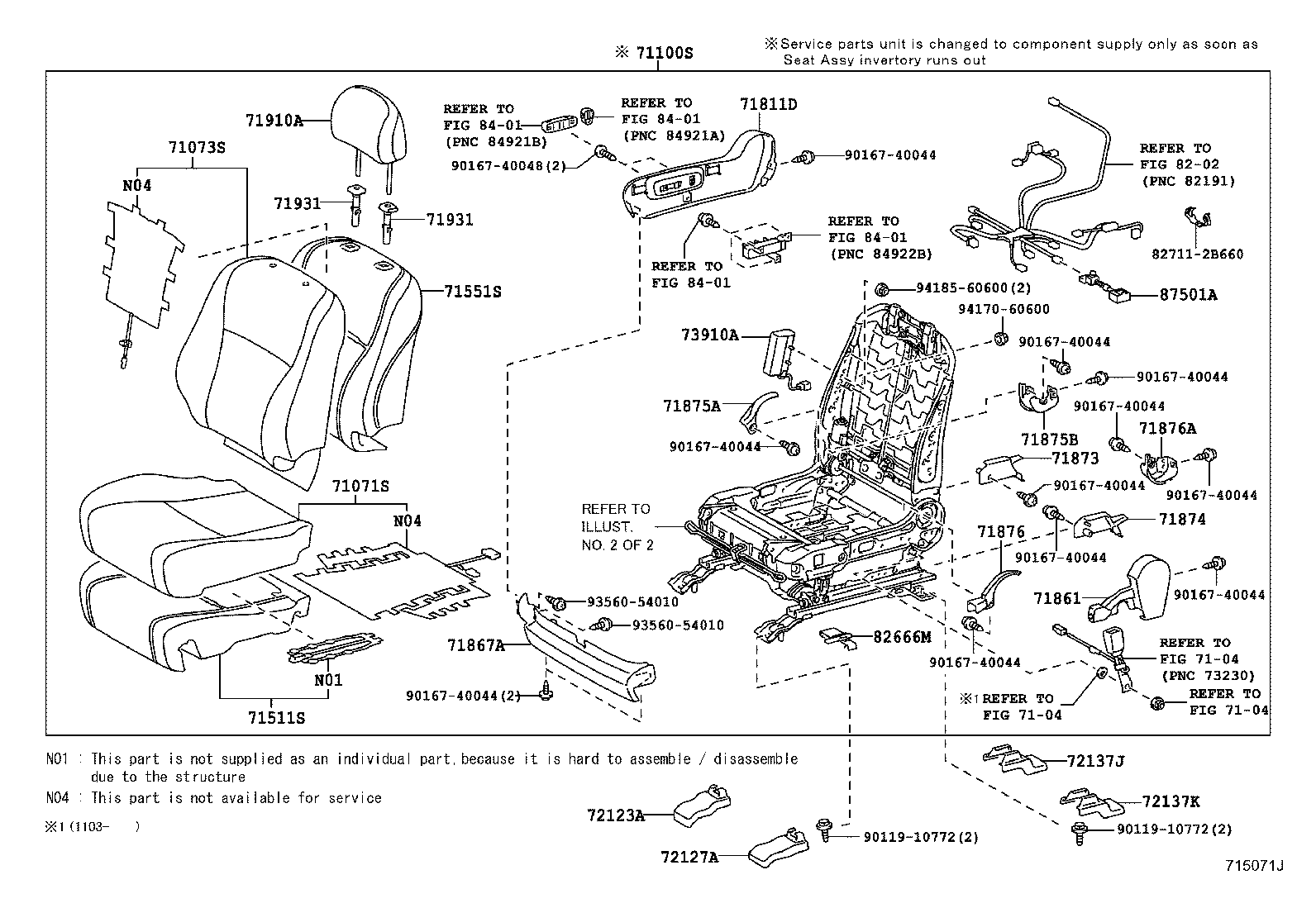

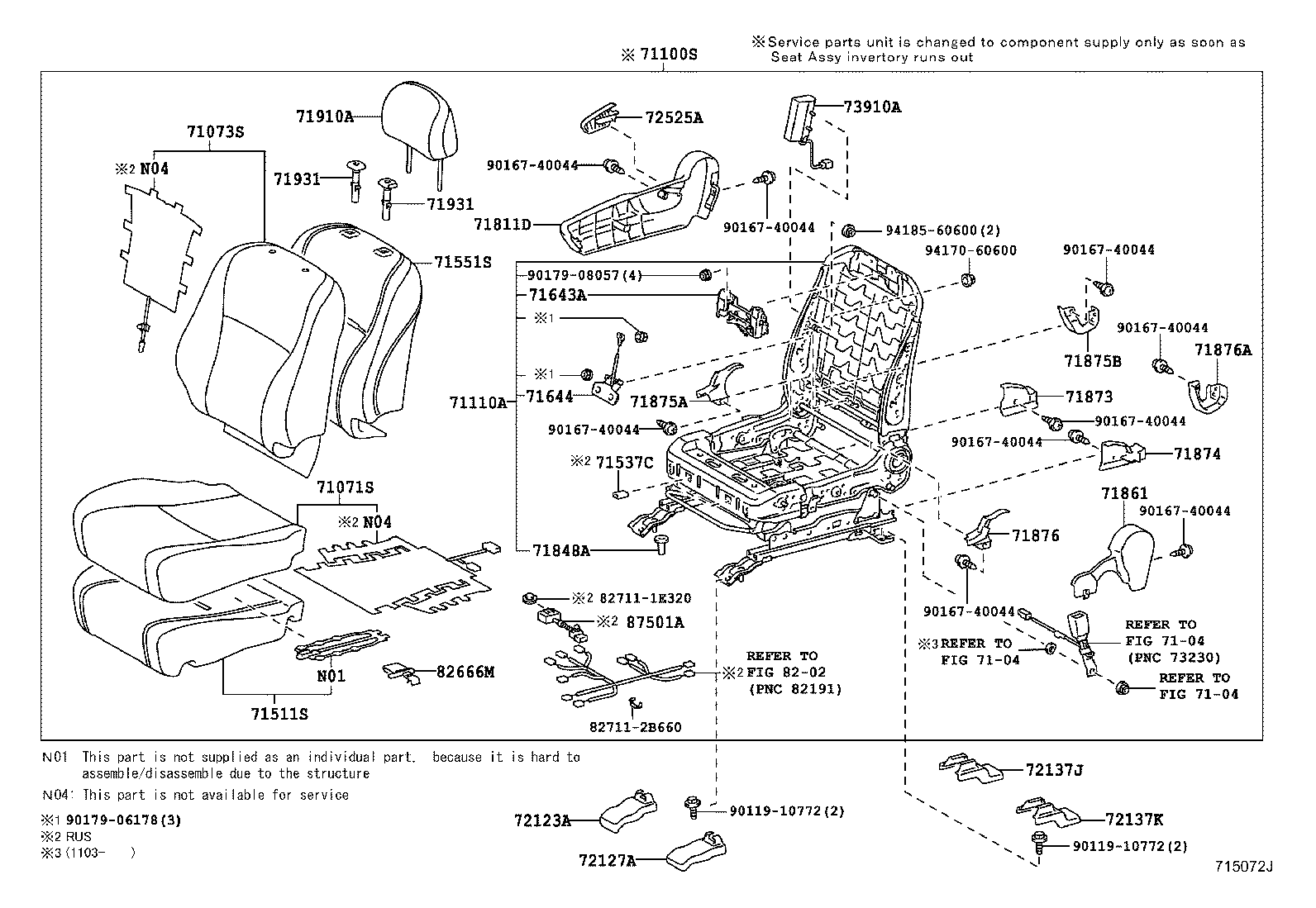

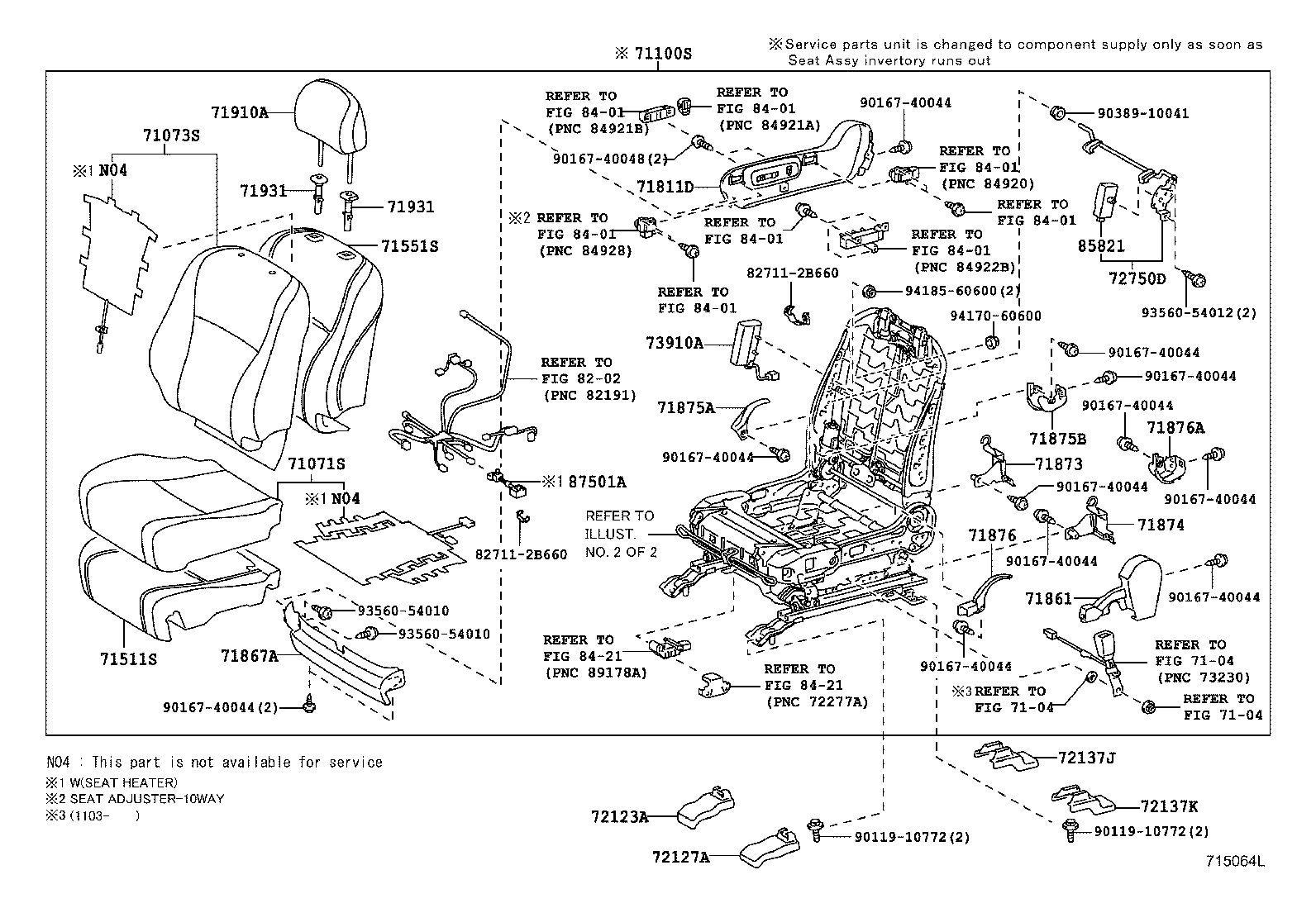

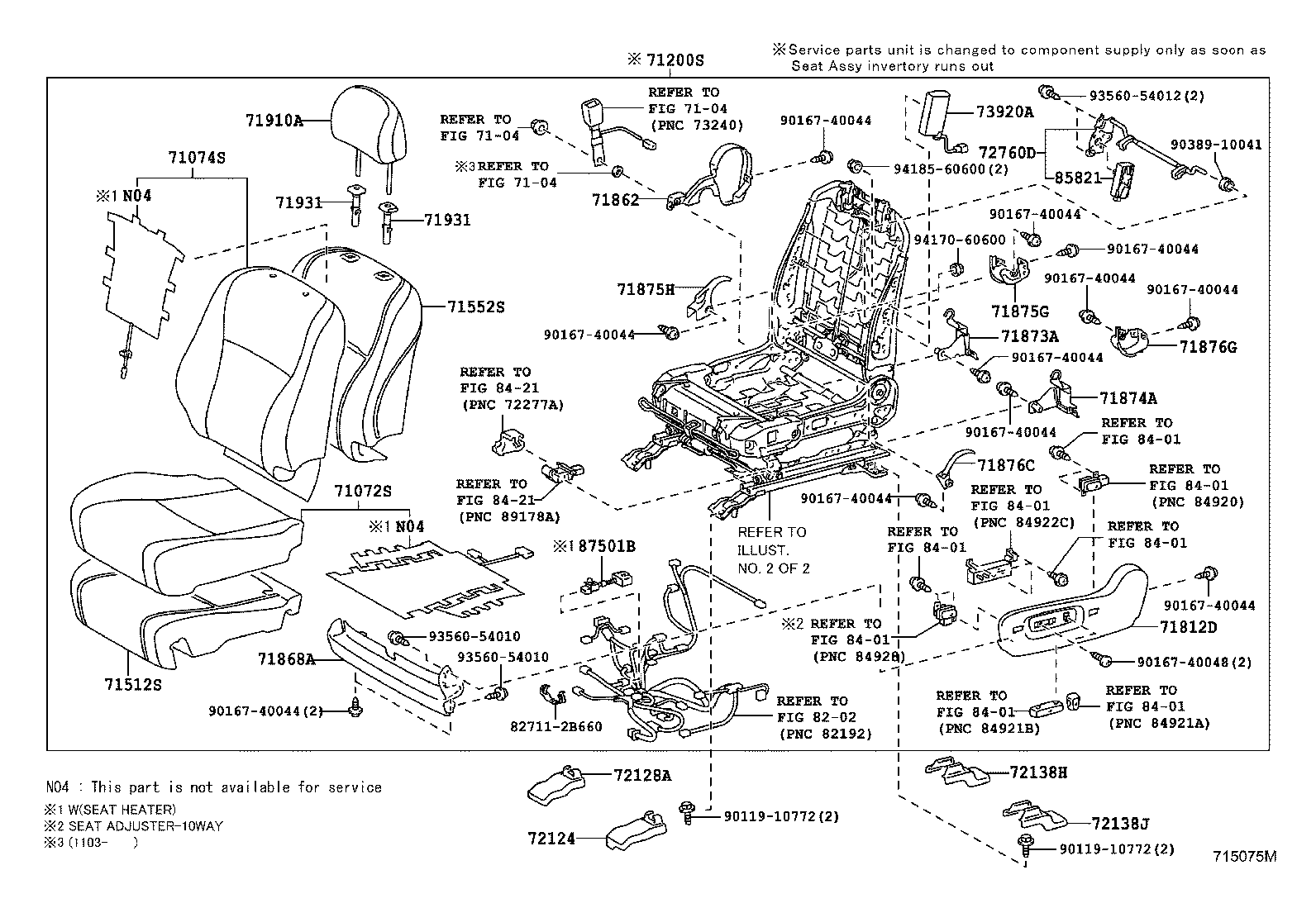

Figure 715065K 715065K 2007-05 → — Figure 715067E 715067E 2007-05 → — Figure 715064L 715064L 2007-05 → — Figure 715069J 715069J 2007-05 → — Figure 715070E 715070E 2007-05 → — Figure 715068K 715068K 2007-05 → — Figure 715072J 715072J 2007-05 → — Figure 715071J 715071J 2007-05 → — Figure 716855C 716855C 2007-05 → — Figure 715075M 715075M 2007-05 → — Figure 716852 716852 2007-05 → —

Part groups

PNCDescription
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71511S Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537C Protector, Front Seat Cushion Edge, RH
71537D Protector, Front Seat Cushion Edge, LH
71551S Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71643A Unit, Active Headrest, Upr
71644 Unit, Active Headrest, Lwr
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71848A Cap, Seat Adjuster Cover, RH
71849 Cap, Seat Adjuster Cover, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71862B Clip(FOR FRONT SEAT SHIELD, LH)
71867A Shield, Front Seat Cushion, Inner NO.1 RH
71868A Shield, Front Seat Cushion, Inner NO.1 LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71875H Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876C Cover, Reclining Adjuster Inside, LH
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137J Cover, Front Seat Track, RH Rear Outer
72137K Cover, Front Seat Track, RH Rear Inner
72138H Cover, Front Seat Track, LH Rear Inner
72138J Cover, Front Seat Track, LH Rear Outer
72457 Knob, Vertical Seat Adjuster
72462 Cover, Vertical Adjuster RH
72462A Cover, Vertical Adjuster LH
72494 Handle, Vertical Adjusting, RH
72495 Handle, Vertical Adjusting, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
82666M Holder, Connector
85821 Motor Assy, Power Seat
85821H Motor Assy, Power Seat Slide, RH
85821J Motor Assy, Power Seat Reclining, RH
85821K Motor Assy, Power Seat Tilt, RH
85821L Motor Assy, Power Seat Lifter, RH
85822 Motor Assy, Power Seat Slide, LH
85822A Motor Assy, Power Seat Reclining, LH
85822B Motor Assy, Power Seat Tilt, LH
85822C Motor Assy, Power Seat Lifter, LH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
