Toyota Highlander/Kluger
2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General
Supported model
Data version 2014-06
Seat Belt & Child Restraint Seat
23 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 73003 | Belt Set, Rear Seat 3 Point Type, RH |
| 73004 | Belt Set, Rear Seat 3 Point Type, LH |
| 73023 | Plate Sub-assy, Front Shoulder Belt Anchor, RH |
| 73024 | Plate Sub-assy, Front Shoulder Belt Anchor, LH |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73219 | Stopper, Tongue Plate |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73240 | Belt Assy, Front Seat Inner, LH |

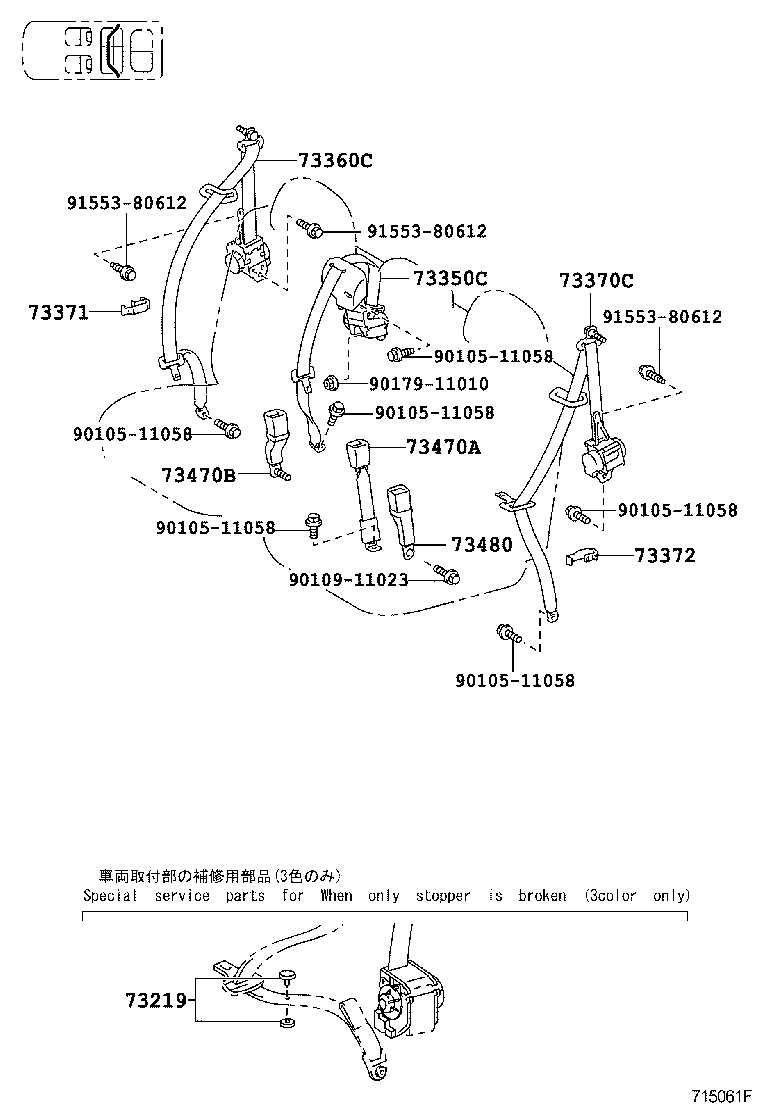

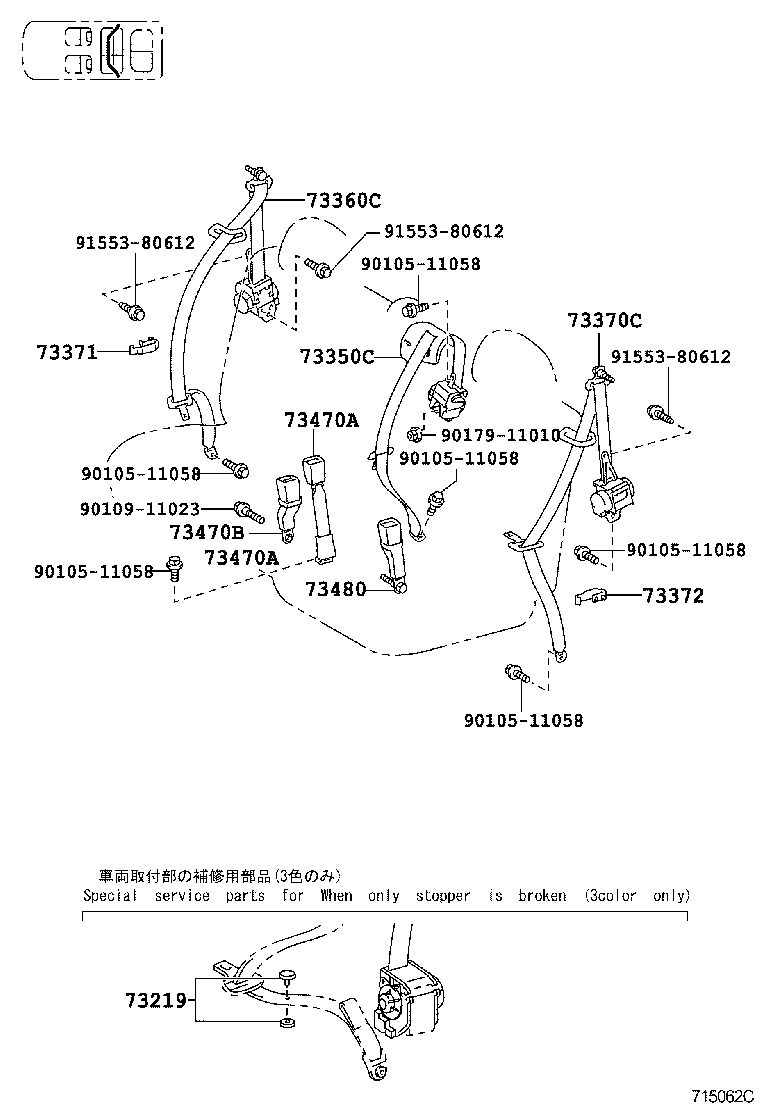

| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360C | Belt Assy, Rear NO.1 Seat, Outer RH |
| 73370C | Belt Assy, Rear NO.1 Seat, Outer LH |
| 73371 | Hanger, Rear Seat Shoulder Belt, RH |
| 73371C | Hanger, Rear NO.2 Seat Shoulder Belt, RH |
| 73372 | Hanger, Rear Seat Shoulder Belt, LH |
| 73372C | Hanger, Rear NO.2 Seat Shoulder Belt, LH |
| 73470A | Belt Assy, Rear Seat, Inner Center |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |

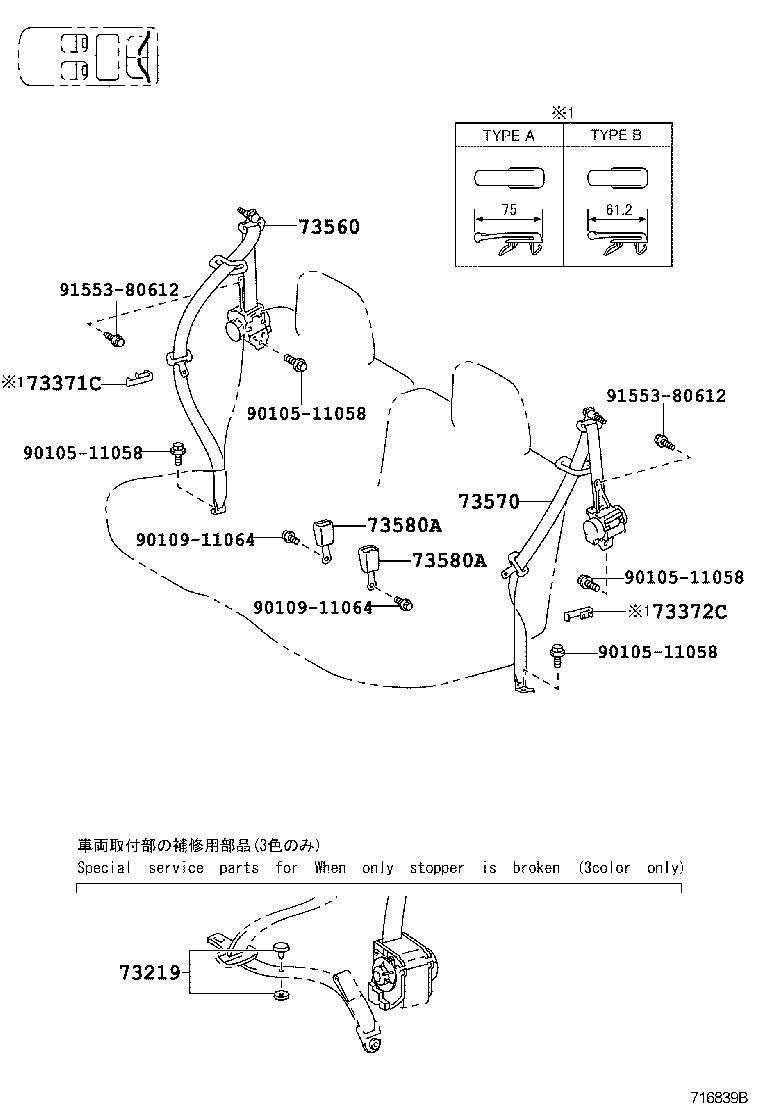

| 73560 | Belt Assy, Rear NO.2 Seat, Outer RH |
| 73570 | Belt Assy, Rear NO.2 Seat, Outer LH |
| 73580A | Belt Sub Assy, Rear NO.2 Seat, Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
