Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

5 part groups · 2 illustrations

Illustrations

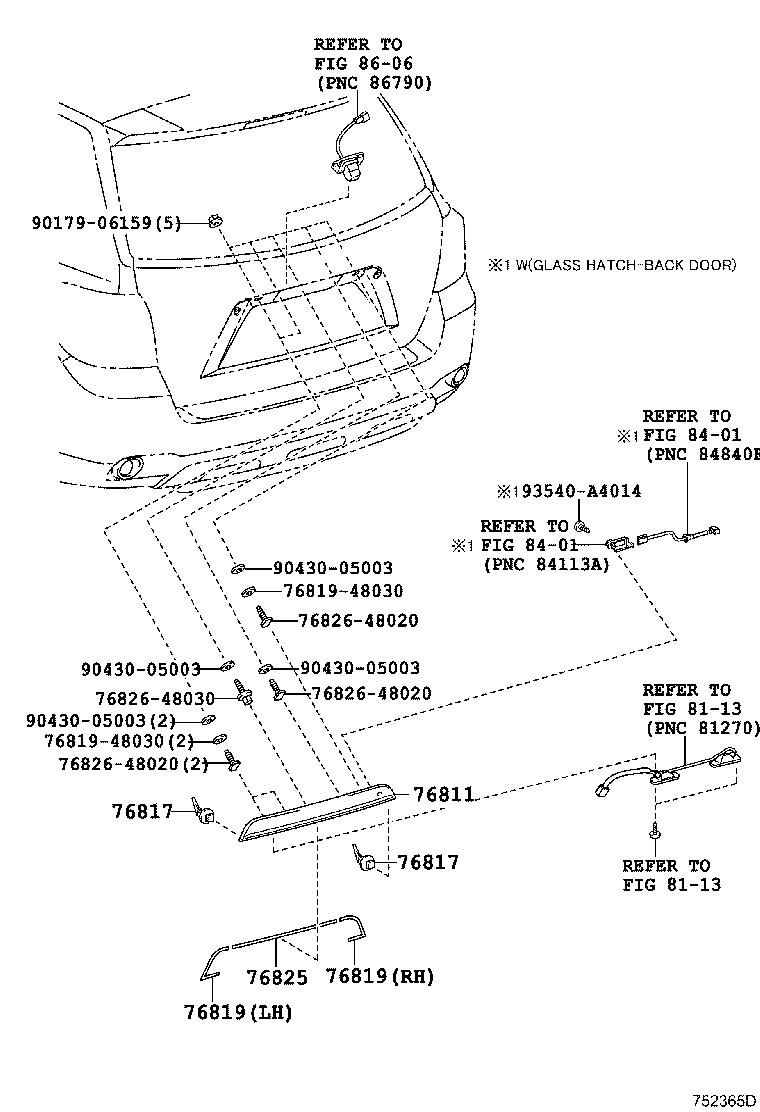

Figure 751907C 751907C 2007-05 → 2010-07 Figure 752365D 752365D 2010-07 → —

Part groups

PNCDescription
76801A Garnish Sub-assy, Luggage Compartment Door, Outside
76811 Garnish, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76819 Seal, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
