Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

53 part groups · 20 illustrations

Illustrations

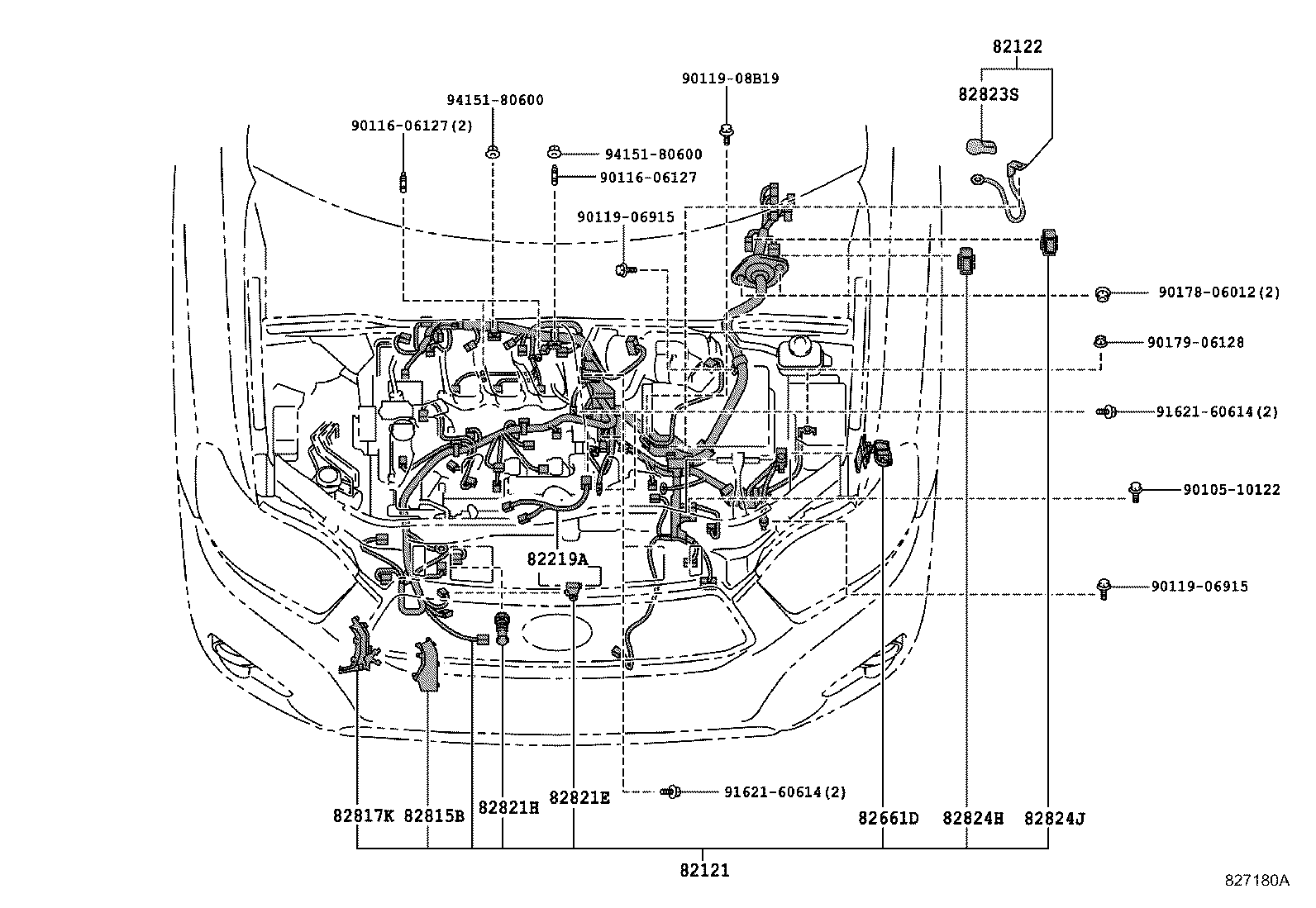

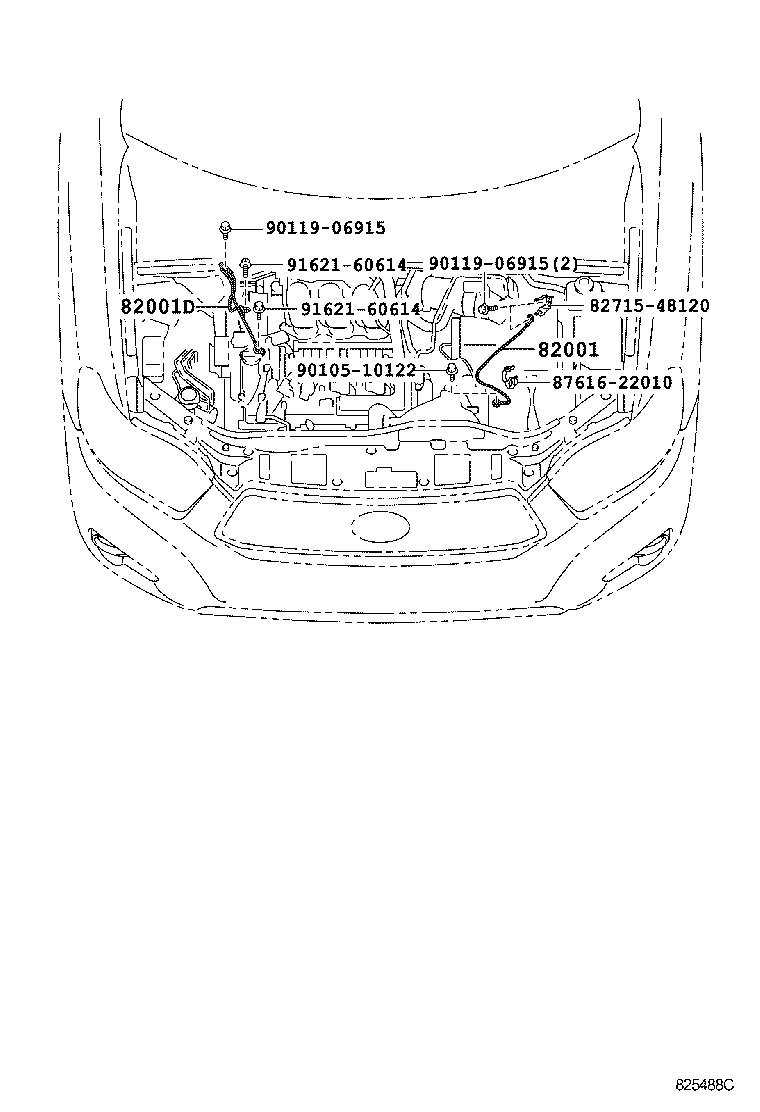

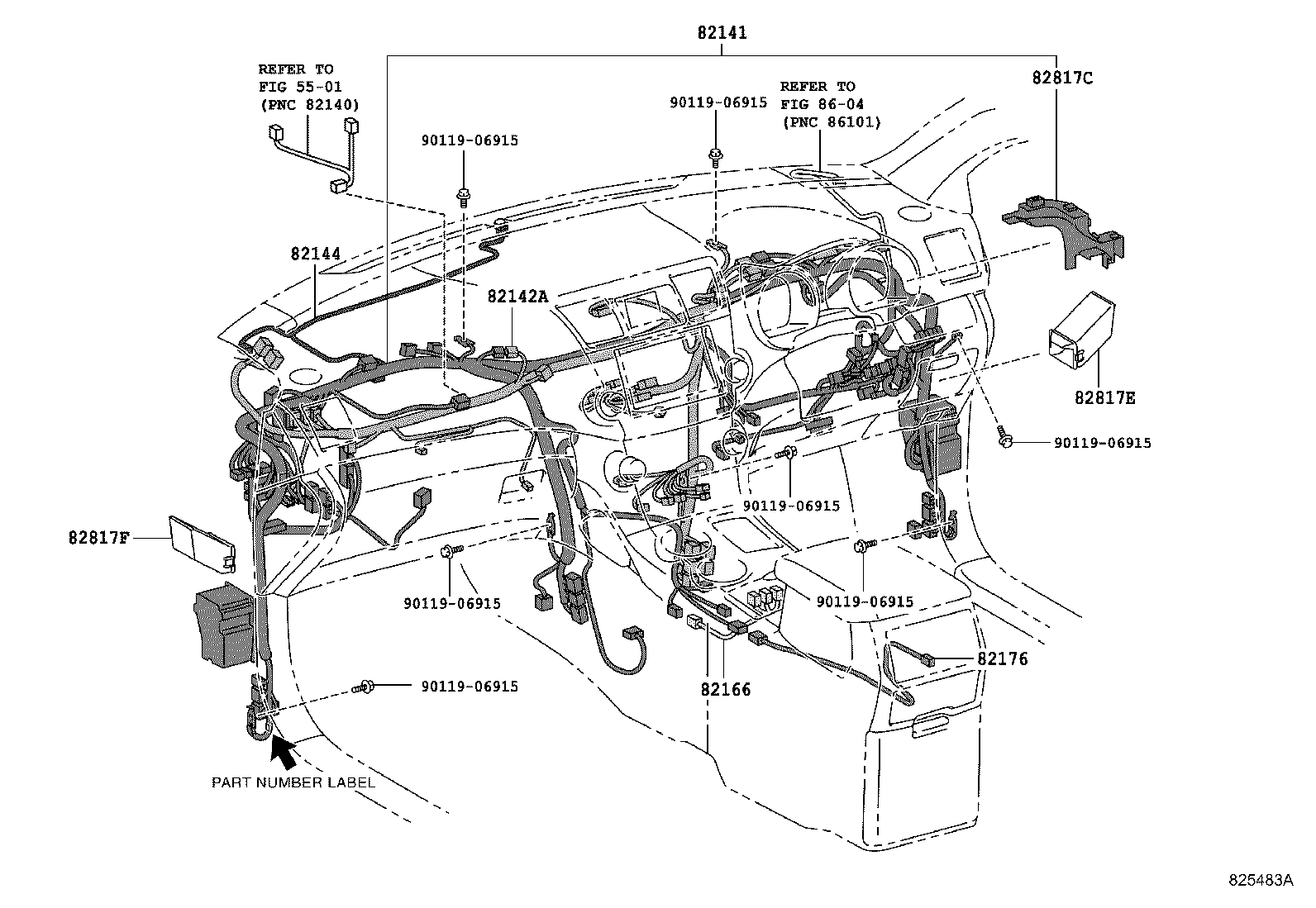

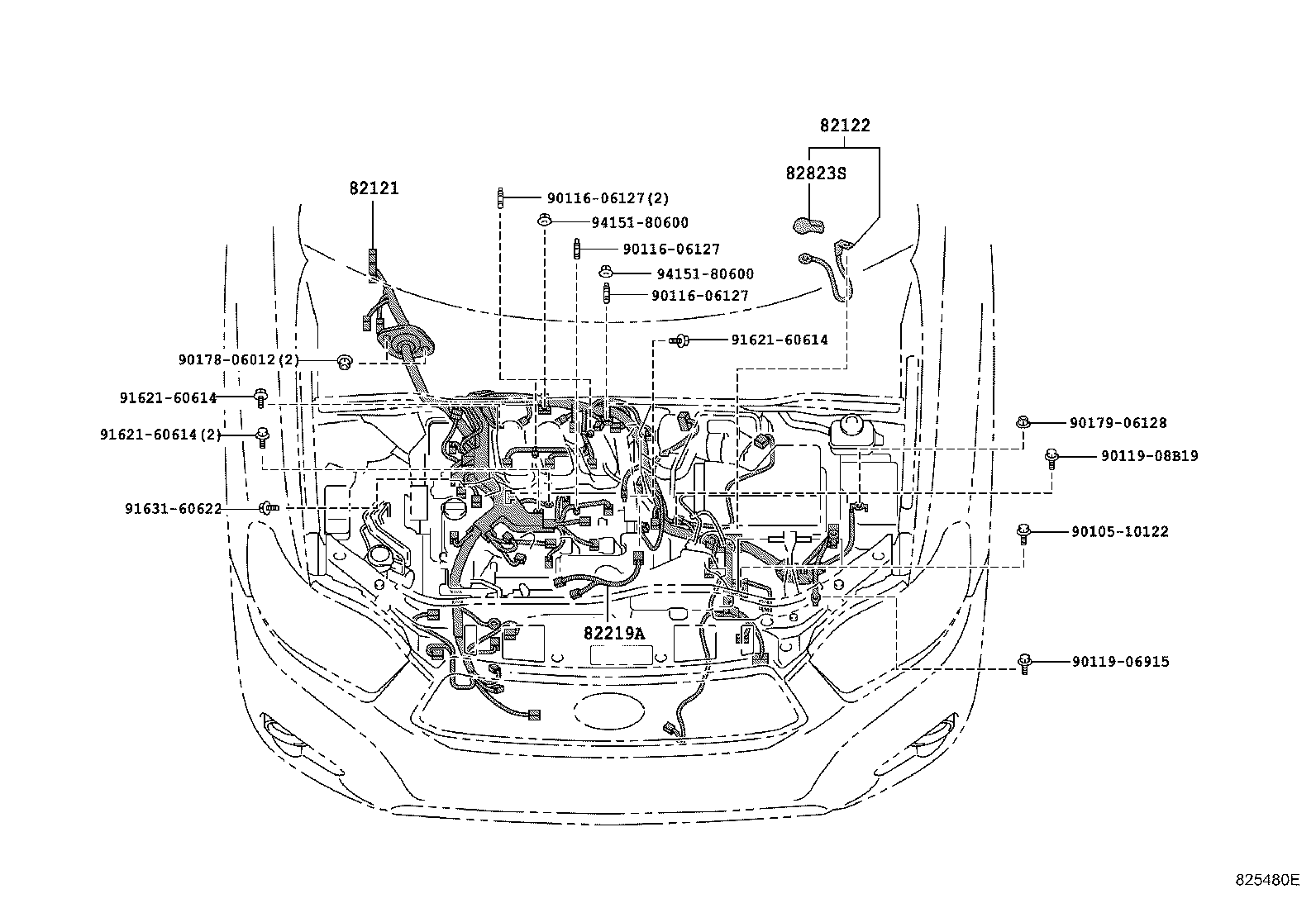

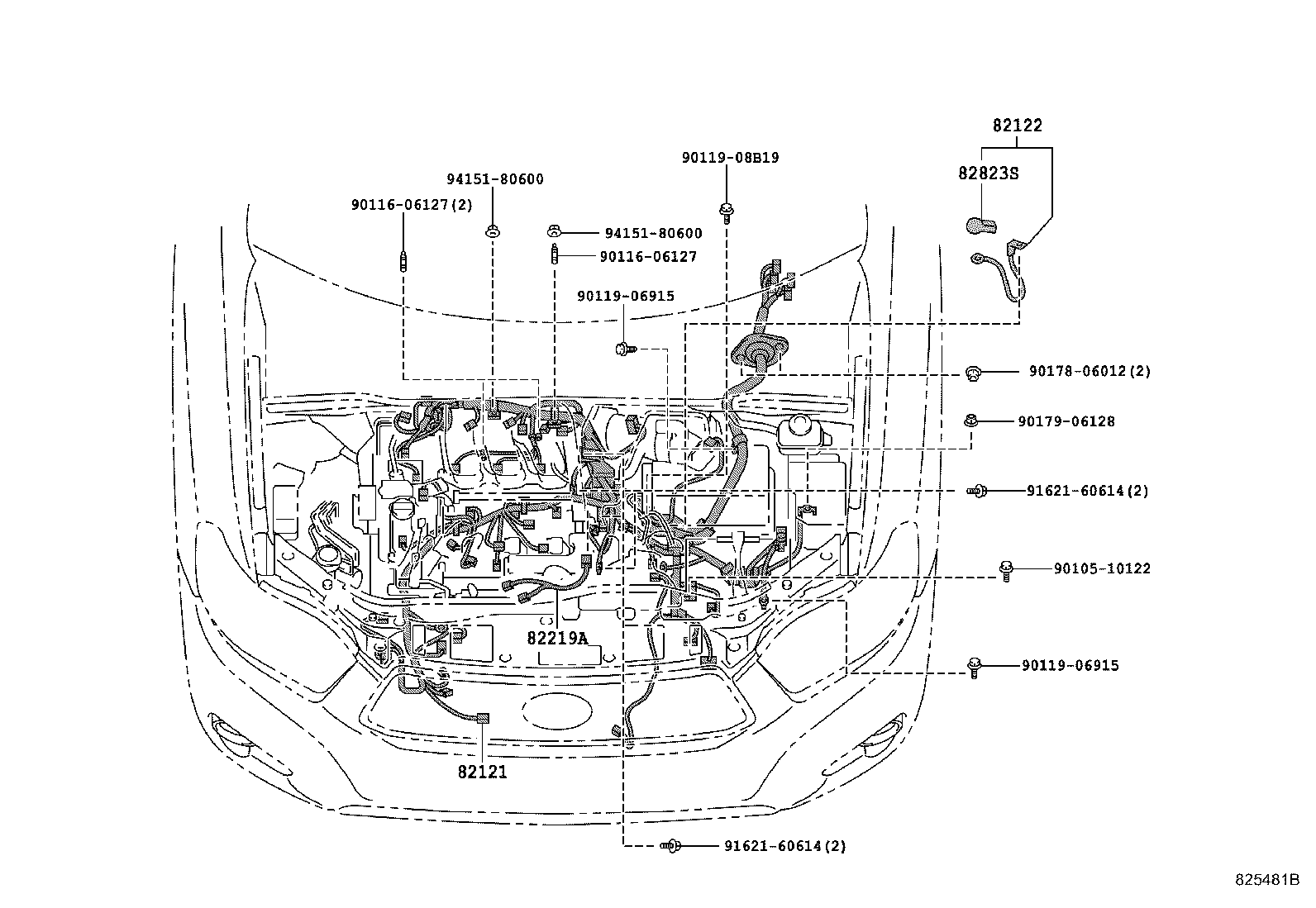

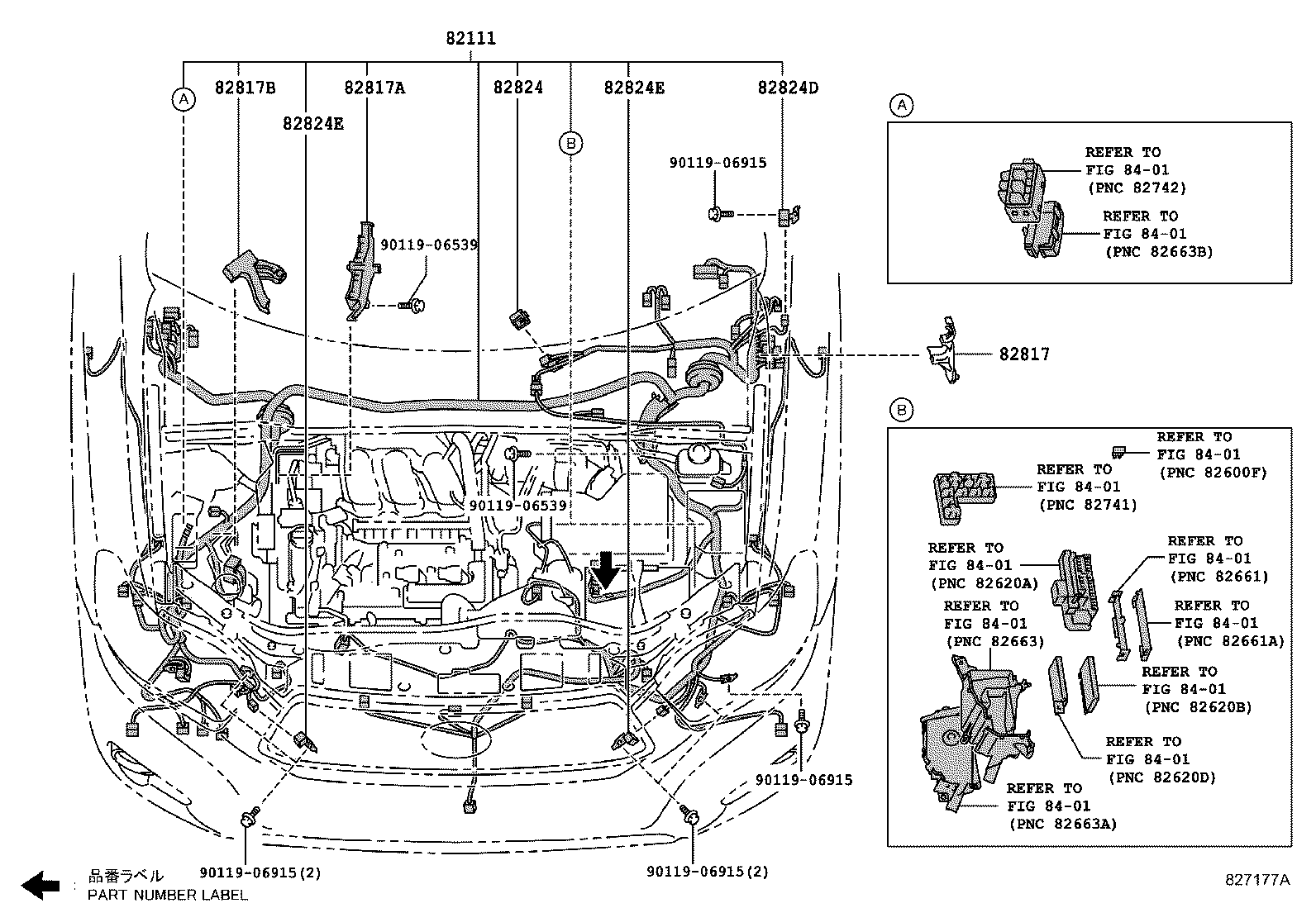

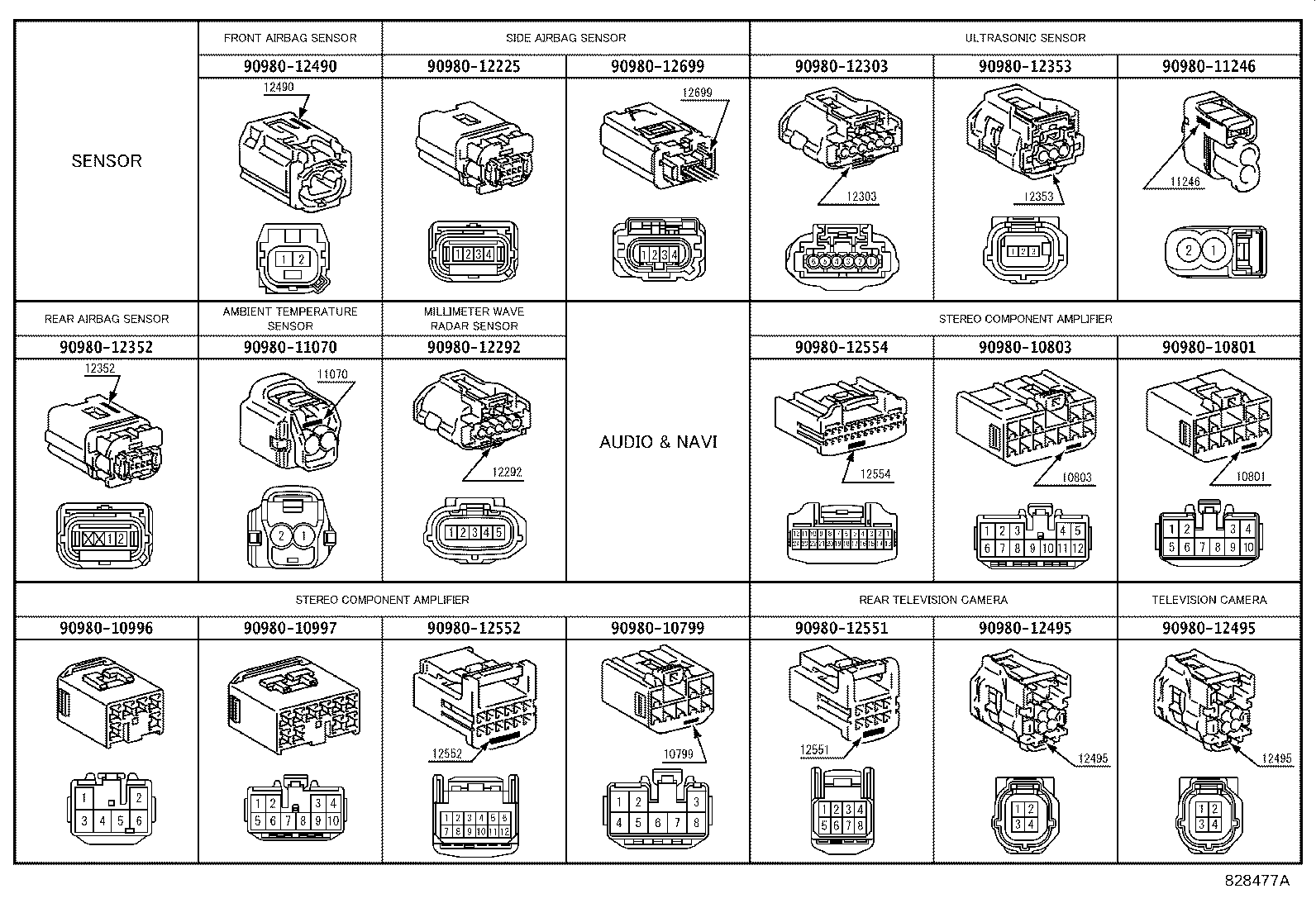

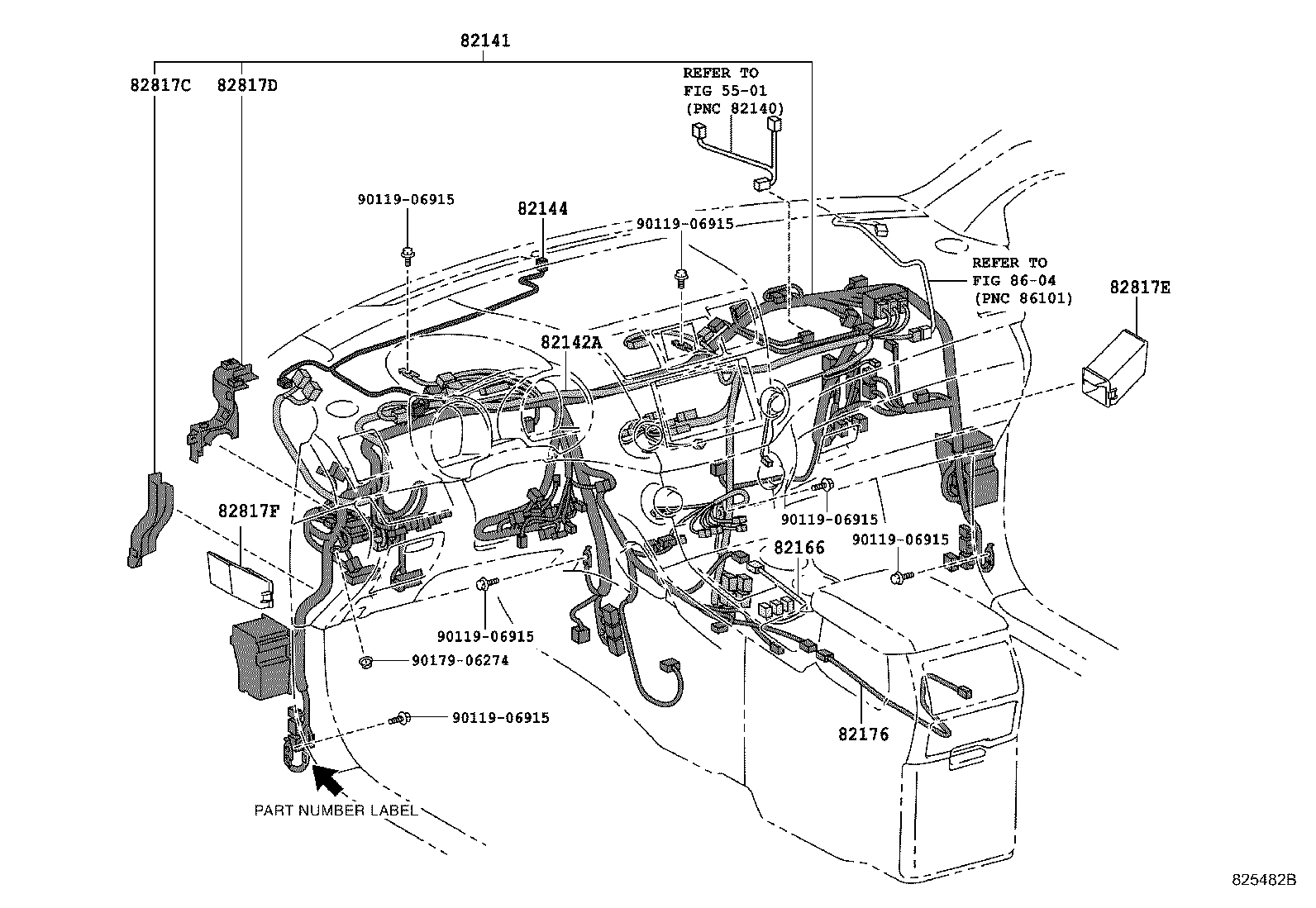

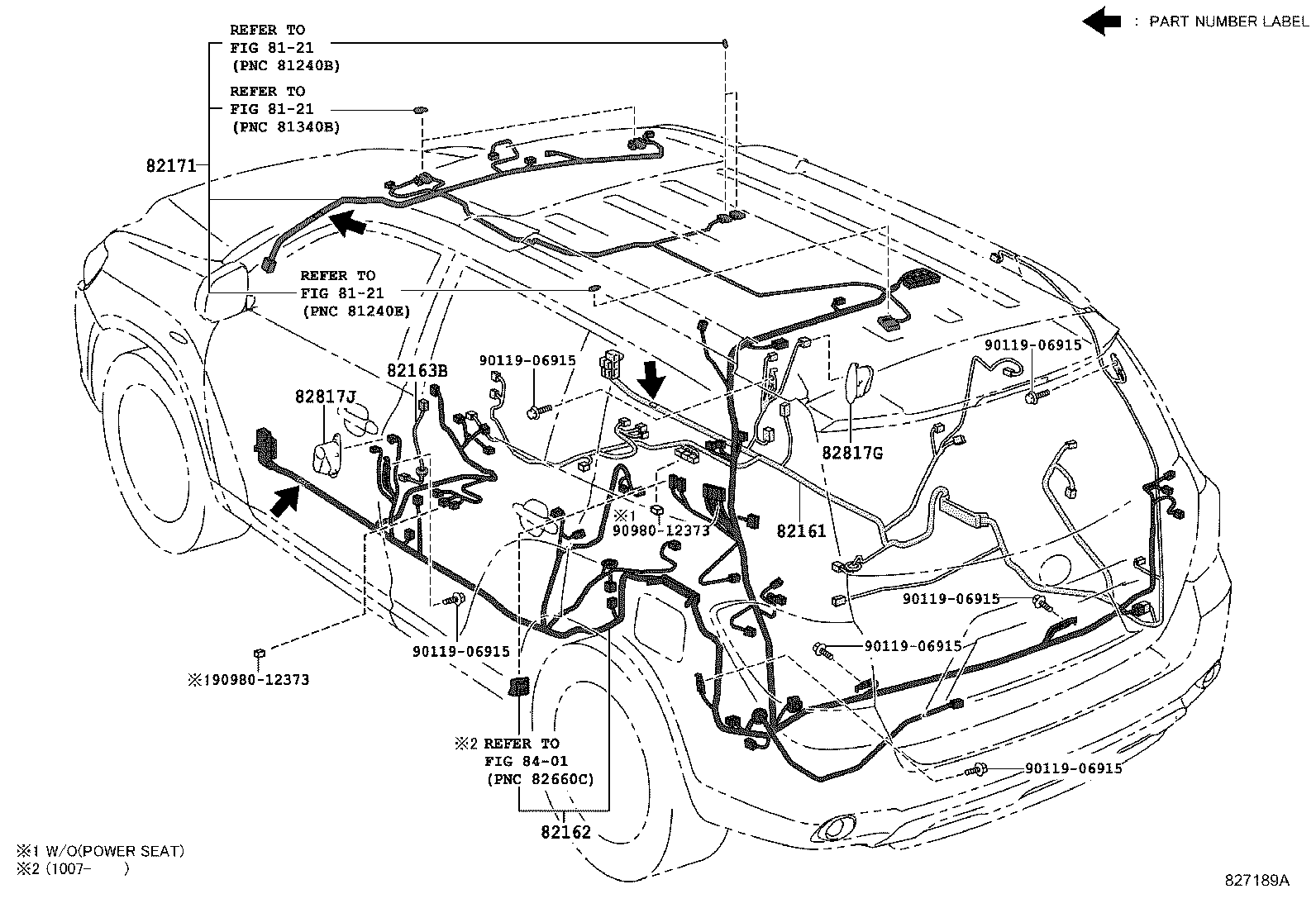

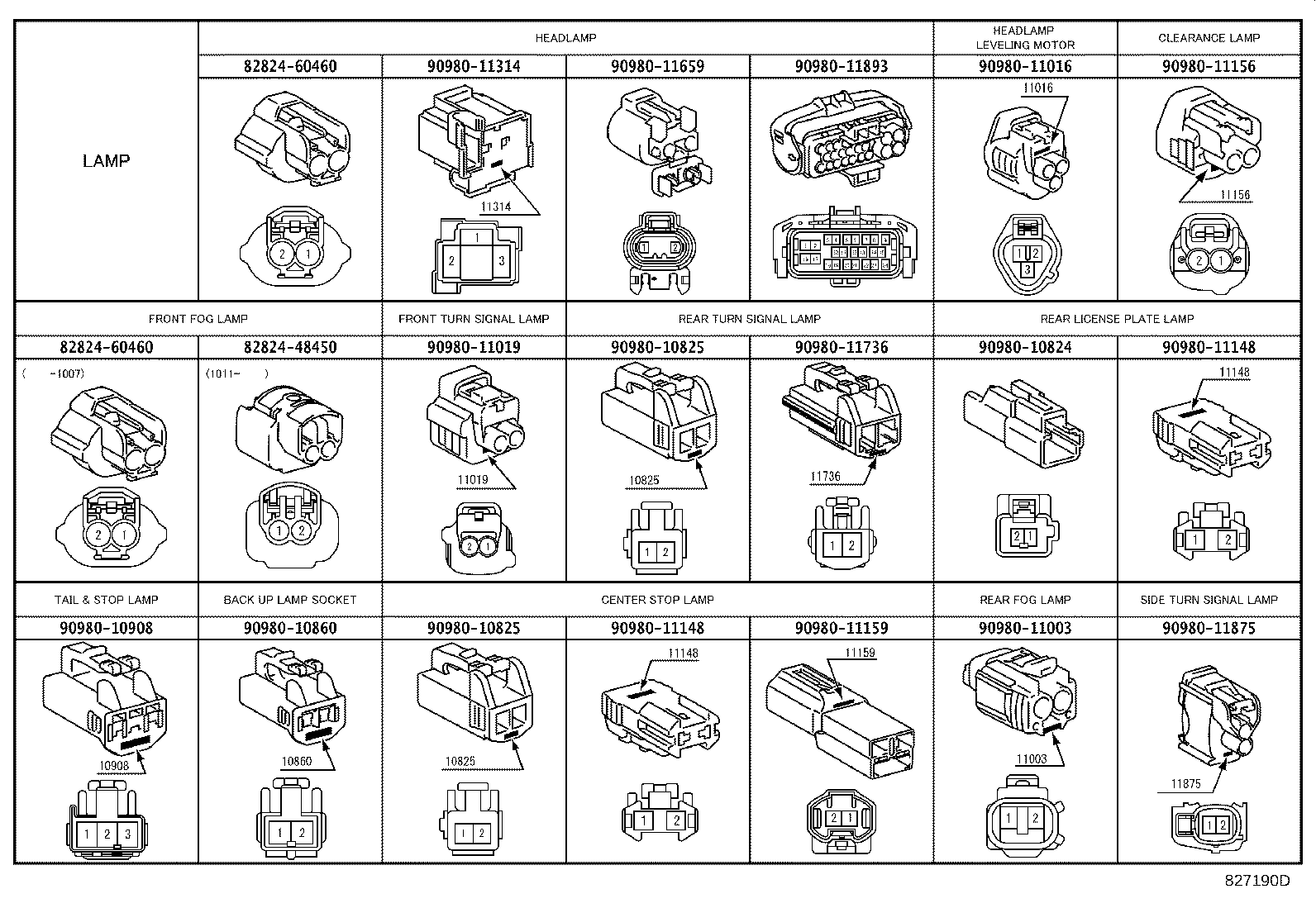

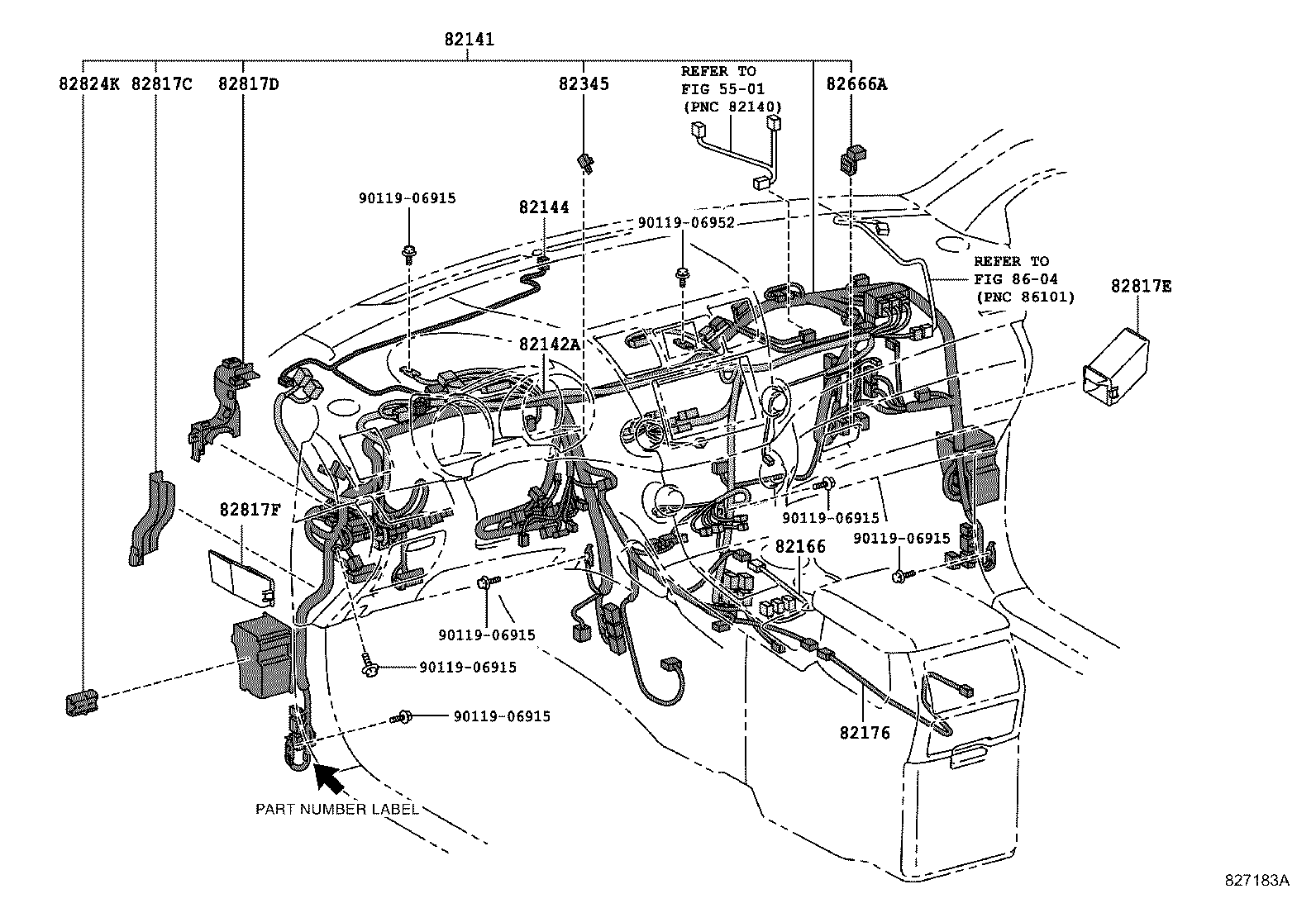

Figure 825478G 825478G 2007-05 → 2010-07 Figure 825479D 825479D 2007-05 → 2010-07 Figure 827177A 827177A 2010-07 → — Figure 827178A 827178A 2010-07 → — Figure 825480E 825480E 2007-05 → 2010-07 Figure 825481B 825481B 2007-05 → 2010-07 Figure 827179A 827179A 2010-07 → — Figure 827180A 827180A 2010-07 → — Figure 825482B 825482B 2007-05 → 2010-07 Figure 825483A 825483A 2007-05 → 2010-07 Figure 827183A 827183A 2010-07 → — Figure 827182B 827182B 2010-07 → — Figure 825484F 825484F 2007-05 → — Figure 827189A 827189A 2007-05 → — Figure 825492A 825492A 2007-05 → — Figure 825487D 825487D 2007-05 → — Figure 825488C 825488C 2007-05 → — Figure 827190D 827190D 2007-05 → — Figure 828477A 828477A 2007-05 → — Figure 825539D 825539D 2007-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001D Cable, Bond, NO.3

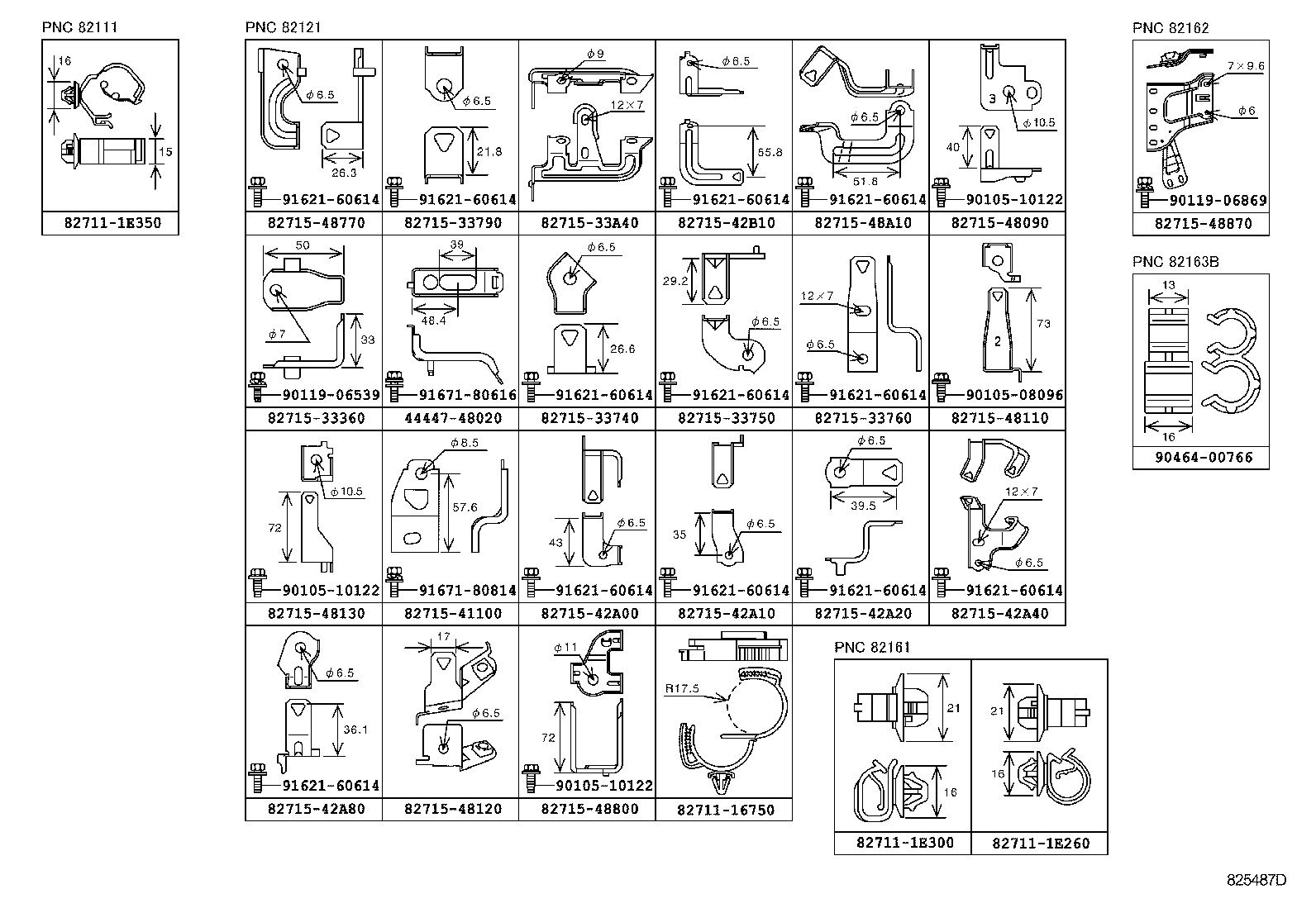

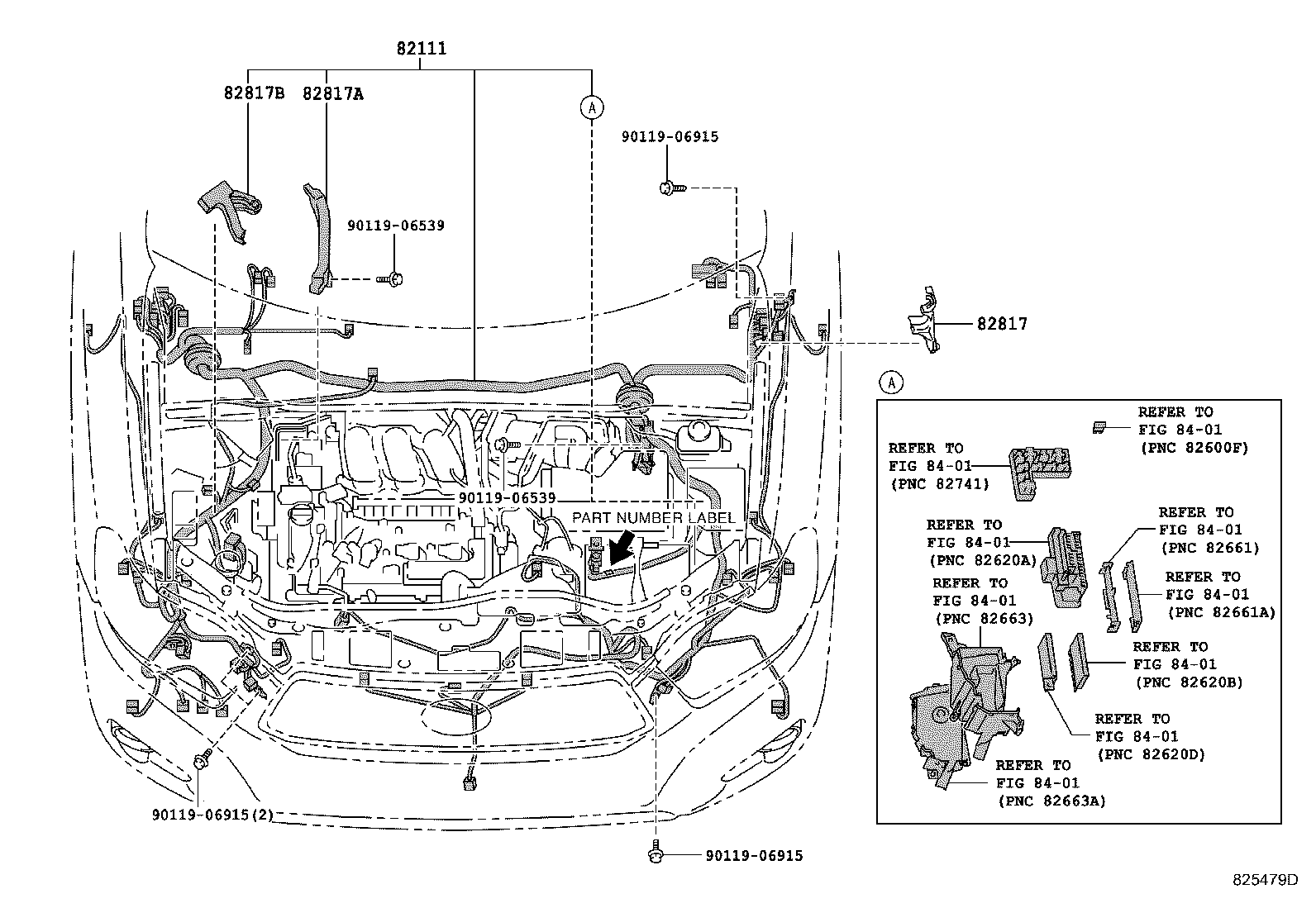

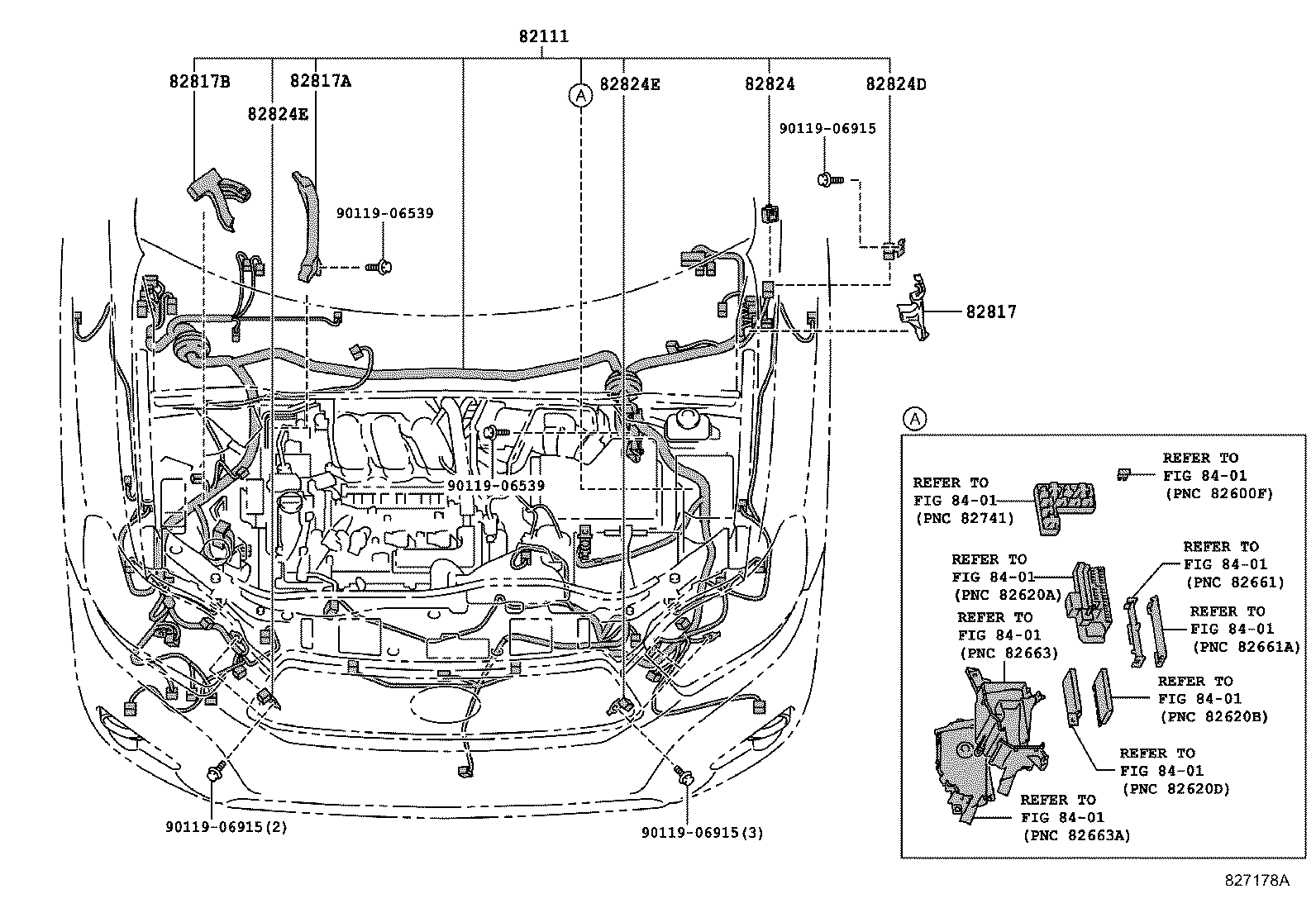

82111 Wire, Engine Room Main

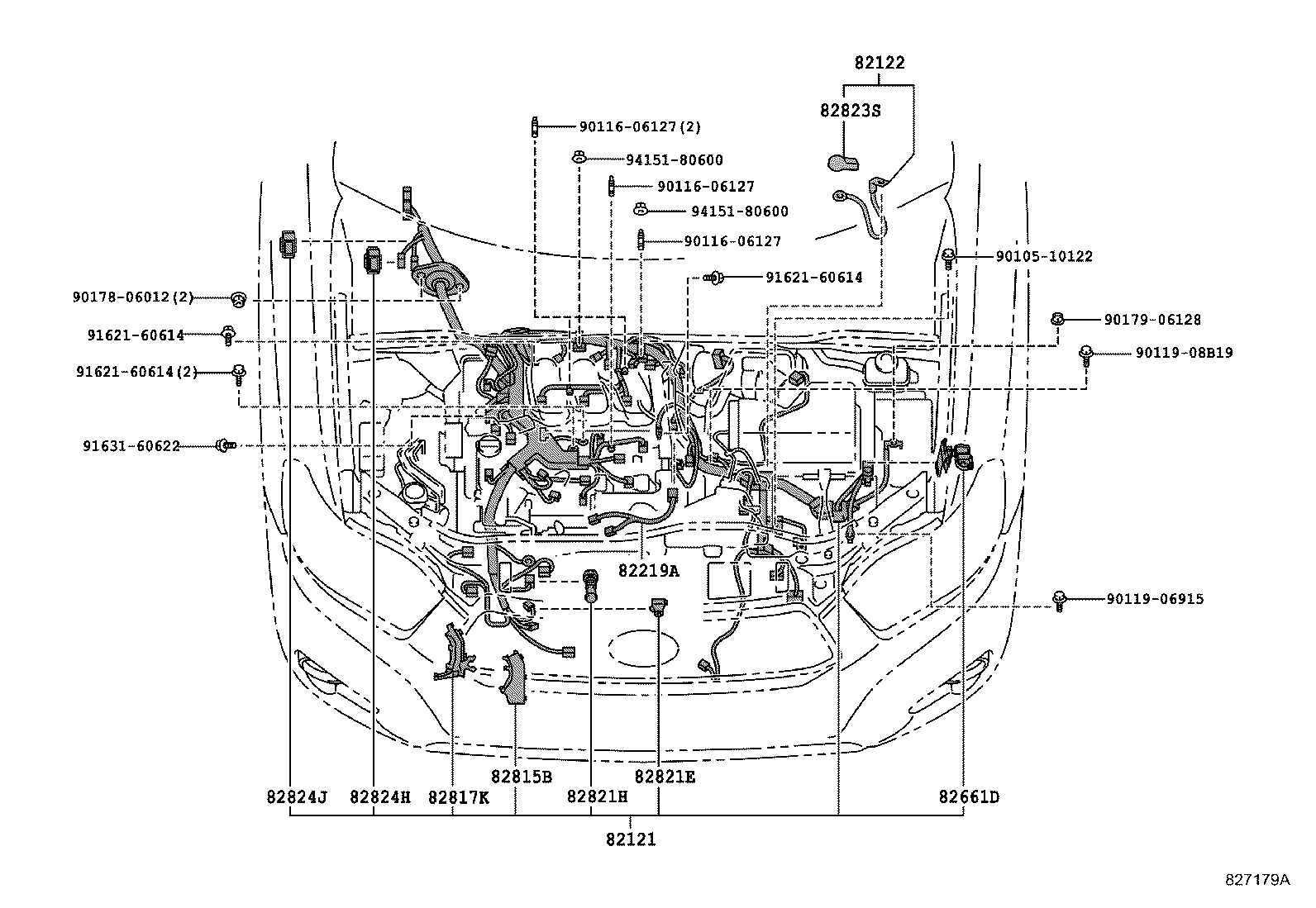

82121 Wire, Engine
82122 Wire, Engine, NO.2

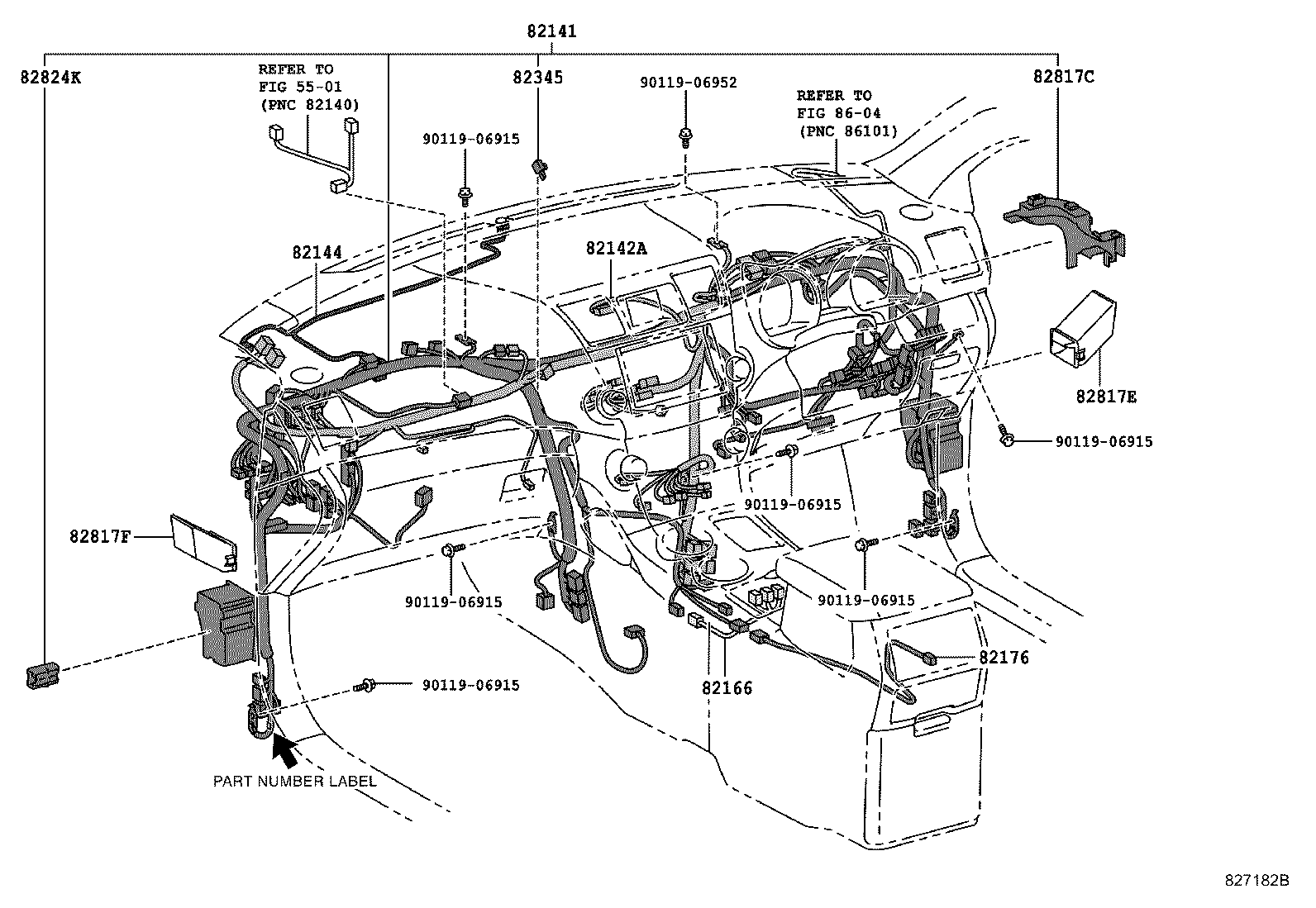

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82144 Wire, Instrument Panel, NO.4

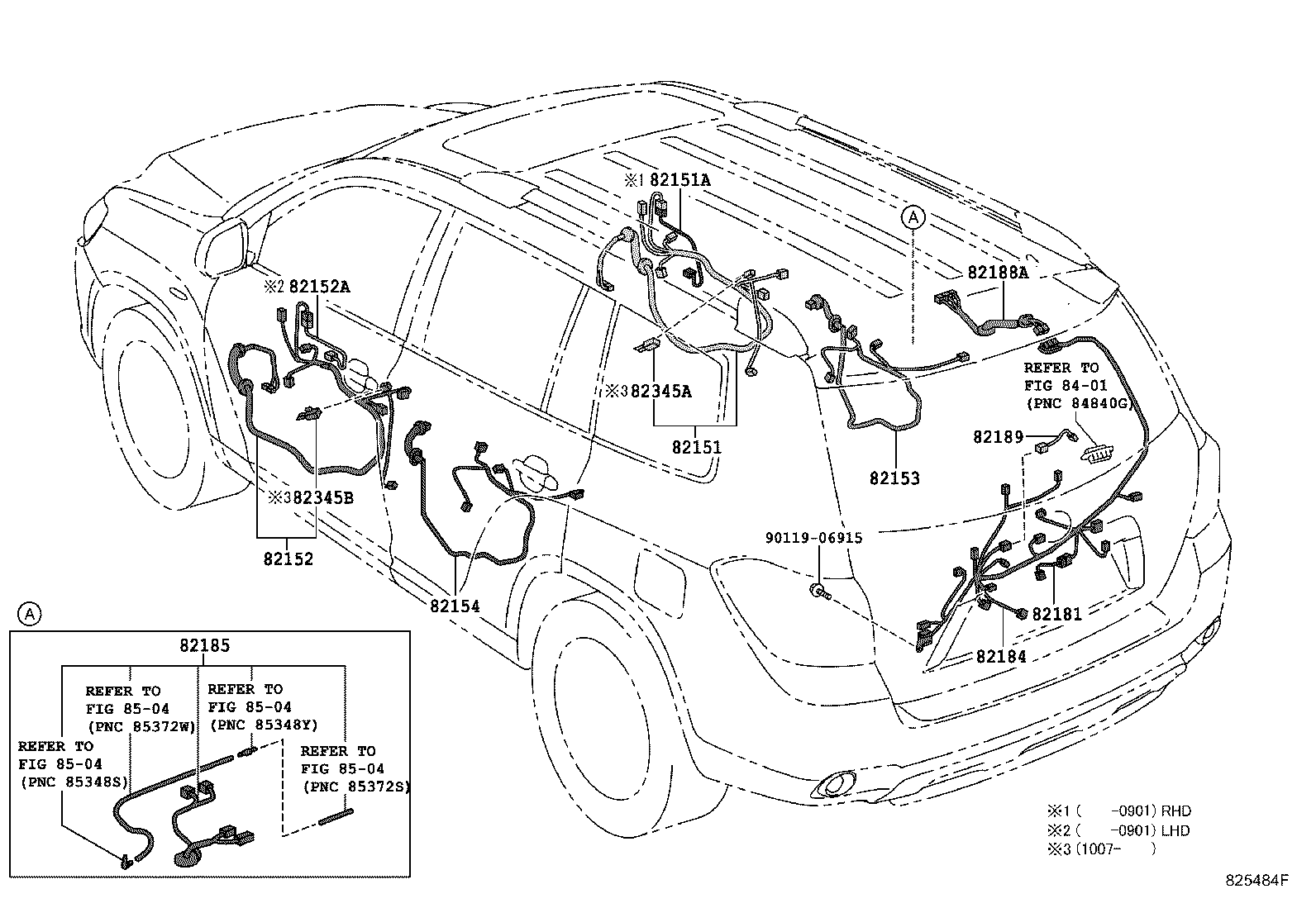

82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163B Wire, Floor NO.5
82166 Wire, Console Box
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82181 Wire, Luggage Room, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4

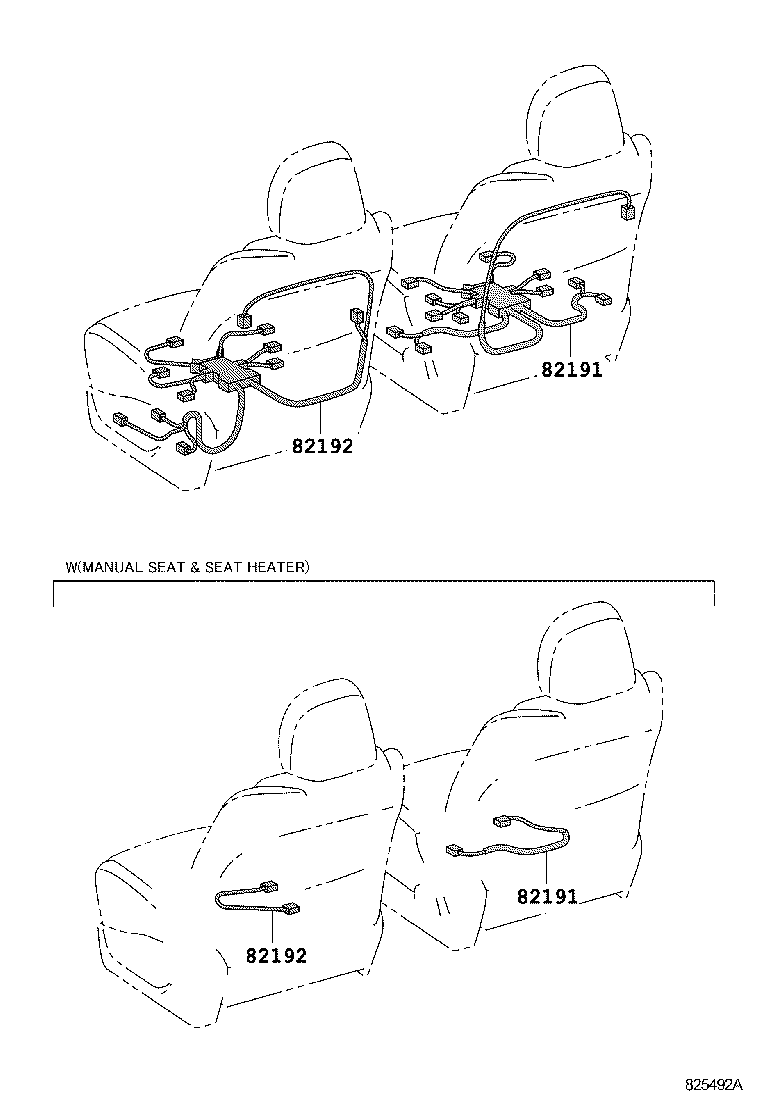

82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82345 Diode
82345A Diode
82345B Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82815B Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82821E Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal

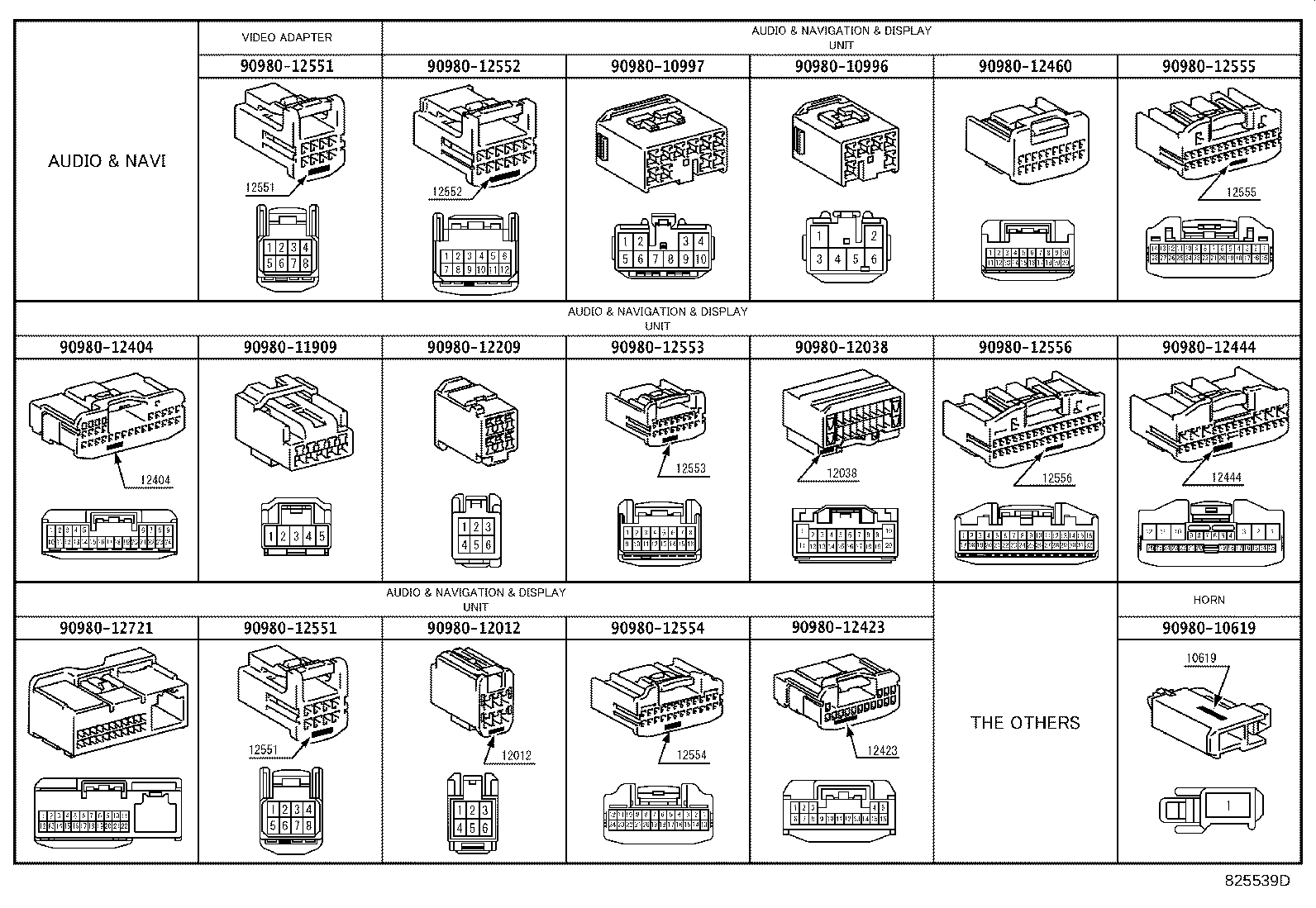

82824 Connector, Wiring Harness
82824D Connector, Wiring Harness
82824E Connector, Wiring Harness
82824H Connector, Wiring Harness
82824J Connector, Wiring Harness
82824K Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
