Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

9 part groups · 3 illustrations

Illustrations

Figure 848890C

848890C 2007-05 → 2010-07

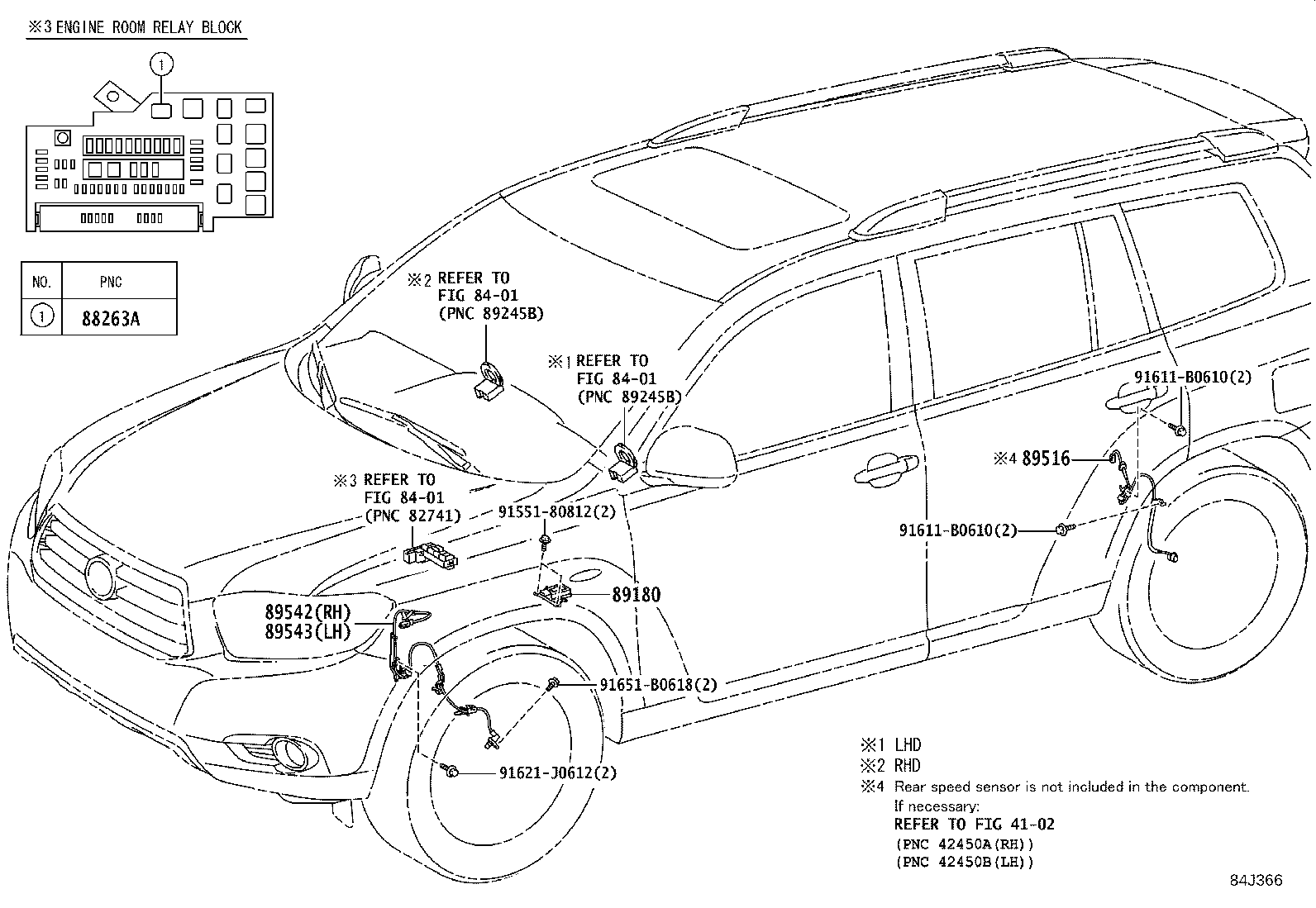

Figure 84J366

84J366 2010-07 → —

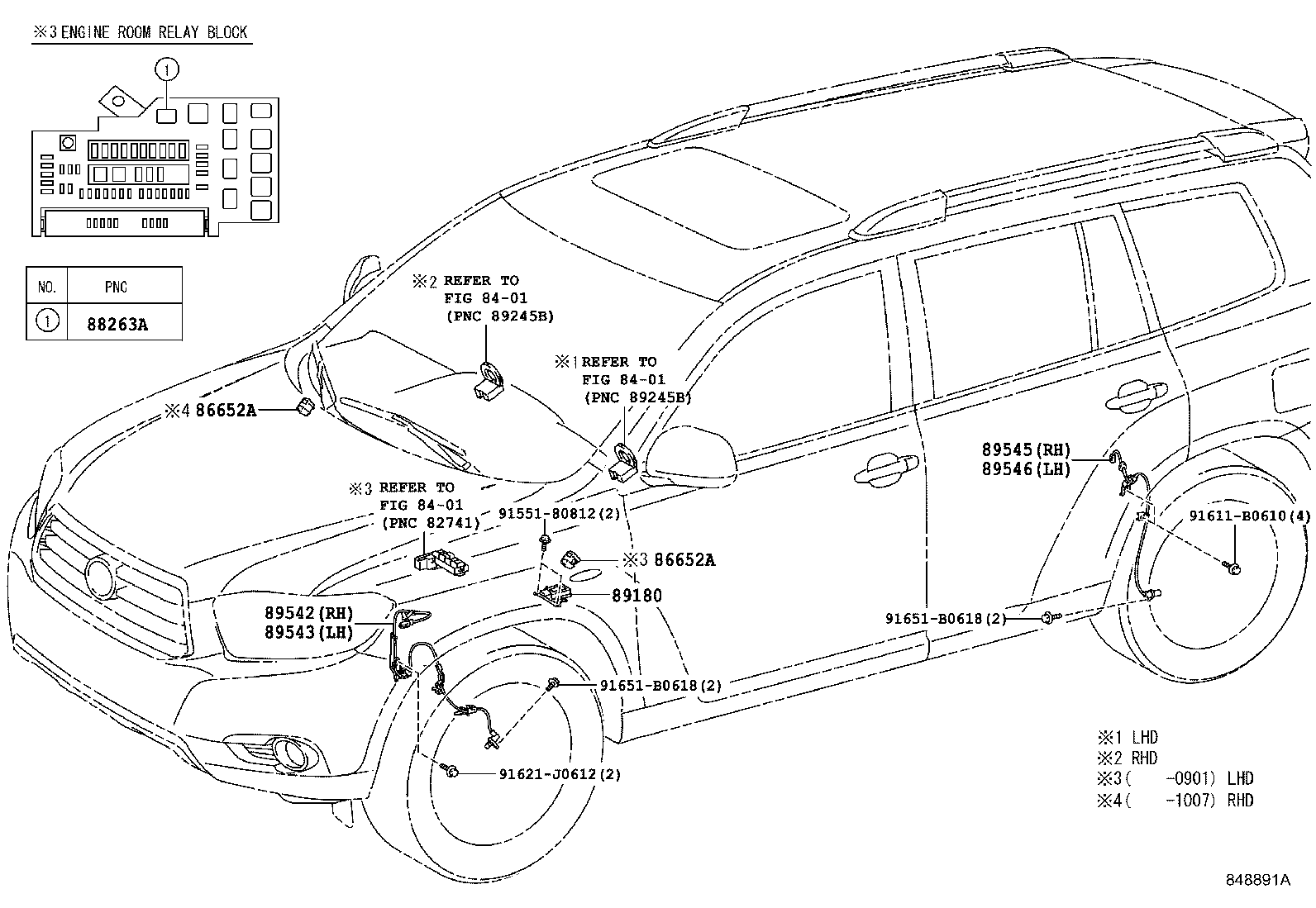

Figure 848891B

848891B 2007-05 → —

Part groups

PNC	Description
86652A	Buzzer Assy, Skid Control
88263A	Relay, Skid Control
89180	Sensor Assy, Yawrate
89516	Wire, Skid Control Sensor
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control
89545	Sensor, Speed, Rear RH
89546	Sensor, Speed, Rear LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
