Toyota Highlander/Kluger
2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General
Supported model
Data version 2014-06
Antenna

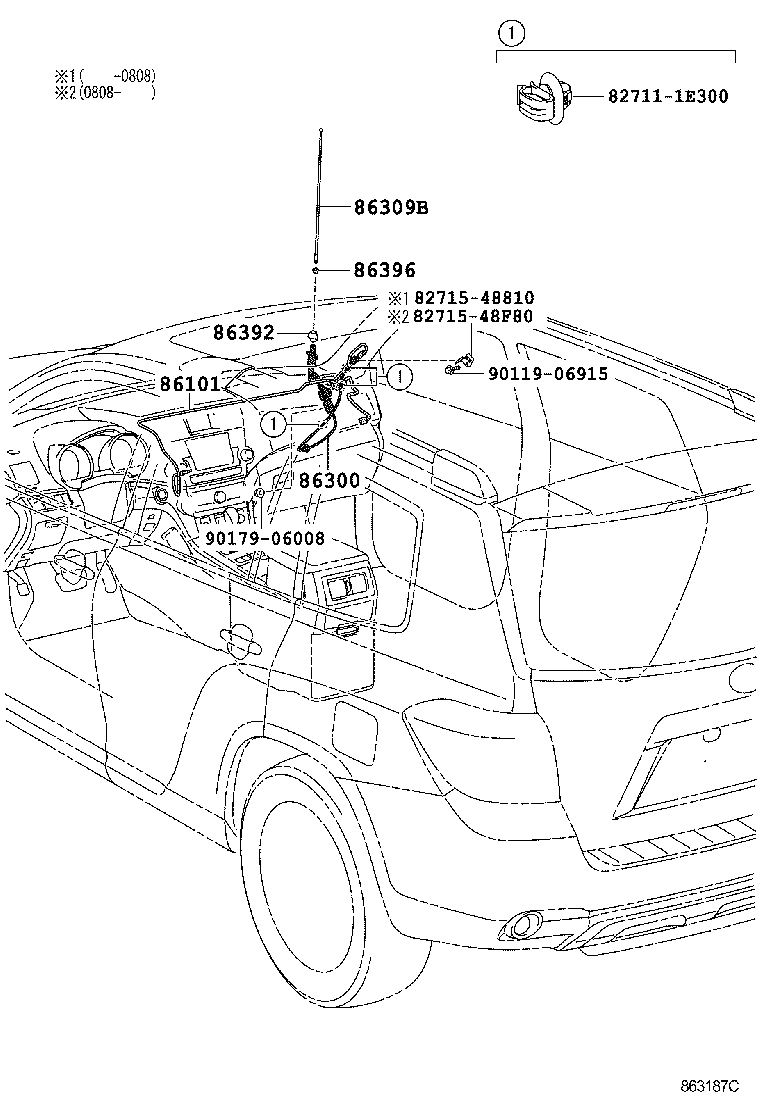

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86101 | Cord Sub-assy, Antenna |
| 86101J | Cord Sub-assy, Antenna, NO.2 |
| 86300 | Antenna Assy, W/Holder |
| 86300B | Antenna Assy, Amplifier, NO.1 |
| 86309B | Pole Sub-assy, Pull Top Antenna |
| 86392 | Ornament, Antenna |
| 86396 | Nut, Antenna |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
