Heating & Air Conditioning - Water Piping

11 part groups · 3 illustrations

Illustrations

Figure 879408B

879408B 2007-05 → —

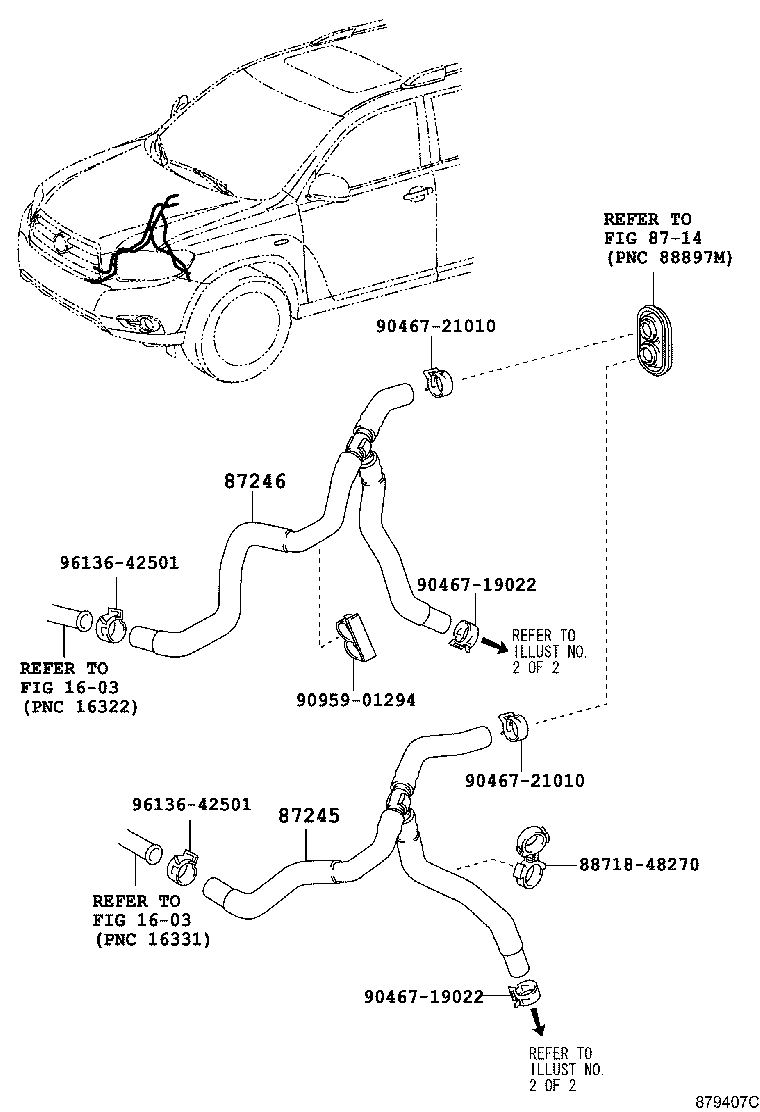

Figure 879407C

879407C 2007-05 → —

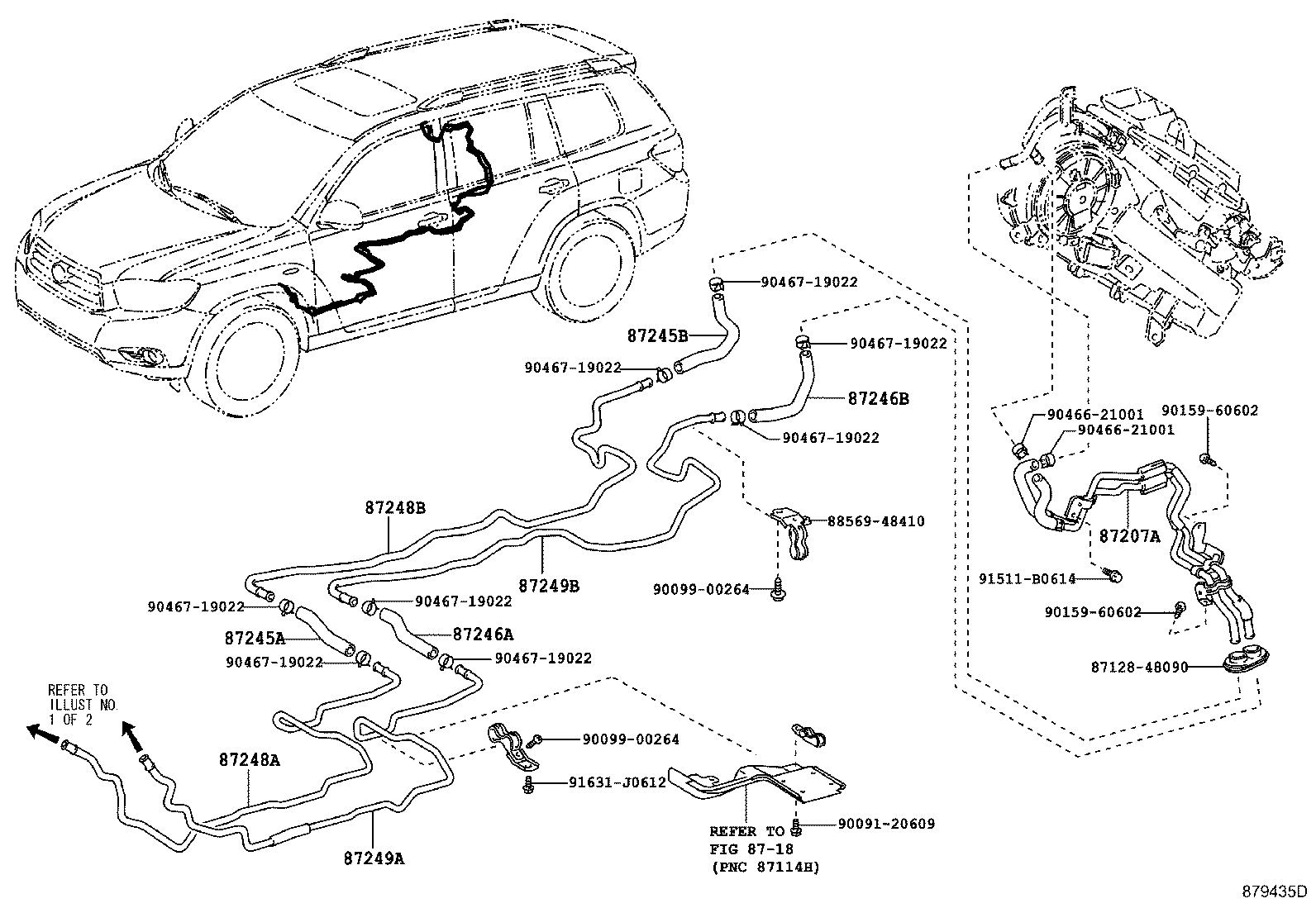

Figure 879435D

879435D 2007-05 → —

Part groups

PNC	Description
87207A	Pipe & Hose Sub-assy, Water A
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87246	Hose, Heater Water, Outlet
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87248A	Pipe, Heater Water Inlet, A
87248B	Pipe, Heater Water Inlet, B
87249A	Pipe, Heater Water Outlet, A
87249B	Pipe, Heater Water Outlet, B

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
