Toyota Highlander/Kluger

2007-05 → 2013-12 · chassis GSU4# · catalogue 522320 · General

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

23 part groups · 10 illustrations

Illustrations

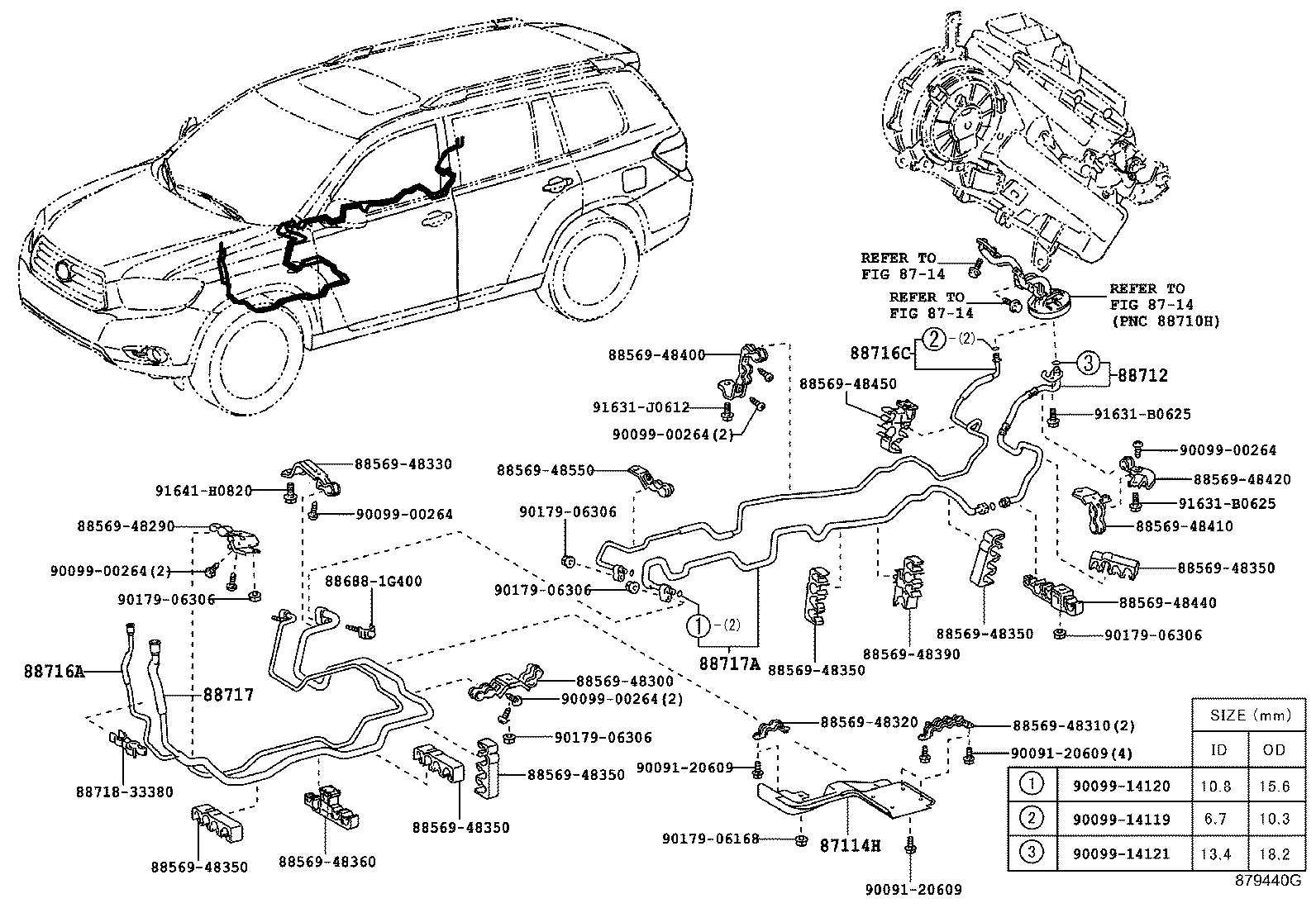

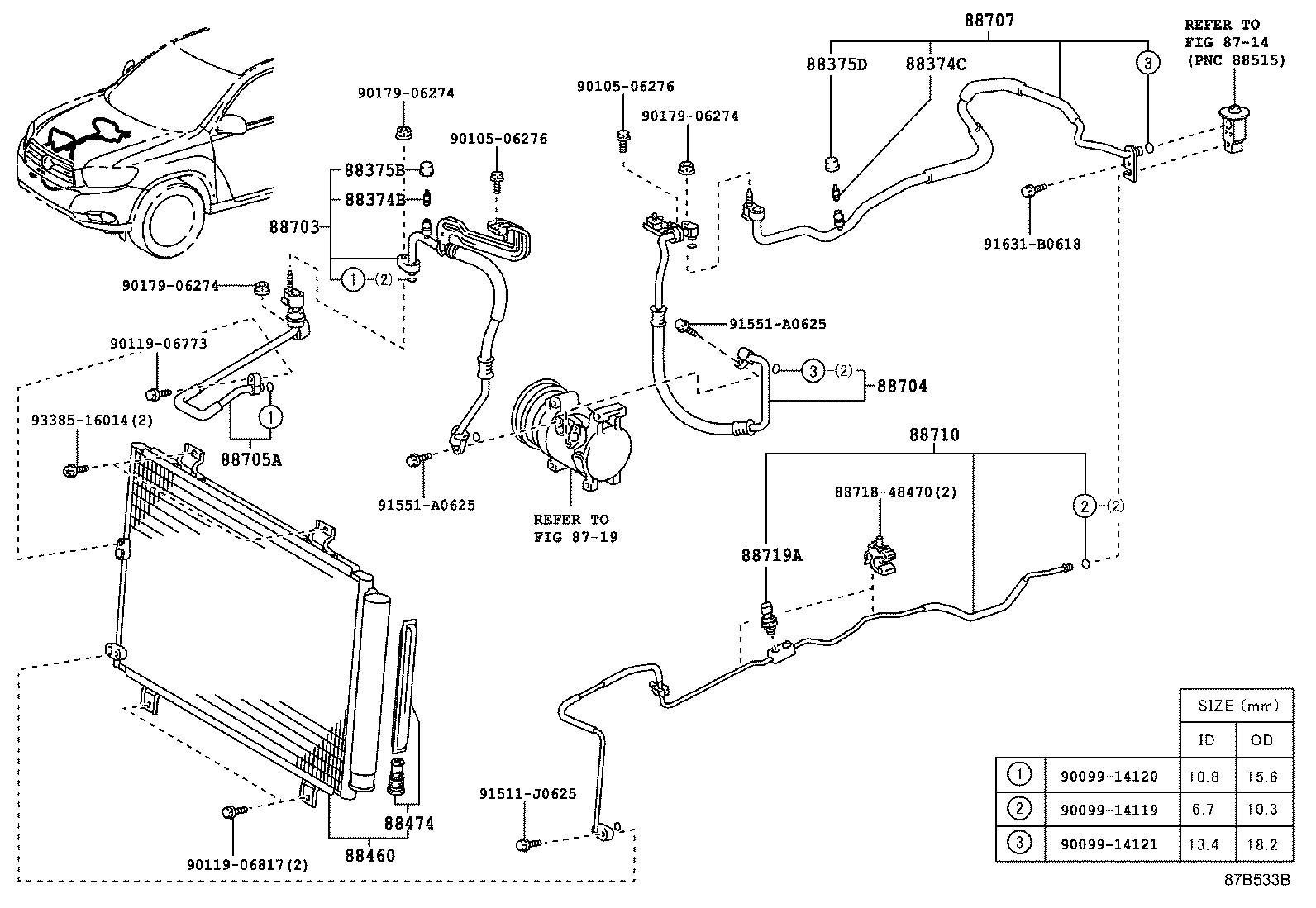

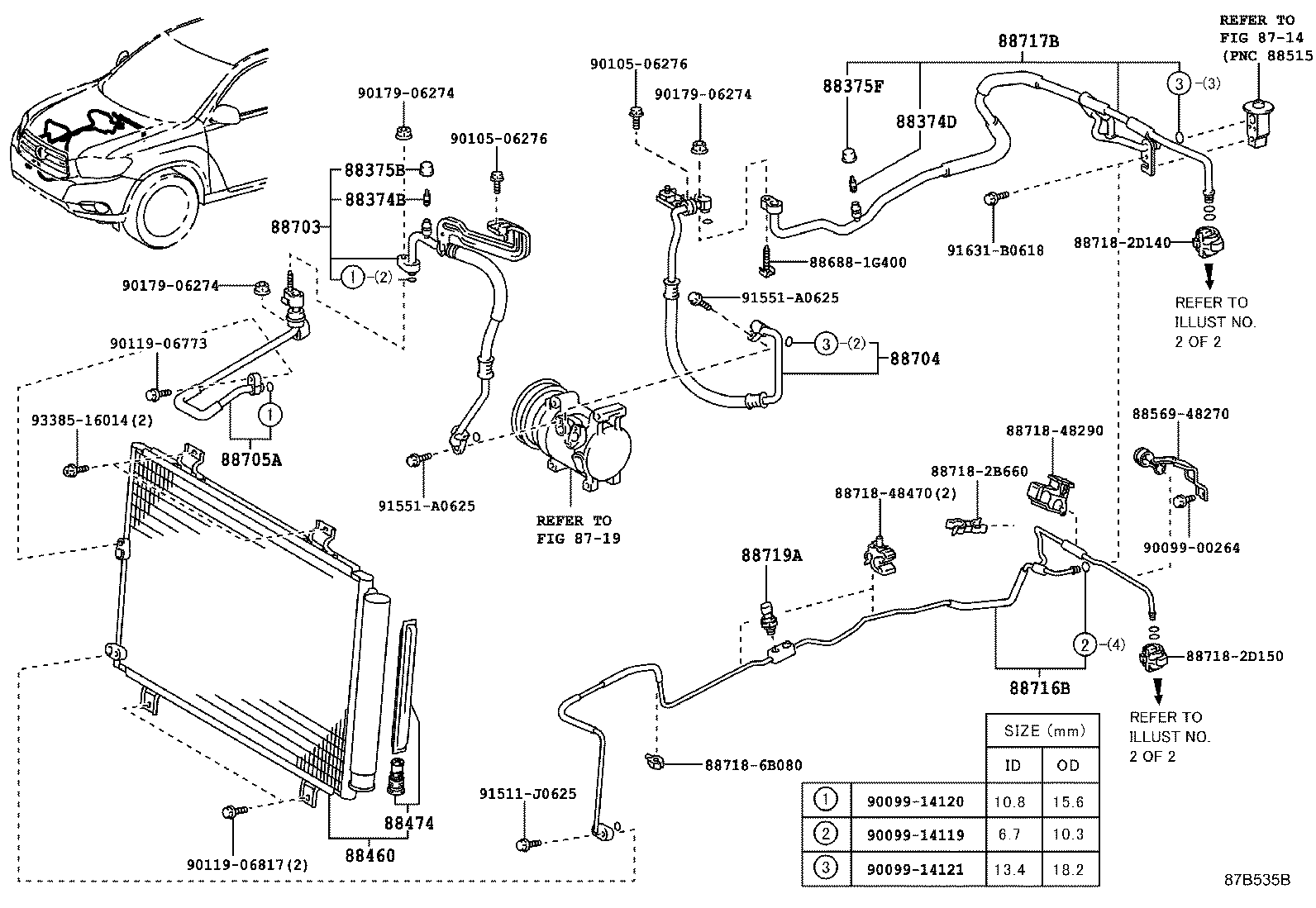

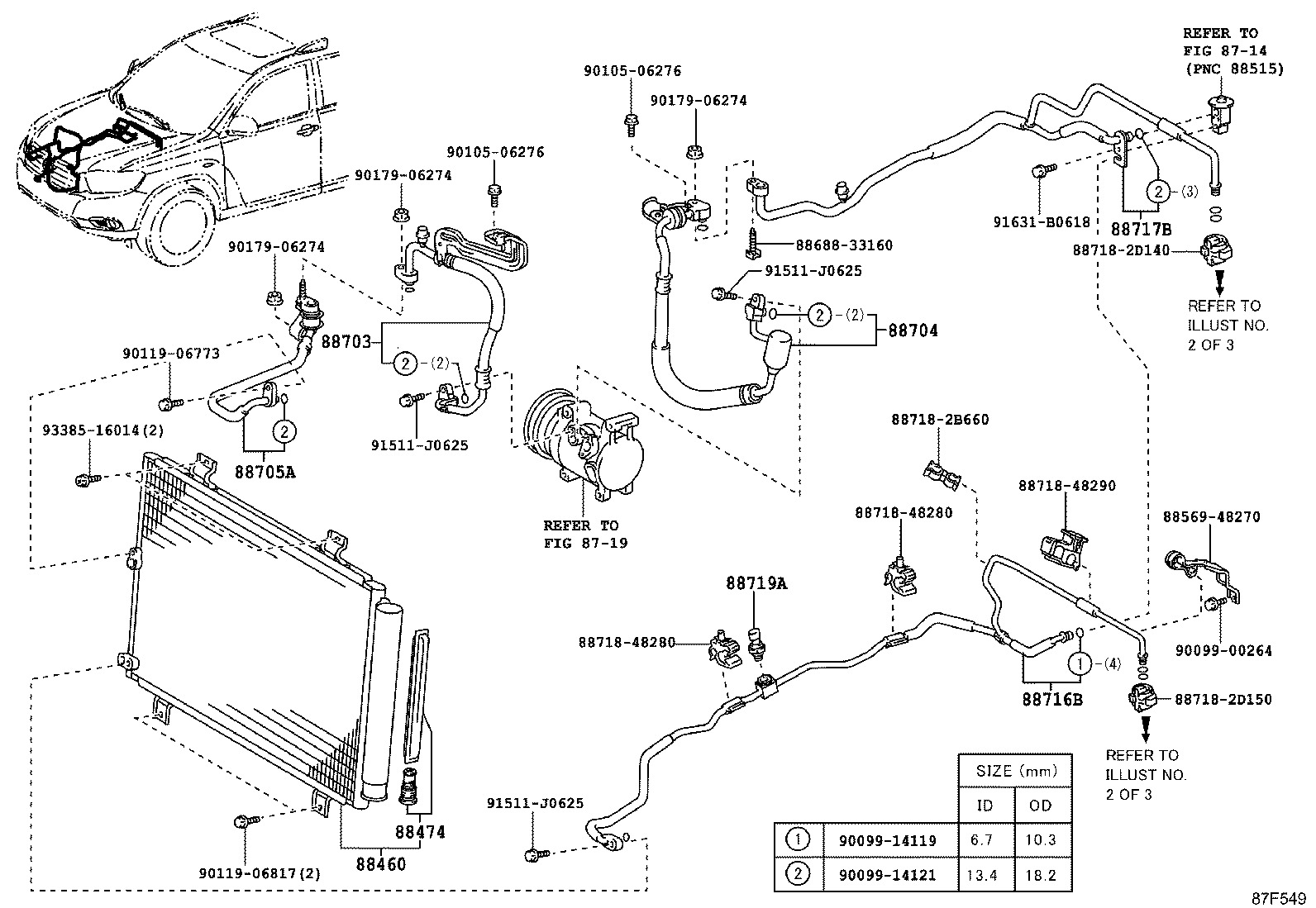

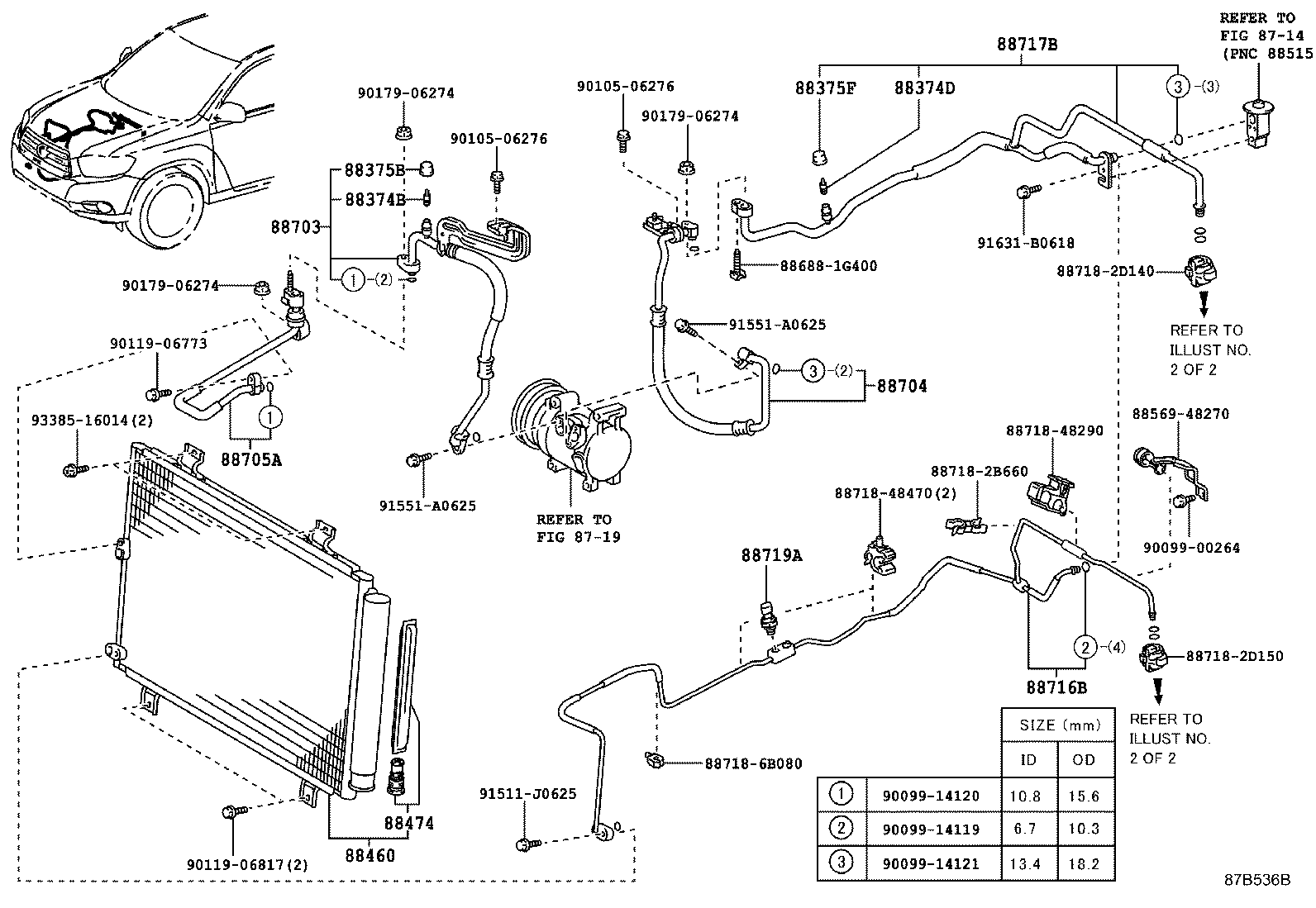

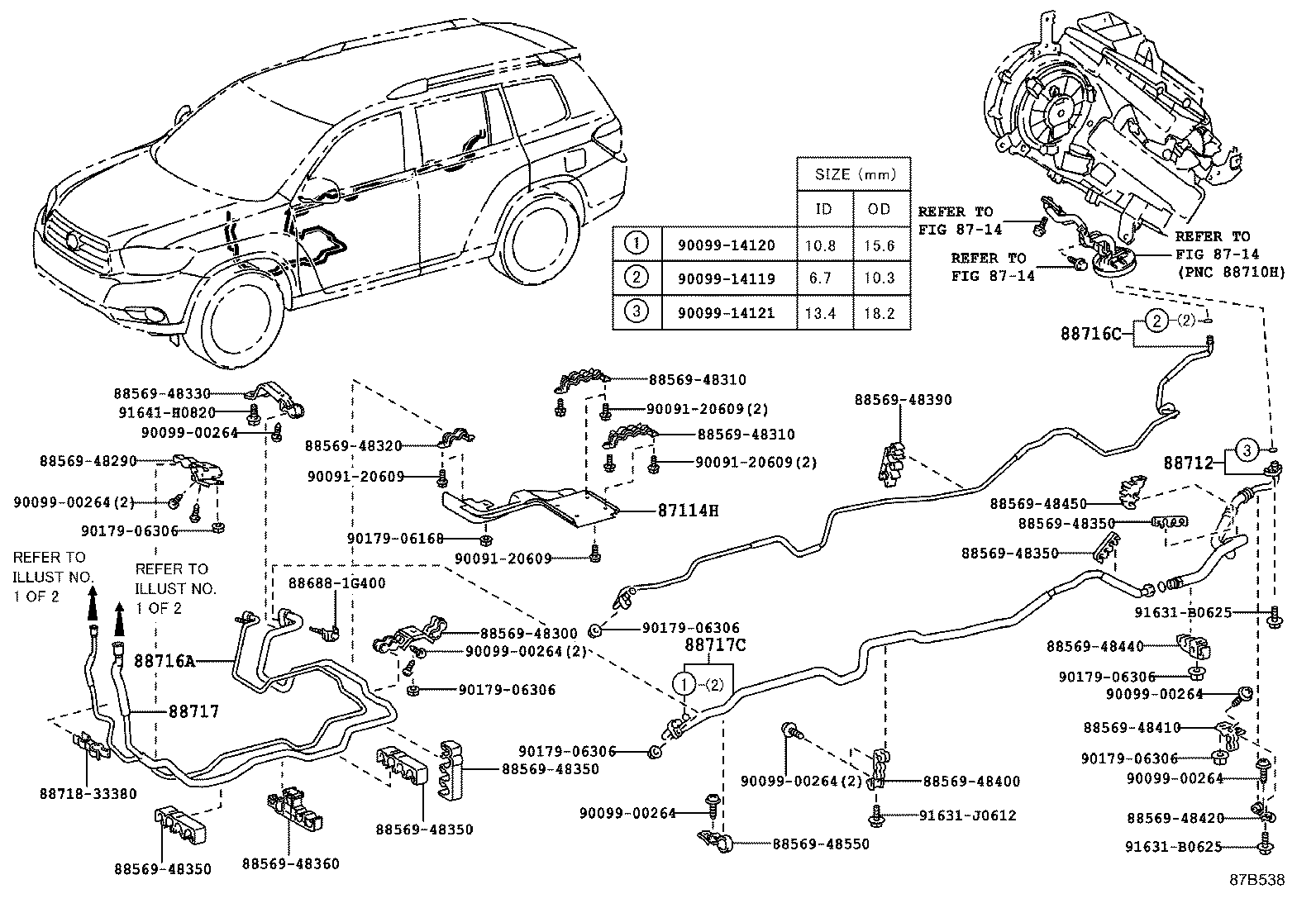

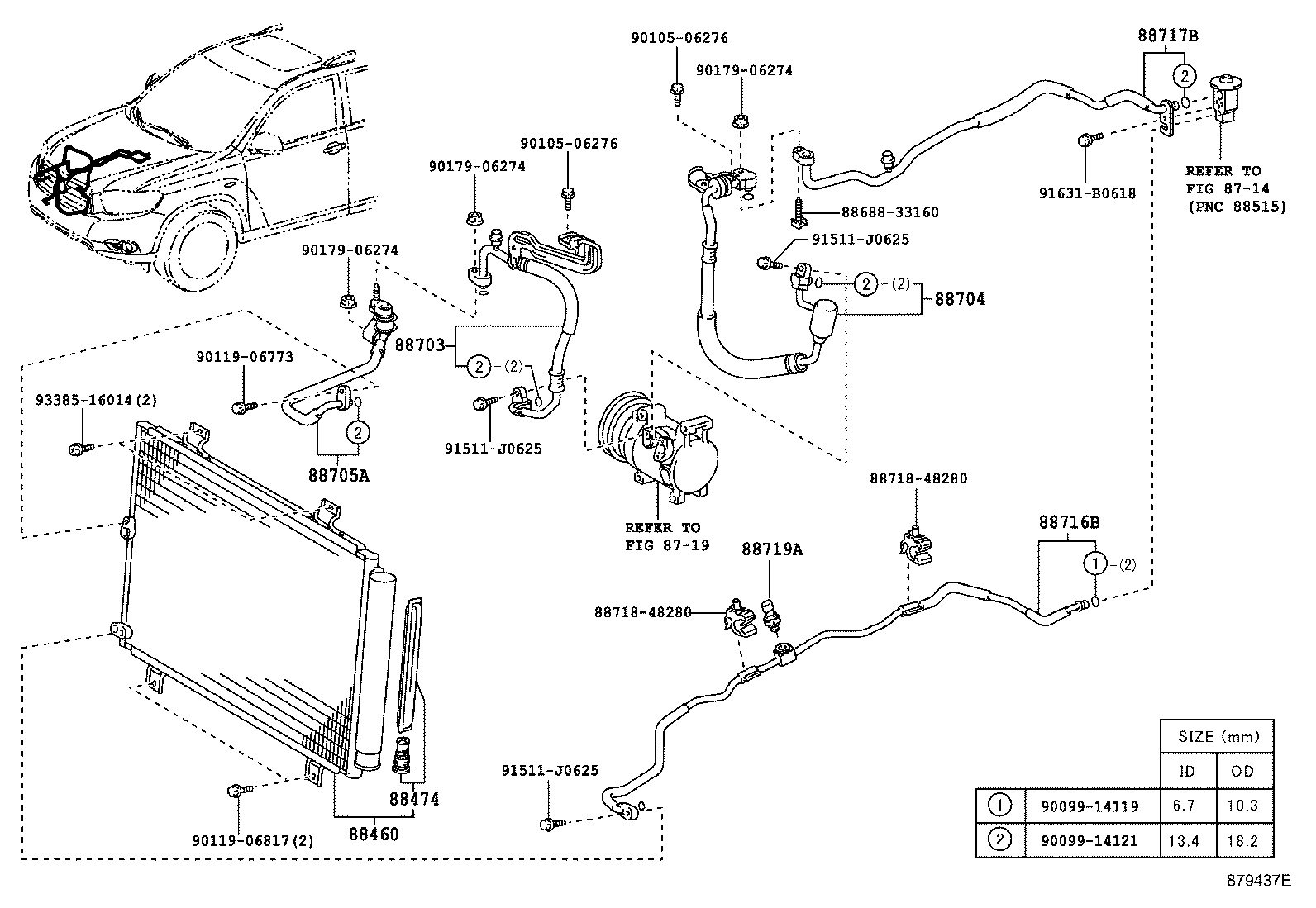

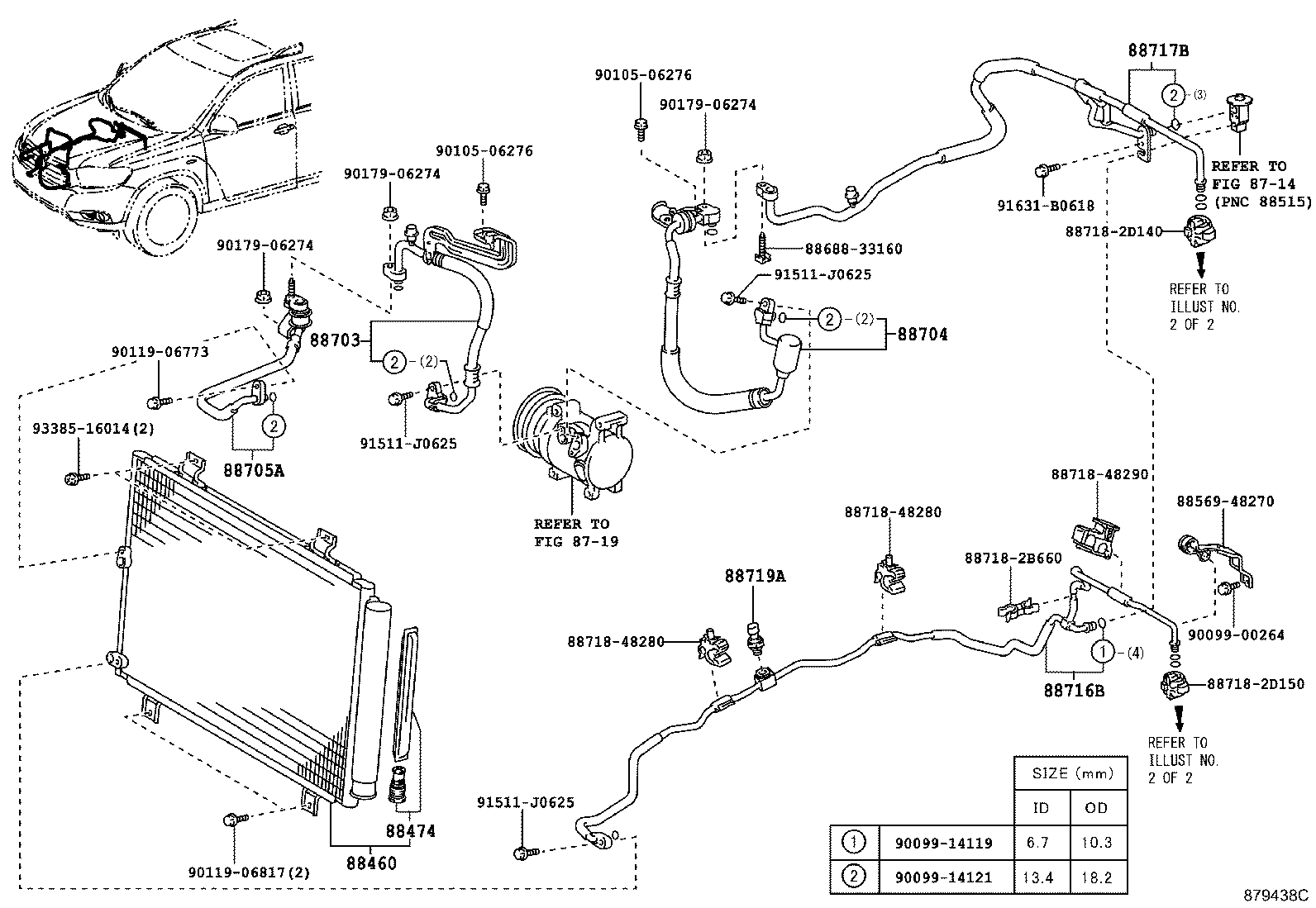

Figure 879436C 879436C 2007-05 → 2010-07 Figure 879437E 879437E 2007-05 → 2010-07 Figure 879438C 879438C 2007-05 → 2010-07 Figure 87F549 87F549 2007-05 → 2010-07 Figure 87B533B 87B533B 2010-07 → — Figure 87B534B 87B534B 2010-07 → — Figure 87B536B 87B536B 2010-07 → — Figure 87B535B 87B535B 2010-07 → — Figure 879440G 879440G 2007-05 → 2010-07 Figure 87B538A 87B538A 2010-07 → —

Part groups

PNCDescription
87114H Cover, Heater
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705A Tube Sub-assy, Discharge
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88719A Sensor, Air Conditioner Pressure
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
