Toyota Harrier/Hybrid(JPP)

2020-09 → present · chassis AXUH80,MXUA80 · catalogue 524320 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 3 illustrations

Illustrations

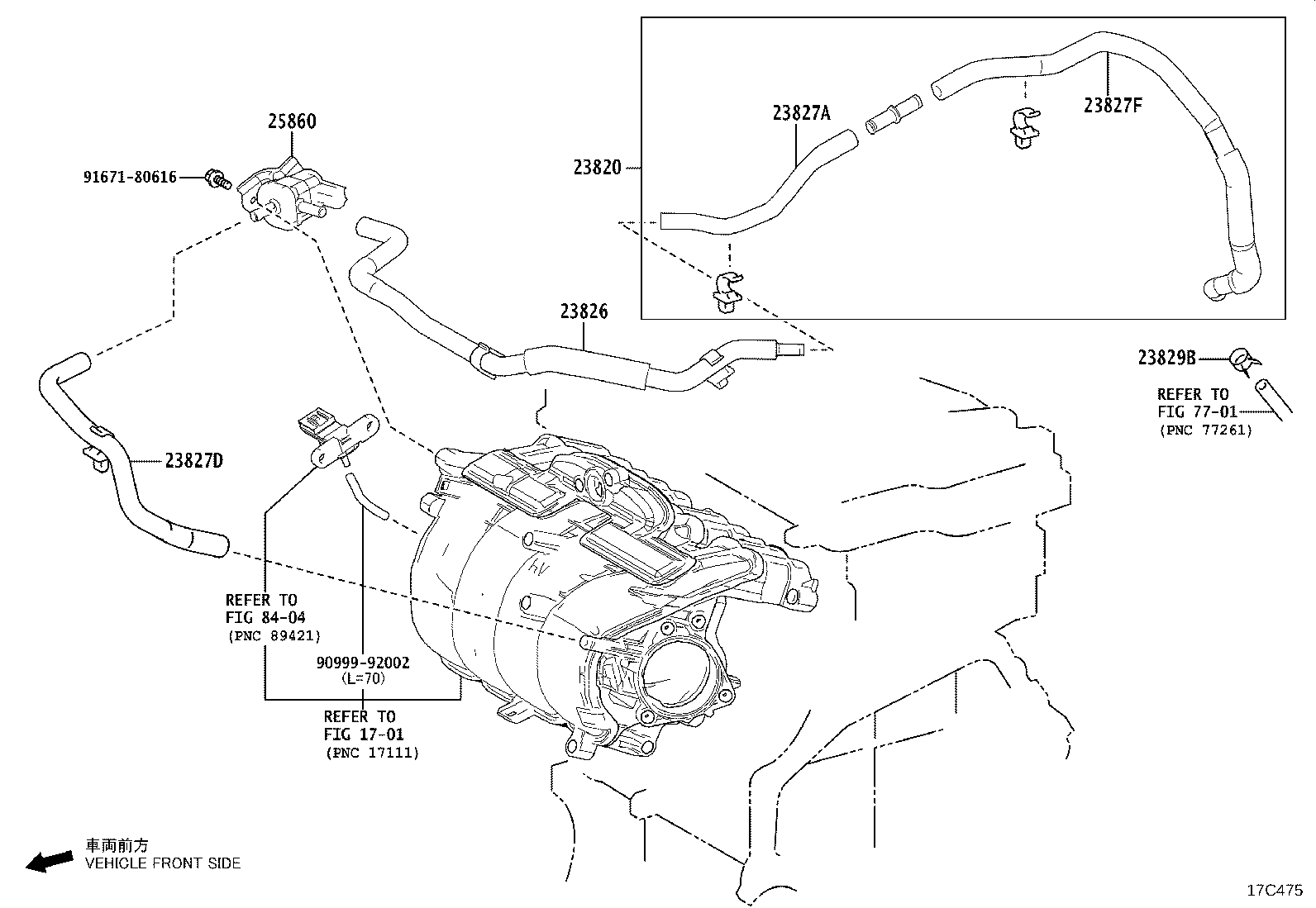

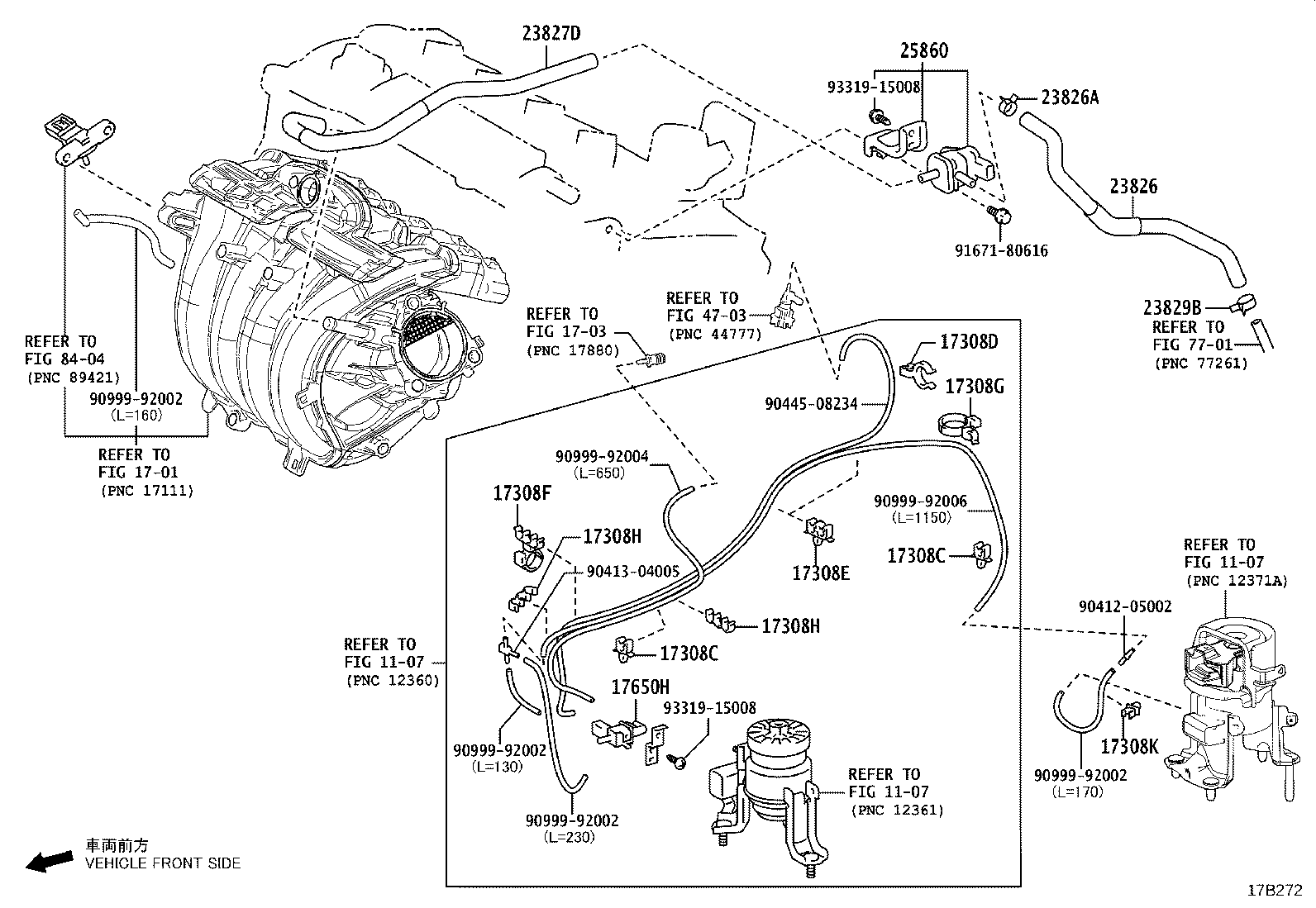

Figure 17C476 17C476 2020-10 → 2022-10 Figure 17C475 17C475 2022-10 → — Figure 17B272 17B272 2020-09 → —

Part groups

PNCDescription
17308C Clamp(FOR VACUUM HOSE)
17308D Clamp, NO.2(FOR VACUUM HOSE)
17308E Clamp, NO.3(FOR VACUUM HOSE)
17308F Clamp, NO.4(FOR VACUUM HOSE)
17308G Clamp, NO.5(FOR VACUUM HOSE)
17308H Clamp, NO.6(FOR VACUUM HOSE)
17308K Clamp, NO.7(FOR VACUUM HOSE)
17650H Valve, Vacuum Switching
23820 Hose Assy, Fuel Vapor Feed
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827D Hose, Fuel Vapor Feed, NO.2
23827F Hose, Fuel Vapor Feed, NO.3
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
