Toyota Harrier/Hybrid(JPP)

2020-09 → present · chassis AXUH80,MXUA80 · catalogue 524320 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

8 part groups · 3 illustrations

Illustrations

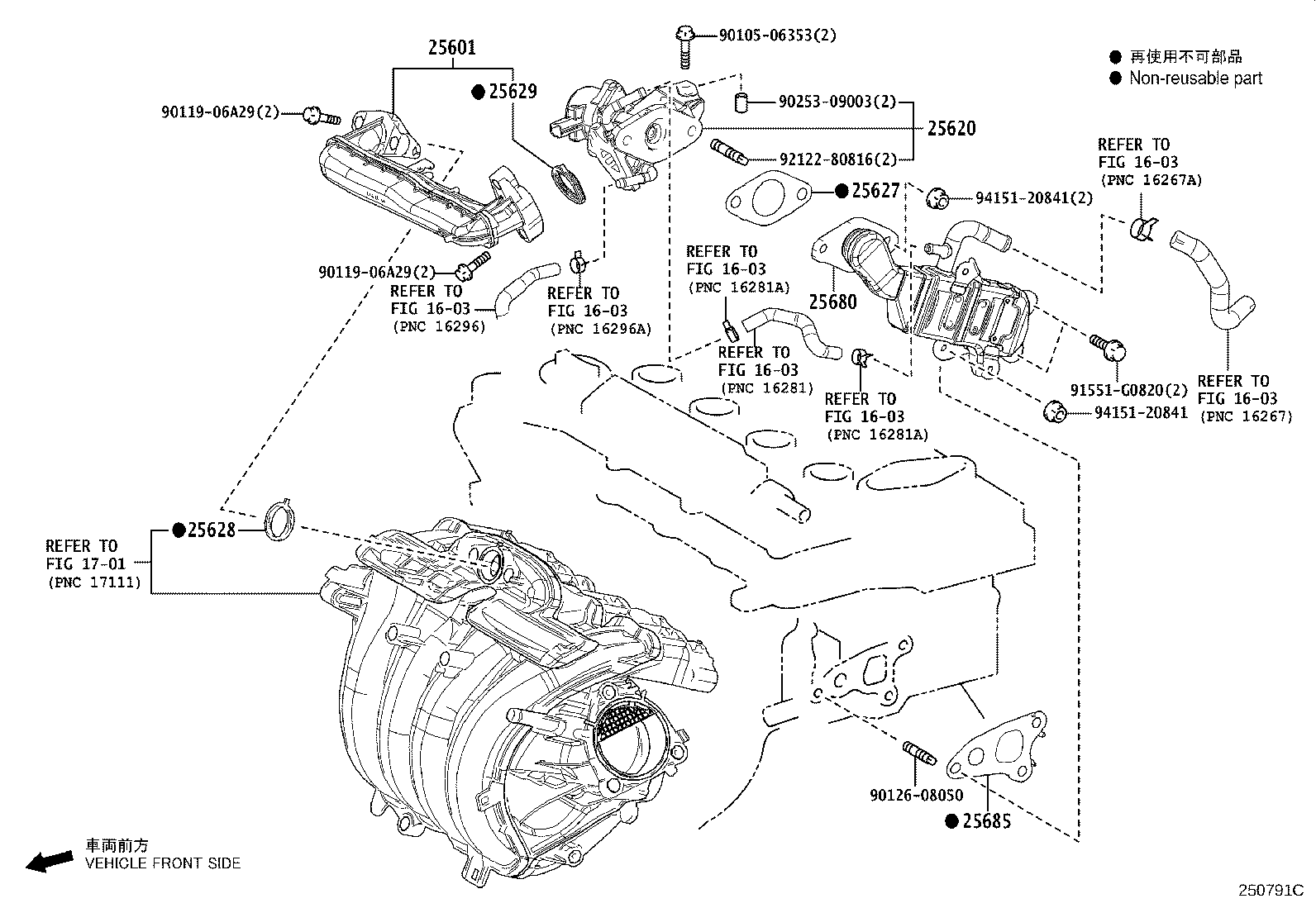

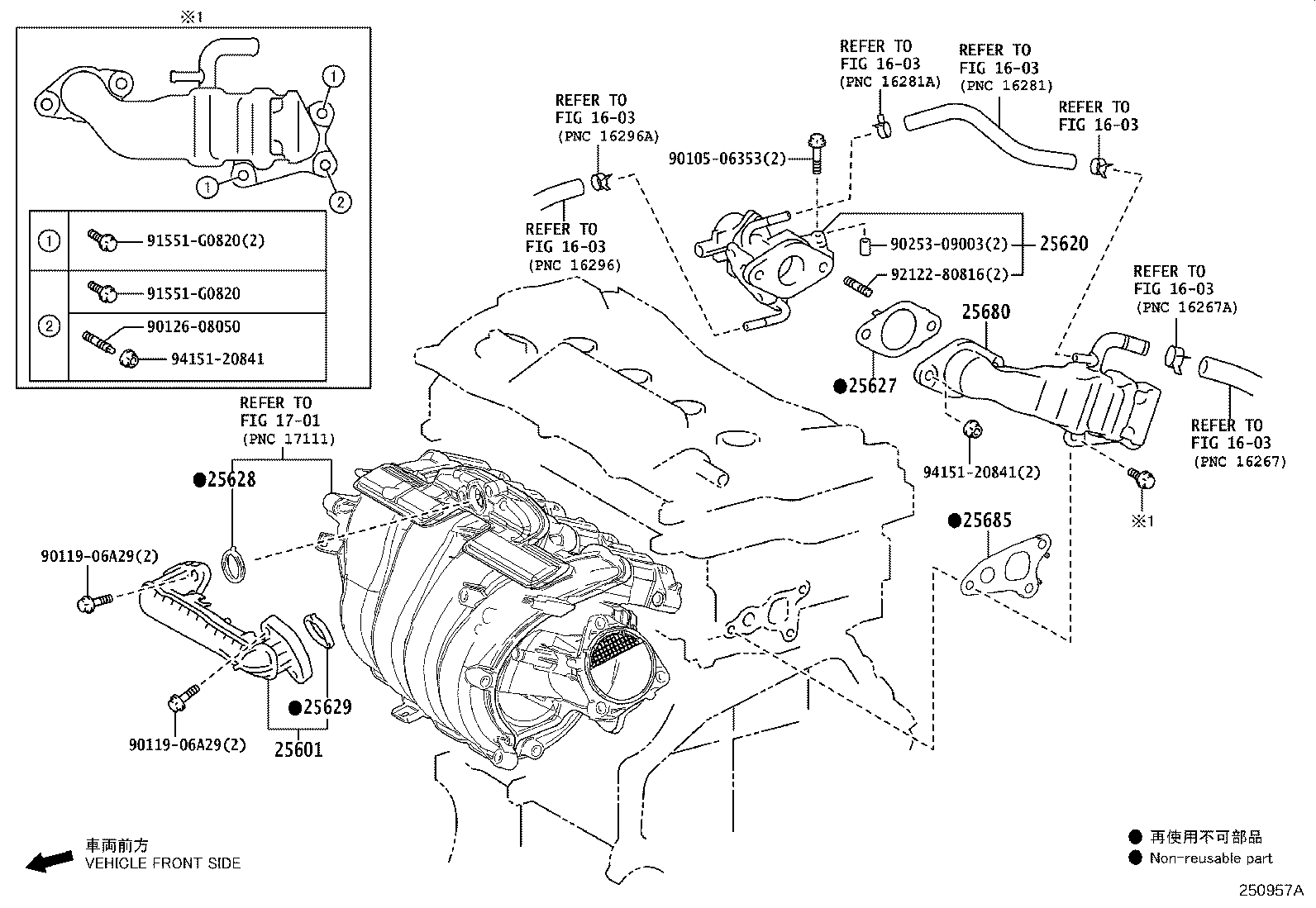

Figure 250789A 250789A 2020-10 → 2022-10 Figure 250957A 250957A 2022-10 → — Figure 250791C 250791C 2020-09 → —

Part groups

PNCDescription
25601 Pipe Sub-assy, Egr, NO.1
25620 Valve Assy, Egr
25625 Bracket, Egr Valve
25627 Gasket, Egr Valve
25628 Gasket, Egr Inlet
25629 Gasket, Egr Valve Adapter
25680 Cooler Assy, Egr
25685 Gasket, Egr Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
