Toyota Harrier/Hybrid(JPP)

2020-09 → present · chassis AXUH80,MXUA80 · catalogue 524320 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Window Glass

20 part groups · 3 illustrations

Illustrations

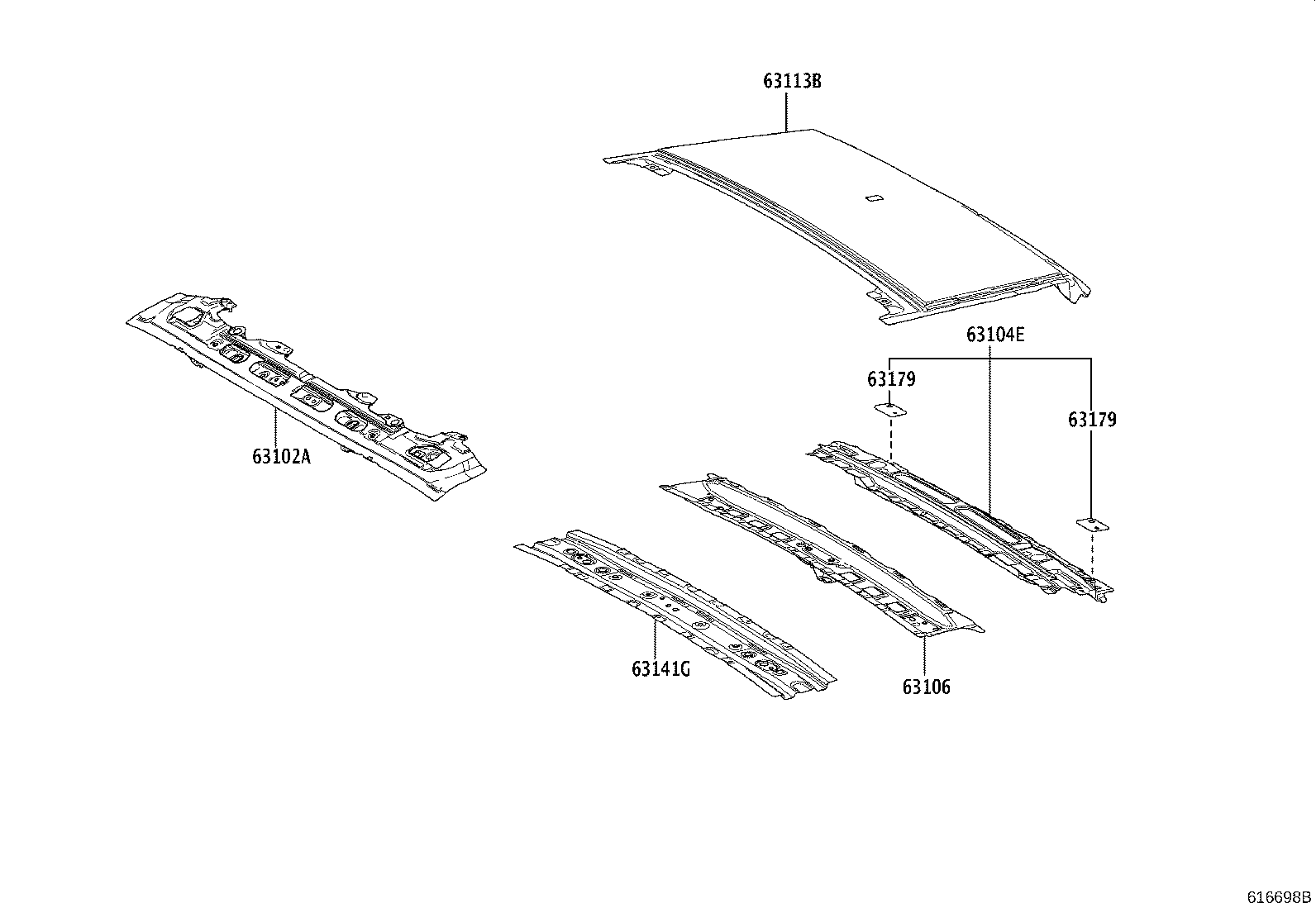

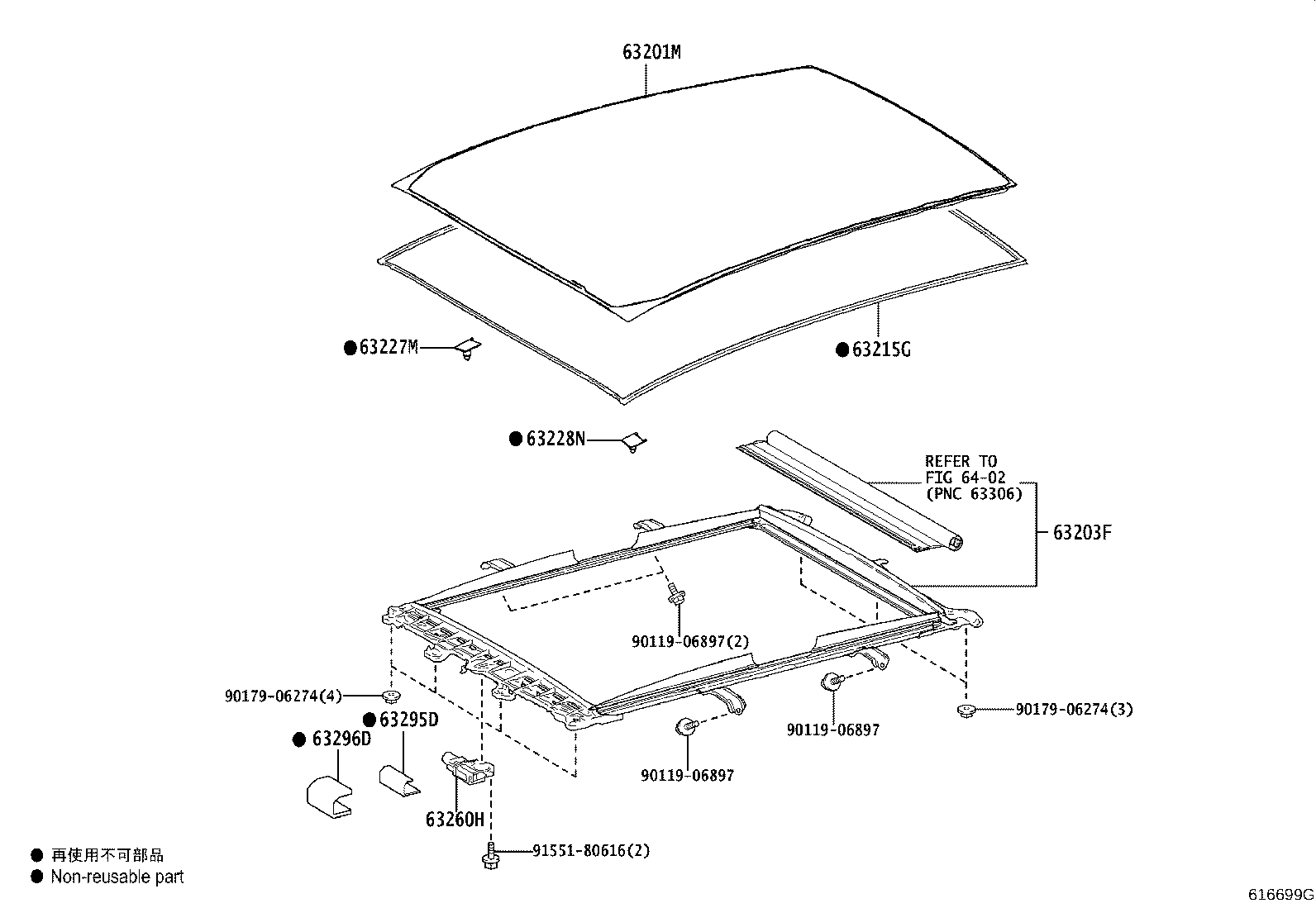

Figure 616701B 616701B 2020-09 → — Figure 616698B 616698B 2020-09 → — Figure 616699G 616699G 2020-09 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63104E Reinforcement Sub-assy, Roof Panel, Rear
63106 Reinforcement Sub-assy, Roof Panel, NO.4
63111 Panel, Roof
63113B Panel, Roof, Rear
63141G Reinforcement, Roof Panel, NO.1
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63149D Reinforcement, Roof Panel, NO.8
63179 Plate, Roof Panel Reinforcement, LH
63201M Glass Sub-assy, Roof Window, NO.1
63203F Housing Sub-assy, Sliding Roof
63215G Moulding, Moon Roof, Front
63227M Clip, Roof Window, Lower
63228N Clip, Roof Window, Side
63260H Gear Assy, Sliding Roof Drive
63295D Pad, Sliding Roof Housing
63296D Pad, Sliding Roof Housing, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
