Toyota Harrier/Hybrid(JPP)

2020-09 → present · chassis AXUH80,MXUA80 · catalogue 524320 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

10 part groups · 2 illustrations

Illustrations

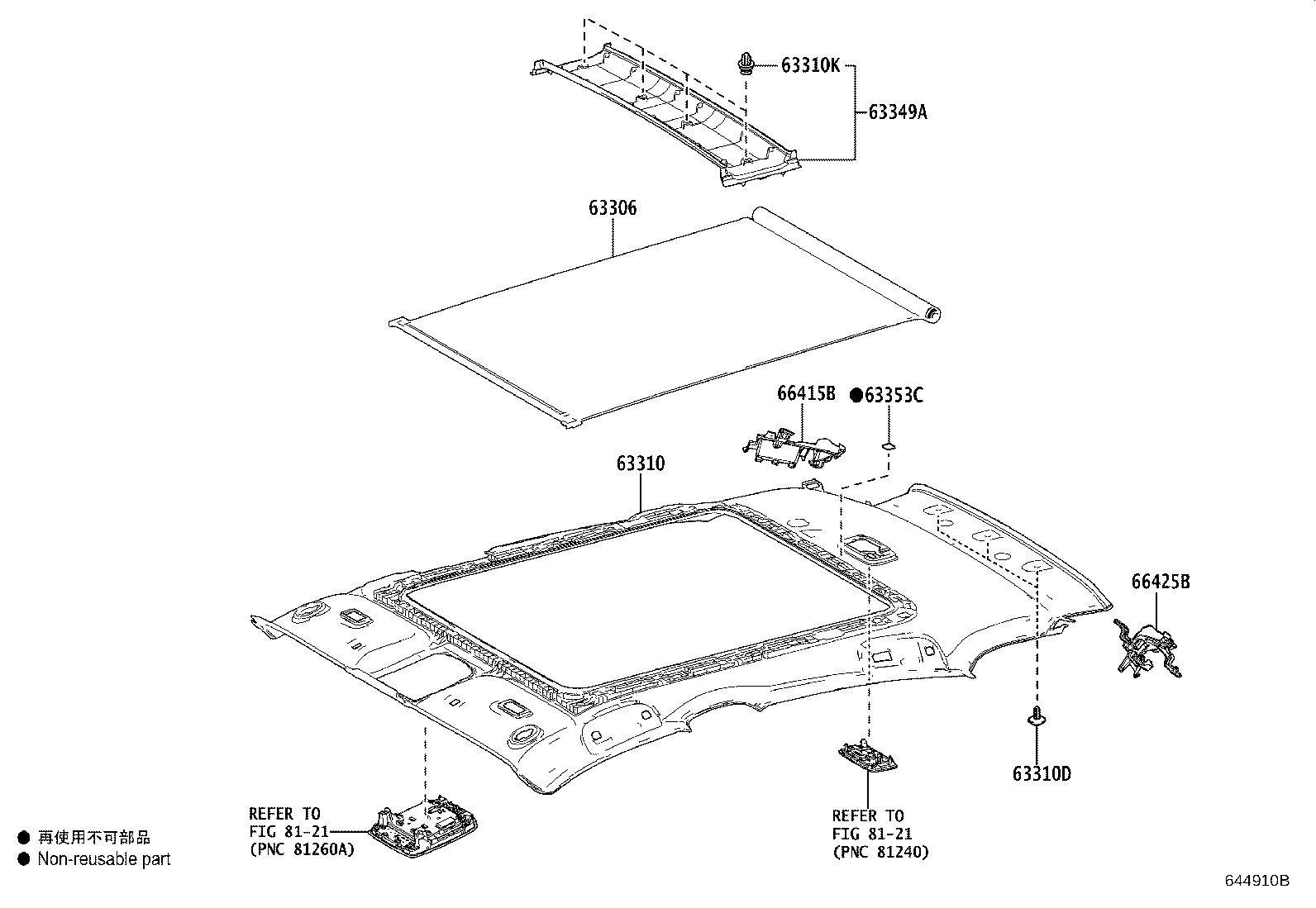

Figure 644909B 644909B 2020-09 → — Figure 644910B 644910B 2020-09 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63310K Clip
63327E Fastener, Roof Headlining, NO.1
63341 Pad, Roof Silencer, NO.1
63349A Garnish, Roof Headlining, Rear
63353C Pad, Roof Headlining, Center
66415B Spacer, Side Rail, Rear NO.2 RH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
