Toyota Harrier/Hybrid(JPP)

2020-09 → present · chassis AXUH80,MXUA80 · catalogue 524320 · General

Supported model Data version 2022-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Caution Plate (EXTERIOR & INTERIOR)

11 part groups · 3 illustrations

Illustrations

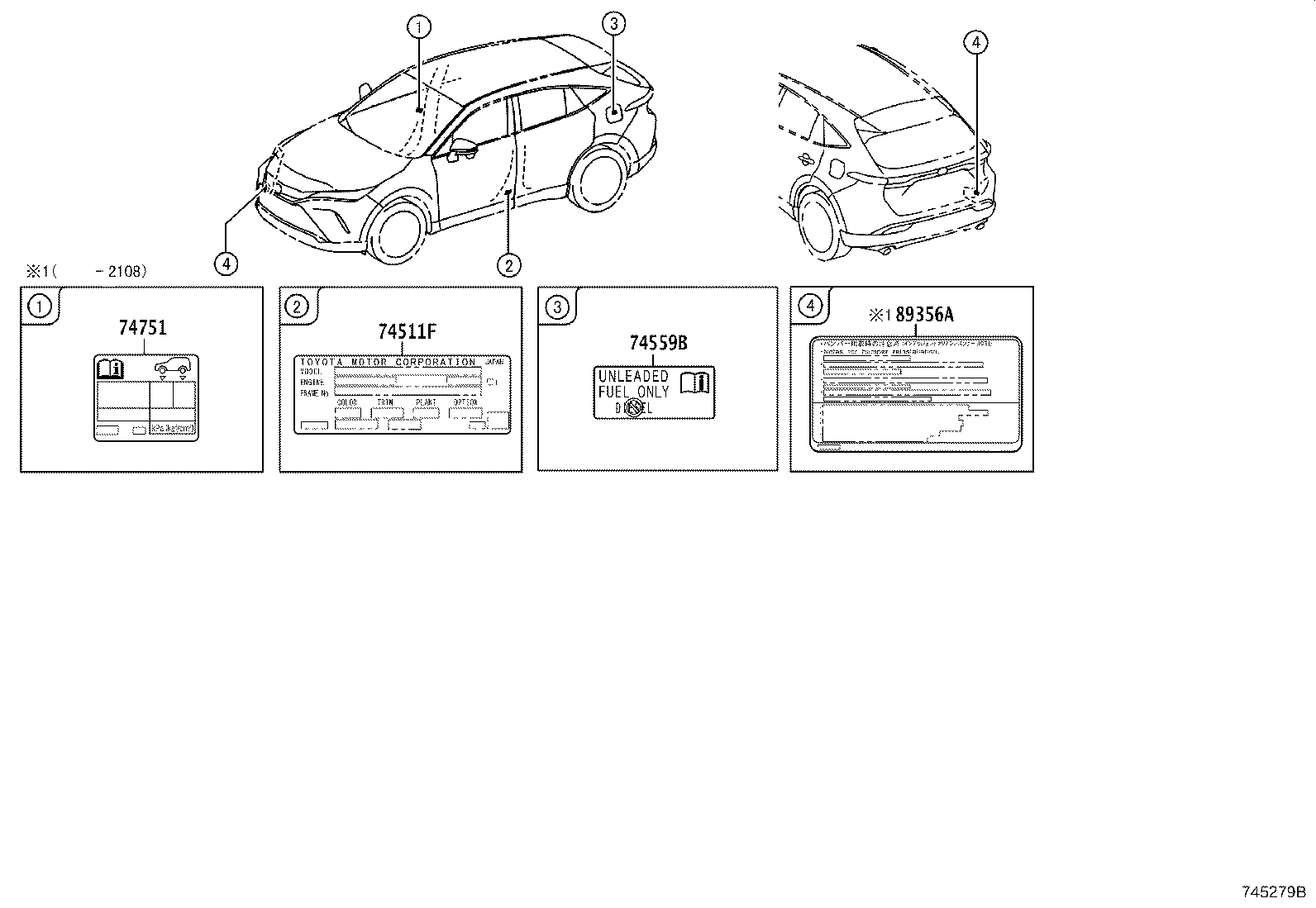

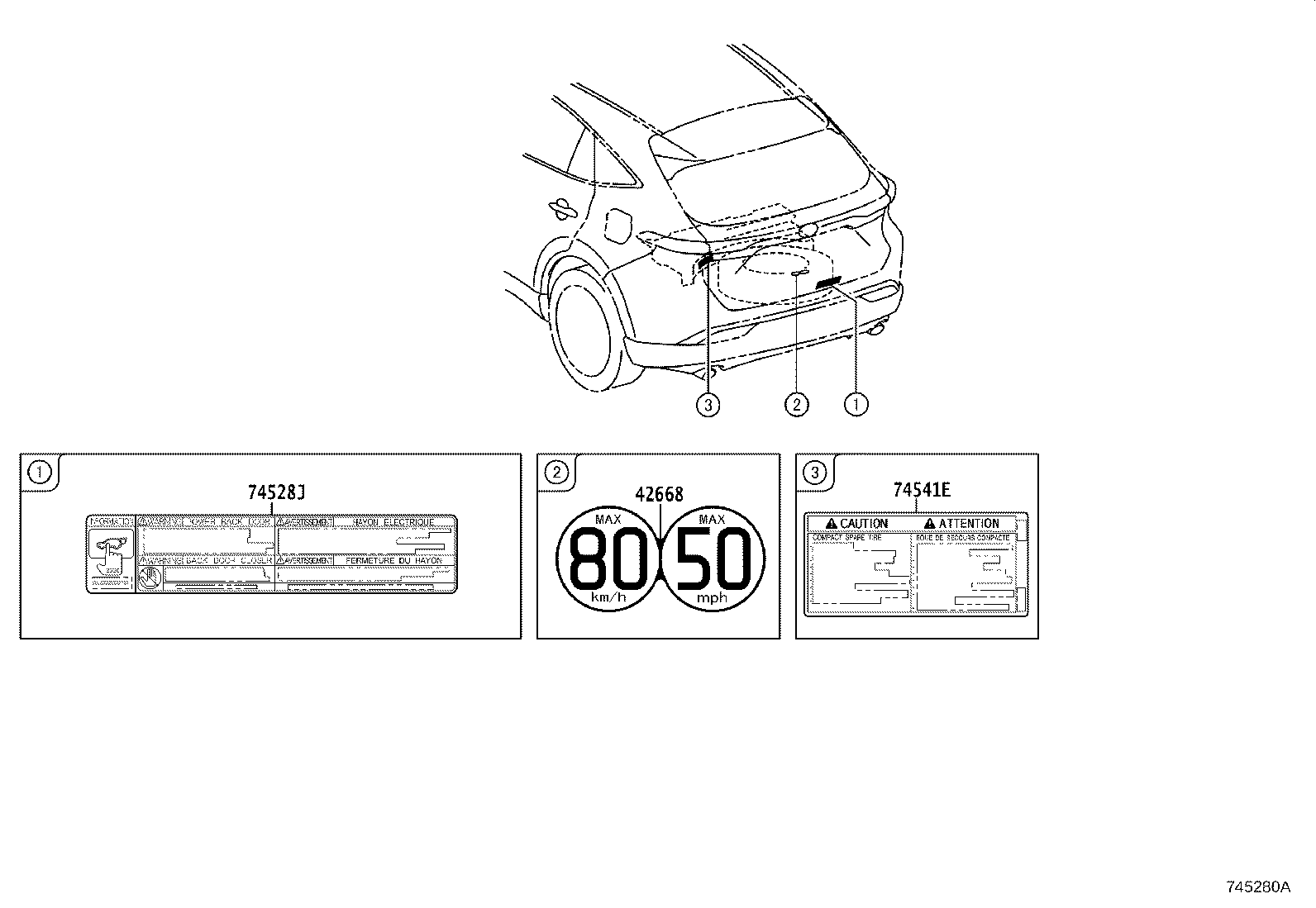

Figure 745278B 745278B 2020-09 → — Figure 745279B 745279B 2020-09 → — Figure 745280A 745280A 2020-09 → —

Part groups

PNCDescription
11293D Label, Engine Caution
16793B Label, Cooling Fan Information
42668 Label, Compact Spare Tire Caution
74511F Label, Name (IDENTIFICATION LASER LABEL)
74528J Label, Power Back Door Caution
74541E Plate, Compact Spare Tire Caution
74559B Label, Fuel Information
74751 Label, Tire Pressure Information
88723H Label, Cooler Service Caution
89356A Label, Clearance Warning Information
G9275 Label, Battery Caution, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
