Toyota Highlander/Kluger
2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · General
Supported model
Data version 2019-11

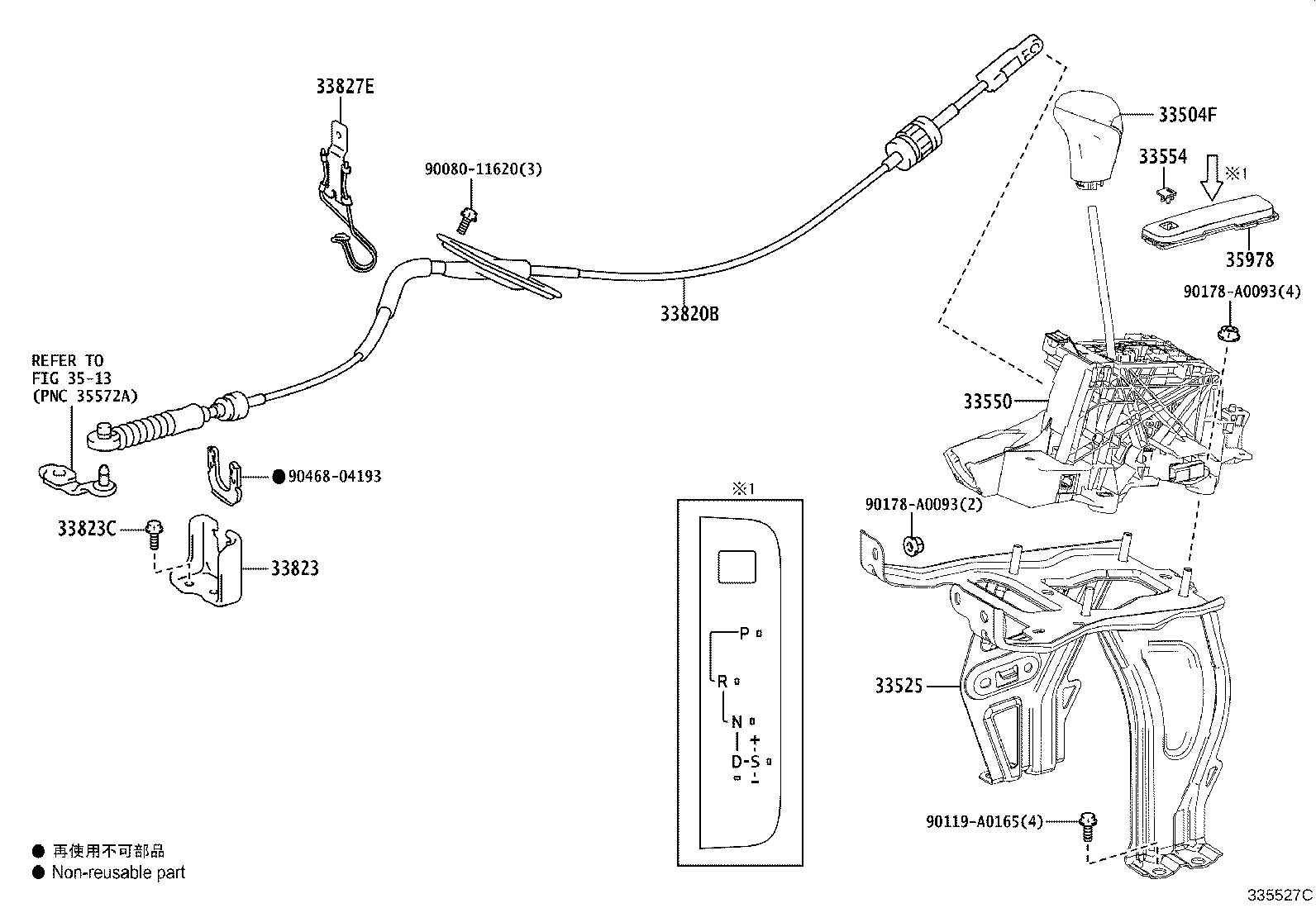

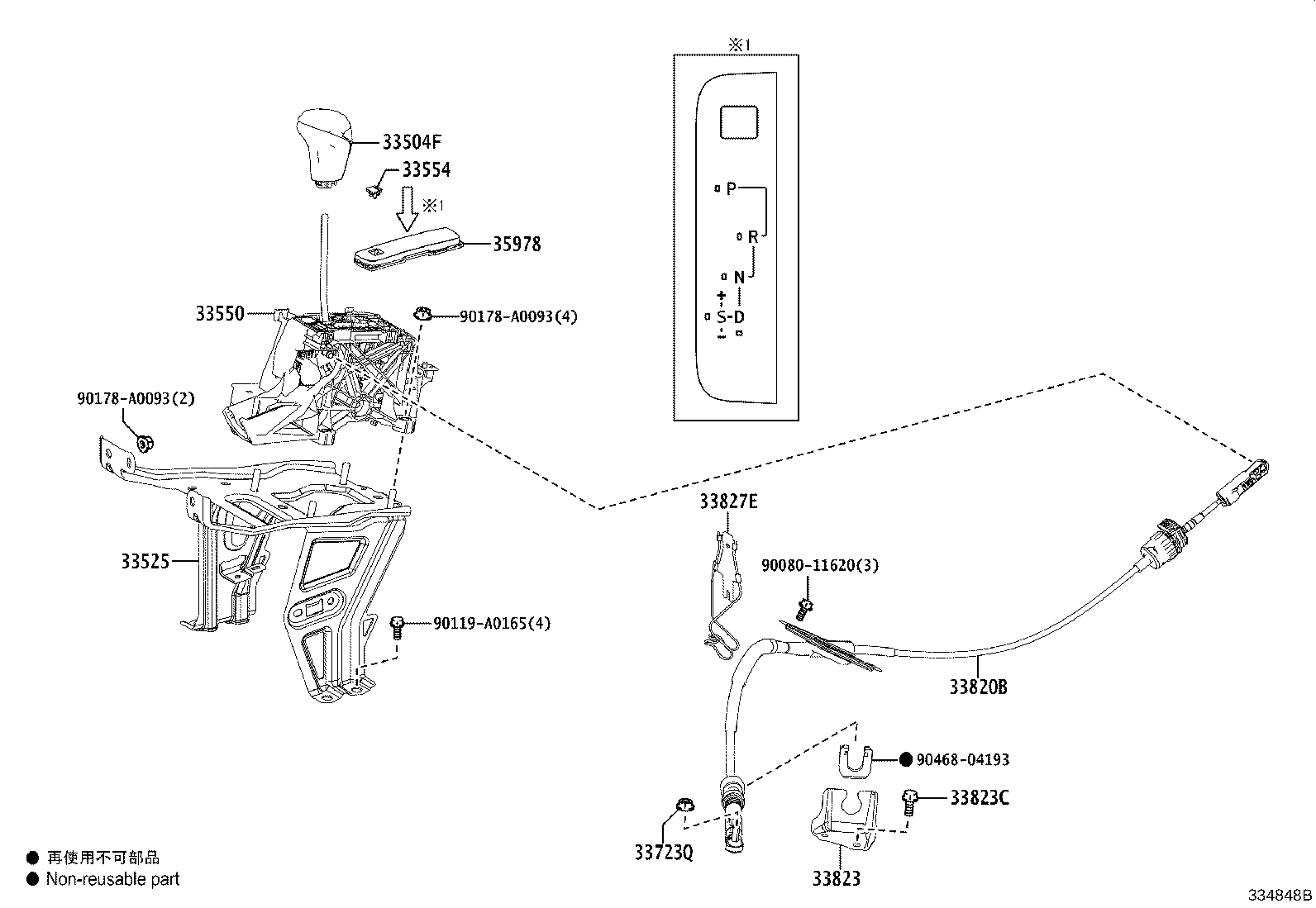

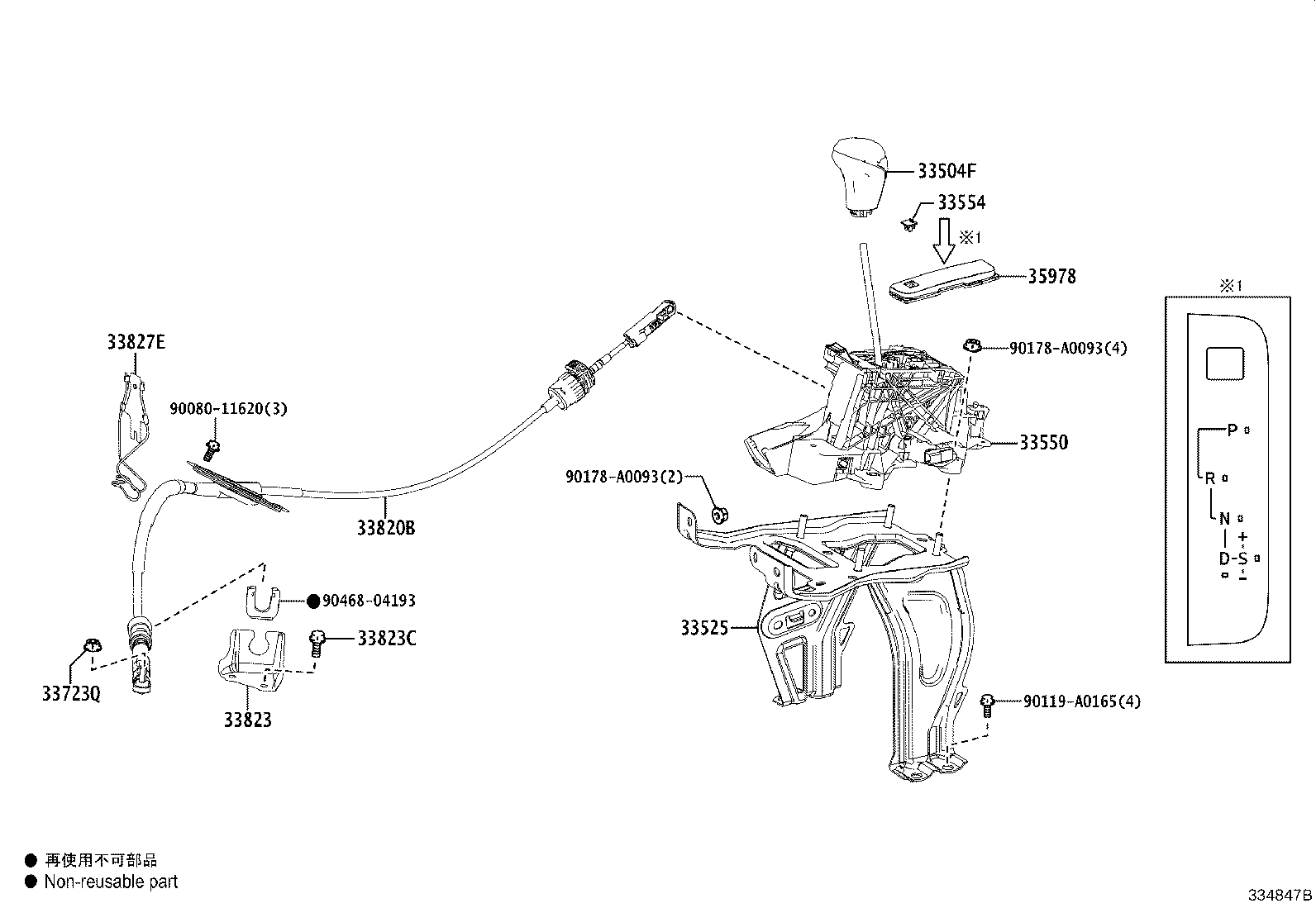

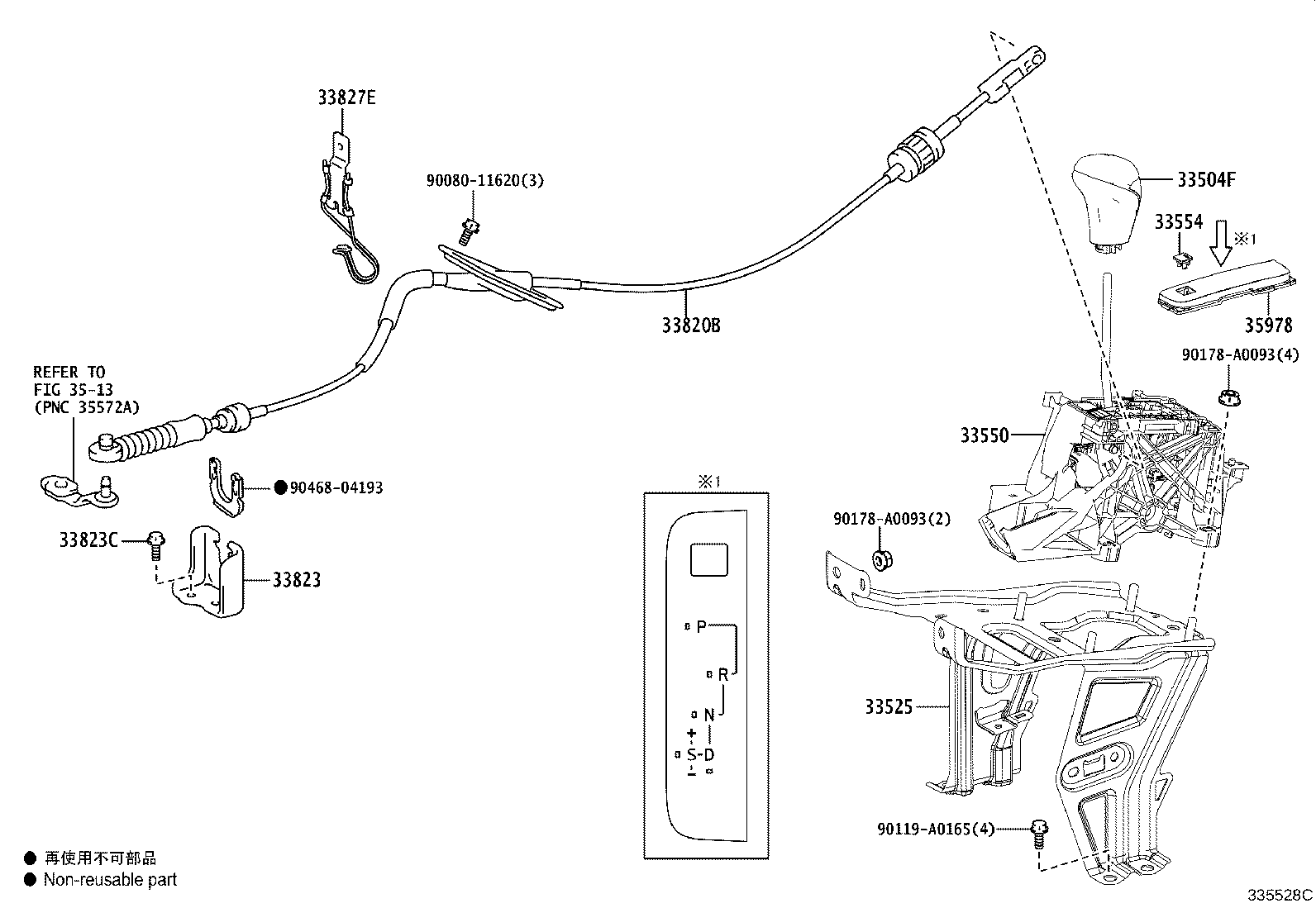

Shift Lever & Retainer
10 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33525 | Support, Shift Lever |
| 33550 | Floor Shift Assy, Transmission |
| 33554 | Cap, Shift Lever |
| 33723Q | Nut (FOR CONNECTING ROD SWIVEL) |
| 33820B | Cable Assy, Transmission Control |
| 33823 | Bracket, Transmission Control Cable, NO.1 |
| 33823C | Bolt (FOR TRANSMISSION CONTROL CABLE BRACKET) |
| 33827E | Bracket, Transmission Control Cable, NO.2 |
| 35978 | Indicator, Shift Position |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
