Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

17 part groups · 2 illustrations

Illustrations

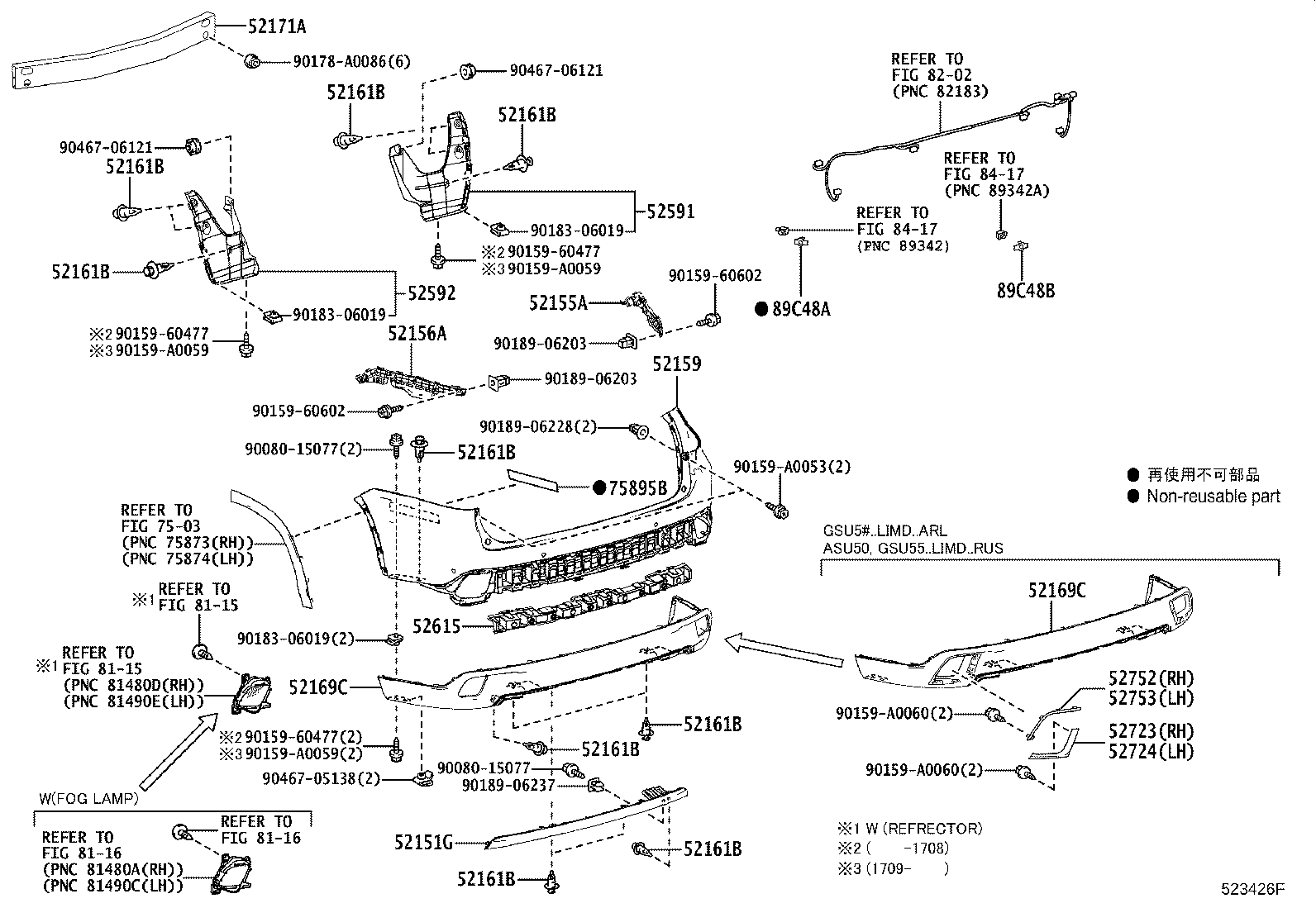

Figure 522896F 522896F 2013-12 → 2016-11 Figure 523426F 523426F 2016-11 → —

Part groups

PNCDescription
52151G Extension, Rear Bumper
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52169C Cover, Rear Bumper, Lower
52171A Reinforcement, Rear Bumper, NO.1
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
52615 Absorber, Rear Bumper Energy
52723 Moulding, Rear Bumper Extension, RH
52724 Moulding, Rear Bumper Extension, LH
52752 Moulding, Rear Bumper Side, RH
52753 Moulding, Rear Bumper Side, LH
75895B Tape, Moulding, NO.2
89C48A Retainer, Ultrasonic Sensor, Rear Corner
89C48B Retainer, Ultrasonic Sensor, Rear Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
