Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · General

Supported model Data version 2019-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

5 part groups · 4 illustrations

Illustrations

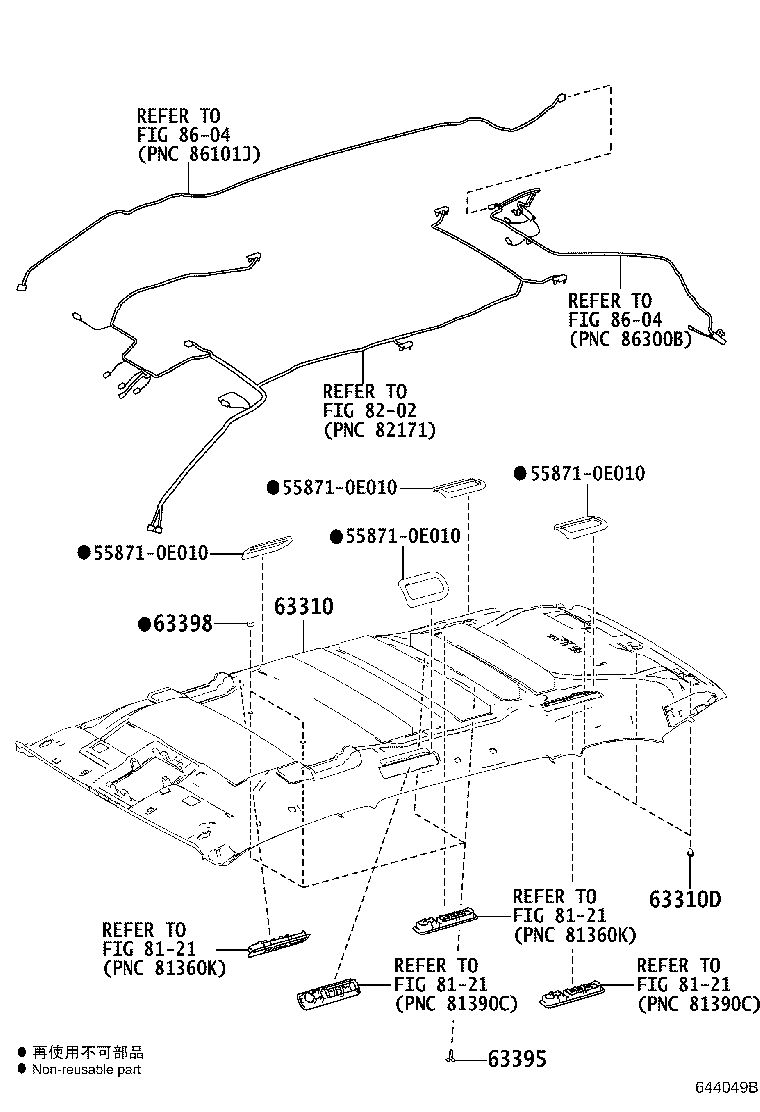

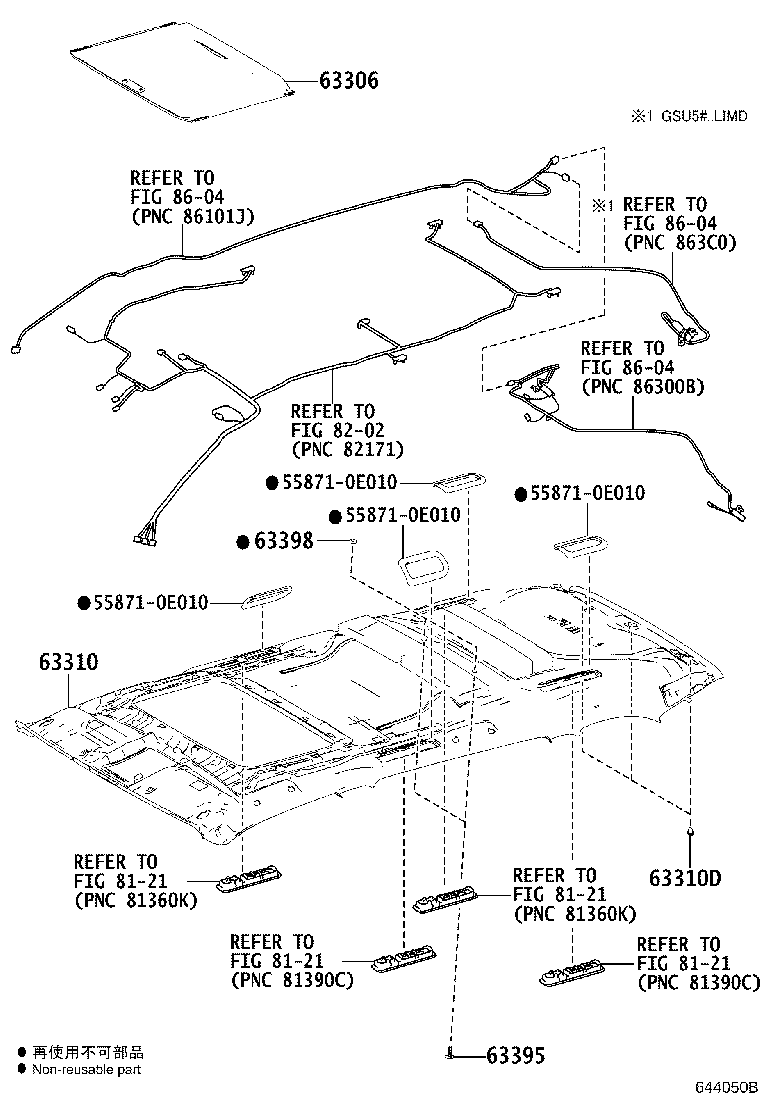

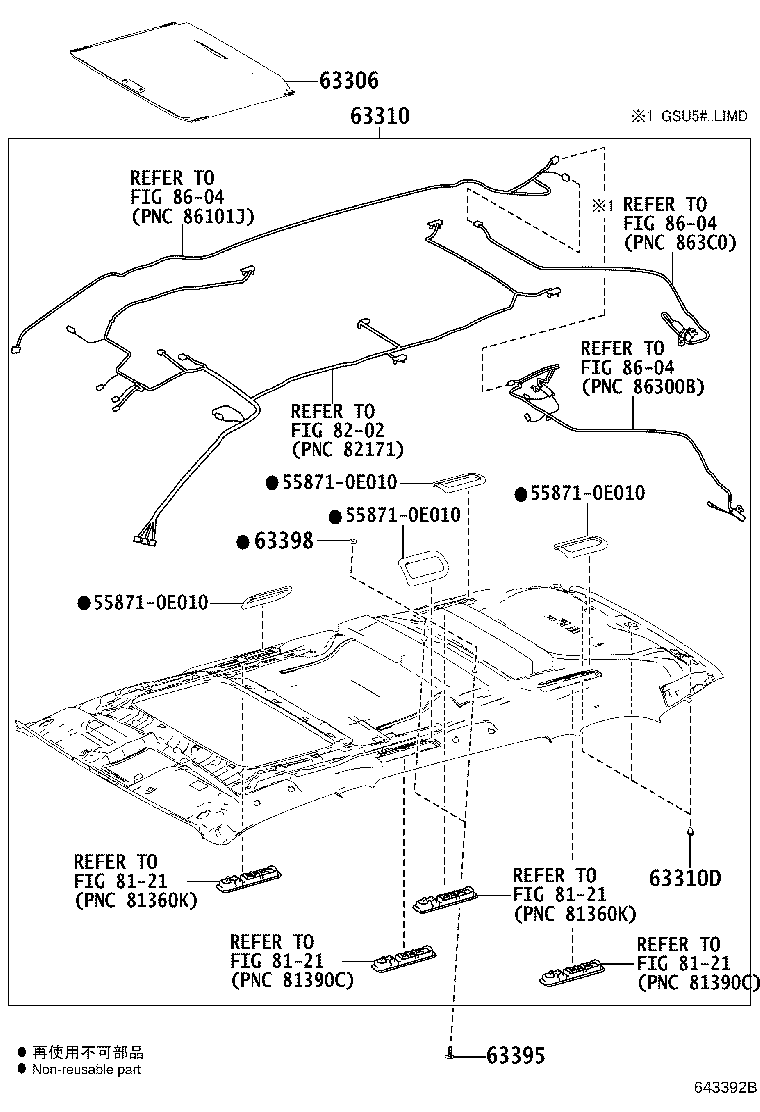

Figure 644048B 644048B 2013-12 → 2016-11 Figure 644049B 644049B 2016-11 → — Figure 643392B 643392B 2013-12 → 2016-11 Figure 644050B 644050B 2016-11 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63395 Clip, Roof Headlining Trim
63398 Plate, Roof Headlining Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
