Toyota Highlander/Kluger

2013-12 → 2019-11 · chassis ASU50,GSU5# · catalogue 526220 · General

Supported model Data version 2019-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

80 part groups · 18 illustrations

Illustrations

718589J 2013-12 → 2016-11

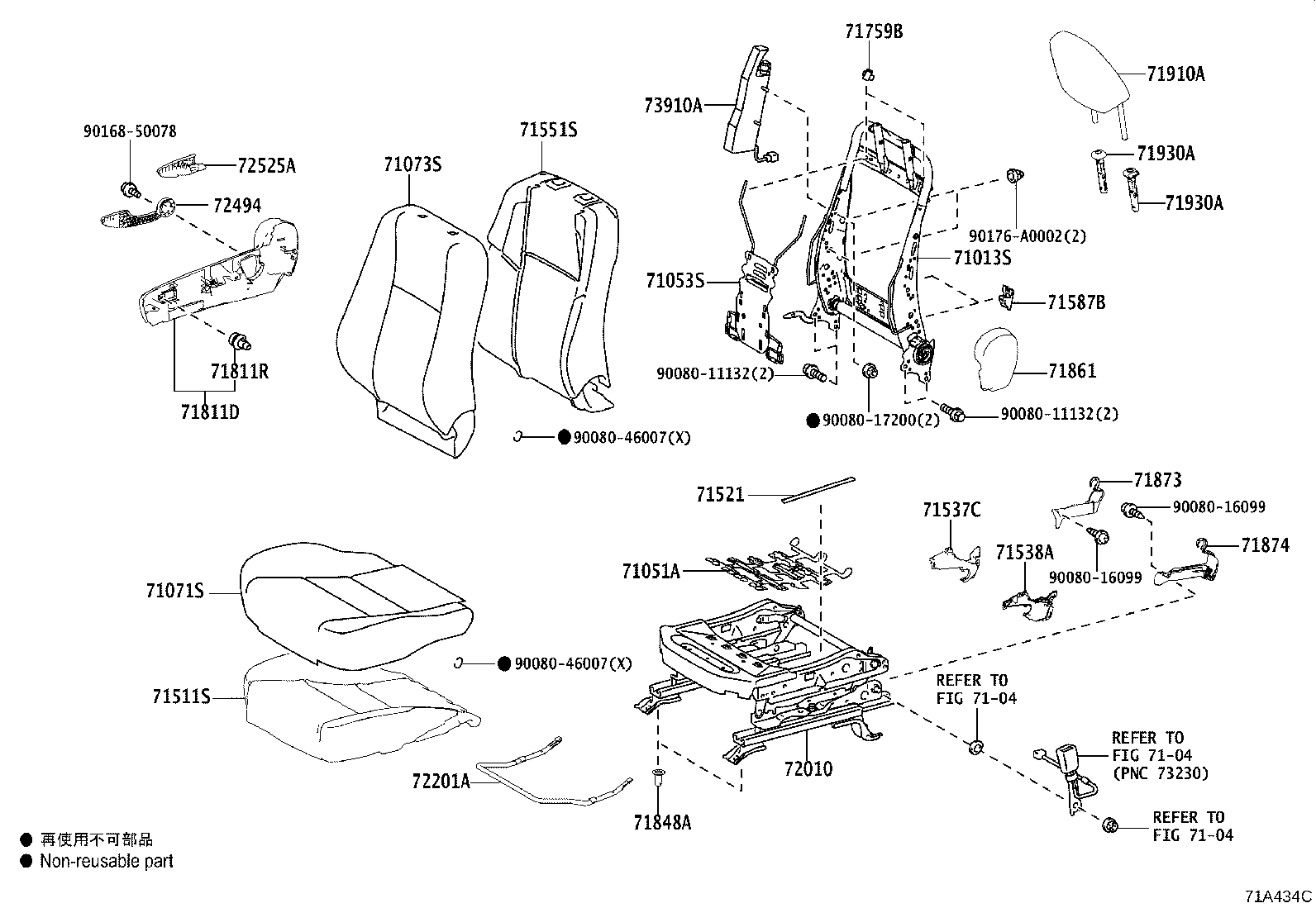

71A434C 2016-11 → —

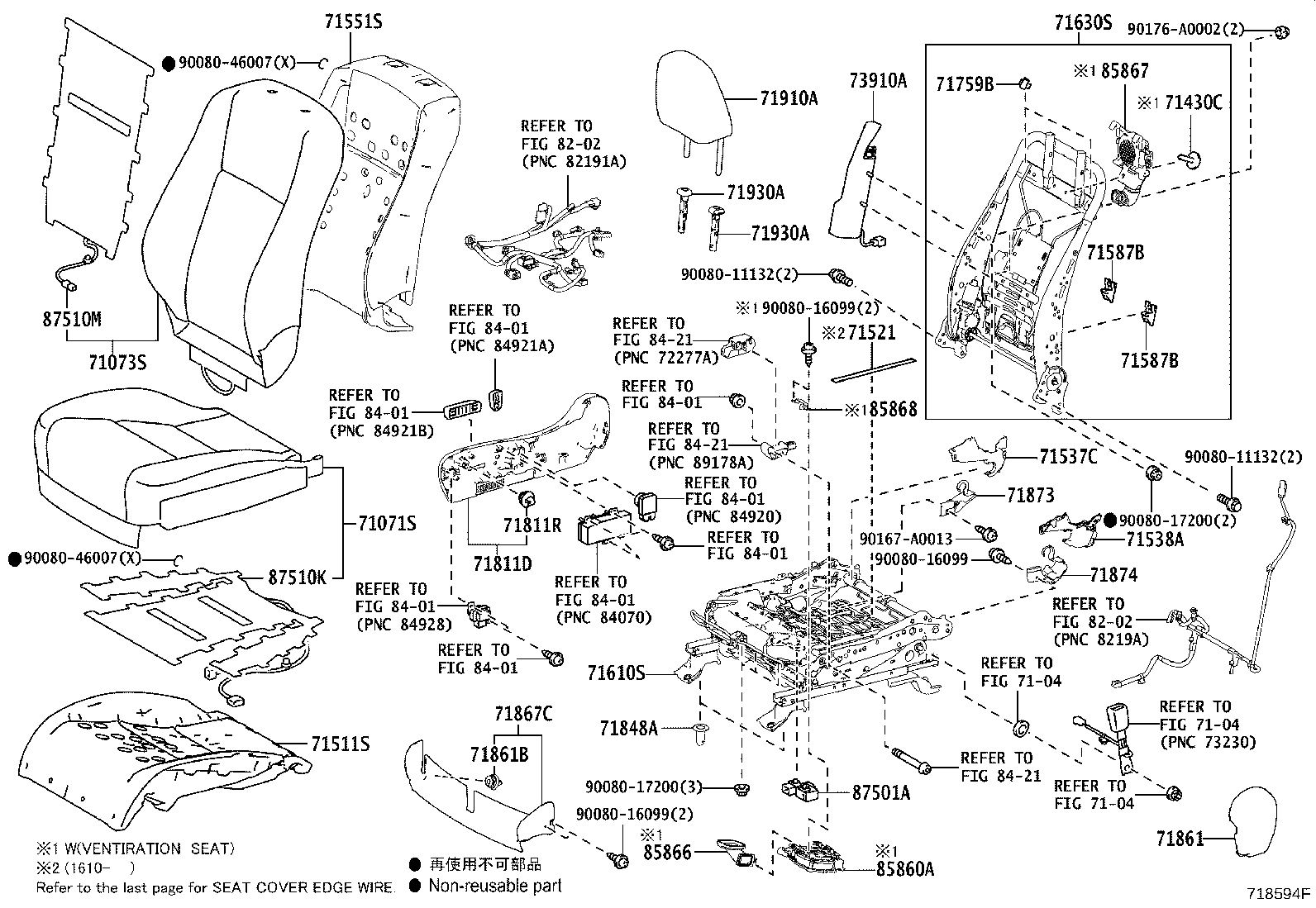

718594F 2013-12 → 2016-11

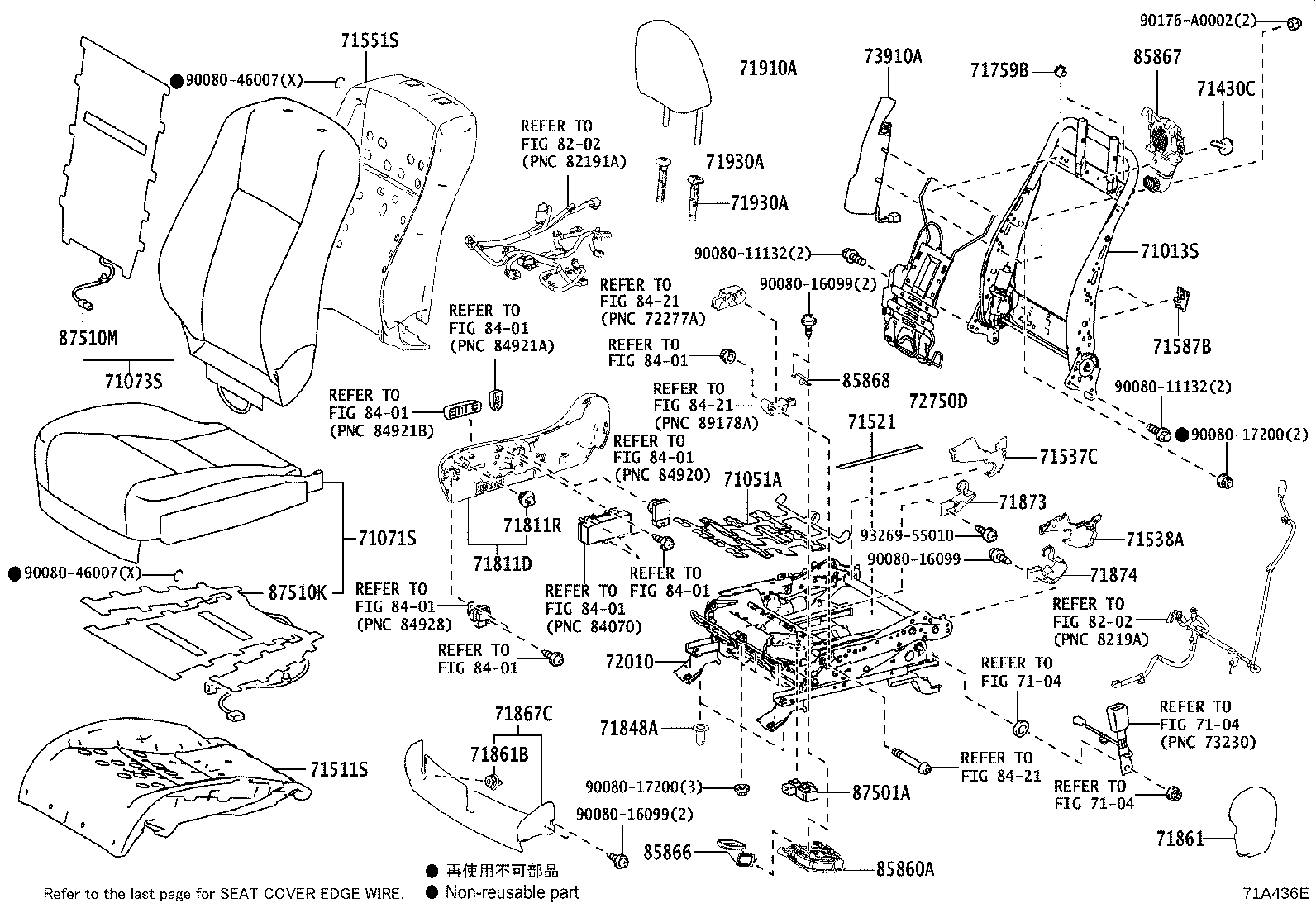

71A436E 2016-11 → —

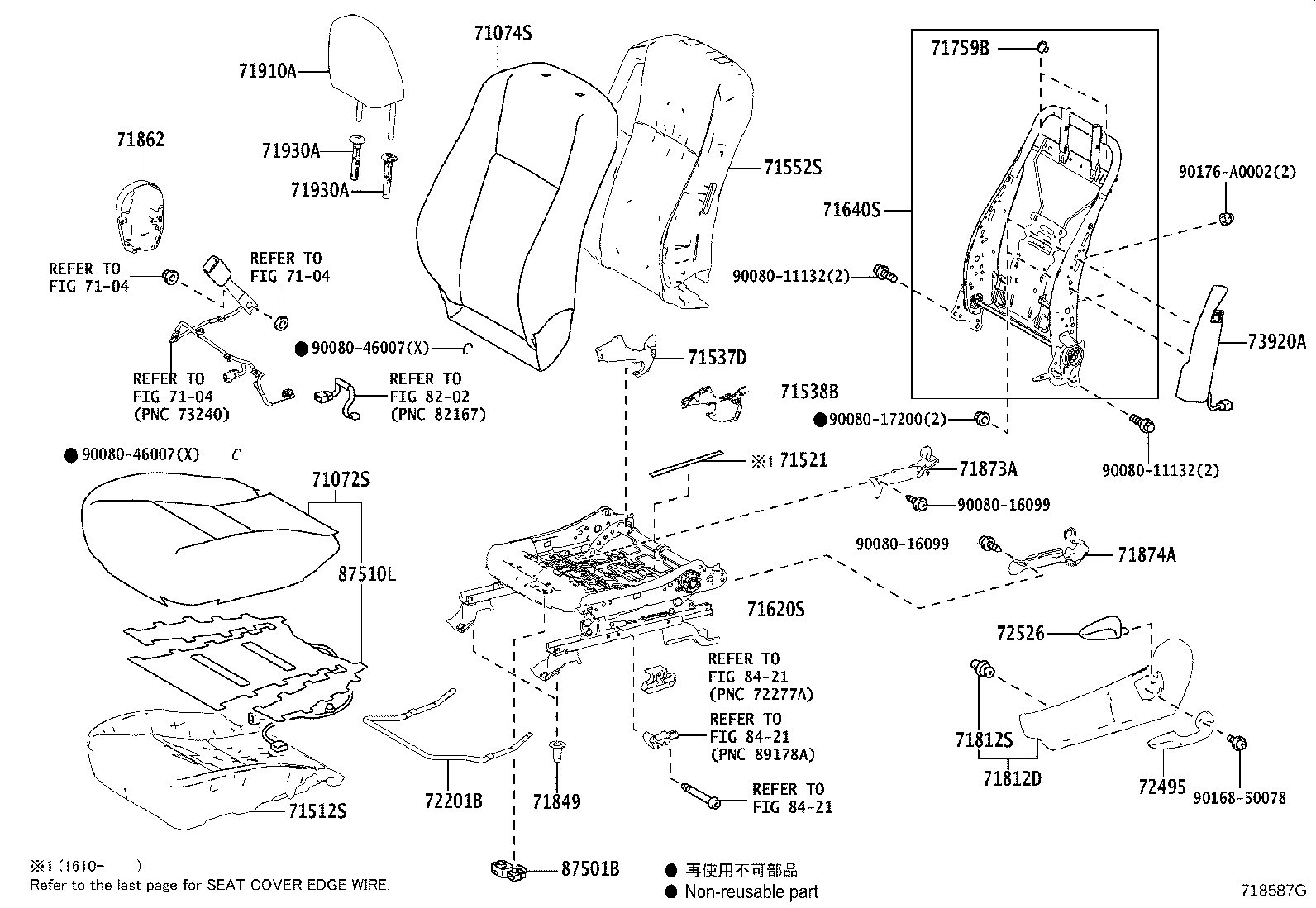

718587G 2013-12 → 2016-11

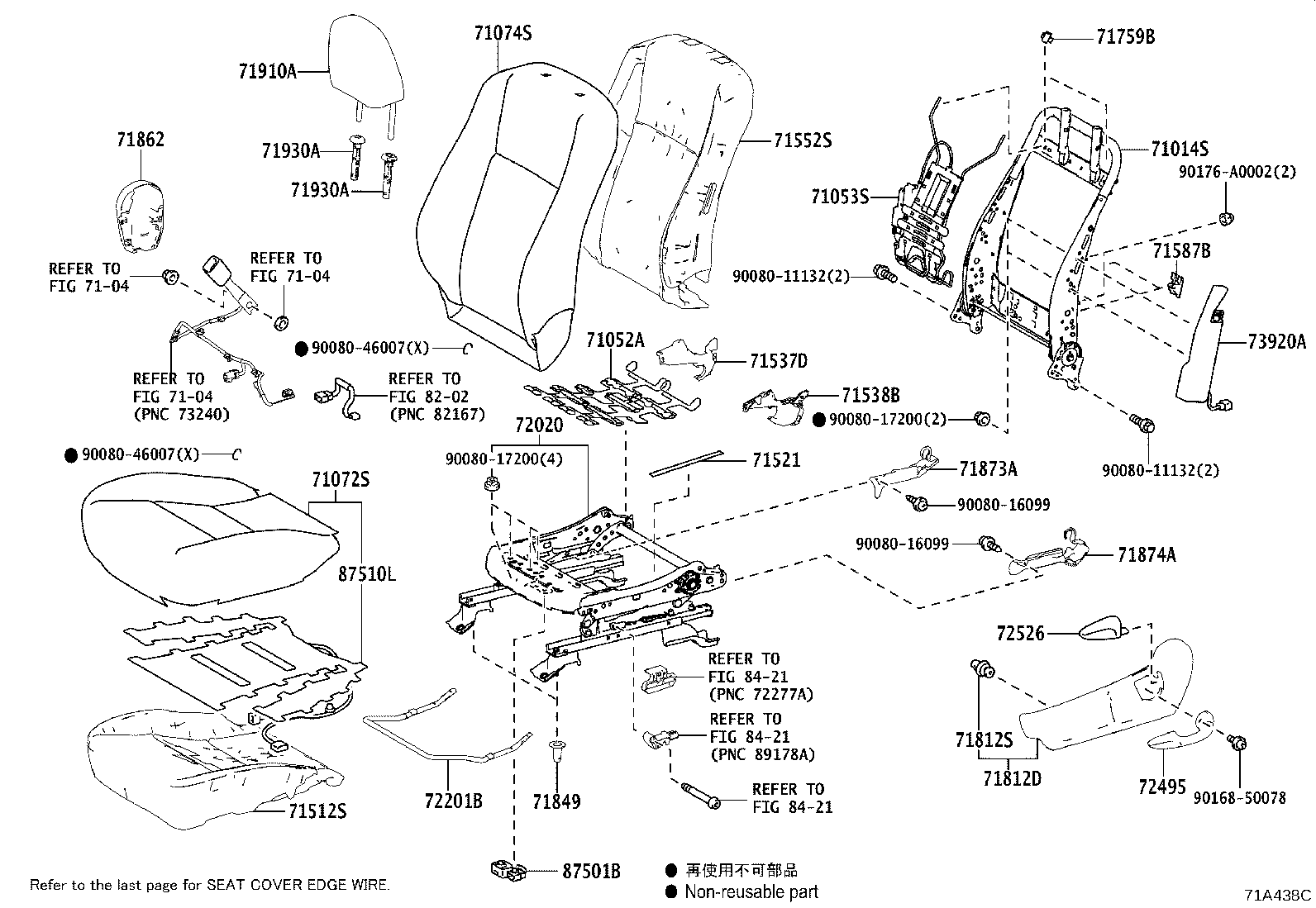

71A438C 2016-11 → —

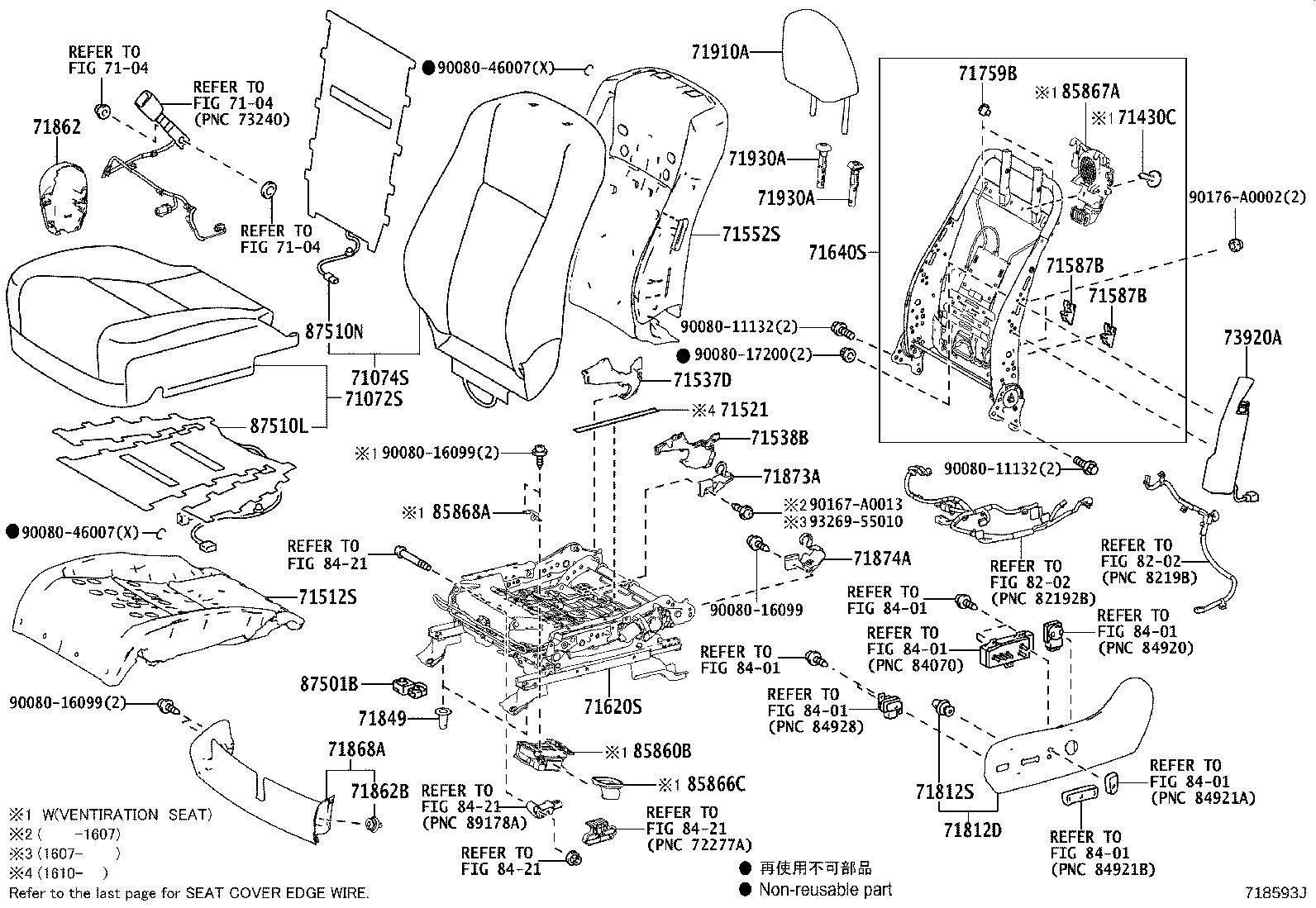

718593J 2013-12 → 2016-11

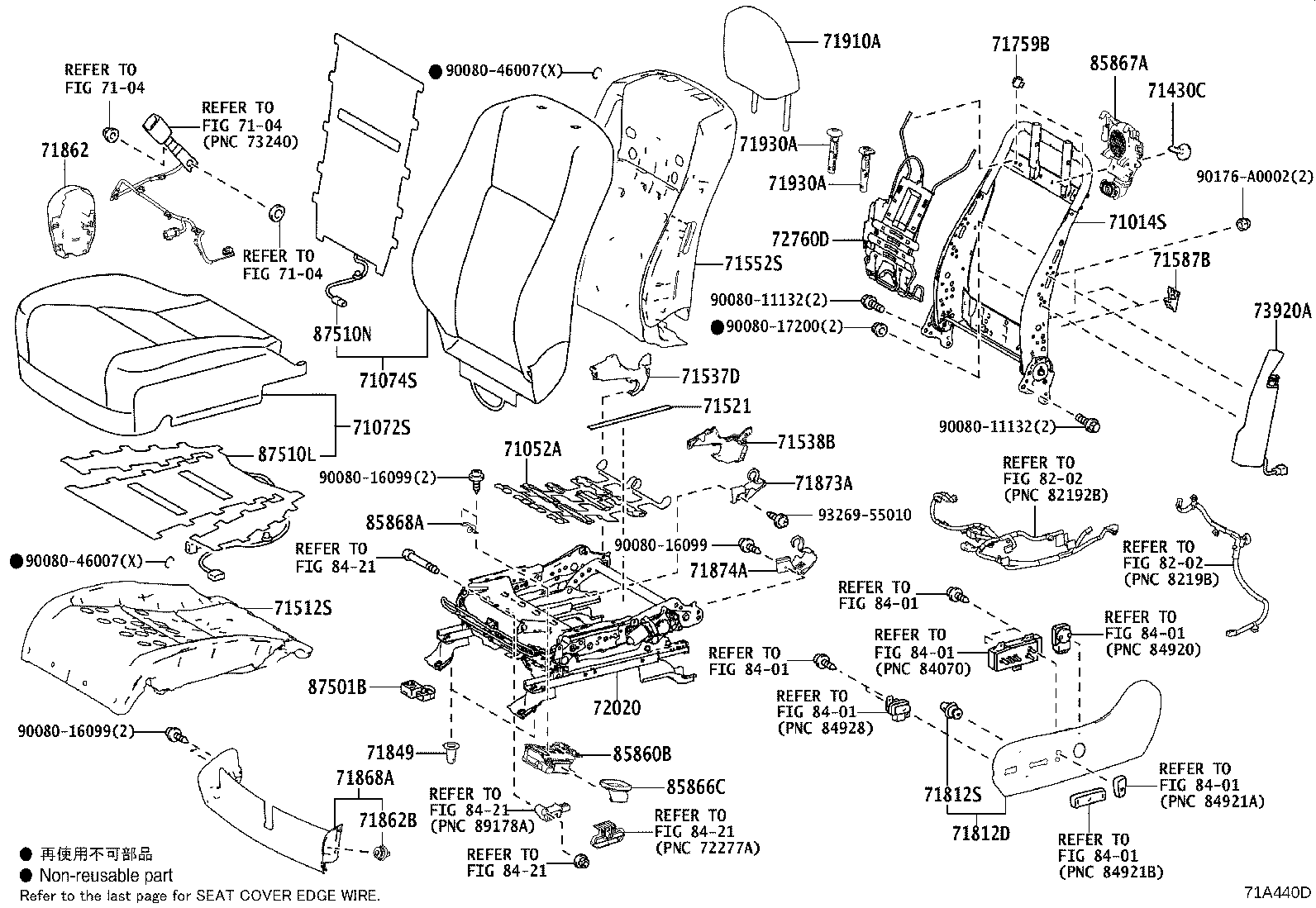

71A440D 2016-11 → —

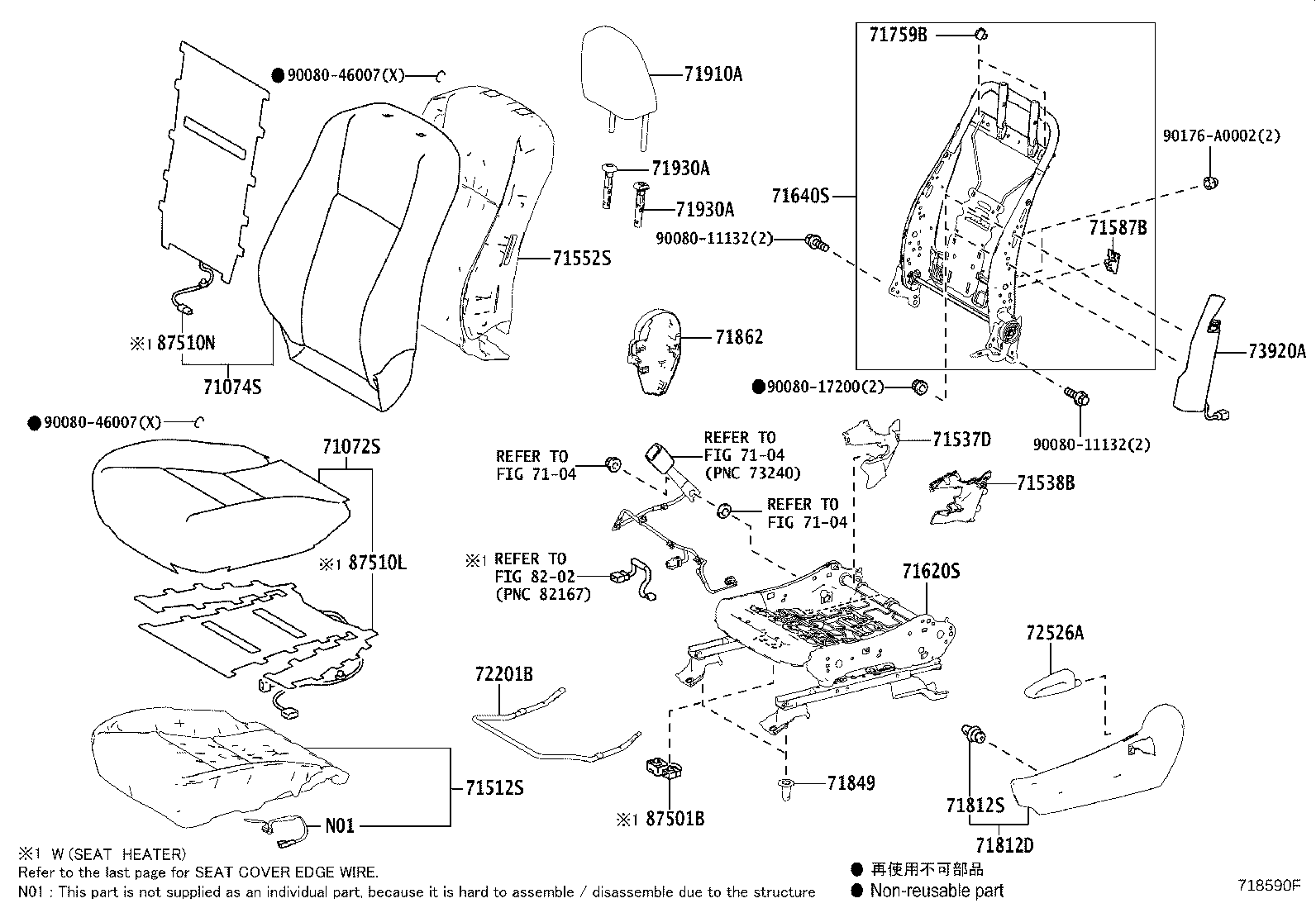

718590F 2013-12 → 2016-11

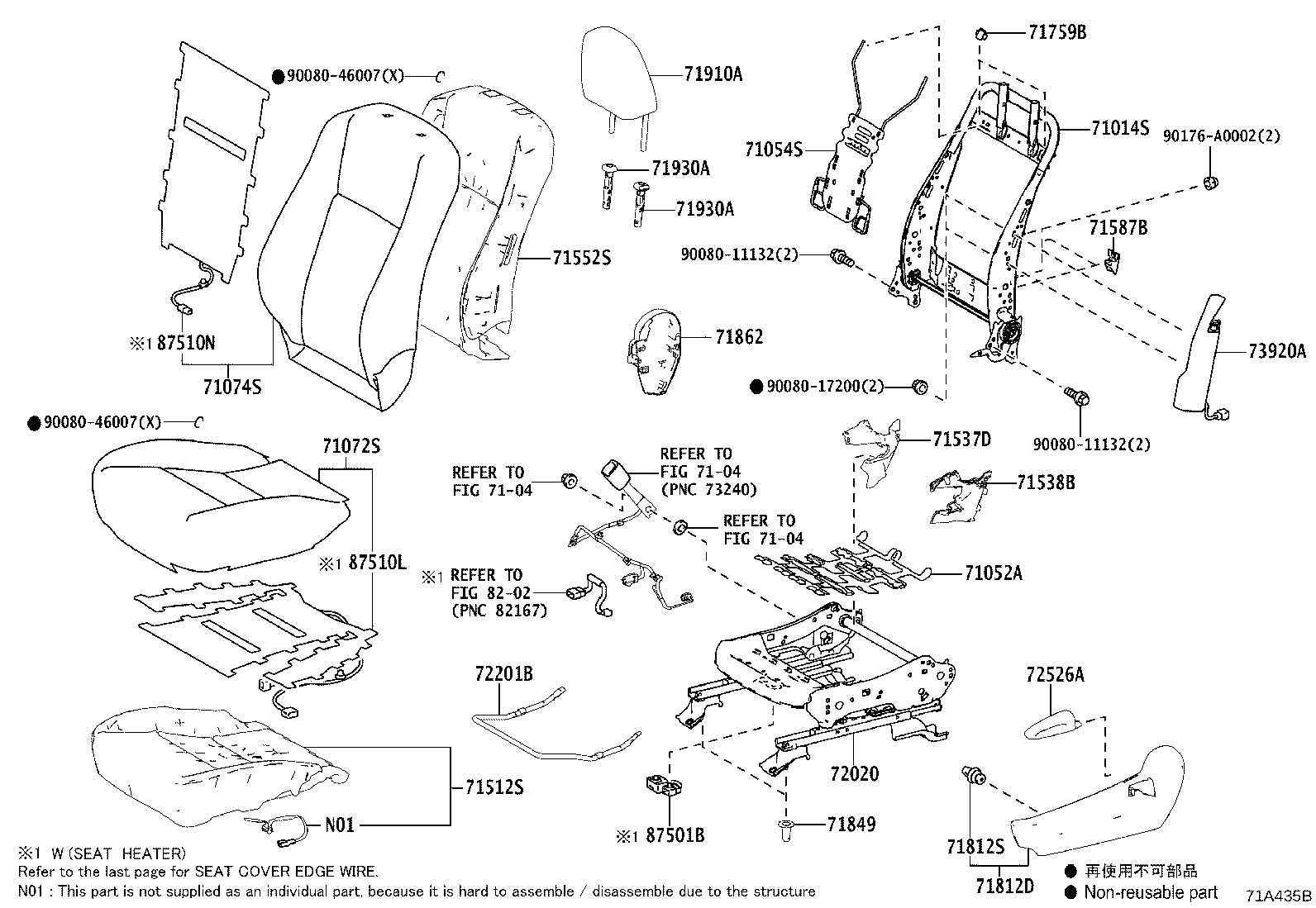

71A435B 2016-11 → —

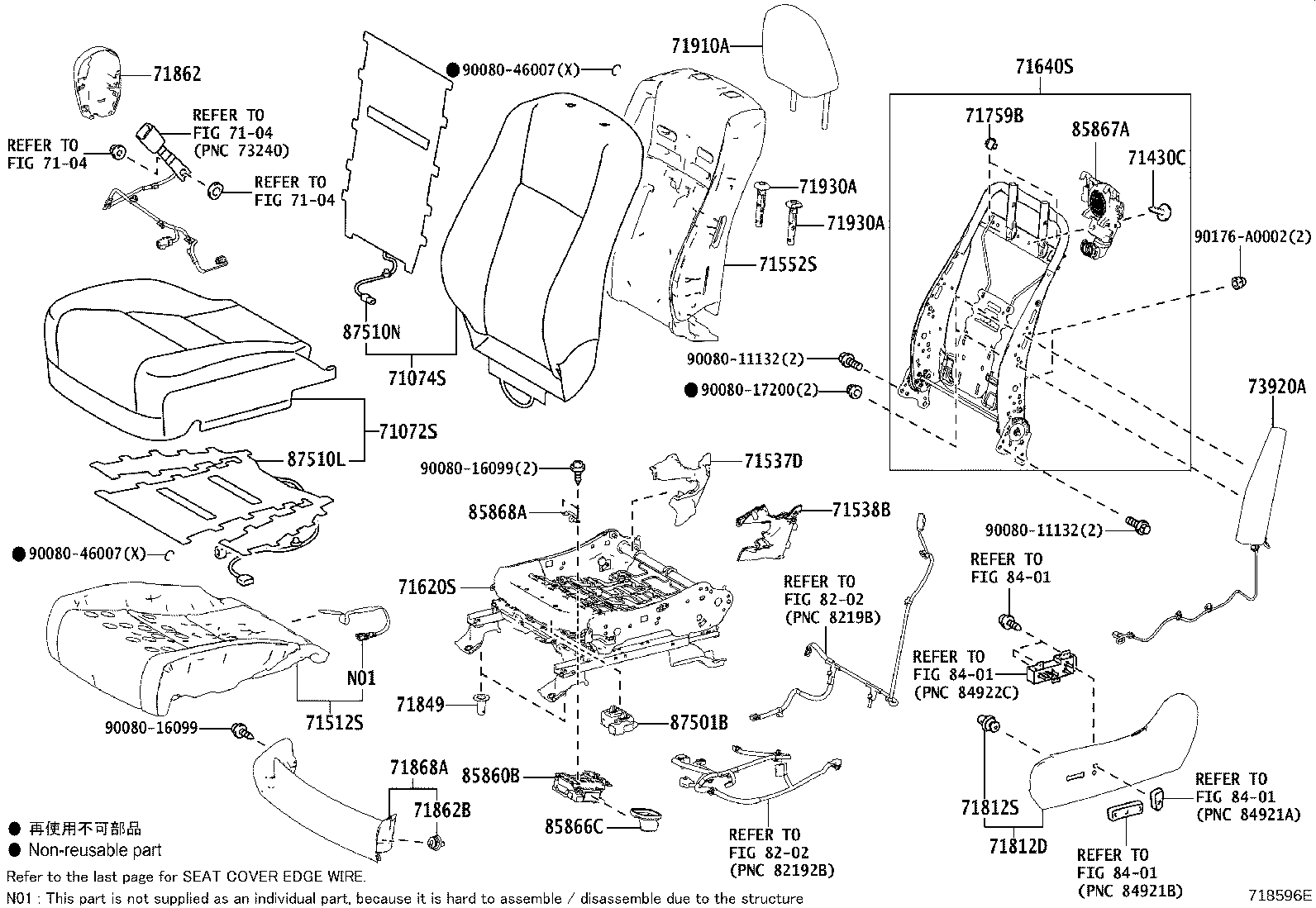

718596E 2013-12 → 2016-11

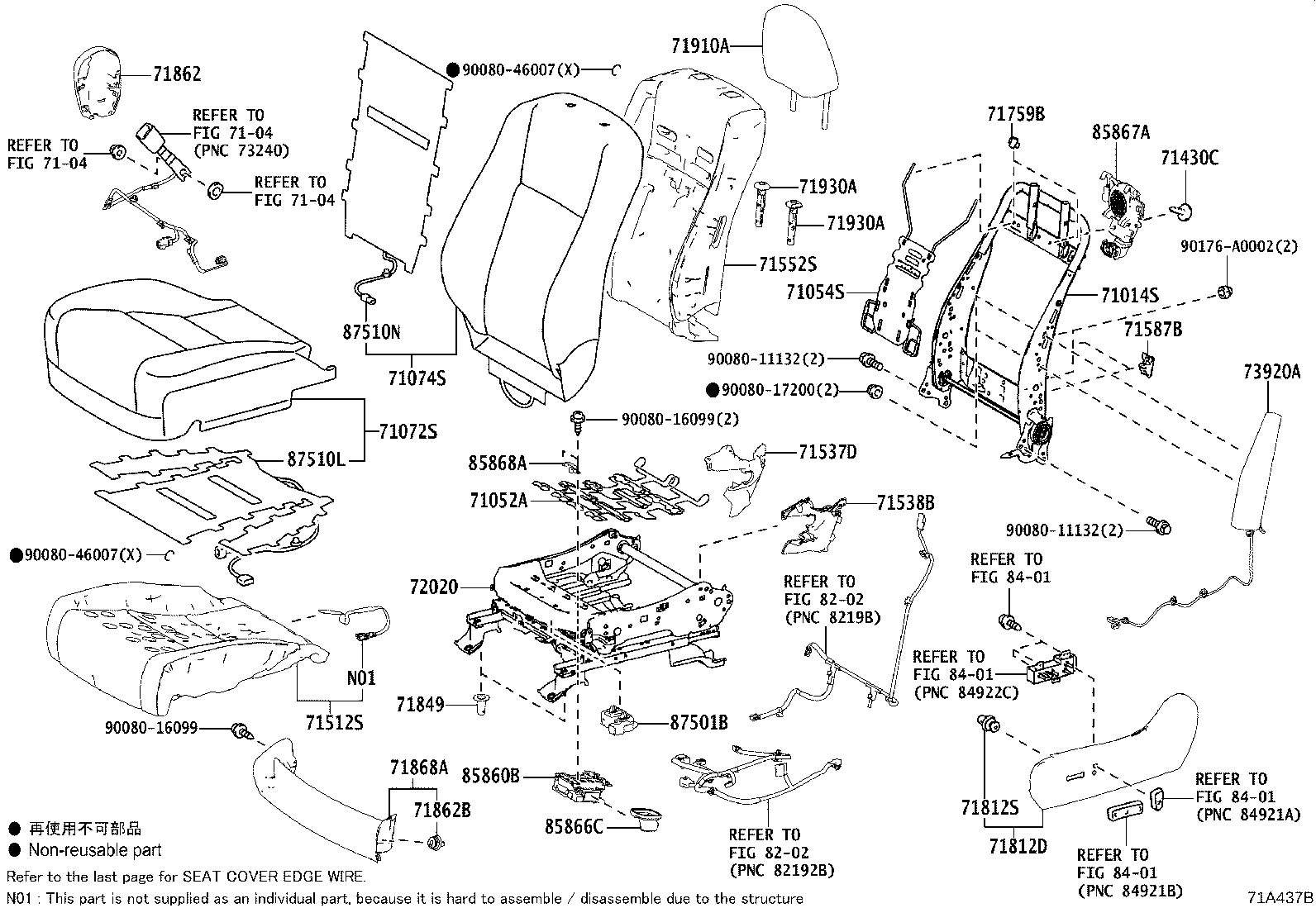

71A437B 2016-11 → —

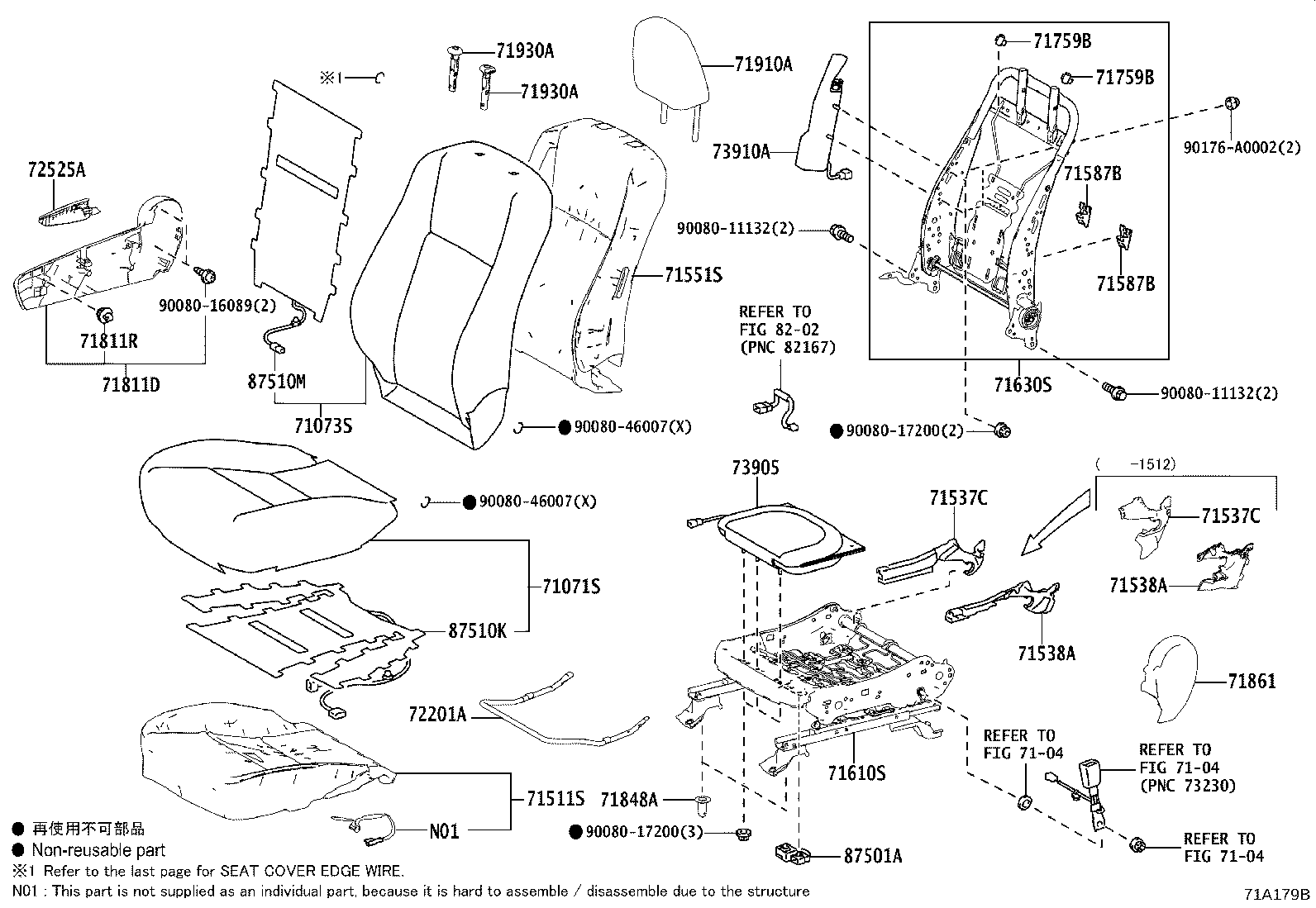

71A179B 2013-12 → 2016-11

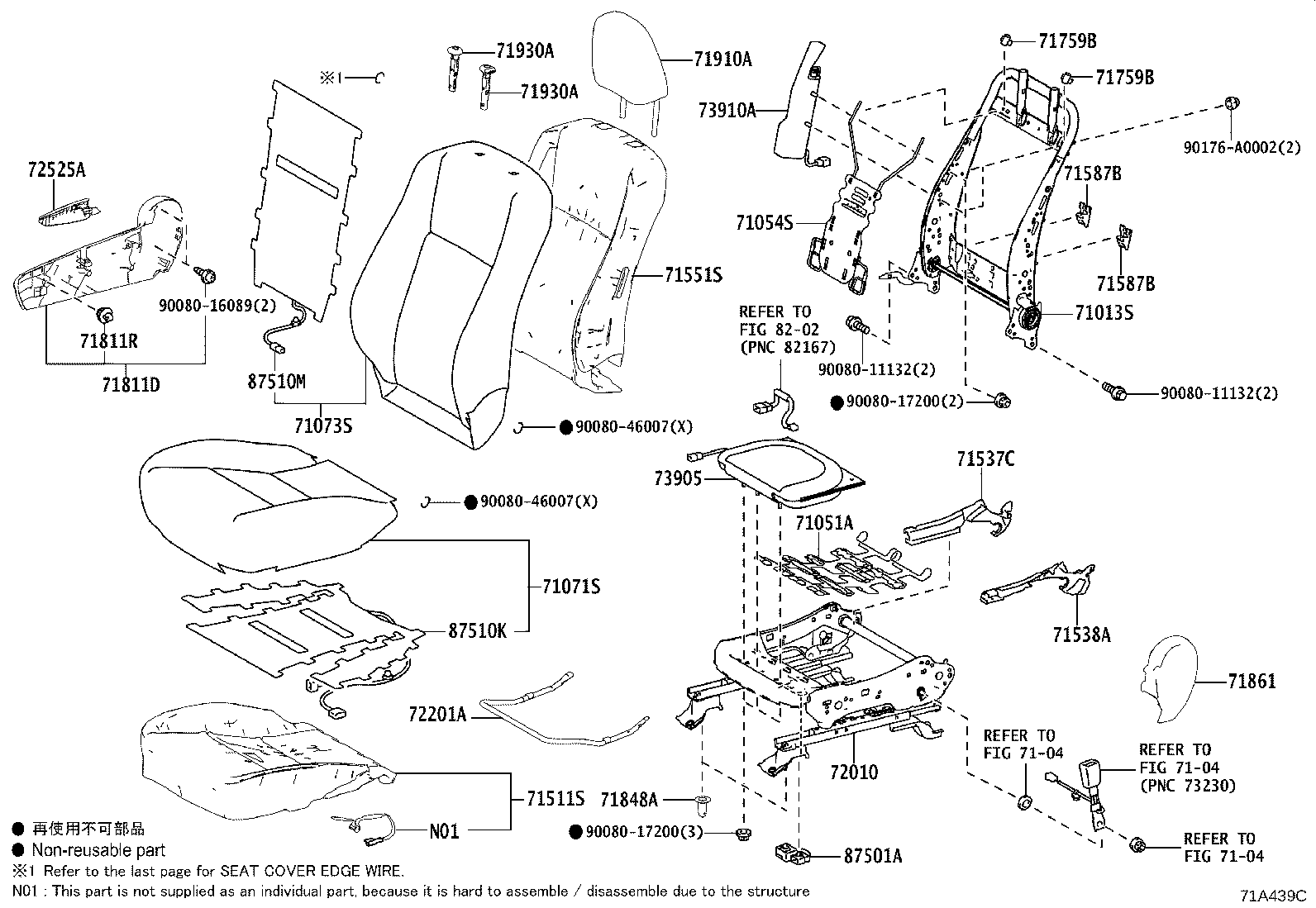

71A439C 2016-11 → —

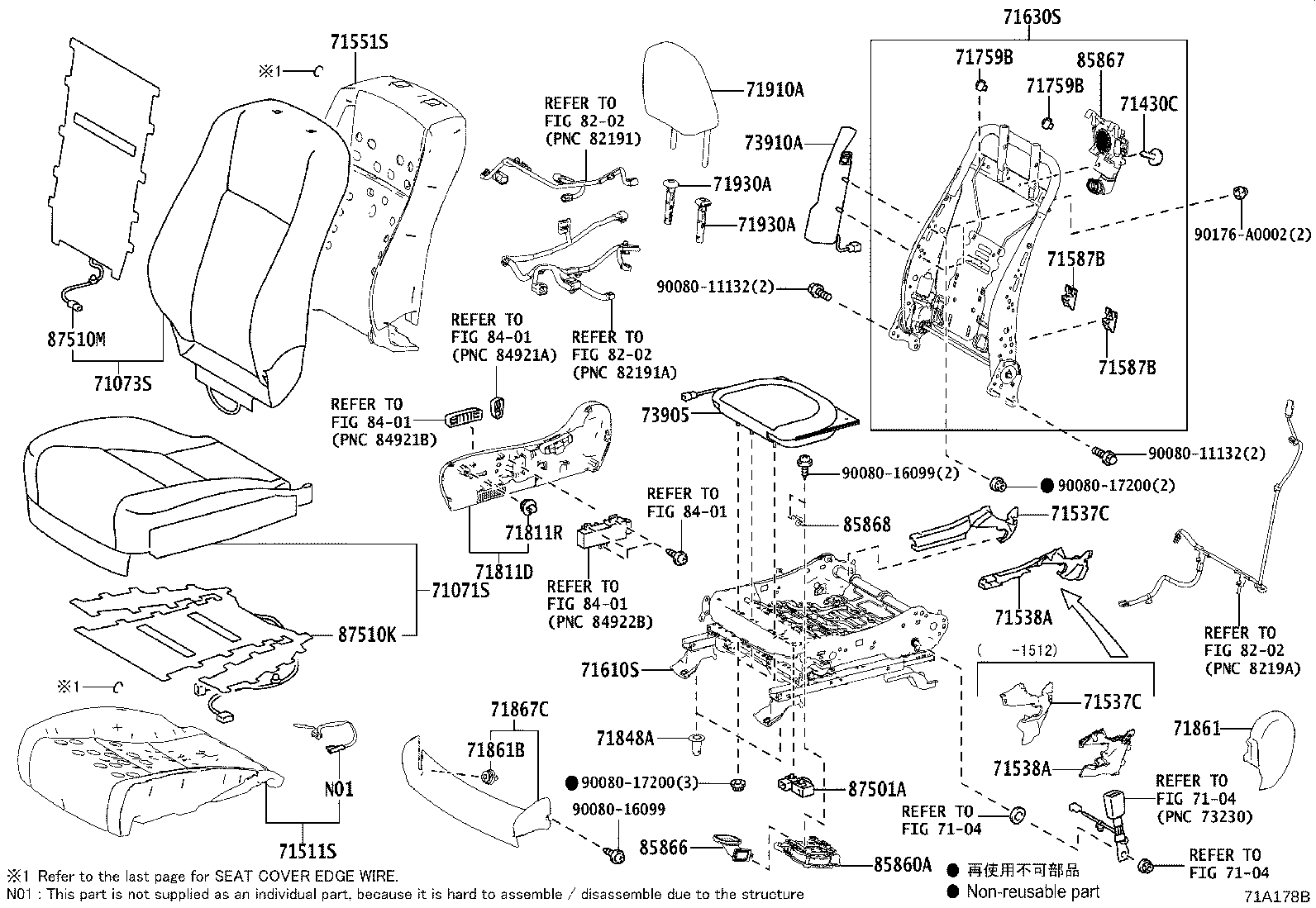

71A178B 2013-12 → 2016-11

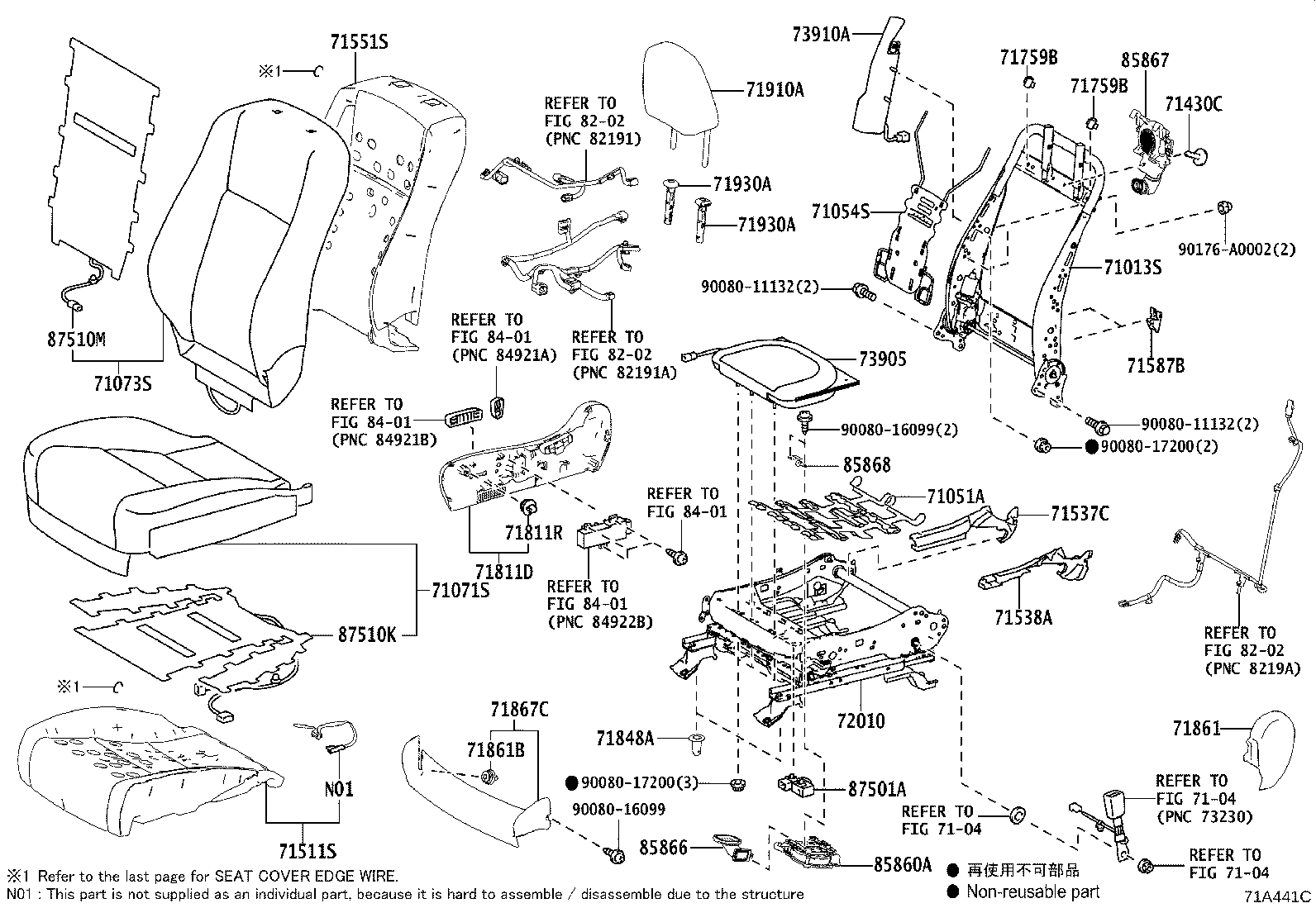

71A441C 2016-11 → —

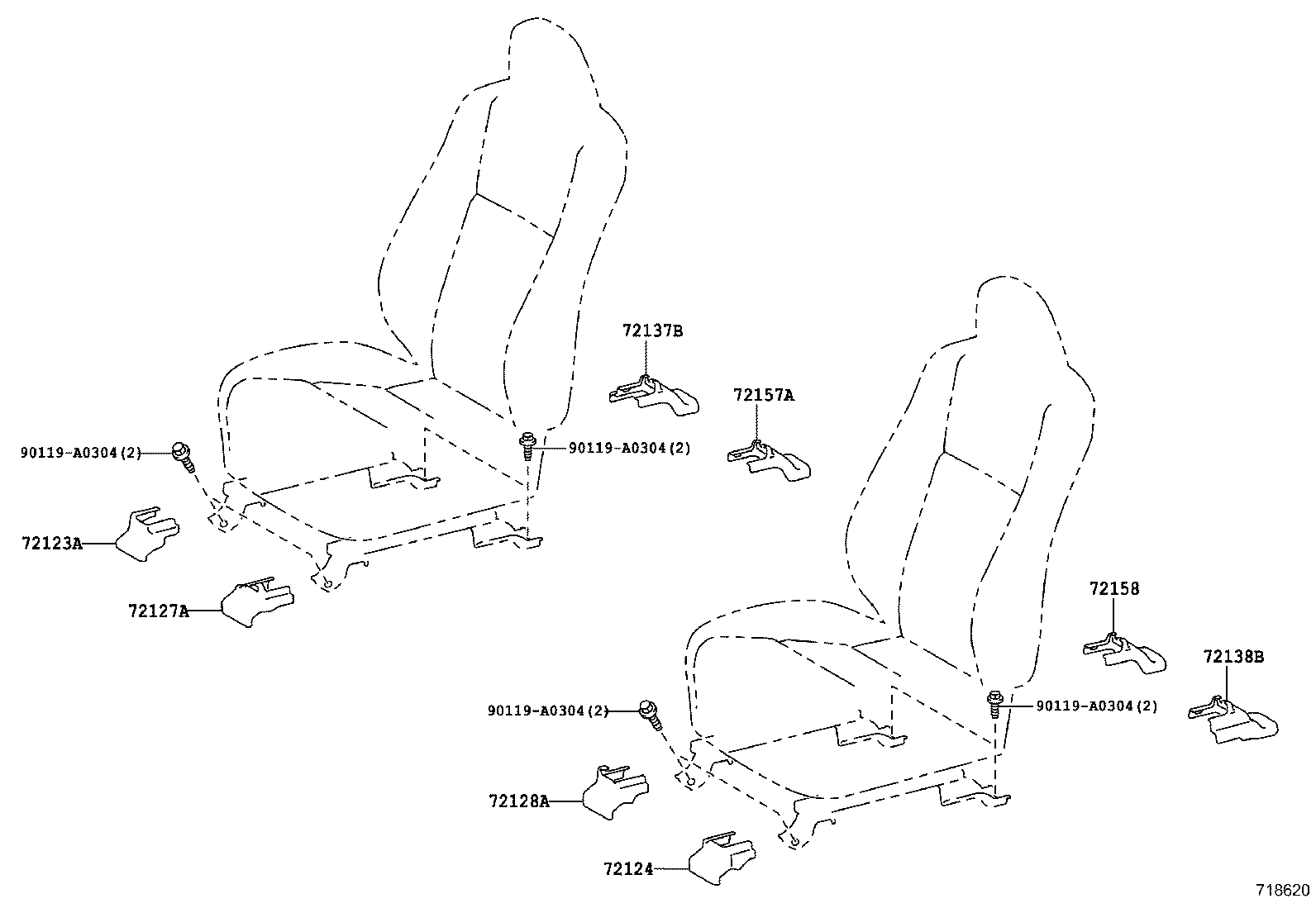

718620 2013-12 → —

719167 2013-12 → —

Part groups

PNC	Description
71013S	Frame Sub-assy, Front Seatback, RH
71014S	Frame Sub-assy, Front Seatback, LH
71051A	Spring Sub-assy, Front Seat Cushion, RH
71052A	Spring Sub-assy, Front Seat Cushion, LH
71053S	Spring Sub-assy, Front Seatback, RH
71054S	Spring Sub-assy, Front Seatback, LH
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71430C	Clip
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71521	Pad, Front Seat Cushion Silencer, A
71537C	Protector, Front Seat Cushion Edge, RH
71537D	Protector, Front Seat Cushion Edge, LH
71538A	Protector, Front Seat Cushion Edge, LH(FOR RH SEAT)
71538B	Protector, Front Seat Cushion Edge, LH(FOR LH SEAT)
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71587B	Protector, Front Seatback Edge
71610S	Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71620S	Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71630S	Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE)
71640S	Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE)
71759B	Hook, Front Seatback
71811D	Shield, Front Seat Cushion, RH
71811R	Clip, Front Seat Cushion Shield, RH
71812D	Shield, Front Seat Cushion, LH
71812S	Clip, Front Seat Cushion Shield, LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71861B	Clip(FOR FRONT SEAT SHIELD, RH)
71862	Shield, Front Seat Cushion, Inner LH
71862B	Clip(FOR FRONT SEAT SHIELD, LH)
71867C	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71873	Shield, Front Seat Cushion, Lower RH
71873A	Shield, Front Seat Cushion, Lower
71874	Shield, Front Seat Cushion, Lower LH
71874A	Shield, Front Seat Cushion, Lower LH
71910A	Headrest Assy, Front Seat
71930A	Support Assy, Front Seat Headrest
72010	Adjuster Assy, Front Seat, RH
72020	Adjuster Assy, Front Seat, LH
72123A	Cover, Seat Track Bracket, Outer Front RH
72124	Cover, Seat Track Bracket, Outer Front LH
72127A	Cover, Seat Track Bracket, Inner Front RH
72128A	Cover, Seat Track Bracket, Inner Front LH
72137B	Cover, Seat Track, RH
72138B	Cover, Seat Track, LH
72157A	Cover, Seat Track Bracket, Inner RH
72158	Cover, Seat Track Bracket, Inner LH
72201A	Handle Sub-assy, Seat Track RH
72201B	Handle Sub-assy, Seat Track LH
72494	Handle, Vertical Adjusting, RH
72495	Handle, Vertical Adjusting, LH
72525A	Handle, Reclining Adjuster Release, RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72750D	Adjuster Assy, Lumbar Support, RH
72760D	Adjuster Assy, Lumbar Support, LH
73905	Airbag Sub-assy, Front Seat, RH
73910A	Airbag Assy, Front Seat, RH
73920A	Airbag Assy, Front Seat, LH
85860A	Blower Assy, Seat Cushion Climate Control, RH
85860B	Blower Assy, Seat Cushion Climate Control, LH
85866	Duct, Seat Cushion Climate Control, RH
85866C	Duct, Seatback Climate Control, LH
85867	Blower, Seatback Climate Control, RH
85867A	Blower, Seatback Climate Control, LH
85868	Bracket, Seat Cushion Climate Control, RH
85868A	Bracket, Seat Cushion Climate Control, LH
87501A	Control Sub-assy, Seat Heater, RH
87501B	Control Sub-assy, Seat Heater, LH
87510K	Heater Assy, Front Seat Cushion, RH
87510L	Heater Assy, Front Seat Cushion, LH
87510M	Heater Assy, Front Seatback, RH
87510N	Heater Assy, Front Seatback, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
