Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

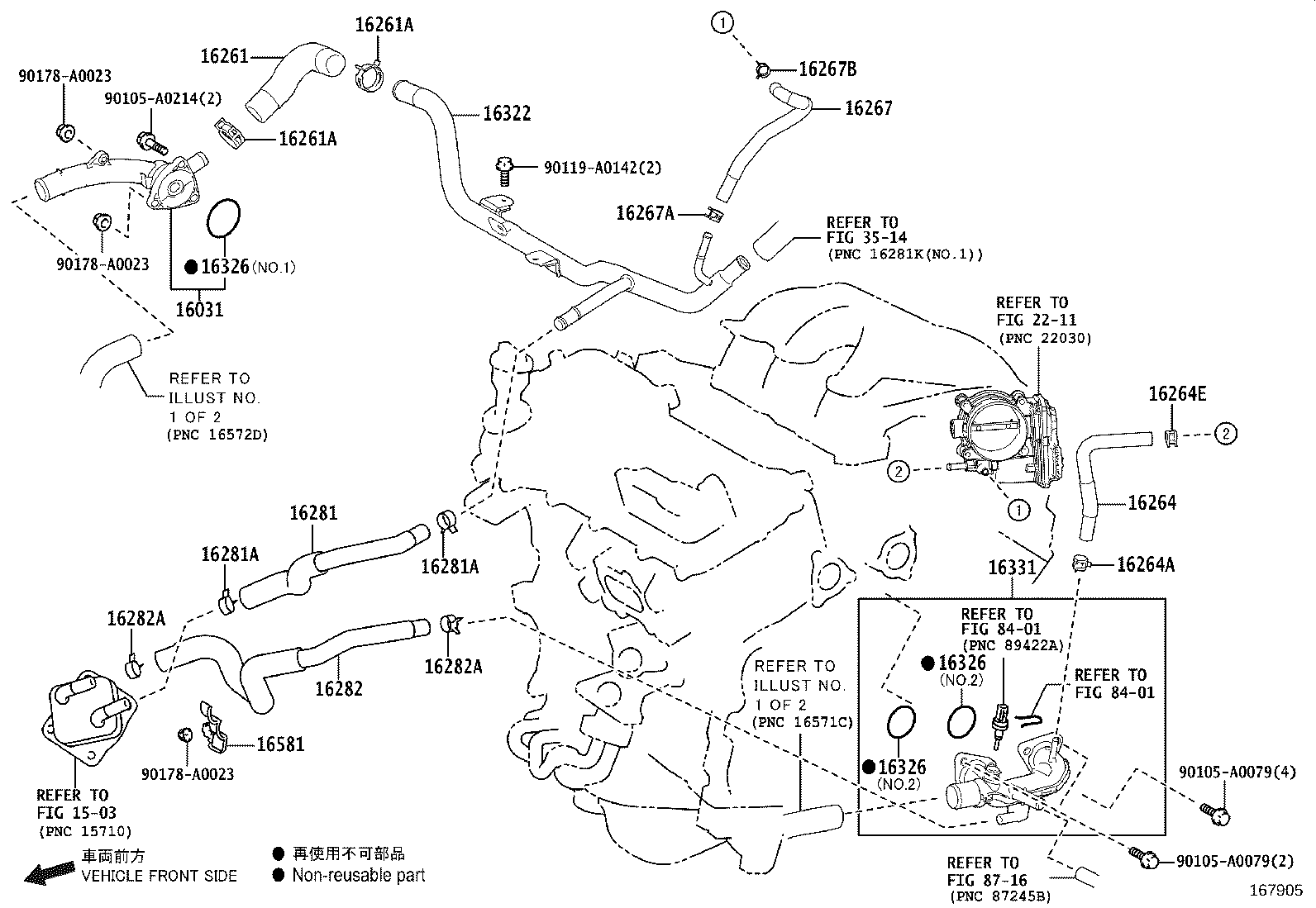

Exploded illustration 167905 3514 — not listed in this catalogue 16281 — HOSE, WATER BY-PASS, NO.4 (10 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (11 parts) 16281A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) (11 parts) 16267 — HOSE, WATER BY-PASS, NO.3 (9 parts) 16031 — WATER INLET SUB-ASSY, W/THERMOSTAT (7 parts) 16331 — OUTLET, WATER (6 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (14 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (14 parts) 16326 — GASKET, WATER INLET HOUSING, NO.2 (14 parts) 16261 — HOSE, WATER BY-PASS (4 parts) 16264 — HOSE, WATER BY-PASS, NO.2 (4 parts) 16322 — PIPE, WATER INLET (1 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (4 parts) 16261A — CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) (4 parts) 16264A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) (4 parts) 16264E — CLIP(FOR WATER BY-PASS HOSE NO.2) (6 parts) 16267B — CLIP(FOR WATER BY-PASS HOSE) (4 parts) 16267A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) (9 parts) 16282 — HOSE, WATER BY-PASS, NO.5 (9 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (9 parts) 16282A — CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) (9 parts) 16581 — CLAMP, HOSE(FOR WATER HOSE) (1 parts) 1503 — not listed in this catalogue 8401 — not listed in this catalogue 2211 — not listed in this catalogue 90105A0214 — not listed in this catalogue 90119A0142 — not listed in this catalogue 90178A0023 — not listed in this catalogue 90105A0079 — not listed in this catalogue 90178A0023 — not listed in this catalogue 90178A0023 — not listed in this catalogue 8716 — not listed in this catalogue 8401 — not listed in this catalogue 90105A0079 — not listed in this catalogue
167905 · 22 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
112 parts on this figure
Part number Description Fitment Price
16031 — Water Inlet Sub-assy, W/Thermostat
16031-25011 note Water Inlet Sub-assy, W/Thermostat
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
16031-25040 note Water Inlet Sub-assy, W/Thermostat
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
16031-31031 Water Inlet Sub-assy, W/Thermostat
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16031-25040 note Water Inlet Sub-assy, W/Thermostat
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
16031-25040 note Water Inlet Sub-assy, W/Thermostat
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
16031-25040 note Water Inlet Sub-assy, W/Thermostat
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
16031-25040 note Water Inlet Sub-assy, W/Thermostat
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16261 — Hose, Water By-pass
16261-0P020 Hose, Water By-pass
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16261-25090 Hose, Water By-pass
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16261-25090 Hose, Water By-pass
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16261-25090 Hose, Water By-pass
2023-11 → —
T24AFTS TXUA7# —
16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
90466-27001 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
96138-42101 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-42101 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42101 Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2023-11 → —
T24AFTS TXUA7# —
16264 — Hose, Water By-pass, NO.2
16264-0P020 Hose, Water By-pass, NO.2
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16264-25040 Hose, Water By-pass, NO.2
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16264-25040 Hose, Water By-pass, NO.2
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16264-25040 Hose, Water By-pass, NO.2
2023-11 → —
T24AFTS TXUA7# —
16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
90466-A0017 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
90466-28001 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-28001 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90466-28001 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2023-11 → —
T24AFTS TXUA7# —
16264E — Clip(FOR WATER BY-PASS HOSE NO.2)
90466-A0017 Clip(FOR WATER BY-PASS HOSE NO.2)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
96138-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
96138-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
96138-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
96138-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
96138-42101 note Clip(FOR WATER BY-PASS HOSE NO.2)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16267 — Hose, Water By-pass, NO.3
16267-0P050 Hose, Water By-pass, NO.3
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16267-25020 note Hose, Water By-pass, NO.3
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
16267-25020 note Hose, Water By-pass, NO.3
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
16267-25020 note Hose, Water By-pass, NO.3
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
16267-25030 Hose, Water By-pass, NO.3
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16267-25030 Hose, Water By-pass, NO.3
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16267-25020 note Hose, Water By-pass, NO.3
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
16267-25020 note Hose, Water By-pass, NO.3
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16267-25030 Hose, Water By-pass, NO.3
2023-11 → —
T24AFTS TXUA7# —
16267A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
90466-A0017 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
96138-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
96137-41701 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96137-41701 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
96138-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
96137-41701 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2023-11 → —
T24AFTS TXUA7# —
96138-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
96138-42101 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16267B — Clip(FOR WATER BY-PASS HOSE)
90466-A0017 Clip(FOR WATER BY-PASS HOSE)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
96137-42501 Clip(FOR WATER BY-PASS HOSE)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96137-42501 Clip(FOR WATER BY-PASS HOSE)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96137-42501 Clip(FOR WATER BY-PASS HOSE)
2023-11 → —
T24AFTS TXUA7# —
16281 — Hose, Water By-pass, NO.4
16281-0P080 Hose, Water By-pass, NO.4
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16281-25021 note Hose, Water By-pass, NO.4
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
99555-10200 note Hose, Water By-pass, NO.4
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
16281-25060 Hose, Water By-pass, NO.4
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16281-25060 Hose, Water By-pass, NO.4
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
99555-10200 note Hose, Water By-pass, NO.4
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
99555-10200 note Hose, Water By-pass, NO.4
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
16281-25060 Hose, Water By-pass, NO.4
2023-11 → —
T24AFTS TXUA7# —
99555-10200 note Hose, Water By-pass, NO.4
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
99555-10200 note Hose, Water By-pass, NO.4
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16281A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
90466-A0032 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
96136-41901 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
96136-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2023-11 → —
T24AFTS TXUA7# —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
16282 — Hose, Water By-pass, NO.5
16282-0P030 Hose, Water By-pass, NO.5
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16282-25040 note Hose, Water By-pass, NO.5
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
16282-25040 note Hose, Water By-pass, NO.5
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
16282-25040 note Hose, Water By-pass, NO.5
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
16282-25130 Hose, Water By-pass, NO.5
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16282-25130 Hose, Water By-pass, NO.5
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16282-25040 note Hose, Water By-pass, NO.5
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
16282-25040 note Hose, Water By-pass, NO.5
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16282-25130 Hose, Water By-pass, NO.5
2023-11 → —
T24AFTS TXUA7# —
16282A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
96136-42101 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
96138-41501 Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2023-11 → —
T24AFTS TXUA7# —
96138-41501 note Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16322 — Pipe, Water Inlet
16322-31080 Pipe, Water Inlet
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16326 — Gasket, Water Inlet Housing, NO.2
16326-25010 note Gasket, Water Inlet Housing, NO.2
2021-10 → 2022-10 ended
A25AFXS AXUH7# —
16326-31040 note Gasket, Water Inlet Housing, NO.2
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16326-31050 note Gasket, Water Inlet Housing, NO.2
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16326-47020 note Gasket, Water Inlet Housing, NO.2
2020-02 → 2021-10 ended
A25AFXS AXUH7# —
16326-25010 note Gasket, Water Inlet Housing, NO.2
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
16326-25010 note Gasket, Water Inlet Housing, NO.2
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
16326-25020 note Gasket, Water Inlet Housing, NO.2
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16326-25020 note Gasket, Water Inlet Housing, NO.2
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16326-F0030 note Gasket, Water Inlet Housing, NO.2
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16326-F0030 note Gasket, Water Inlet Housing, NO.2
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16326-25010 note Gasket, Water Inlet Housing, NO.2
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
16326-25010 note Gasket, Water Inlet Housing, NO.2
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16326-25020 note Gasket, Water Inlet Housing, NO.2
2023-11 → —
T24AFTS TXUA7# —
16326-F0030 note Gasket, Water Inlet Housing, NO.2
2023-11 → —
T24AFTS TXUA7# —
16331 — Outlet, Water
16331-25030 note Outlet, Water
2020-02 → 2022-10 ended
A25AFXS AXUH7# —
16331-31220 Outlet, Water
2020-03 → 2022-10 ended
2GRFKS GSU7# —
16331-25030 note Outlet, Water
2022-10 → 2023-11 ended
A25AFXS AXUH7# LHD —
16331-25030 note Outlet, Water
2022-10 → 2023-12 ended
A25AFXS AXUH78 RHD —
16331-25030 note Outlet, Water
2023-11 → 2024-10 ended
A25AFXS AXUH70 LIMD —
16331-25030 note Outlet, Water
2023-11 → —
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE —
16581 — Clamp, Hose(FOR WATER HOSE)
16581-31100 Clamp, Hose(FOR WATER HOSE)
2020-03 → 2022-10 ended
2GRFKS GSU7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
