Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

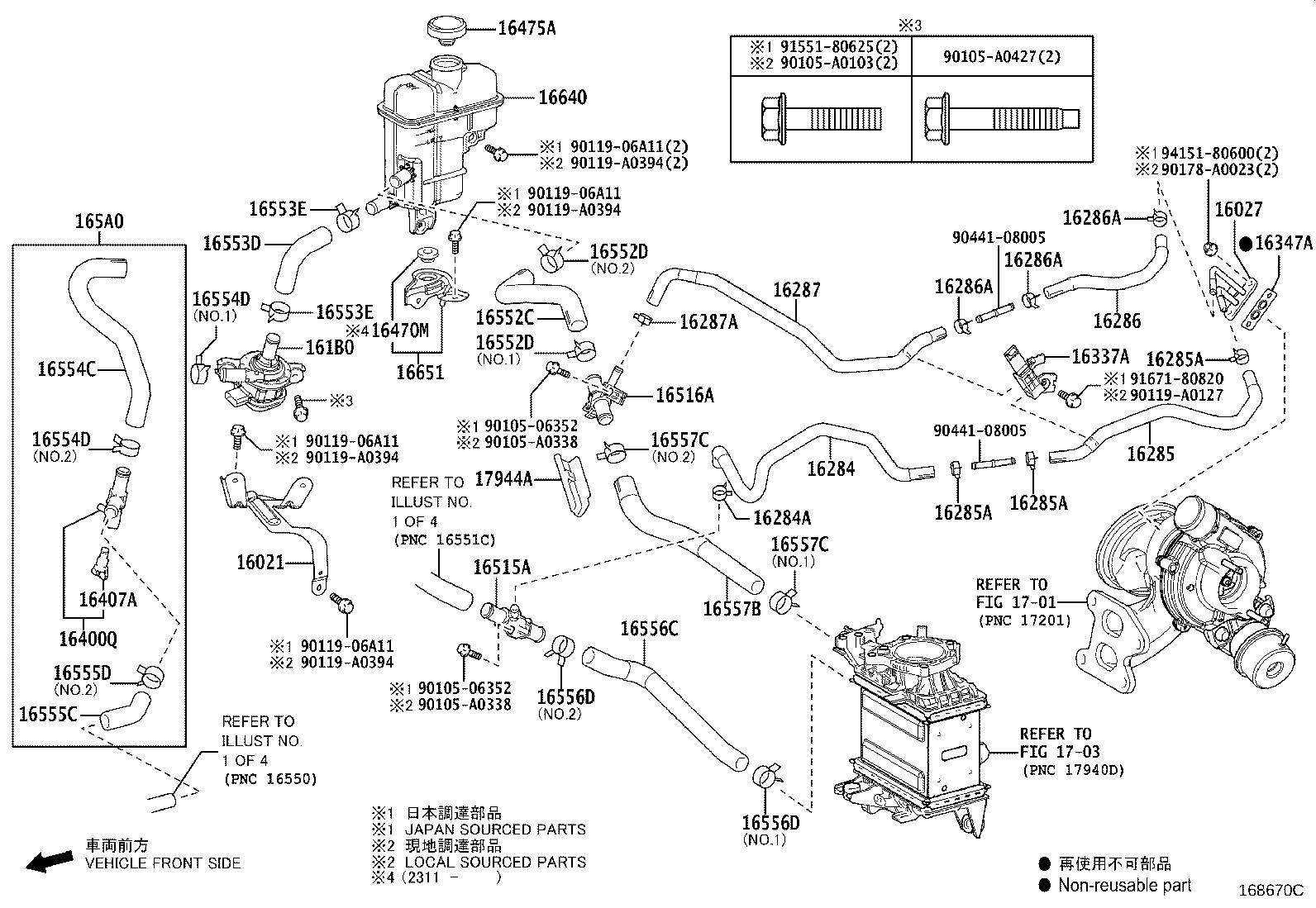

Exploded illustration 168670C 16554D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4) (6 parts) 16554D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.4) (6 parts) 90105A0338 — not listed in this catalogue 9010506352 — not listed in this catalogue 16555D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) (9 parts) 1703 — not listed in this catalogue 1701 — not listed in this catalogue 16021 — BRACKET SUB-ASSY, WATER PUMP (3 parts) 17944A — PROTECTOR, INTERCOOLER PIPE (3 parts) 16027 — PIPE SUB-ASSY, TURBO WATER, NO.1 (3 parts) 161B0 — PUMP ASSY, ELECTRIC WATER (3 parts) 16284 — HOSE, TURBO WATER, NO.1 (3 parts) 16284A — CLIP(FOR TURBO WATER HOSE NO.1) (3 parts) 16285 — HOSE, TURBO WATER, NO.2 (3 parts) 16285A — CLIP(FOR TURBO WATER HOSE NO.2) (3 parts) 16285A — CLIP(FOR TURBO WATER HOSE NO.2) (3 parts) 16285A — CLIP(FOR TURBO WATER HOSE NO.2) (3 parts) 16286 — HOSE, TURBO WATER, NO.3 (3 parts) 16286A — CLIP(FOR TURBO WATER HOSE NO.3) (3 parts) 16286A — CLIP(FOR TURBO WATER HOSE NO.3) (3 parts) 16286A — CLIP(FOR TURBO WATER HOSE NO.3) (3 parts) 16287 — HOSE, TURBO WATER, NO.4 (3 parts) 16287A — CLIP(FOR TURBO WATER HOSE NO.4) (3 parts) 16337A — STAY, WATER OUTLET (6 parts) 16347A — GASKET(FOR TURBO WATER PIPE) (3 parts) 16400Q — COCK ASSY, DRAIN (3 parts) 16555C — HOSE, INTERCOOLER COOLING WATER, NO.5 (3 parts) 16407A — COCK SUB-ASSY, RADIATOR DRAIN (3 parts) 16475A — CAP, RESERVE TANK (3 parts) 16515A — PIPE, INTERCOOLER COOLING WATER, NO.1 (3 parts) 16516A — PIPE, INTERCOOLER COOLING WATER, NO.2 (3 parts) 16552C — HOSE, INTERCOOLER COOLING WATER, NO.2 (3 parts) 16553D — HOSE, INTERCOOLER COOLING WATER, NO.3 (3 parts) 16553E — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3) (6 parts) 16553E — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.3) (6 parts) 16554C — HOSE, INTERCOOLER COOLING WATER, NO.4 (3 parts) 165A0 — HOSE ASSY, INTERCOOLER COOLING WATER, NO.1 (3 parts) 16556C — HOSE, INTERCOOLER COOLING WATER, NO.6 (6 parts) 16557B — HOSE, INTERCOOLER COOLING WATER, NO.7 (6 parts) 16640 — TANK ASSY, INTERCOOLER RESERVE (3 parts) 16651 — BRACKET, INTERCOOLER RESERVE TANK (3 parts) 9044108005 — not listed in this catalogue 9044108005 — not listed in this catalogue 90119A0127 — not listed in this catalogue 9167180820 — not listed in this catalogue 9415180600 — not listed in this catalogue 90178A0023 — not listed in this catalogue 16557C — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7) (9 parts) 16552D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) (12 parts) 16556D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) (9 parts) 16557C — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.7) (9 parts) 16552D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.2) (12 parts) 16556D — CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.6) (9 parts) 90105A0338 — not listed in this catalogue 9010506352 — not listed in this catalogue 9155180625 — not listed in this catalogue 90105A0103 — not listed in this catalogue 90105A0427 — not listed in this catalogue 9011906A11 — not listed in this catalogue 90119A0394 — not listed in this catalogue 9011906A11 — not listed in this catalogue 90119A0394 — not listed in this catalogue 9011906A11 — not listed in this catalogue 90119A0394 — not listed in this catalogue 9011906A11 — not listed in this catalogue 90119A0394 — not listed in this catalogue 16470M — GROMMET (1 parts)
168670C · 44 callouts, 23 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
145 parts on this figure
Part number Description Fitment Price
16021 — Bracket Sub-assy, Water Pump
16021-F0020 Bracket Sub-assy, Water Pump
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16021-F0020 Bracket Sub-assy, Water Pump
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16021-F0020 Bracket Sub-assy, Water Pump
2023-11 → —
T24AFTS TXUA7# —
16027 — Pipe Sub-assy, Turbo Water, NO.1
16027-25010 Pipe Sub-assy, Turbo Water, NO.1
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16027-25010 Pipe Sub-assy, Turbo Water, NO.1
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16027-25010 Pipe Sub-assy, Turbo Water, NO.1
2023-11 → —
T24AFTS TXUA7# —
161B0 — Pump Assy, Electric Water
161B0-47010 Pump Assy, Electric Water
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
161B0-47010 Pump Assy, Electric Water
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
161B0-47010 Pump Assy, Electric Water
2023-11 → —
T24AFTS TXUA7# —
16284 — Hose, Turbo Water, NO.1
16284-25010 Hose, Turbo Water, NO.1
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16284-25010 Hose, Turbo Water, NO.1
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16284-25010 Hose, Turbo Water, NO.1
2023-11 → —
T24AFTS TXUA7# —
16284A — Clip(FOR TURBO WATER HOSE NO.1)
96137-41701 Clip(FOR TURBO WATER HOSE NO.1)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96137-41701 Clip(FOR TURBO WATER HOSE NO.1)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96137-41701 Clip(FOR TURBO WATER HOSE NO.1)
2023-11 → —
T24AFTS TXUA7# —
16285 — Hose, Turbo Water, NO.2
16285-25010 Hose, Turbo Water, NO.2
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16285-25010 Hose, Turbo Water, NO.2
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16285-25010 Hose, Turbo Water, NO.2
2023-11 → —
T24AFTS TXUA7# —
16285A — Clip(FOR TURBO WATER HOSE NO.2)
96138-41501 Clip(FOR TURBO WATER HOSE NO.2)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-41501 Clip(FOR TURBO WATER HOSE NO.2)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-41501 Clip(FOR TURBO WATER HOSE NO.2)
2023-11 → —
T24AFTS TXUA7# —
16286 — Hose, Turbo Water, NO.3
16286-25010 Hose, Turbo Water, NO.3
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16286-25010 Hose, Turbo Water, NO.3
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16286-25010 Hose, Turbo Water, NO.3
2023-11 → —
T24AFTS TXUA7# —
16286A — Clip(FOR TURBO WATER HOSE NO.3)
96138-41501 Clip(FOR TURBO WATER HOSE NO.3)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-41501 Clip(FOR TURBO WATER HOSE NO.3)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-41501 Clip(FOR TURBO WATER HOSE NO.3)
2023-11 → —
T24AFTS TXUA7# —
16287 — Hose, Turbo Water, NO.4
16287-25010 Hose, Turbo Water, NO.4
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16287-25010 Hose, Turbo Water, NO.4
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16287-25010 Hose, Turbo Water, NO.4
2023-11 → —
T24AFTS TXUA7# —
16287A — Clip(FOR TURBO WATER HOSE NO.4)
96137-41701 Clip(FOR TURBO WATER HOSE NO.4)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96137-41701 Clip(FOR TURBO WATER HOSE NO.4)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96137-41701 Clip(FOR TURBO WATER HOSE NO.4)
2023-11 → —
T24AFTS TXUA7# —
16337A — Stay, Water Outlet
16337-25010 note Stay, Water Outlet
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16337-25010 note Stay, Water Outlet
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16337-F0010 note Stay, Water Outlet
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16337-F0010 note Stay, Water Outlet
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16337-25010 note Stay, Water Outlet
2023-11 → —
T24AFTS TXUA7# —
16337-F0010 note Stay, Water Outlet
2023-11 → —
T24AFTS TXUA7# —
16347A — Gasket(FOR TURBO WATER PIPE)
16347-36020 Gasket(FOR TURBO WATER PIPE)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16347-36020 Gasket(FOR TURBO WATER PIPE)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16347-36020 Gasket(FOR TURBO WATER PIPE)
2023-11 → —
T24AFTS TXUA7# —
16400Q — Cock Assy, Drain
90910-09134 Cock Assy, Drain
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90910-09134 Cock Assy, Drain
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90910-09134 Cock Assy, Drain
2023-11 → —
T24AFTS TXUA7# —
16407A — Cock Sub-assy, Radiator Drain
16407-64010 Cock Sub-assy, Radiator Drain
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16407-64010 Cock Sub-assy, Radiator Drain
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16407-64010 Cock Sub-assy, Radiator Drain
2023-11 → —
T24AFTS TXUA7# —
16470M — Grommet
90480-18010 Grommet
2023-11 → —
T24AFTS TXUA7# —
16475A — Cap, Reserve Tank
16475-28140 Cap, Reserve Tank
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16475-28140 Cap, Reserve Tank
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16475-28140 Cap, Reserve Tank
2023-11 → —
T24AFTS TXUA7# —
16515A — Pipe, Intercooler Cooling Water, NO.1
16515-25010 Pipe, Intercooler Cooling Water, NO.1
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16515-25010 Pipe, Intercooler Cooling Water, NO.1
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16515-25010 Pipe, Intercooler Cooling Water, NO.1
2023-11 → —
T24AFTS TXUA7# —
16516A — Pipe, Intercooler Cooling Water, NO.2
16516-25010 Pipe, Intercooler Cooling Water, NO.2
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16516-25010 Pipe, Intercooler Cooling Water, NO.2
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16516-25010 Pipe, Intercooler Cooling Water, NO.2
2023-11 → —
T24AFTS TXUA7# —
16552C — Hose, Intercooler Cooling Water, NO.2
16552-F0020 Hose, Intercooler Cooling Water, NO.2
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16552-F0020 Hose, Intercooler Cooling Water, NO.2
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16552-F0020 Hose, Intercooler Cooling Water, NO.2
2023-11 → —
T24AFTS TXUA7# —
16552D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
90466-A0015 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0015 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90466-A0015 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-11 → —
T24AFTS TXUA7# —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-11 → —
T24AFTS TXUA7# —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-11 → —
T24AFTS TXUA7# —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.2)
2023-11 → —
T24AFTS TXUA7# —
16553D — Hose, Intercooler Cooling Water, NO.3
16553-F0020 Hose, Intercooler Cooling Water, NO.3
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16553-F0020 Hose, Intercooler Cooling Water, NO.3
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16553-F0020 Hose, Intercooler Cooling Water, NO.3
2023-11 → —
T24AFTS TXUA7# —
16553E — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2023-11 → —
T24AFTS TXUA7# —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.3)
2023-11 → —
T24AFTS TXUA7# —
16554C — Hose, Intercooler Cooling Water, NO.4
16554-F0020 Hose, Intercooler Cooling Water, NO.4
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16554-F0020 Hose, Intercooler Cooling Water, NO.4
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16554-F0020 Hose, Intercooler Cooling Water, NO.4
2023-11 → —
T24AFTS TXUA7# —
16554D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2023-11 → —
T24AFTS TXUA7# —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.4)
2023-11 → —
T24AFTS TXUA7# —
16555C — Hose, Intercooler Cooling Water, NO.5
16555-F0010 Hose, Intercooler Cooling Water, NO.5
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16555-F0010 Hose, Intercooler Cooling Water, NO.5
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16555-F0010 Hose, Intercooler Cooling Water, NO.5
2023-11 → —
T24AFTS TXUA7# —
16555D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
90466-A0015 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0015 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
90466-A0015 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2023-11 → —
T24AFTS TXUA7# —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2023-11 → —
T24AFTS TXUA7# —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.5)
2023-11 → —
T24AFTS TXUA7# —
16556C — Hose, Intercooler Cooling Water, NO.6
16551-25020 note Hose, Intercooler Cooling Water, NO.6
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16551-25020 note Hose, Intercooler Cooling Water, NO.6
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16551-F0040 note Hose, Intercooler Cooling Water, NO.6
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16551-F0040 note Hose, Intercooler Cooling Water, NO.6
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16551-25020 note Hose, Intercooler Cooling Water, NO.6
2023-11 → —
T24AFTS TXUA7# —
16551-F0040 note Hose, Intercooler Cooling Water, NO.6
2023-11 → —
T24AFTS TXUA7# —
16556D — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2023-11 → —
T24AFTS TXUA7# —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2023-11 → —
T24AFTS TXUA7# —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.6)
2023-11 → —
T24AFTS TXUA7# —
16557B — Hose, Intercooler Cooling Water, NO.7
16552-25020 note Hose, Intercooler Cooling Water, NO.7
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16552-25020 note Hose, Intercooler Cooling Water, NO.7
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16552-F0030 note Hose, Intercooler Cooling Water, NO.7
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
16552-F0030 note Hose, Intercooler Cooling Water, NO.7
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
16552-25020 note Hose, Intercooler Cooling Water, NO.7
2023-11 → —
T24AFTS TXUA7# —
16552-F0030 note Hose, Intercooler Cooling Water, NO.7
2023-11 → —
T24AFTS TXUA7# —
16557C — Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
90466-A0029 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-11 → —
T24AFTS TXUA7# —
96138-42501 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-11 → —
T24AFTS TXUA7# —
96138-42701 note Clamp OR Clip(FOR INTERCOOLER COOLING WATER HOSE NO.7)
2023-11 → —
T24AFTS TXUA7# —
165A0 — Hose Assy, Intercooler Cooling Water, NO.1
165A0-F0010 Hose Assy, Intercooler Cooling Water, NO.1
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
165A0-F0010 Hose Assy, Intercooler Cooling Water, NO.1
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
165A0-F0010 Hose Assy, Intercooler Cooling Water, NO.1
2023-11 → —
T24AFTS TXUA7# —
16640 — Tank Assy, Intercooler Reserve
G910G-0R010 Tank Assy, Intercooler Reserve
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
G910G-0R010 Tank Assy, Intercooler Reserve
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
G910G-0R010 Tank Assy, Intercooler Reserve
2023-11 → —
T24AFTS TXUA7# —
16651 — Bracket, Intercooler Reserve Tank
G91H2-0R010 Bracket, Intercooler Reserve Tank
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
G91H2-0R010 Bracket, Intercooler Reserve Tank
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
G91H2-0R010 Bracket, Intercooler Reserve Tank
2023-11 → —
T24AFTS TXUA7# —
17944A — Protector, Intercooler Pipe
17944-25010 Protector, Intercooler Pipe
2022-10 → 2023-11 ended
T24AFTS TXUA75 RUS —
17944-25010 Protector, Intercooler Pipe
2022-10 → 2023-12 ended
T24AFTS TXUA7# ARL —
17944-25010 Protector, Intercooler Pipe
2023-11 → —
T24AFTS TXUA7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
