Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

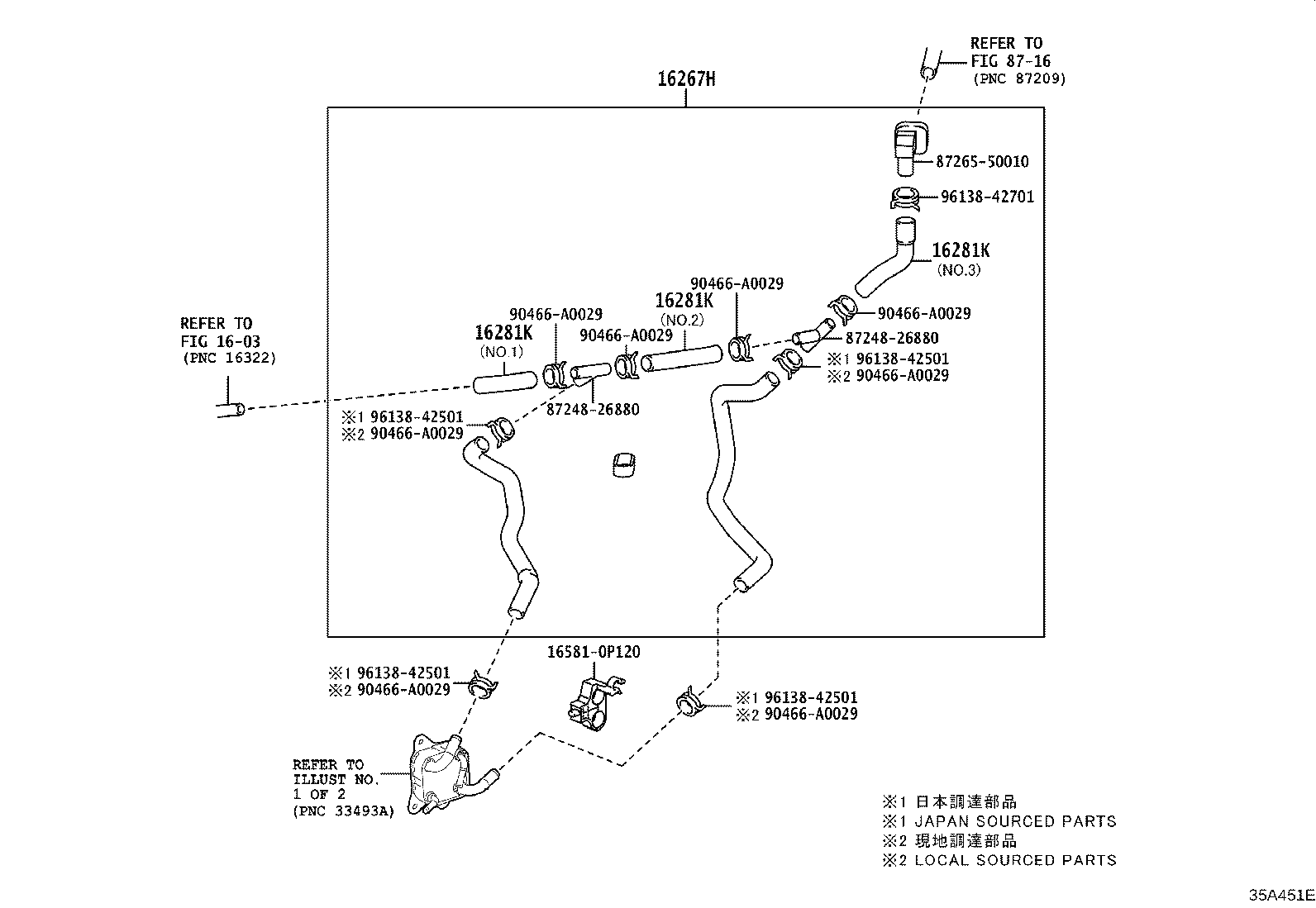

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16267H — Hose, Water By-pass, NO.3 | ||||
| 16260-0P120 |
Hose, Water By-pass, NO.3
2020-03 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 16281K — Hose, Water By-pass, NO.4 | ||||
| 87245-06D80 note |
Hose, Water By-pass, NO.4
2020-03 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 87245-0E550 note |
Hose, Water By-pass, NO.4
2020-03 → 2022-10
ended
|
2GRFKS GSU7# | — | |
| 87245-0E570 note |
Hose, Water By-pass, NO.4
2020-03 → 2022-10
ended
|
2GRFKS GSU7# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
