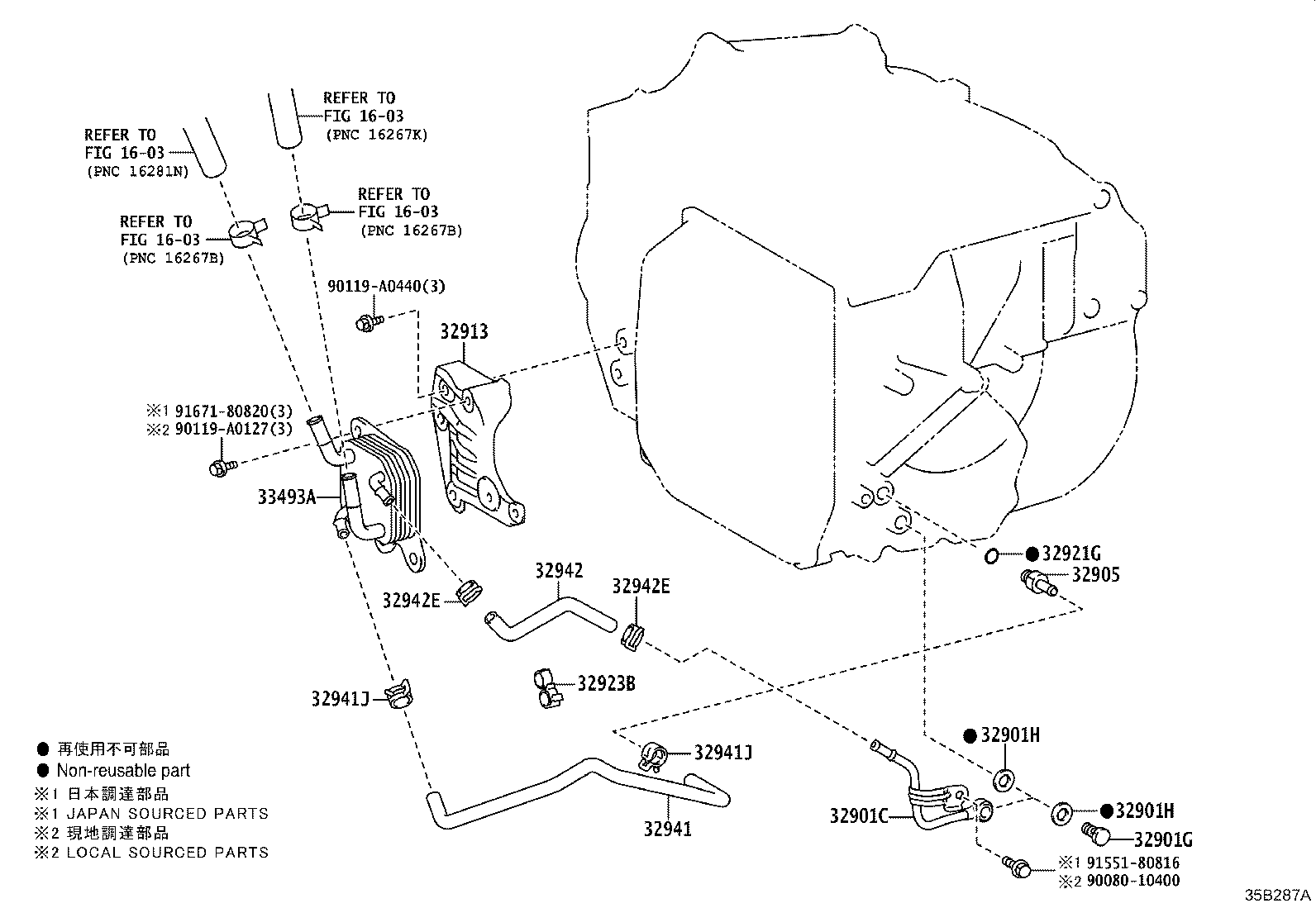

Exploded illustration 35B287A 32901G — BOLT, UNION(FOR OIL COOLER) (4 parts) 32901H — GASKET(FOR OIL COOLER UNION) (8 parts) 32901H — GASKET(FOR OIL COOLER UNION) (8 parts) 32901C — UNION SUB-ASSY, OIL COOLER (4 parts) 32913 — BRACKET, OIL COOLER (9 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (8 parts) 32941 — HOSE, OIL COOLER INLET, NO.1 (4 parts) 32942 — HOSE, OIL COOLER OUTLET, NO.1 (4 parts) 32923B — CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1 (3 parts) 32941J — CLIP, NO.1(FOR OIL COOLER HOSE) (8 parts) 32942E — CLIP, NO.2(FOR OIL COOLER HOSE) (8 parts) 33493A — COOLER, TRANSMISSION OIL(ATF WARMER) (4 parts) 32942E — CLIP, NO.2(FOR OIL COOLER HOSE) (8 parts) 9008010400 — not listed in this catalogue 9155180816 — not listed in this catalogue 9167180820 — not listed in this catalogue 90119A0127 — not listed in this catalogue 90119A0440 — not listed in this catalogue 32921G — RING, O(FOR OIL COOLER TUBE UNION) (4 parts) 32905 — TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1 (3 parts) 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue 1603 — not listed in this catalogue
35B287A · 15 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
32901C — Union Sub-assy, Oil Cooler
32901-48020 Union Sub-assy, Oil Cooler
2020-03 → 2022-10 ended
GSU7# —
32901-48020 Union Sub-assy, Oil Cooler
2022-10 → 2023-11 ended
TXUA75 RUS —
32901-48020 Union Sub-assy, Oil Cooler
2022-10 → 2023-12 ended
TXUA7# ARL —
32901-48020 Union Sub-assy, Oil Cooler
2023-11 → —
TXUA7# —
32901G — Bolt, Union(FOR OIL COOLER)
90401-14003 Bolt, Union(FOR OIL COOLER)
2020-03 → 2022-10 ended
GSU7# —
90401-14003 Bolt, Union(FOR OIL COOLER)
2022-10 → 2023-11 ended
TXUA75 RUS —
90401-14003 Bolt, Union(FOR OIL COOLER)
2022-10 → 2023-12 ended
TXUA7# ARL —
90401-14003 Bolt, Union(FOR OIL COOLER)
2023-11 → —
TXUA7# —
32901H — Gasket(FOR OIL COOLER UNION)
90430-14016 note Gasket(FOR OIL COOLER UNION)
2020-03 → 2022-10 ended
GSU75 —
90430-A0007 note Gasket(FOR OIL COOLER UNION)
2020-03 → 2022-10 ended
GSU7# —
90430-14016 note Gasket(FOR OIL COOLER UNION)
2022-10 → 2023-11 ended
TXUA75 RUS —
90430-14016 note Gasket(FOR OIL COOLER UNION)
2022-10 → 2023-12 ended
TXUA75 ARL —
90430-A0007 note Gasket(FOR OIL COOLER UNION)
2022-10 → 2023-11 ended
TXUA75 RUS —
90430-A0007 note Gasket(FOR OIL COOLER UNION)
2022-10 → 2023-12 ended
TXUA7# ARL —
90430-14016 note Gasket(FOR OIL COOLER UNION)
2023-11 → —
TXUA75 —
90430-A0007 note Gasket(FOR OIL COOLER UNION)
2023-11 → —
TXUA7# —
32905 — Tube Sub-assy, Oil Cooler Outlet, NO.1
90404-14030 Tube Sub-assy, Oil Cooler Outlet, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
90404-14030 Tube Sub-assy, Oil Cooler Outlet, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
90404-14030 Tube Sub-assy, Oil Cooler Outlet, NO.1
2023-11 → —
TXUA7# —
32913 — Bracket, Oil Cooler
32913-0E020 note Bracket, Oil Cooler
2020-03 → 2022-10 ended
GSU7# —
32913-0E030 note Bracket, Oil Cooler
2020-03 → 2022-10 ended
GSU7# —
32913-0E050 note Bracket, Oil Cooler
2020-03 → 2022-10 ended
GSU7# —
32913-0E100 note Bracket, Oil Cooler
2023-03 → 2023-11 ended
TXUA75 RUS —
32913-0E100 note Bracket, Oil Cooler
2023-03 → 2023-12 ended
TXUA7# ARL —
32913-78061 Bracket, Oil Cooler
2022-10 → 2023-03 ended
TXUA7# —
32913-78061 note Bracket, Oil Cooler
2023-03 → 2023-11 ended
TXUA75 RUS —
32913-78061 note Bracket, Oil Cooler
2023-03 → 2023-12 ended
TXUA7# ARL —
32913-0E100 Bracket, Oil Cooler
2023-11 → —
TXUA7# —
32921G — Ring, O(FOR OIL COOLER TUBE UNION)
90301-11031 Ring, O(FOR OIL COOLER TUBE UNION)
2020-03 → 2022-10 ended
GSU7# —
90301-11031 Ring, O(FOR OIL COOLER TUBE UNION)
2022-10 → 2023-11 ended
TXUA75 RUS —
90301-11031 Ring, O(FOR OIL COOLER TUBE UNION)
2022-10 → 2023-12 ended
TXUA7# ARL —
90301-11031 Ring, O(FOR OIL COOLER TUBE UNION)
2023-11 → —
TXUA7# —
32923B — Clamp, Automatic Transmission Oil Cooler Tube, NO.1
32923-48100 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
32923-48100 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
32923-48100 Clamp, Automatic Transmission Oil Cooler Tube, NO.1
2023-11 → —
TXUA7# —
32941 — Hose, Oil Cooler Inlet, NO.1
32941-0R070 Hose, Oil Cooler Inlet, NO.1
2020-03 → 2022-10 ended
GSU7# —
32941-F6010 Hose, Oil Cooler Inlet, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
32941-F6010 Hose, Oil Cooler Inlet, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
32941-F6010 Hose, Oil Cooler Inlet, NO.1
2023-11 → —
TXUA7# —
32941J — Clip, NO.1(FOR OIL COOLER HOSE)
90466-16004 note Clip, NO.1(FOR OIL COOLER HOSE)
2020-03 → 2022-10 ended
GSU7# —
90466-A0014 note Clip, NO.1(FOR OIL COOLER HOSE)
2020-03 → 2022-10 ended
GSU7# —
90466-16004 note Clip, NO.1(FOR OIL COOLER HOSE)
2022-10 → 2023-11 ended
TXUA75 RUS —
90466-16004 note Clip, NO.1(FOR OIL COOLER HOSE)
2022-10 → 2023-12 ended
TXUA7# ARL —
90466-A0014 note Clip, NO.1(FOR OIL COOLER HOSE)
2022-10 → 2023-11 ended
TXUA75 RUS —
90466-A0014 note Clip, NO.1(FOR OIL COOLER HOSE)
2022-10 → 2023-12 ended
TXUA7# ARL —
90466-16004 note Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
TXUA7# —
90466-A0014 note Clip, NO.1(FOR OIL COOLER HOSE)
2023-11 → —
TXUA7# —
32942 — Hose, Oil Cooler Outlet, NO.1
32942-0E200 Hose, Oil Cooler Outlet, NO.1
2020-03 → 2022-10 ended
GSU7# —
32942-F6010 Hose, Oil Cooler Outlet, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
32942-F6010 Hose, Oil Cooler Outlet, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
32942-F6010 Hose, Oil Cooler Outlet, NO.1
2023-11 → —
TXUA7# —
32942E — Clip, NO.2(FOR OIL COOLER HOSE)
90466-16004 note Clip, NO.2(FOR OIL COOLER HOSE)
2020-03 → 2022-10 ended
GSU7# —
90466-A0014 note Clip, NO.2(FOR OIL COOLER HOSE)
2020-03 → 2022-10 ended
GSU7# —
90466-16004 note Clip, NO.2(FOR OIL COOLER HOSE)
2022-10 → 2023-11 ended
TXUA75 RUS —
90466-16004 note Clip, NO.2(FOR OIL COOLER HOSE)
2022-10 → 2023-12 ended
TXUA7# ARL —
90466-A0014 note Clip, NO.2(FOR OIL COOLER HOSE)
2022-10 → 2023-11 ended
TXUA75 RUS —
90466-A0014 note Clip, NO.2(FOR OIL COOLER HOSE)
2022-10 → 2023-12 ended
TXUA7# ARL —
90466-16004 note Clip, NO.2(FOR OIL COOLER HOSE)
2023-11 → —
TXUA7# —
90466-A0014 note Clip, NO.2(FOR OIL COOLER HOSE)
2023-11 → —
TXUA7# —
33493A — Cooler, Transmission Oil(ATF WARMER)
33493-06021 Cooler, Transmission Oil(ATF WARMER)
2020-03 → 2022-10 ended
GSU7# —
33493-F6010 Cooler, Transmission Oil(ATF WARMER)
2022-10 → 2023-11 ended
TXUA75 RUS —
33493-F6010 Cooler, Transmission Oil(ATF WARMER)
2022-10 → 2023-12 ended
TXUA7# ARL —
33493-F6010 Cooler, Transmission Oil(ATF WARMER)
2023-11 → —
TXUA7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
