Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

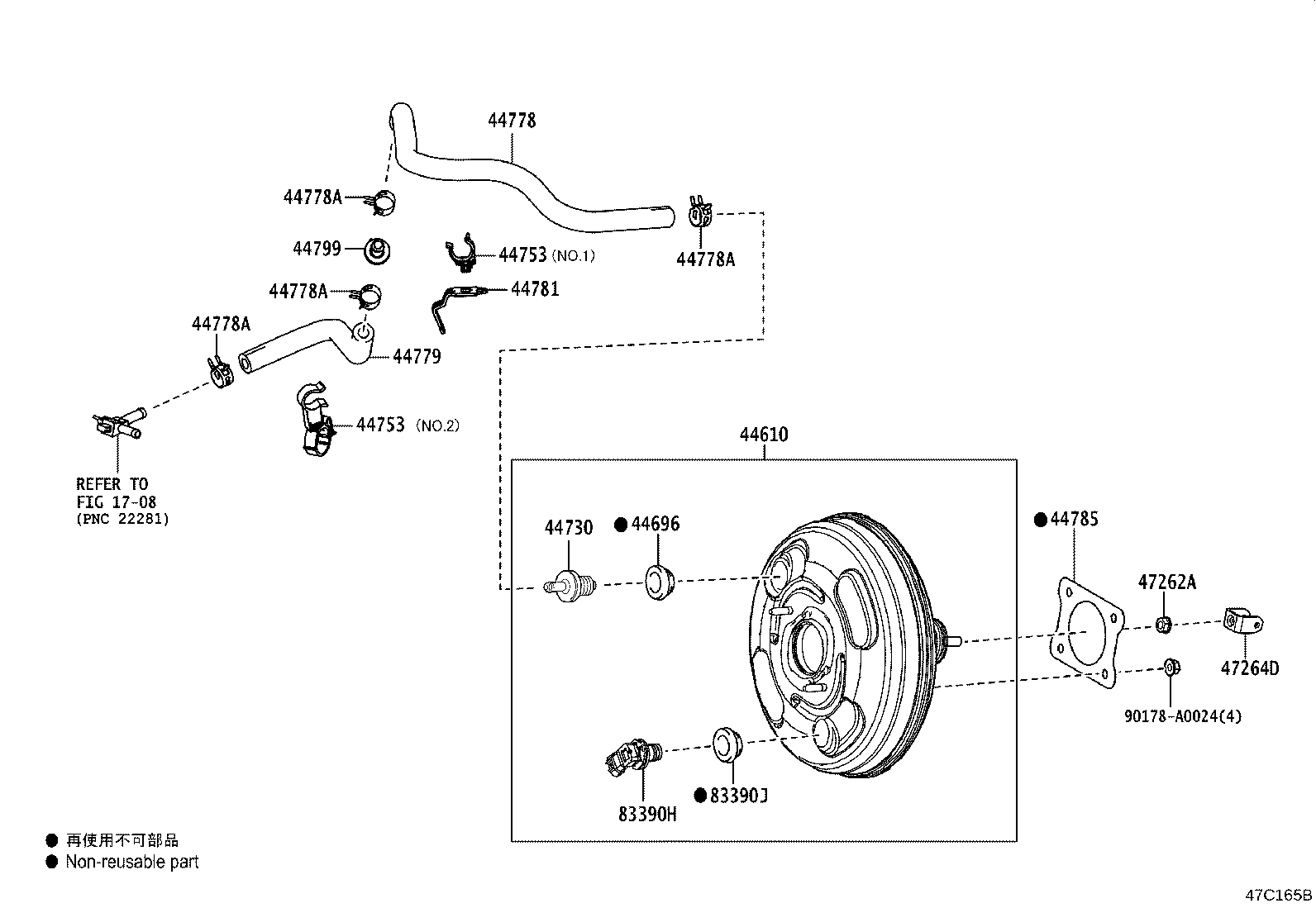

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 44610 — Booster Assy, Brake | ||||
| 44610-0E200 |
Booster Assy, Brake
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 44610-0E210 |
Booster Assy, Brake
2020-12 → 2022-10
ended
|
GSU7# ARL | — | |
| 44610-0E200 |
Booster Assy, Brake
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 44610-0E211 |
Booster Assy, Brake
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 44610-0E200 |
Booster Assy, Brake
2023-11 → —
|
TXUA75 RUS | — | |
| 44610-0E211 |
Booster Assy, Brake
2024-01 → —
|
TXUA7# ARL | — | |
| 44696 — Grommet, Check Valve | ||||
| 90080-48071 |
Grommet, Check Valve
2020-03 → 2022-10
ended
|
GSU7# | — | |
| 90080-48071 |
Grommet, Check Valve
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 90080-48071 |
Grommet, Check Valve
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 90080-48071 |
Grommet, Check Valve
2023-11 → —
|
TXUA7# | — | |
| 44730 — Valve Assy, Vacuum Check(FOR BRAKE) | ||||
| 44730-30060 |
Valve Assy, Vacuum Check(FOR BRAKE)
2020-03 → 2022-10
ended
|
GSU7# | — | |
| 44730-30060 |
Valve Assy, Vacuum Check(FOR BRAKE)
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 44730-52010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 44730-30060 |
Valve Assy, Vacuum Check(FOR BRAKE)
2023-11 → —
|
TXUA75 RUS | — | |
| 44730-52010 |
Valve Assy, Vacuum Check(FOR BRAKE)
2024-01 → —
|
TXUA7# ARL | — | |
| 44753 — Clamp, Vacuum Reservoir, NO.2 | ||||
| 44753-30320 note |
Clamp, Vacuum Reservoir, NO.2
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 44753-48340 note |
Clamp, Vacuum Reservoir, NO.2
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 44778 — Hose, Connector TO Check Valve | ||||
| 44778-0E010 |
Hose, Connector TO Check Valve
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 44778A — Clip(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 90467-16014 |
Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 90467-16014 |
Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
2020-12 → 2022-10
ended
|
GSU7# ARL | — | |
| 90467-16014 |
Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 90467-16014 |
Clip(FOR CONNECTOR TO CHECK VALVE HOSE)
2023-11 → —
|
TXUA75 RUS | — | |
| 44779 — Hose, Union TO Connector | ||||
| 44779-0E010 |
Hose, Union TO Connector
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 44781 — Bracket, Hose | ||||
| 44781-0E010 |
Bracket, Hose
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 44785 — Gasket, Brake Booster | ||||
| 44785-02060 |
Gasket, Brake Booster
2020-03 → 2022-10
ended
|
GSU7# | — | |
| 44785-02060 |
Gasket, Brake Booster
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 44785-02060 |
Gasket, Brake Booster
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 44785-02060 |
Gasket, Brake Booster
2023-11 → —
|
TXUA7# | — | |
| 44799 — Way, Brake Vacuum Hose | ||||
| 44799-0E010 |
Way, Brake Vacuum Hose
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 47262A — Nut, Master Cylinder Push Rod Clevis Lock | ||||
| 90179-10065 |
Nut, Master Cylinder Push Rod Clevis Lock
2020-03 → 2022-10
ended
|
GSU7# | — | |
| 90179-10065 |
Nut, Master Cylinder Push Rod Clevis Lock
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 90179-10065 |
Nut, Master Cylinder Push Rod Clevis Lock
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 90179-10065 |
Nut, Master Cylinder Push Rod Clevis Lock
2023-11 → —
|
TXUA7# | — | |
| 47264D — Clevis, Brake Master Cylinder Push Rod | ||||
| 47264-0R020 |
Clevis, Brake Master Cylinder Push Rod
2020-03 → 2020-04
ended
|
GSU75 | — | |
| 47264-42020 |
Clevis, Brake Master Cylinder Push Rod
2020-05 → 2022-10
ended
|
GSU7# | — | |
| 47264-42020 |
Clevis, Brake Master Cylinder Push Rod
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 47264-42020 |
Clevis, Brake Master Cylinder Push Rod
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 47264-42020 |
Clevis, Brake Master Cylinder Push Rod
2023-11 → —
|
TXUA7# | — | |
| 83390H — Switch Assy, Vacuum Warning | ||||
| 83390-28120 |
Switch Assy, Vacuum Warning
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 83390-28120 |
Switch Assy, Vacuum Warning
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 83390-28120 |
Switch Assy, Vacuum Warning
2023-11 → —
|
TXUA75 RUS | — | |
| 83390J — Grommet, Vacuum Warning Switch | ||||
| 90080-48071 |
Grommet, Vacuum Warning Switch
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 90080-48071 |
Grommet, Vacuum Warning Switch
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 90080-48071 |
Grommet, Vacuum Warning Switch
2023-11 → —
|
TXUA75 RUS | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
