Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

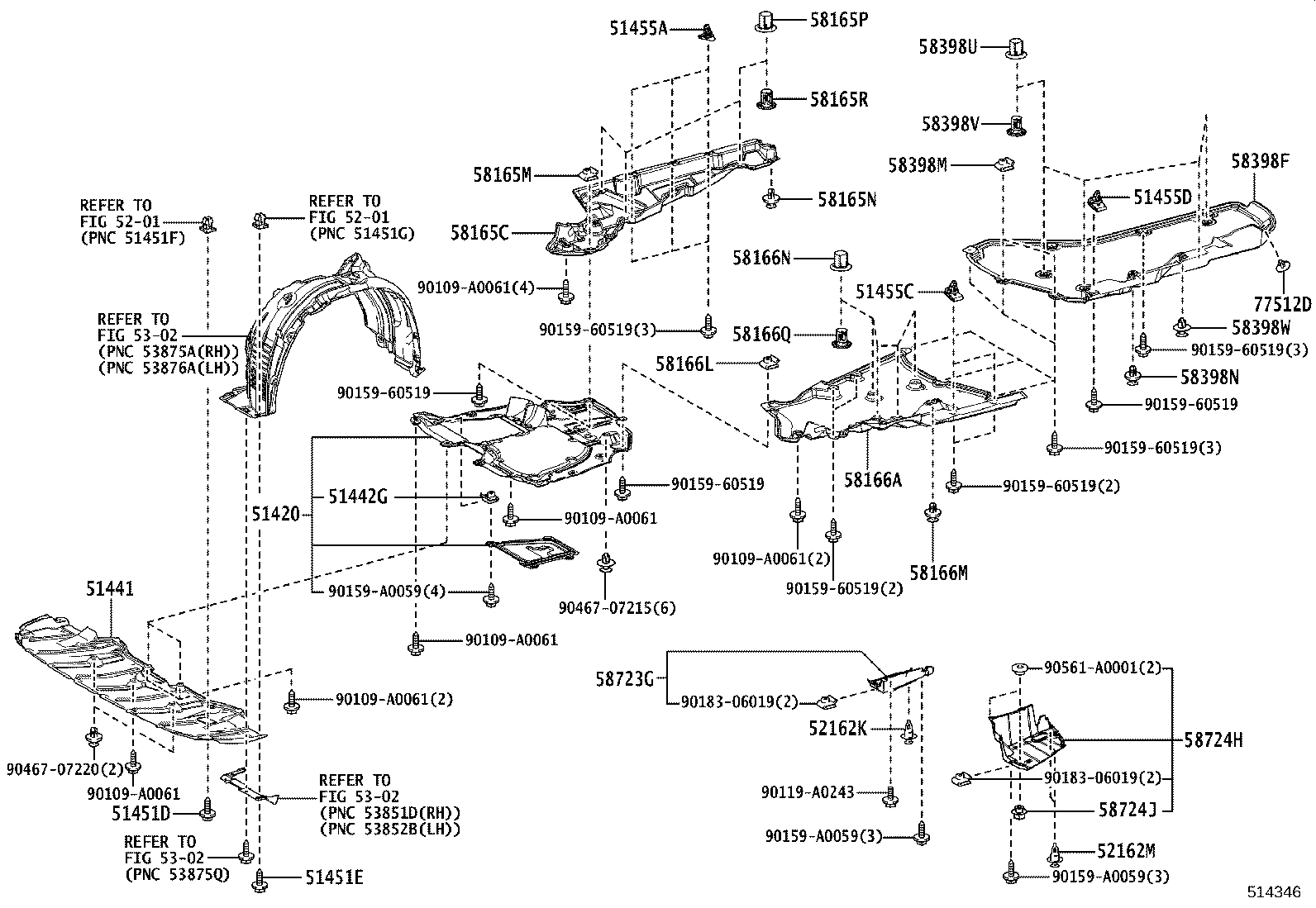

Exploded illustration 514346 5302 — not listed in this catalogue 5201 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (5 parts) 51420 — COVER ASSY, ENGINE UNDER, NO.2 (12 parts) 51455A — SEAL, ENGINE UNDER COVER, NO.1 (5 parts) 51455C — SEAL, ENGINE UNDER COVER, NO.2 (9 parts) 52162K — PIECE, REAR BUMPER (4 parts) 52162M — PIECE, REAR BUMPER (4 parts) 58165M — CLIP, FRONT FLOOR COVER, NO.1 (10 parts) 58166M — CLIP, FRONT FLOOR COVER, NO.2 (9 parts) 58165N — CLIP, FRONT FLOOR COVER, NO.2 (5 parts) 58166N — CLIP, FRONT FLOOR COVER, NO.3 (9 parts) 58166Q — CLIP, FRONT FLOOR COVER, NO.4 (9 parts) 58165R — CLIP, FRONT FLOOR COVER, NO.4 (9 parts) 58165P — CLIP, FRONT FLOOR COVER, NO.3 (9 parts) 58166A — COVER, FRONT FLOOR, LH (10 parts) 58165C — COVER, FRONT FLOOR, RH (10 parts) 58166L — CLIP, FRONT FLOOR COVER, NO.1 (10 parts) 58723G — PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.1 (4 parts) 58724H — PROTECTOR, LUGGAGE COMPARTMENT SIDE COVER, NO.2 (4 parts) 58724J — CLIP, LUGGAGE COMPARTMENT SIDE COVER PROTECTOR (4 parts) 90109A0061 — not listed in this catalogue 90109A0061 — not listed in this catalogue 90119A0243 — not listed in this catalogue 90159A0059 — not listed in this catalogue 90159A0059 — not listed in this catalogue 90109A0061 — not listed in this catalogue 9015960519 — not listed in this catalogue 90159A0059 — not listed in this catalogue 9015960519 — not listed in this catalogue 90109A0061 — not listed in this catalogue 9015960519 — not listed in this catalogue 9015960519 — not listed in this catalogue 90109A0061 — not listed in this catalogue 90109A0061 — not listed in this catalogue 9018306019 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707220 — not listed in this catalogue 90561A0001 — not listed in this catalogue 9018306019 — not listed in this catalogue 51451E — SCREW, NO.2 (5 parts) 51451D — SCREW, NO.1 (5 parts) 5201 — not listed in this catalogue 5302 — not listed in this catalogue 5302 — not listed in this catalogue 51442G — CLIP, ENGINE UNDER COVER, NO.1 (15 parts) 9015960519 — not listed in this catalogue 9015960519 — not listed in this catalogue 51455D — SEAL, ENGINE UNDER COVER, NO.3 (4 parts) 58398W — CLIP, FLOOR UNDER COVER, NO.5 (4 parts) 58398M — CLIP, FLOOR UNDER COVER, NO.1 (8 parts) 77512D — BRACKET, FUEL TANK (4 parts) 58398N — CLIP, FLOOR UNDER COVER, NO.2 (4 parts) 58398U — CLIP, FLOOR UNDER COVER, NO.3 (4 parts) 58398V — CLIP, FLOOR UNDER COVER, NO.4 (4 parts) 9015960519 — not listed in this catalogue 9015960519 — not listed in this catalogue 58398F — COVER, FLOOR UNDER, NO.1 (4 parts)
514346 · 30 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
202 parts on this figure
Part number Description Fitment Price
51420 — Cover Assy, Engine Under, NO.2
51420-08011 Cover Assy, Engine Under, NO.2
2020-11 → 2022-10 ended
AXUH78 EUR —
51420-0E040 Cover Assy, Engine Under, NO.2
2020-02 → 2022-10 ended
AXUH7# ARL,GCC —
51420-08012 Cover Assy, Engine Under, NO.2
2022-10 → 2023-11 ended
AXUH78 LHD EUR —
51420-08012 Cover Assy, Engine Under, NO.2
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
51420-0E041 Cover Assy, Engine Under, NO.2
2022-10 → 2023-11 ended
AXUH7# GCC —
51420-0E041 Cover Assy, Engine Under, NO.2
2022-10 → 2023-12 ended
AXUH78 ARL —
51420-0E140 Cover Assy, Engine Under, NO.2
2022-10 → 2023-12 ended
TXUA7# ARL —
51420-0E140 Cover Assy, Engine Under, NO.2
2022-10 → 2023-11 ended
TXUA75 RUS —
51420-08012 Cover Assy, Engine Under, NO.2
2023-11 → —
AXUH78 EUR —
51420-0E041 Cover Assy, Engine Under, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
51420-0E041 Cover Assy, Engine Under, NO.2
2023-11 → —
AXUH70 LE,XLE;AXUH78 ARL,GCC —
51420-0E140 Cover Assy, Engine Under, NO.2
2023-11 → —
TXUA7# —
51441 — Cover, Engine Under, NO.1
51441-0E100 Cover, Engine Under, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
51441-0E101 Cover, Engine Under, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
51441-0E101 Cover, Engine Under, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
51441-0E101 Cover, Engine Under, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
51441-0E101 Cover, Engine Under, NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
51442G — Clip, Engine Under Cover, NO.1
90179-06104 Clip, Engine Under Cover, NO.1
2020-11 → 2021-01 ended
AXUH78 EUR —
90179-06104 note Clip, Engine Under Cover, NO.1
2021-01 → 2022-10 ended
AXUH78 EUR —
90467-A0036 Clip, Engine Under Cover, NO.1
2020-02 → 2022-10 ended
AXUH7# ARL,GCC —
90467-A0036 note Clip, Engine Under Cover, NO.1
2021-01 → 2022-10 ended
AXUH78 EUR —
90179-06104 note Clip, Engine Under Cover, NO.1
2022-10 → 2023-11 ended
AXUH78 LHD EUR —
90179-06104 note Clip, Engine Under Cover, NO.1
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
90467-A0036 note Clip, Engine Under Cover, NO.1
2022-10 → 2023-11 ended
AXUH78 LHD EUR —
90467-A0036 Clip, Engine Under Cover, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 GCC,RUS —
90467-A0036 note Clip, Engine Under Cover, NO.1
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
90467-A0036 Clip, Engine Under Cover, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# ARL —
90179-06104 note Clip, Engine Under Cover, NO.1
2023-11 → 2024-11 ended
AXUH78 EUR —
90467-05176 note Clip, Engine Under Cover, NO.1
2024-11 → —
TXUA7#;AXUH78 EUR —
90467-A0036 Clip, Engine Under Cover, NO.1
2023-11 → 2024-10 ended
TXUA7#;AXUH70 LIMD —
90467-A0036 note Clip, Engine Under Cover, NO.1
2023-11 → 2024-10 ended
AXUH78 EUR —
90467-A0036 Clip, Engine Under Cover, NO.1
2023-11 → —
AXUH70 LE,XLE;AXUH78 ARL,GCC —
51451D — Screw, NO.1
90159-A0059 Screw, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90159-A0059 Screw, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
90159-A0059 Screw, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90159-A0059 Screw, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
90159-A0059 Screw, NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
51451E — Screw, NO.2
90159-A0059 Screw, NO.2
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90159-A0059 Screw, NO.2
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
90159-A0059 Screw, NO.2
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90159-A0059 Screw, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
90159-A0059 Screw, NO.2
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
51455A — Seal, Engine Under Cover, NO.1
51455-0E020 Seal, Engine Under Cover, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
51455-0E020 Seal, Engine Under Cover, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
51455-0E020 Seal, Engine Under Cover, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
51455-0E020 Seal, Engine Under Cover, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
51455-0E020 Seal, Engine Under Cover, NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
51455C — Seal, Engine Under Cover, NO.2
51455-0E020 Seal, Engine Under Cover, NO.2
2020-02 → 2022-10 ended
AXUH7# —
51455-0E020 Seal, Engine Under Cover, NO.2
2020-03 → 2022-10 ended
GSU7# —
51455-0E020 Seal, Engine Under Cover, NO.2
2022-10 → 2023-12 ended
AXUH78 RHD —
51455-0E020 Seal, Engine Under Cover, NO.2
2022-10 → 2023-12 ended
TXUA7# ARL —
51455-0E020 Seal, Engine Under Cover, NO.2
2022-10 → 2023-11 ended
TXUA75 RUS —
51455-0E020 Seal, Engine Under Cover, NO.2
2022-10 → 2023-11 ended
AXUH7# LHD —
51455-0E020 Seal, Engine Under Cover, NO.2
2023-11 → —
TXUA7# —
51455-0E020 Seal, Engine Under Cover, NO.2
2023-11 → —
AXUH78;AXUH70 LE,XLE —
51455-0E020 Seal, Engine Under Cover, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
51455D — Seal, Engine Under Cover, NO.3
51455-0E020 Seal, Engine Under Cover, NO.3
2020-03 → 2022-10 ended
GSU7# —
51455-0E020 Seal, Engine Under Cover, NO.3
2022-10 → 2023-11 ended
TXUA75 RUS —
51455-0E020 Seal, Engine Under Cover, NO.3
2022-10 → 2023-12 ended
TXUA7# ARL —
51455-0E020 Seal, Engine Under Cover, NO.3
2023-11 → —
TXUA7# —
52162K — Piece, Rear Bumper
52161-02020 Piece, Rear Bumper
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52161-02020 Piece, Rear Bumper
2022-10 → 2023-12 ended
AXUH7#,TXUA7# —
52161-02020 Piece, Rear Bumper
2023-11 → 2024-10 ended
AXUH70 LIMD —
52161-02020 Piece, Rear Bumper
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
52162M — Piece, Rear Bumper
52161-02020 Piece, Rear Bumper
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52161-02020 Piece, Rear Bumper
2022-10 → 2023-12 ended
AXUH7#,TXUA7# —
52161-02020 Piece, Rear Bumper
2023-11 → 2024-10 ended
AXUH70 LIMD —
52161-02020 Piece, Rear Bumper
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58165C — Cover, Front Floor, RH
58165-0E070 Cover, Front Floor, RH
2020-03 → 2022-10 ended
GSU7# —
58165-0E080 Cover, Front Floor, RH
2020-02 → 2022-06 ended
AXUH7# —
58165-0E081 Cover, Front Floor, RH
2022-07 → 2022-10 ended
AXUH7# —
58165-0E081 Cover, Front Floor, RH
2022-10 → 2023-11 ended
AXUH7# LHD —
58165-0E081 Cover, Front Floor, RH
2022-10 → 2023-12 ended
AXUH78 RHD —
58165-0E110 Cover, Front Floor, RH
2022-10 → 2023-11 ended
TXUA75 RUS —
58165-0E110 Cover, Front Floor, RH
2022-10 → 2023-12 ended
TXUA7# ARL —
58165-0E081 Cover, Front Floor, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
58165-0E081 Cover, Front Floor, RH
2023-11 → —
AXUH78;AXUH70 LE,XLE —
58165-0E110 Cover, Front Floor, RH
2023-11 → —
TXUA7# —
58165M — Clip, Front Floor Cover, NO.1
90179-06104 note Clip, Front Floor Cover, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90467-A0036 note Clip, Front Floor Cover, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90179-06104 note Clip, Front Floor Cover, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
90179-06104 note Clip, Front Floor Cover, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90467-A0036 note Clip, Front Floor Cover, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
90467-A0036 note Clip, Front Floor Cover, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90179-06104 note Clip, Front Floor Cover, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
90179-06104 note Clip, Front Floor Cover, NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
90467-A0036 note Clip, Front Floor Cover, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-A0036 note Clip, Front Floor Cover, NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58165N — Clip, Front Floor Cover, NO.2
90467-07220 Clip, Front Floor Cover, NO.2
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90467-07220 Clip, Front Floor Cover, NO.2
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
90467-07220 Clip, Front Floor Cover, NO.2
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90467-07220 Clip, Front Floor Cover, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-07220 Clip, Front Floor Cover, NO.2
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58165P — Clip, Front Floor Cover, NO.3
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2020-02 → 2022-10 ended
AXUH7# —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2020-03 → 2022-10 ended
GSU7# —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2022-10 → 2023-11 ended
AXUH7# LHD —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2022-10 → 2023-12 ended
AXUH78 RHD —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2023-11 → —
AXUH78;AXUH70 LE,XLE —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2023-11 → —
TXUA7# —
58165R — Clip, Front Floor Cover, NO.4
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2020-02 → 2022-10 ended
AXUH7# —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2020-03 → 2022-10 ended
GSU7# —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2022-10 → 2023-11 ended
AXUH7# LHD —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2022-10 → 2023-12 ended
AXUH78 RHD —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2023-11 → —
TXUA7# —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2023-11 → —
AXUH78;AXUH70 LE,XLE —
58166A — Cover, Front Floor, LH
58166-0E060 Cover, Front Floor, LH
2020-03 → 2022-10 ended
GSU7# —
58166-0E070 Cover, Front Floor, LH
2020-02 → 2022-06 ended
AXUH7# —
58166-0E071 Cover, Front Floor, LH
2022-07 → 2022-10 ended
AXUH7# —
58166-0E071 Cover, Front Floor, LH
2022-10 → 2023-11 ended
AXUH7# LHD —
58166-0E071 Cover, Front Floor, LH
2022-10 → 2023-12 ended
AXUH78 RHD —
58166-0E151 Cover, Front Floor, LH
2022-10 → 2023-11 ended
TXUA75 RUS —
58166-0E151 Cover, Front Floor, LH
2022-10 → 2023-12 ended
TXUA7# ARL —
58166-0E071 Cover, Front Floor, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
58166-0E071 Cover, Front Floor, LH
2023-11 → —
AXUH78;AXUH70 LE,XLE —
58166-0E151 Cover, Front Floor, LH
2023-11 → —
TXUA7# —
58166L — Clip, Front Floor Cover, NO.1
90179-06104 note Clip, Front Floor Cover, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90467-A0036 note Clip, Front Floor Cover, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90179-06104 note Clip, Front Floor Cover, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
90179-06104 note Clip, Front Floor Cover, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90467-A0036 note Clip, Front Floor Cover, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90467-A0036 note Clip, Front Floor Cover, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
90179-06104 note Clip, Front Floor Cover, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
90179-06104 note Clip, Front Floor Cover, NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
90467-A0036 note Clip, Front Floor Cover, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-A0036 note Clip, Front Floor Cover, NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58166M — Clip, Front Floor Cover, NO.2
90467-07220 Clip, Front Floor Cover, NO.2
2020-02 → 2022-10 ended
AXUH7# —
90467-07220 Clip, Front Floor Cover, NO.2
2020-03 → 2022-10 ended
GSU7# —
90467-07220 Clip, Front Floor Cover, NO.2
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-07220 Clip, Front Floor Cover, NO.2
2022-10 → 2023-11 ended
AXUH7# LHD —
90467-07220 Clip, Front Floor Cover, NO.2
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-07220 Clip, Front Floor Cover, NO.2
2022-10 → 2023-12 ended
AXUH78 RHD —
90467-07220 Clip, Front Floor Cover, NO.2
2023-11 → —
AXUH78;AXUH70 LE,XLE —
90467-07220 Clip, Front Floor Cover, NO.2
2023-11 → —
TXUA7# —
90467-07220 Clip, Front Floor Cover, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
58166N — Clip, Front Floor Cover, NO.3
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2020-02 → 2022-10 ended
AXUH7# —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2020-03 → 2022-10 ended
GSU7# —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2022-10 → 2023-11 ended
AXUH7# LHD —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2022-10 → 2023-12 ended
AXUH78 RHD —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2023-11 → —
TXUA7# —
90467-17026-A0 note Clip, Front Floor Cover, NO.3
2023-11 → —
AXUH78;AXUH70 LE,XLE —
58166Q — Clip, Front Floor Cover, NO.4
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2020-02 → 2022-10 ended
AXUH7# —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2020-03 → 2022-10 ended
GSU7# —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2022-10 → 2023-12 ended
AXUH78 RHD —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2022-10 → 2023-11 ended
AXUH7# LHD —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2023-11 → —
TXUA7# —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2023-11 → —
AXUH78;AXUH70 LE,XLE —
90467-17027-C0 note Clip, Front Floor Cover, NO.4
2023-11 → 2024-10 ended
AXUH70 LIMD —
58398F — Cover, Floor Under, NO.1
58398-0E010 Cover, Floor Under, NO.1
2020-03 → 2022-10 ended
GSU7# —
58398-0E101 Cover, Floor Under, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
58398-0E101 Cover, Floor Under, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
58398-0E101 Cover, Floor Under, NO.1
2023-11 → —
TXUA7# —
58398M — Clip, Floor Under Cover, NO.1
90179-06104 note Clip, Floor Under Cover, NO.1
2020-03 → 2022-10 ended
GSU7# —
90467-A0036 note Clip, Floor Under Cover, NO.1
2020-03 → 2022-10 ended
GSU7# —
90179-06104 note Clip, Floor Under Cover, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
90179-06104 note Clip, Floor Under Cover, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-A0036 note Clip, Floor Under Cover, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-A0036 note Clip, Floor Under Cover, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
90179-06104 note Clip, Floor Under Cover, NO.1
2023-11 → —
TXUA7# —
90467-A0036 note Clip, Floor Under Cover, NO.1
2023-11 → —
TXUA7# —
58398N — Clip, Floor Under Cover, NO.2
90467-07220 Clip, Floor Under Cover, NO.2
2020-03 → 2022-10 ended
GSU7# —
90467-07220 Clip, Floor Under Cover, NO.2
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-07220 Clip, Floor Under Cover, NO.2
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-07220 Clip, Floor Under Cover, NO.2
2023-11 → —
TXUA7# —
58398U — Clip, Floor Under Cover, NO.3
90467-17026-A0 note Clip, Floor Under Cover, NO.3
2020-03 → 2022-10 ended
GSU7# —
90467-17026-A0 note Clip, Floor Under Cover, NO.3
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-17026-A0 note Clip, Floor Under Cover, NO.3
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-17026-A0 note Clip, Floor Under Cover, NO.3
2023-11 → —
TXUA7# —
58398V — Clip, Floor Under Cover, NO.4
90467-17027-C0 note Clip, Floor Under Cover, NO.4
2020-03 → 2022-10 ended
GSU7# —
90467-17027-C0 note Clip, Floor Under Cover, NO.4
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-17027-C0 note Clip, Floor Under Cover, NO.4
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-17027-C0 note Clip, Floor Under Cover, NO.4
2023-11 → —
TXUA7# —
58398W — Clip, Floor Under Cover, NO.5
90467-10216 Clip, Floor Under Cover, NO.5
2020-03 → 2022-10 ended
GSU7# —
90467-10216 Clip, Floor Under Cover, NO.5
2022-10 → 2023-11 ended
TXUA75 RUS —
90467-10216 Clip, Floor Under Cover, NO.5
2022-10 → 2023-12 ended
TXUA7# ARL —
90467-10216 Clip, Floor Under Cover, NO.5
2023-11 → —
TXUA7# —
58723G — Protector, Luggage Compartment Side Cover, NO.1
58723-0E080 Protector, Luggage Compartment Side Cover, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
58723-0E080 Protector, Luggage Compartment Side Cover, NO.1
2022-10 → 2023-12 ended
AXUH7#,TXUA7# —
58723-0E080 Protector, Luggage Compartment Side Cover, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
58723-0E080 Protector, Luggage Compartment Side Cover, NO.1
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58724H — Protector, Luggage Compartment Side Cover, NO.2
58724-0E100 Protector, Luggage Compartment Side Cover, NO.2
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
58724-0E100 Protector, Luggage Compartment Side Cover, NO.2
2022-10 → 2023-12 ended
AXUH7#,TXUA7# —
58724-0E100 Protector, Luggage Compartment Side Cover, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
58724-0E100 Protector, Luggage Compartment Side Cover, NO.2
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58724J — Clip, Luggage Compartment Side Cover Protector
90467-14053 Clip, Luggage Compartment Side Cover Protector
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
90467-14053 Clip, Luggage Compartment Side Cover Protector
2022-10 → 2023-12 ended
AXUH7#,TXUA7# —
90467-14053 Clip, Luggage Compartment Side Cover Protector
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-14053 Clip, Luggage Compartment Side Cover Protector
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
77512D — Bracket, Fuel Tank
77512-47030 Bracket, Fuel Tank
2020-03 → 2022-10 ended
GSU7# —
77512-47030 Bracket, Fuel Tank
2022-10 → 2023-11 ended
TXUA75 RUS —
77512-47030 Bracket, Fuel Tank
2022-10 → 2023-12 ended
TXUA7# ARL —
77512-47030 Bracket, Fuel Tank
2023-11 → —
TXUA7# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
