Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

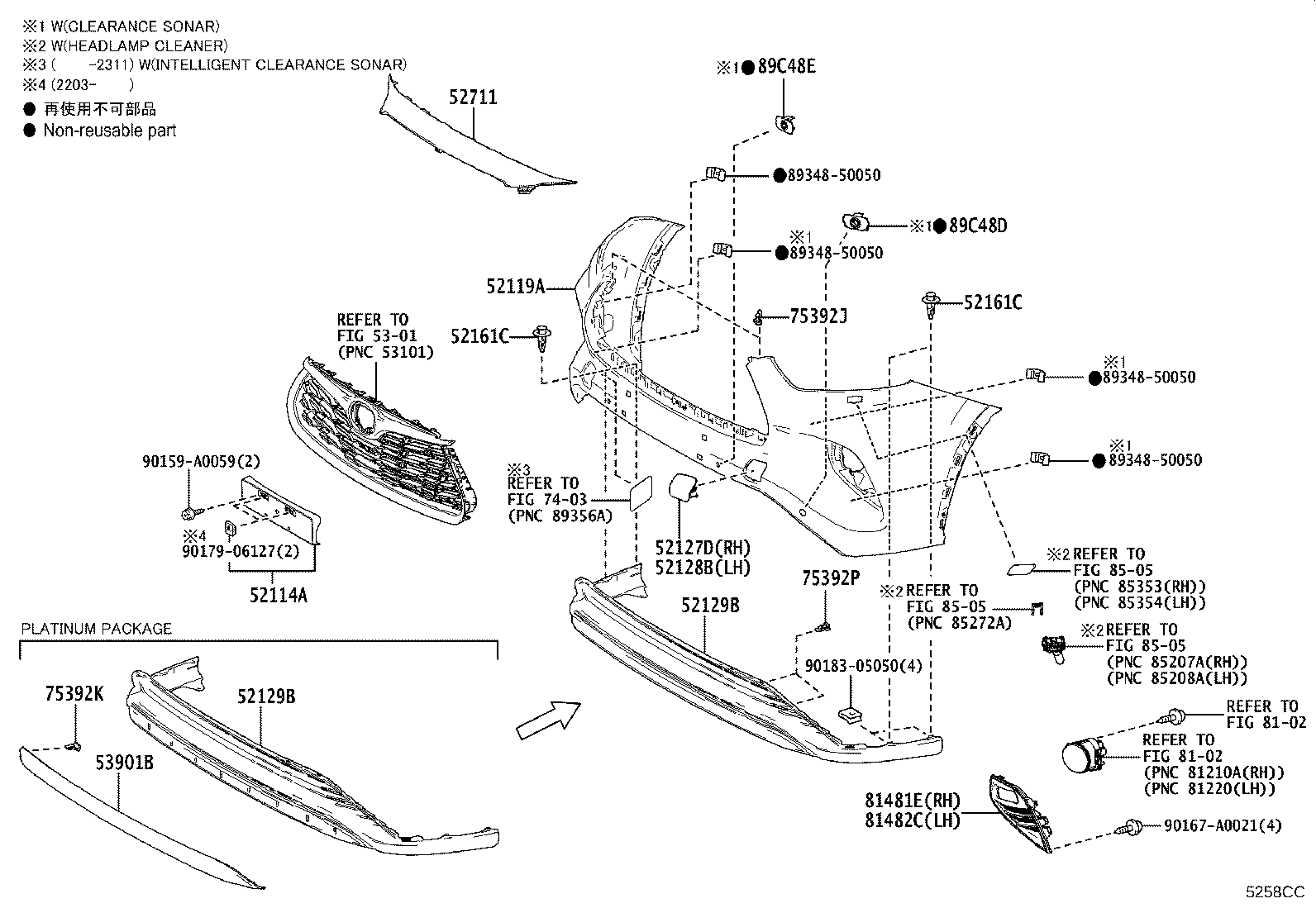

Exploded illustration 5258CC 8505 — not listed in this catalogue 7403 — not listed in this catalogue 5301 — not listed in this catalogue 8102 — not listed in this catalogue 52114A — BRACKET, FRONT BUMPER EXTENSION MOUNTING (5 parts) 52129B — COVER, FRONT BUMPER, LOWER (17 parts) 90159A0059 — not listed in this catalogue 81481E — COVER, FOG LAMP, RH (5 parts) 81482C — COVER, FOG LAMP, LH (5 parts) 52127D — COVER, FRONT BUMPER HOLE, RH (4 parts) 52128B — COVER, FRONT BUMPER HOLE, LH (4 parts) 52161C — PIECE, FRONT BUMPER (5 parts) 52161C — PIECE, FRONT BUMPER (5 parts) 52711 — MOULDING, FRONT BUMPER (5 parts) 52119A — COVER, FRONT BUMPER (15 parts) 75392J — RETAINER, OUTSIDE MOULDING (4 parts) 8102 — not listed in this catalogue 8505 — not listed in this catalogue 8505 — not listed in this catalogue 90167A0021 — not listed in this catalogue 8934850050 — not listed in this catalogue 8934850050 — not listed in this catalogue 8934850050 — not listed in this catalogue 8934850050 — not listed in this catalogue 75392K — RETAINER, OUTSIDE MOULDING, NO.2 (5 parts) 52129B — COVER, FRONT BUMPER, LOWER (17 parts) 53901B — PANEL SUB-ASSY, FRONT VALANCE (6 parts) 89C48E — RETAINER, ULTRASONIC SENSOR, FRONT CENTER (5 parts) 89C48D — RETAINER, ULTRASONIC SENSOR, FRONT CORNER (40 parts) 9017906127 — not listed in this catalogue 75392P — RETAINER, OUTSIDE MOULDING, NO.3 (5 parts) 9018305050 — not listed in this catalogue
5258CC · 17 callouts, 15 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
130 parts on this figure
Part number Description Fitment Price
52114A — Bracket, Front Bumper Extension Mounting
52114-0E170 Bracket, Front Bumper Extension Mounting
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52114-0E170 Bracket, Front Bumper Extension Mounting
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
52114-0E170 Bracket, Front Bumper Extension Mounting
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
52114-0E170 Bracket, Front Bumper Extension Mounting
2023-11 → 2024-10 ended
AXUH70 LIMD —
52114-0E170 Bracket, Front Bumper Extension Mounting
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
52119A — Cover, Front Bumper
52119-0E952 note Cover, Front Bumper
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# ARL —
52119-0E953 note Cover, Front Bumper
2020-02 → 2022-10 ended
AXUH7# (LE,XLE) (EUR,GCC) —
52119-0E954 note Cover, Front Bumper
2020-03 → 2022-10 ended
AXUH78,GSU75 (LE,LIMD) (EUR,RUS) —
52119-0E952 note Cover, Front Bumper
2022-10 → 2023-06 ended
AXUH7# LIMD GCC;AXUH78,TXUA7# ARL —
52119-0E953 note Cover, Front Bumper
2022-10 → 2023-06 ended
AXUH7# LHD (LE,XLE) —
52119-0E954 note Cover, Front Bumper
2022-10 → 2023-06 ended
AXUH78,TXUA75 (LE,LIMD) (EUR,RUS) —
52119-0E982 note Cover, Front Bumper
2023-06 → 2023-11 ended
AXUH7# LIMD GCC —
52119-0E982 note Cover, Front Bumper
2023-06 → 2023-12 ended
AXUH78,TXUA7# ARL —
52119-0E983 note Cover, Front Bumper
2023-06 → 2023-11 ended
AXUH7# LHD (LE,XLE) —
52119-0E984 note Cover, Front Bumper
2023-06 → 2023-11 ended
AXUH78,TXUA75 LHD (LE,LIMD) (EUR,RUS) —
52119-0E984 note Cover, Front Bumper
2023-06 → 2023-12 ended
AXUH78 RHD EUR —
52119-0E983 note Cover, Front Bumper
2023-11 → —
AXUH7# (LE,XLE) GCC —
52119-0E986 note Cover, Front Bumper
2023-11 → 2024-10 ended
AXUH70 LIMD —
52119-0E986 note Cover, Front Bumper
2023-11 → —
AXUH78 XLE EUR;AXUH78 LIMD +2 —
52119-0E987 note Cover, Front Bumper
2023-11 → —
AXUH78,TXUA75 (LE,LIMD) (EUR,RUS) —
52127D — Cover, Front Bumper Hole, RH
52127-0E930 note Cover, Front Bumper Hole, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52127-0E930 note Cover, Front Bumper Hole, RH
2022-10 → 2023-12 ended
AXUH7#,TXUA7# —
52127-0E930 note Cover, Front Bumper Hole, RH
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
52127-0E930 note Cover, Front Bumper Hole, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
52128B — Cover, Front Bumper Hole, LH
52128-0E933 Cover, Front Bumper Hole, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52128-0E933 Cover, Front Bumper Hole, LH
2022-10 → 2023-12 ended
AXUH7#,TXUA7# —
52128-0E933 Cover, Front Bumper Hole, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
52128-0E933 Cover, Front Bumper Hole, LH
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
52129B — Cover, Front Bumper, Lower
52129-0E070 Cover, Front Bumper, Lower
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52129-0E100 note Cover, Front Bumper, Lower
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
52129-0E100 note Cover, Front Bumper, Lower
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
52129-0E070 Cover, Front Bumper, Lower
2022-10 → 2023-06 ended
AXUH7# —
52129-0E071 Cover, Front Bumper, Lower
2023-06 → 2023-11 ended
AXUH7# LHD —
52129-0E071 Cover, Front Bumper, Lower
2023-06 → 2023-12 ended
AXUH78 RHD —
52129-0E100 note Cover, Front Bumper, Lower
2022-10 → 2023-06 ended
AXUH78 LHD LIMD EUR —
52129-0E100 note Cover, Front Bumper, Lower
2022-10 → 2023-06 ended
AXUH78 LIMD EUR —
52129-0E101 note Cover, Front Bumper, Lower
2023-06 → 2023-11 ended
AXUH78 LHD LIMD EUR —
52129-0E101 note Cover, Front Bumper, Lower
2023-06 → 2023-11 ended
AXUH78 LHD LIMD EUR —
52129-0E101 note Cover, Front Bumper, Lower
2023-06 → 2023-12 ended
AXUH78 RHD EUR —
52129-0E190 Cover, Front Bumper, Lower
2022-10 → 2023-06 ended
TXUA7# —
52129-0E191 Cover, Front Bumper, Lower
2023-06 → 2023-12 ended
TXUA7# ARL —
52129-0E191 Cover, Front Bumper, Lower
2023-06 → 2023-11 ended
TXUA75 RUS —
52129-0E191 Cover, Front Bumper, Lower
2023-11 → 2024-10 ended
AXUH70 LIMD —
52129-0E191 Cover, Front Bumper, Lower
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
52129-0E201 note Cover, Front Bumper, Lower
2023-11 → —
AXUH78 LIMD EUR —
52161C — Piece, Front Bumper
90159-60602 Piece, Front Bumper
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52161-02020 Piece, Front Bumper
2022-10 → 2023-06 ended
AXUH7#,TXUA7# —
90159-A0060 Piece, Front Bumper
2023-06 → 2023-11 ended
AXUH7#,TXUA7# —
90159-A0060 Piece, Front Bumper
2023-11 → 2024-10 ended
AXUH70 LIMD —
90159-A0060 Piece, Front Bumper
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
52711 — Moulding, Front Bumper
52711-0E900 note Moulding, Front Bumper
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52711-0E900 note Moulding, Front Bumper
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
52711-0E900 note Moulding, Front Bumper
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
52711-0E900 note Moulding, Front Bumper
2023-11 → 2024-10 ended
AXUH70 LIMD —
52711-0E900 note Moulding, Front Bumper
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
53901B — Panel Sub-assy, Front Valance
53901-0E010 note Panel Sub-assy, Front Valance
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
53901-0E010 note Panel Sub-assy, Front Valance
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
53901-0E010 note Panel Sub-assy, Front Valance
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
53901-0E010 note Panel Sub-assy, Front Valance
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
53901-0E010 note Panel Sub-assy, Front Valance
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
53901-0E010 note Panel Sub-assy, Front Valance
2023-11 → —
AXUH78 LIMD EUR —
75392J — Retainer, Outside Moulding
75392-35220 Retainer, Outside Moulding
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
75392-0R050 Retainer, Outside Moulding
2022-10 → 2023-12 ended
AXUH7#,TXUA7# —
75392-0R050 Retainer, Outside Moulding
2023-11 → 2024-10 ended
AXUH70 LIMD —
75392-0R050 Retainer, Outside Moulding
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
75392K — Retainer, Outside Moulding, NO.2
75392-35220 note Retainer, Outside Moulding, NO.2
2020-11 → 2022-10 ended
AXUH78 LIMD EUR —
75392-35220 note Retainer, Outside Moulding, NO.2
2020-11 → 2022-10 ended
AXUH78 LHD LIMD EUR —
75392-0R050 note Retainer, Outside Moulding, NO.2
2022-10 → 2023-11 ended
AXUH78 LHD LIMD EUR —
75392-0R050 note Retainer, Outside Moulding, NO.2
2022-10 → 2023-12 ended
AXUH78 LIMD EUR —
75392-0R050 note Retainer, Outside Moulding, NO.2
2023-11 → —
AXUH78 LIMD EUR —
75392P — Retainer, Outside Moulding, NO.3
75392-0R050 note Retainer, Outside Moulding, NO.3
2022-10 → 2023-06 ended
AXUH7#,TXUA7# —
75392-0R050 Retainer, Outside Moulding, NO.3
2023-06 → 2023-11 ended
AXUH7#,TXUA7# —
75392-35220 note Retainer, Outside Moulding, NO.3
2022-10 → 2023-06 ended
AXUH7#,TXUA7# —
75392-0R050 Retainer, Outside Moulding, NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
75392-0R050 Retainer, Outside Moulding, NO.3
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
81481E — Cover, Fog Lamp, RH
52030-0E110 Cover, Fog Lamp, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52030-0E110 note Cover, Fog Lamp, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
52030-0E110 note Cover, Fog Lamp, RH
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
52030-0E110 note Cover, Fog Lamp, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
52030-0E110 note Cover, Fog Lamp, RH
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
81482C — Cover, Fog Lamp, LH
52040-0E110 Cover, Fog Lamp, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
52040-0E110 note Cover, Fog Lamp, LH
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
52040-0E110 note Cover, Fog Lamp, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
52040-0E110 note Cover, Fog Lamp, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
52040-0E110 note Cover, Fog Lamp, LH
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
89C48D — Retainer, Ultrasonic Sensor, Front Corner
89348-48160-A0 note Retainer, Ultrasonic Sensor, Front Corner
2020-02 → 2021-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-A3 note Retainer, Ultrasonic Sensor, Front Corner
2021-10 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-B0 note Retainer, Ultrasonic Sensor, Front Corner
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-B1 note Retainer, Ultrasonic Sensor, Front Corner
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-B2 note Retainer, Ultrasonic Sensor, Front Corner
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-C0 note Retainer, Ultrasonic Sensor, Front Corner
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-D0 note Retainer, Ultrasonic Sensor, Front Corner
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-E0 note Retainer, Ultrasonic Sensor, Front Corner
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-J0 note Retainer, Ultrasonic Sensor, Front Corner
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-48160-A3 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-48160-A3 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
89348-48160-B0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
89348-48160-B0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-48160-B1 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
89348-48160-B1 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-48160-B2 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-48160-B2 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
89348-48160-C0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-48160-C0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
89348-48160-D0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-48160-D0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
89348-48160-G0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-48160-J0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
89348-48160-J0 note Retainer, Ultrasonic Sensor, Front Corner
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-0E160-A0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
89348-0E160-A0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2024-10 ended
AXUH70 LIMD —
89348-0E160-B0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2024-10 ended
AXUH70 LIMD —
89348-0E160-B0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
89348-0E160-B1 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2024-10 ended
AXUH70 LIMD —
89348-0E160-B1 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
89348-0E160-B2 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2024-10 ended
AXUH7# LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
89348-0E160-B3 note Retainer, Ultrasonic Sensor, Front Corner
2024-10 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
89348-0E160-C0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
89348-0E160-C0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2024-10 ended
AXUH70 LIMD —
89348-0E160-D0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2024-10 ended
AXUH70 LIMD —
89348-0E160-D0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
89348-0E160-G0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2024-10 ended
AXUH70 LIMD —
89348-0E160-G0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
TXUA75 RUS;AXUH78 XLE EUR;AXUH78 +2 —
89348-0E160-J0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → 2024-10 ended
AXUH70 LIMD —
89348-0E160-J0 note Retainer, Ultrasonic Sensor, Front Corner
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
89C48E — Retainer, Ultrasonic Sensor, Front Center
89348-58110 Retainer, Ultrasonic Sensor, Front Center
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# (LE,LIMD) +1 —
89348-58110 Retainer, Ultrasonic Sensor, Front Center
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD LIMD —
89348-58110 Retainer, Ultrasonic Sensor, Front Center
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
89348-0E550 Retainer, Ultrasonic Sensor, Front Center
2023-11 → 2024-10 ended
AXUH70 LIMD —
89348-0E550 Retainer, Ultrasonic Sensor, Front Center
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
