Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

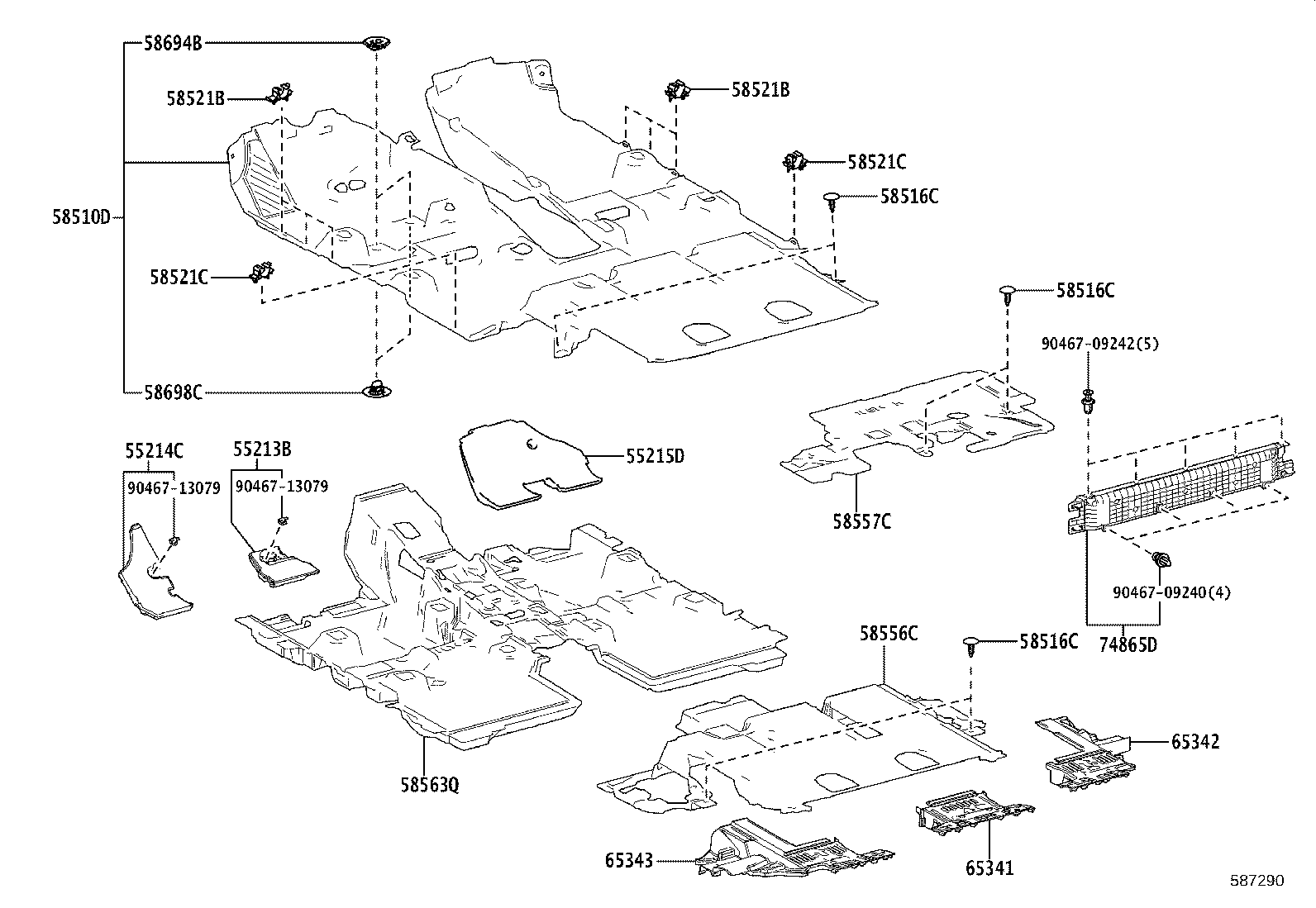

Exploded illustration 587290 58521C — HOOK, FLOOR CARPET NO.2 (5 parts) 58516C — CLIP(FOR FLOOR MAT) (8 parts) 58521B — HOOK, FLOOR CARPET (5 parts) 58516C — CLIP(FOR FLOOR MAT) (8 parts) 58516C — CLIP(FOR FLOOR MAT) (8 parts) 65342 — BOARD, FLOOR, NO.2 (5 parts) 58521B — HOOK, FLOOR CARPET (5 parts) 58521C — HOOK, FLOOR CARPET NO.2 (5 parts) 65343 — BOARD, FLOOR, NO.3 (5 parts) 58557C — SILENCER, REAR FLOOR, NO.2 (9 parts) 65341 — BOARD, FLOOR, NO.1 (5 parts) 58563Q — SILENCER, FRONT FLOOR, NO.3 (6 parts) 55213B — PAD, DASH PANEL INSULATOR, NO.1 (7 parts) 9046713079 — not listed in this catalogue 55214C — PAD, DASH PANEL INSULATOR, NO.2 (8 parts) 9046713079 — not listed in this catalogue 58694B — PLATE, MAT SET, UPPER (5 parts) 58698C — PLATE, MAT SET, LOWER (5 parts) 58510D — CARPET ASSY, FLOOR, FRONT (22 parts) 58556C — SILENCER, REAR FLOOR (9 parts) 9046709242 — not listed in this catalogue 74865D — COVER, CENTER PROTECTOR (8 parts) 9046709240 — not listed in this catalogue 55215D — PAD, DASH PANEL INSULATOR, NO.3 (10 parts)
587290 · 20 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
122 parts on this figure
Part number Description Fitment Price
55213B — Pad, Dash Panel Insulator, NO.1
55213-0E070 Pad, Dash Panel Insulator, NO.1
2020-02 → 2022-10 ended
AXUH7#,GSU75 LHD —
55213-0E080 Pad, Dash Panel Insulator, NO.1
2020-11 → 2022-10 ended
AXUH78,GSU7# RHD —
55213-0E070 Pad, Dash Panel Insulator, NO.1
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
55213-0E080 Pad, Dash Panel Insulator, NO.1
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
55213-0E070 Pad, Dash Panel Insulator, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
55213-0E070 Pad, Dash Panel Insulator, NO.1
2023-11 → —
AXUH70 LE,XLE;AXUH78,TXUA75 LHD —
55213-0E080 Pad, Dash Panel Insulator, NO.1
2024-01 → —
AXUH78,TXUA7# RHD —
55214C — Pad, Dash Panel Insulator, NO.2
55214-0E020 Pad, Dash Panel Insulator, NO.2
2020-02 → 2020-10 ended
AXUH7#,GSU75 —
55214-0E021 Pad, Dash Panel Insulator, NO.2
2020-10 → 2022-10 ended
AXUH7#,GSU75 LHD —
55214-0E031 Pad, Dash Panel Insulator, NO.2
2020-11 → 2022-10 ended
AXUH78,GSU7# RHD —
55214-0E021 Pad, Dash Panel Insulator, NO.2
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
55214-0E031 Pad, Dash Panel Insulator, NO.2
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
55214-0E021 Pad, Dash Panel Insulator, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
55214-0E021 Pad, Dash Panel Insulator, NO.2
2023-11 → —
AXUH70 LE,XLE;AXUH78,TXUA75 LHD —
55214-0E031 Pad, Dash Panel Insulator, NO.2
2024-01 → —
AXUH78,TXUA7# RHD —
55215D — Pad, Dash Panel Insulator, NO.3
55215-0E020 Pad, Dash Panel Insulator, NO.3
2020-02 → 2020-10 ended
AXUH7#,GSU75 —
55215-0E021 Pad, Dash Panel Insulator, NO.3
2020-10 → 2021-05 ended
AXUH7#,GSU75 LHD —
55215-0E030 Pad, Dash Panel Insulator, NO.3
2020-11 → 2021-05 ended
AXUH78,GSU7# RHD —
55215-0E031 Pad, Dash Panel Insulator, NO.3
2021-05 → 2022-10 ended
AXUH78,GSU7# RHD —
55215-0E080 Pad, Dash Panel Insulator, NO.3
2021-06 → 2022-10 ended
AXUH7#,GSU75 LHD —
55215-0E031 Pad, Dash Panel Insulator, NO.3
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
55215-0E080 Pad, Dash Panel Insulator, NO.3
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
55215-0E031 Pad, Dash Panel Insulator, NO.3
2024-01 → —
AXUH78,TXUA7# RHD —
55215-0E080 Pad, Dash Panel Insulator, NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
55215-0E080 Pad, Dash Panel Insulator, NO.3
2023-11 → —
AXUH70 LE,XLE;AXUH78,TXUA75 LHD —
58510D — Carpet Assy, Floor, Front
58510-0E110-C0 note Carpet Assy, Floor, Front
2020-03 → 2020-08 ended
GSU75 —
58510-0E121-C0 note Carpet Assy, Floor, Front
2020-12 → 2022-10 ended
GSU7# ARL —
58510-0E150-C0 note Carpet Assy, Floor, Front
2020-02 → 2020-08 ended
AXUH7# LE,XLE —
58510-0E150-C0 note Carpet Assy, Floor, Front
2020-02 → 2020-08 ended
AXUH7# LIMD —
58510-0E291-C0 note Carpet Assy, Floor, Front
2020-11 → 2022-10 ended
AXUH78 RHD EUR —
58510-0E411-C0 note Carpet Assy, Floor, Front
2020-12 → 2022-10 ended
AXUH78 ARL —
58510-0E510-C0 note Carpet Assy, Floor, Front
2020-09 → 2022-10 ended
GSU75 RUS —
58510-0E520-C0 note Carpet Assy, Floor, Front
2020-09 → 2022-10 ended
AXUH7# (LE,XLE) GCC —
58510-0E520-C0 note Carpet Assy, Floor, Front
2020-09 → 2022-10 ended
AXUH7# LHD LIMD;AXUH78 LHD +2 —
58510-0E122-C1 note Carpet Assy, Floor, Front
2022-10 → 2023-12 ended
TXUA7# ARL —
58510-0E292-C1 note Carpet Assy, Floor, Front
2022-10 → 2023-12 ended
AXUH78 RHD EUR —
58510-0E412-C1 note Carpet Assy, Floor, Front
2022-10 → 2023-12 ended
AXUH78 ARL —
58510-0E511-C1 note Carpet Assy, Floor, Front
2022-10 → 2023-11 ended
TXUA75 RUS —
58510-0E521-C1 note Carpet Assy, Floor, Front
2022-10 → 2023-11 ended
AXUH7# (LE,XLE) GCC —
58510-0E521-C1 note Carpet Assy, Floor, Front
2022-10 → 2023-11 ended
AXUH78 XLE EUR;AXUH7# LHD +1 —
58510-0E122-C1 note Carpet Assy, Floor, Front
2024-01 → —
TXUA7# ARL —
58510-0E292-C1 note Carpet Assy, Floor, Front
2024-01 → —
AXUH78 RHD EUR —
58510-0E412-C1 note Carpet Assy, Floor, Front
2024-01 → —
AXUH78 ARL —
58510-0E511-C1 note Carpet Assy, Floor, Front
2023-11 → —
TXUA75 RUS —
58510-0E521-C1 note Carpet Assy, Floor, Front
2023-11 → —
AXUH7# (LE,XLE) GCC —
58510-0E521-C1 note Carpet Assy, Floor, Front
2023-11 → —
AXUH78 XLE EUR;AXUH78 LHD +1 —
58510-0E521-C1 note Carpet Assy, Floor, Front
2023-11 → 2024-10 ended
AXUH70 LIMD —
58516C — Clip(FOR FLOOR MAT)
90467-07049-23 note Clip(FOR FLOOR MAT)
2020-02 → 2022-10 ended
AXUH7# (LE,XLE) GCC —
90467-07049-23 note Clip(FOR FLOOR MAT)
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# ARL,EUR,RUS —
90467-07049-23 note Clip(FOR FLOOR MAT)
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
90467-07049-23 note Clip(FOR FLOOR MAT)
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH78 XLE EUR;AXUH7# +2 —
90467-07049-23 note Clip(FOR FLOOR MAT)
2022-10 → 2023-11 ended
AXUH7# (LE,XLE) GCC —
90467-07049-23 note Clip(FOR FLOOR MAT)
2023-11 → 2024-10 ended
AXUH70 LIMD —
90467-07049-23 note Clip(FOR FLOOR MAT)
2023-11 → —
AXUH7# (LE,XLE) GCC —
90467-07049-23 note Clip(FOR FLOOR MAT)
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
58521B — Hook, Floor Carpet
58521-0E080 Hook, Floor Carpet
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
58521-0E080 Hook, Floor Carpet
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
58521-0E080 Hook, Floor Carpet
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
58521-0E080 Hook, Floor Carpet
2023-11 → 2024-10 ended
AXUH70 LIMD —
58521-0E080 Hook, Floor Carpet
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58521C — Hook, Floor Carpet NO.2
58521-0E090 Hook, Floor Carpet NO.2
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
58521-0E090 Hook, Floor Carpet NO.2
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
58521-0E090 Hook, Floor Carpet NO.2
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
58521-0E090 Hook, Floor Carpet NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
58521-0E090 Hook, Floor Carpet NO.2
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58556C — Silencer, Rear Floor
58556-0E060 Silencer, Rear Floor
2020-03 → 2022-10 ended
GSU7# —
58556-0E070 Silencer, Rear Floor
2020-02 → 2021-08 ended
AXUH7# —
58556-0E170 Silencer, Rear Floor
2021-08 → 2022-10 ended
AXUH7# —
58556-0E060 Silencer, Rear Floor
2022-10 → 2023-12 ended
TXUA7# —
58556-0E070 Silencer, Rear Floor
2023-08 → 2023-12 ended
AXUH7# —
58556-0E170 Silencer, Rear Floor
2022-10 → 2023-08 ended
AXUH7# —
58556-0E060 Silencer, Rear Floor
2023-11 → —
TXUA7# —
58556-0E070 Silencer, Rear Floor
2023-11 → 2024-10 ended
AXUH70 LIMD —
58556-0E070 Silencer, Rear Floor
2023-11 → —
AXUH78;AXUH70 LE,XLE —
58557C — Silencer, Rear Floor, NO.2
58557-0E050 Silencer, Rear Floor, NO.2
2020-03 → 2022-10 ended
GSU7# —
58557-0E060 Silencer, Rear Floor, NO.2
2020-02 → 2021-08 ended
AXUH7# —
58557-0E150 Silencer, Rear Floor, NO.2
2021-08 → 2022-10 ended
AXUH7# —
58557-0E050 Silencer, Rear Floor, NO.2
2022-10 → 2023-12 ended
TXUA7# —
58557-0E060 Silencer, Rear Floor, NO.2
2023-08 → 2023-12 ended
AXUH7# —
58557-0E150 Silencer, Rear Floor, NO.2
2022-10 → 2023-08 ended
AXUH7# —
58557-0E050 Silencer, Rear Floor, NO.2
2023-11 → —
TXUA7# —
58557-0E060 Silencer, Rear Floor, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
58557-0E060 Silencer, Rear Floor, NO.2
2023-11 → —
AXUH78;AXUH70 LE,XLE —
58563Q — Silencer, Front Floor, NO.3
58563-0E040 Silencer, Front Floor, NO.3
2020-02 → 2020-08 ended
AXUH7#,GSU75 —
58563-0E041 Silencer, Front Floor, NO.3
2020-09 → 2022-10 ended
AXUH7#,GSU7# —
58563-0E041 Silencer, Front Floor, NO.3
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
58563-0E041 Silencer, Front Floor, NO.3
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
58563-0E041 Silencer, Front Floor, NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
58563-0E041 Silencer, Front Floor, NO.3
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58694B — Plate, Mat Set, Upper
58694-33010 Plate, Mat Set, Upper
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
58694-33010 Plate, Mat Set, Upper
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
58694-33010 Plate, Mat Set, Upper
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
58694-33010 Plate, Mat Set, Upper
2023-11 → 2024-10 ended
AXUH70 LIMD —
58694-33010 Plate, Mat Set, Upper
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
58698C — Plate, Mat Set, Lower
58698-33010 Plate, Mat Set, Lower
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
58698-33010 Plate, Mat Set, Lower
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
58698-33010 Plate, Mat Set, Lower
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
58698-33010 Plate, Mat Set, Lower
2023-11 → 2024-10 ended
AXUH70 LIMD —
58698-33010 Plate, Mat Set, Lower
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
65341 — Board, Floor, NO.1
65341-0E010 Board, Floor, NO.1
2020-02 → 2022-10 ended
AXUH7# —
65341-0E010 Board, Floor, NO.1
2022-10 → 2023-11 ended
AXUH7# LHD —
65341-0E010 Board, Floor, NO.1
2022-10 → 2023-12 ended
AXUH78 RHD —
65341-0E010 Board, Floor, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
65341-0E010 Board, Floor, NO.1
2023-11 → —
AXUH78;AXUH70 LE,XLE —
65342 — Board, Floor, NO.2
65342-0E010 Board, Floor, NO.2
2020-02 → 2022-10 ended
AXUH7# —
65342-0E010 Board, Floor, NO.2
2022-10 → 2023-11 ended
AXUH7# LHD —
65342-0E010 Board, Floor, NO.2
2022-10 → 2023-12 ended
AXUH78 RHD —
65342-0E010 Board, Floor, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
65342-0E010 Board, Floor, NO.2
2023-11 → —
AXUH78;AXUH70 LE,XLE —
65343 — Board, Floor, NO.3
65343-0E010 Board, Floor, NO.3
2020-02 → 2022-10 ended
AXUH7# —
65343-0E010 Board, Floor, NO.3
2022-10 → 2023-11 ended
AXUH7# LHD —
65343-0E010 Board, Floor, NO.3
2022-10 → 2023-12 ended
AXUH78 RHD —
65343-0E010 Board, Floor, NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
65343-0E010 Board, Floor, NO.3
2023-11 → —
AXUH78;AXUH70 LE,XLE —
74865D — Cover, Center Protector
74865-0E040-C0 note Cover, Center Protector
2020-02 → 2022-10 ended
AXUH7# (LE,XLE) GCC —
74865-0E040-C0 note Cover, Center Protector
2020-02 → 2022-10 ended
AXUH7# LIMD GCC;AXUH78,GSU7# ARL,EUR,RUS —
74865-0E040-C0 note Cover, Center Protector
2022-10 → 2023-11 ended
AXUH7# (LE,XLE) GCC —
74865-0E040-C0 note Cover, Center Protector
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH78 XLE EUR;AXUH7# +2 —
74865-0E040-C0 note Cover, Center Protector
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
74865-0E040-C0 note Cover, Center Protector
2023-11 → 2024-10 ended
AXUH70 LIMD —
74865-0E040-C0 note Cover, Center Protector
2023-11 → —
AXUH7# (LE,XLE) GCC —
74865-0E040-C0 note Cover, Center Protector
2023-11 → —
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
