Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

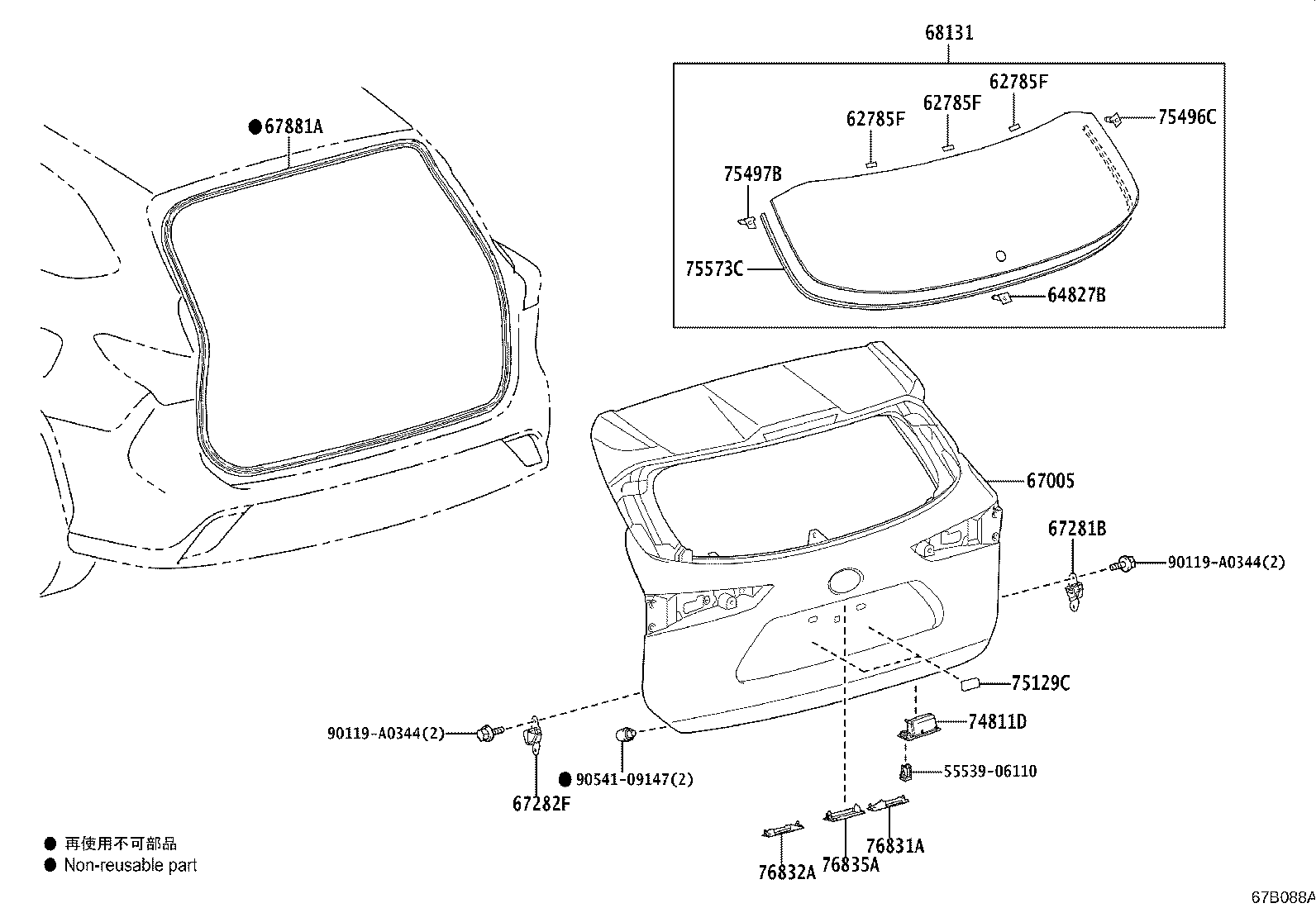

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62785F — Spacer, Back Door Glass | ||||
| 62785-60030 |
Spacer, Back Door Glass
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 62785-60030 |
Spacer, Back Door Glass
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 62785-60030 |
Spacer, Back Door Glass
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 62785-60030 |
Spacer, Back Door Glass
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 62785-60030 |
Spacer, Back Door Glass
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 64827B — Clip, Back Window Glass, RH | ||||
| 64827-0E010 |
Clip, Back Window Glass, RH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 64827-0E010 |
Clip, Back Window Glass, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 64827-0E010 |
Clip, Back Window Glass, RH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 64827-0E010 |
Clip, Back Window Glass, RH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 64827-0E010 |
Clip, Back Window Glass, RH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 67005 — Panel Sub-assy, Back Door | ||||
| 67005-0E540 |
Panel Sub-assy, Back Door
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 67005-0E541 |
Panel Sub-assy, Back Door
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 67005-0E541 |
Panel Sub-assy, Back Door
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 67005-0E541 |
Panel Sub-assy, Back Door
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 67005-0E541 |
Panel Sub-assy, Back Door
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 67281B — Stopper, Back Door, Lower | ||||
| 67281-0E050 |
Stopper, Back Door, Lower
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 67281-0E050 |
Stopper, Back Door, Lower
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 67281-0E050 |
Stopper, Back Door, Lower
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 67281-0E050 |
Stopper, Back Door, Lower
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 67281-0E050 |
Stopper, Back Door, Lower
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 67282F — Stopper, Back Door, Lwr LH | ||||
| 67282-0E050 |
Stopper, Back Door, Lwr LH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 67282-0E050 |
Stopper, Back Door, Lwr LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 67282-0E050 |
Stopper, Back Door, Lwr LH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 67282-0E050 |
Stopper, Back Door, Lwr LH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 67282-0E050 |
Stopper, Back Door, Lwr LH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 67881A — Weatherstrip, Back Door | ||||
| 67881-0E080 |
Weatherstrip, Back Door
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 67881-0E080 |
Weatherstrip, Back Door
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 67881-0E080 |
Weatherstrip, Back Door
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 67881-0E080 |
Weatherstrip, Back Door
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 67881-0E080 |
Weatherstrip, Back Door
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 68131 — Glass, Back Door | ||||
| 68105-0E120 |
Glass, Back Door
2020-03 → 2022-10
ended
|
AXUH78,GSU7# ARL,RUS | — | |
| 68105-0E130 |
Glass, Back Door
2020-02 → 2022-10
ended
|
AXUH7# GCC | — | |
| 68105-0E130 note |
Glass, Back Door
2020-03 → 2022-10
ended
|
GSU75 RUS | — | |
| 68105-0E130 note |
Glass, Back Door
2020-11 → 2022-10
ended
|
AXUH78 LHD EUR | — | |
| 68105-0E140 |
Glass, Back Door
2020-11 → 2022-10
ended
|
AXUH78 EUR | — | |
| 68105-0E120 |
Glass, Back Door
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 68105-0E120 |
Glass, Back Door
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# ARL | — | |
| 68105-0E131 |
Glass, Back Door
2022-10 → 2023-11
ended
|
AXUH7# GCC | — | |
| 68105-0E131 note |
Glass, Back Door
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 68105-0E131 note |
Glass, Back Door
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 68105-0E140 |
Glass, Back Door
2022-10 → 2023-11
ended
|
AXUH78 LHD EUR | — | |
| 68105-0E140 |
Glass, Back Door
2022-10 → 2023-12
ended
|
AXUH78 RHD EUR | — | |
| 68105-0E120 |
Glass, Back Door
2023-11 → —
|
AXUH78,TXUA7# ARL,RUS | — | |
| 68105-0E131 note |
Glass, Back Door
2023-11 → —
|
TXUA75 RUS | — | |
| 68105-0E131 note |
Glass, Back Door
2023-11 → —
|
AXUH78 LHD EUR | — | |
| 68105-0E131 |
Glass, Back Door
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 68105-0E131 |
Glass, Back Door
2023-11 → —
|
AXUH78 GCC;AXUH70 LE,XLE | — | |
| 68105-0E140 |
Glass, Back Door
2023-11 → —
|
AXUH78 EUR | — | |
| 74811D — Handle, Door Pull | ||||
| 74811-0E030-C0 note |
Handle, Door Pull
2020-02 → 2022-10
ended
|
AXUH7# (LE,XLE) GCC | — | |
| 74811-0E030-C0 note |
Handle, Door Pull
2020-02 → 2022-10
ended
|
AXUH7# LIMD GCC;AXUH78,GSU7# ARL,EUR,RUS | — | |
| 74811-0E030-C0 note |
Handle, Door Pull
2022-10 → 2023-11
ended
|
AXUH7# (LE,XLE) GCC | — | |
| 74811-0E030-C0 note |
Handle, Door Pull
2022-10 → 2023-11
ended
|
TXUA75 RUS;AXUH78 XLE EUR;AXUH7# +2 | — | |
| 74811-0E030-C0 note |
Handle, Door Pull
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 74811-0E030-C0 note |
Handle, Door Pull
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 74811-0E030-C0 note |
Handle, Door Pull
2023-11 → —
|
AXUH7# (LE,XLE) GCC | — | |
| 74811-0E030-C0 note |
Handle, Door Pull
2023-11 → —
|
AXUH78 LIMD GCC;AXUH78,TXUA7# ARL,EUR,RUS | — | |
| 75129C — Cushion, Rear Licence Plate | ||||
| 75129-AC010 |
Cushion, Rear Licence Plate
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 75129-AC010 |
Cushion, Rear Licence Plate
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 75129-AC010 |
Cushion, Rear Licence Plate
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 75129-AC010 |
Cushion, Rear Licence Plate
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 75129-AC010 |
Cushion, Rear Licence Plate
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 75496C — Clip, Back Window Outside Moulding, RH | ||||
| 75496-0E010 |
Clip, Back Window Outside Moulding, RH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 75496-0E010 |
Clip, Back Window Outside Moulding, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 75496-0E010 |
Clip, Back Window Outside Moulding, RH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 75496-0E010 |
Clip, Back Window Outside Moulding, RH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 75496-0E010 |
Clip, Back Window Outside Moulding, RH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 75497B — Clip, Back Window Outside Moulding, LH | ||||
| 75497-0E010 |
Clip, Back Window Outside Moulding, LH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 75497-0E010 |
Clip, Back Window Outside Moulding, LH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 75497-0E010 |
Clip, Back Window Outside Moulding, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 75497-0E010 |
Clip, Back Window Outside Moulding, LH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 75497-0E010 |
Clip, Back Window Outside Moulding, LH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 75573C — Moulding, Back Window, Outside | ||||
| 75573-0E050 |
Moulding, Back Window, Outside
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 75573-0E050 |
Moulding, Back Window, Outside
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 75573-0E050 |
Moulding, Back Window, Outside
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 75573-0E050 |
Moulding, Back Window, Outside
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 75573-0E050 |
Moulding, Back Window, Outside
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 76831A — Cover, Back Door Finish Panel, RH | ||||
| 76831-0E030 |
Cover, Back Door Finish Panel, RH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 76831-0E030 |
Cover, Back Door Finish Panel, RH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 76831-0E030 |
Cover, Back Door Finish Panel, RH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 76831-0E030 |
Cover, Back Door Finish Panel, RH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 76831-0E030 |
Cover, Back Door Finish Panel, RH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 76832A — Cover, Back Door Finish Panel, LH | ||||
| 76832-0E030 |
Cover, Back Door Finish Panel, LH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 76832-0E030 |
Cover, Back Door Finish Panel, LH
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 76832-0E030 |
Cover, Back Door Finish Panel, LH
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 76832-0E030 |
Cover, Back Door Finish Panel, LH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 76832-0E030 |
Cover, Back Door Finish Panel, LH
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 76835A — Protector, Back Door Finish Panel, NO.1 | ||||
| 76835-0E010 |
Protector, Back Door Finish Panel, NO.1
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 76835-0E010 |
Protector, Back Door Finish Panel, NO.1
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 76835-0E010 |
Protector, Back Door Finish Panel, NO.1
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 76835-0E010 |
Protector, Back Door Finish Panel, NO.1
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 76835-0E010 |
Protector, Back Door Finish Panel, NO.1
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
