Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

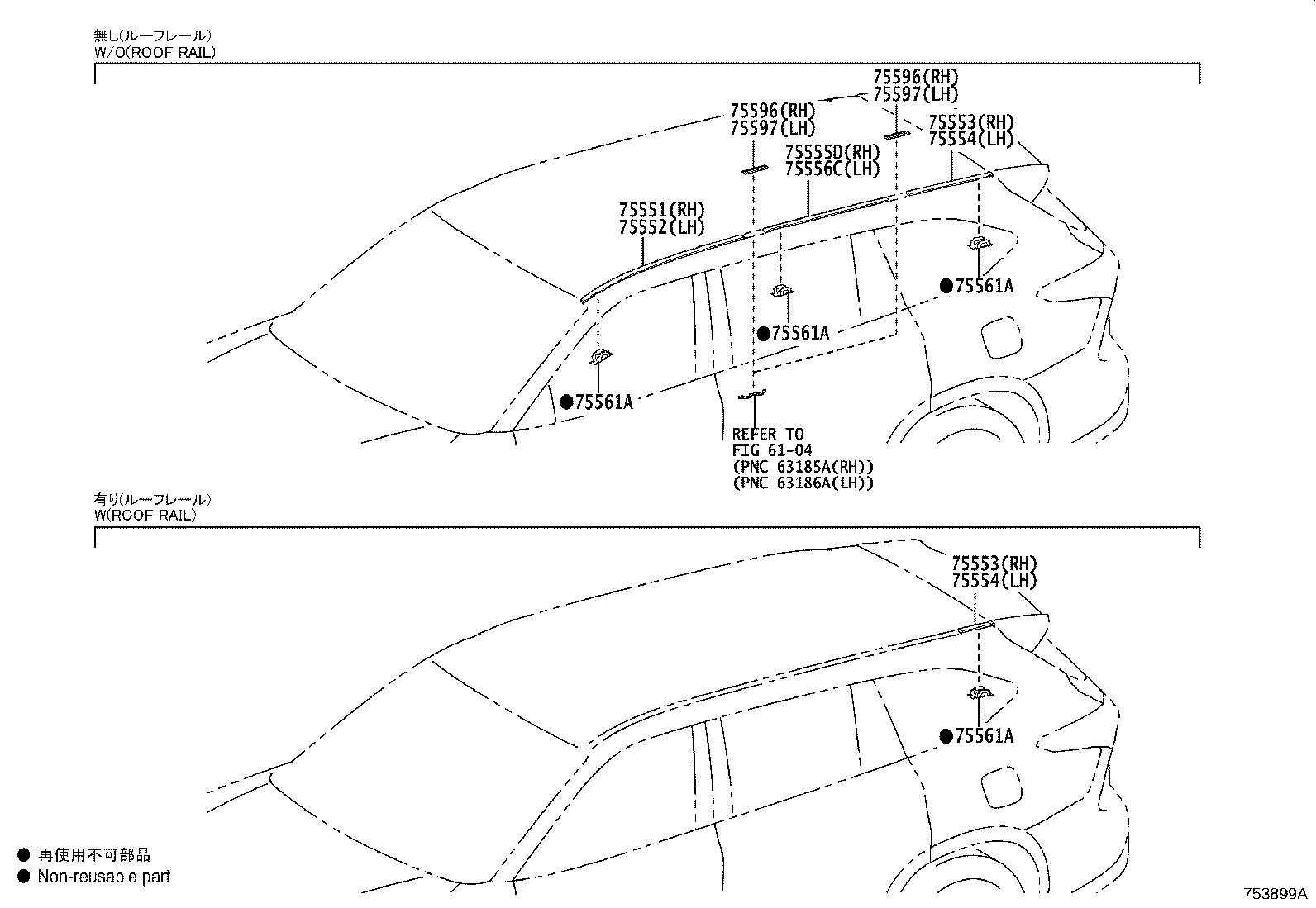

Exploded illustration 753899A 75551 — MOULDING, ROOF DRIP SIDE FINISH, RH (4 parts) 75552 — MOULDING, ROOF DRIP SIDE FINISH, LH (4 parts) 75553 — MOULDING, ROOF DRIP SIDE FINISH, RH (12 parts) 75554 — MOULDING, ROOF DRIP SIDE FINISH, LH (12 parts) 75555D — MOULDING, ROOF DRIP SIDE FINISH, CENTER RH (4 parts) 75556C — MOULDING, ROOF DRIP SIDE FINISH, CENTER LH (4 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (12 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (12 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (12 parts) 75596 — COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH (4 parts) 75597 — COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH (4 parts) 75596 — COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH (4 parts) 75597 — COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH (4 parts) 75553 — MOULDING, ROOF DRIP SIDE FINISH, RH (12 parts) 75554 — MOULDING, ROOF DRIP SIDE FINISH, LH (12 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (12 parts) 6104 — not listed in this catalogue
753899A · 16 callouts, 1 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
75551 — Moulding, Roof Drip Side Finish, RH
75551-0E080 note Moulding, Roof Drip Side Finish, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75551-0E080 note Moulding, Roof Drip Side Finish, RH
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75551-0E080 note Moulding, Roof Drip Side Finish, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75551-0E080 note Moulding, Roof Drip Side Finish, RH
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
75552 — Moulding, Roof Drip Side Finish, LH
75552-0E080 note Moulding, Roof Drip Side Finish, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75552-0E080 note Moulding, Roof Drip Side Finish, LH
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75552-0E080 note Moulding, Roof Drip Side Finish, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75552-0E080 note Moulding, Roof Drip Side Finish, LH
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
75553 — Moulding, Roof Drip Side Finish, RH
75553-0E070 note Moulding, Roof Drip Side Finish, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75553-0E080 note Moulding, Roof Drip Side Finish, RH
2020-12 → 2022-10 ended
AXUH78,GSU7# LE ARL —
75553-0E080 note Moulding, Roof Drip Side Finish, RH
2020-02 → 2022-10 ended
GSU75 LE RUS;AXUH7#,GSU7# LIMD,XLE —
75553-0E070 note Moulding, Roof Drip Side Finish, RH
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75553-0E070 note Moulding, Roof Drip Side Finish, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75553-0E080 note Moulding, Roof Drip Side Finish, RH
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD (LIMD,XLE) —
75553-0E080 note Moulding, Roof Drip Side Finish, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
75553-0E080 note Moulding, Roof Drip Side Finish, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75553-0E070 note Moulding, Roof Drip Side Finish, RH
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
75553-0E080 note Moulding, Roof Drip Side Finish, RH
2023-11 → 2024-10 ended
AXUH70 LIMD —
75553-0E080 note Moulding, Roof Drip Side Finish, RH
2024-01 → —
AXUH78,TXUA7# LE ARL —
75553-0E080 note Moulding, Roof Drip Side Finish, RH
2023-11 → —
AXUH70 XLE;TXUA75 LE RUS;AXUH78,TXUA7# +1 —
75554 — Moulding, Roof Drip Side Finish, LH
75554-0E070 note Moulding, Roof Drip Side Finish, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75554-0E080 note Moulding, Roof Drip Side Finish, LH
2020-02 → 2022-10 ended
GSU75 LE RUS;AXUH7#,GSU7# LIMD,XLE —
75554-0E080 note Moulding, Roof Drip Side Finish, LH
2020-12 → 2022-10 ended
AXUH78,GSU7# LE ARL —
75554-0E070 note Moulding, Roof Drip Side Finish, LH
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75554-0E070 note Moulding, Roof Drip Side Finish, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75554-0E080 note Moulding, Roof Drip Side Finish, LH
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD (LIMD,XLE) —
75554-0E080 note Moulding, Roof Drip Side Finish, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
75554-0E080 note Moulding, Roof Drip Side Finish, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75554-0E070 note Moulding, Roof Drip Side Finish, LH
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
75554-0E080 note Moulding, Roof Drip Side Finish, LH
2024-01 → —
AXUH78,TXUA7# LE ARL —
75554-0E080 note Moulding, Roof Drip Side Finish, LH
2023-11 → —
AXUH70 XLE;TXUA75 LE RUS;AXUH78,TXUA7# +1 —
75554-0E080 note Moulding, Roof Drip Side Finish, LH
2023-11 → 2024-10 ended
AXUH70 LIMD —
75555D — Moulding, Roof Drip Side Finish, Center RH
75555-0E060 Moulding, Roof Drip Side Finish, Center RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75555-0E060 Moulding, Roof Drip Side Finish, Center RH
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75555-0E060 Moulding, Roof Drip Side Finish, Center RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75555-0E060 Moulding, Roof Drip Side Finish, Center RH
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
75556C — Moulding, Roof Drip Side Finish, Center LH
75555-0E060 Moulding, Roof Drip Side Finish, Center LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75555-0E060 Moulding, Roof Drip Side Finish, Center LH
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75555-0E060 Moulding, Roof Drip Side Finish, Center LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75555-0E060 Moulding, Roof Drip Side Finish, Center LH
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
75561A — Clip, Roof Drip Side Finish Moulding
75561-08040 Clip, Roof Drip Side Finish Moulding
2020-02 → 2022-10 ended
GSU75 LE RUS;AXUH7#,GSU7# LIMD,XLE —
75561-08040 Clip, Roof Drip Side Finish Moulding
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75561-08040 note Clip, Roof Drip Side Finish Moulding
2020-12 → 2022-10 ended
AXUH78,GSU7# LE ARL —
75561-08040 Clip, Roof Drip Side Finish Moulding
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD LIMD —
75561-08040 Clip, Roof Drip Side Finish Moulding
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75561-08040 note Clip, Roof Drip Side Finish Moulding
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75561-08040 Clip, Roof Drip Side Finish Moulding
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75561-08040 Clip, Roof Drip Side Finish Moulding
2022-10 → 2023-11 ended
TXUA75 RUS;AXUH7# LHD (LIMD,XLE) —
75561-08040 Clip, Roof Drip Side Finish Moulding
2023-11 → 2024-10 ended
AXUH70 LIMD —
75561-08040 Clip, Roof Drip Side Finish Moulding
2023-11 → —
AXUH70 XLE;TXUA75 LE RUS;AXUH78,TXUA7# +1 —
75561-08040 Clip, Roof Drip Side Finish Moulding
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
75561-08040 note Clip, Roof Drip Side Finish Moulding
2024-01 → —
AXUH78,TXUA7# LE ARL —
75596 — Cover, Roof Drip Side Finish Moulding Joint, RH
75596-0E040 Cover, Roof Drip Side Finish Moulding Joint, RH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75596-0E040 Cover, Roof Drip Side Finish Moulding Joint, RH
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75596-0E040 Cover, Roof Drip Side Finish Moulding Joint, RH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75596-0E040 Cover, Roof Drip Side Finish Moulding Joint, RH
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
75597 — Cover, Roof Drip Side Finish Moulding Joint, LH
75596-0E040 Cover, Roof Drip Side Finish Moulding Joint, LH
2020-02 → 2022-10 ended
AXUH7#,GSU7# LE (ARL,GCC) —
75596-0E040 Cover, Roof Drip Side Finish Moulding Joint, LH
2022-10 → 2023-11 ended
AXUH7# LE GCC —
75596-0E040 Cover, Roof Drip Side Finish Moulding Joint, LH
2022-10 → 2023-12 ended
AXUH78,TXUA7# LE ARL —
75596-0E040 Cover, Roof Drip Side Finish Moulding Joint, LH
2023-11 → —
AXUH7#,TXUA7# LE (ARL,GCC) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
