Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

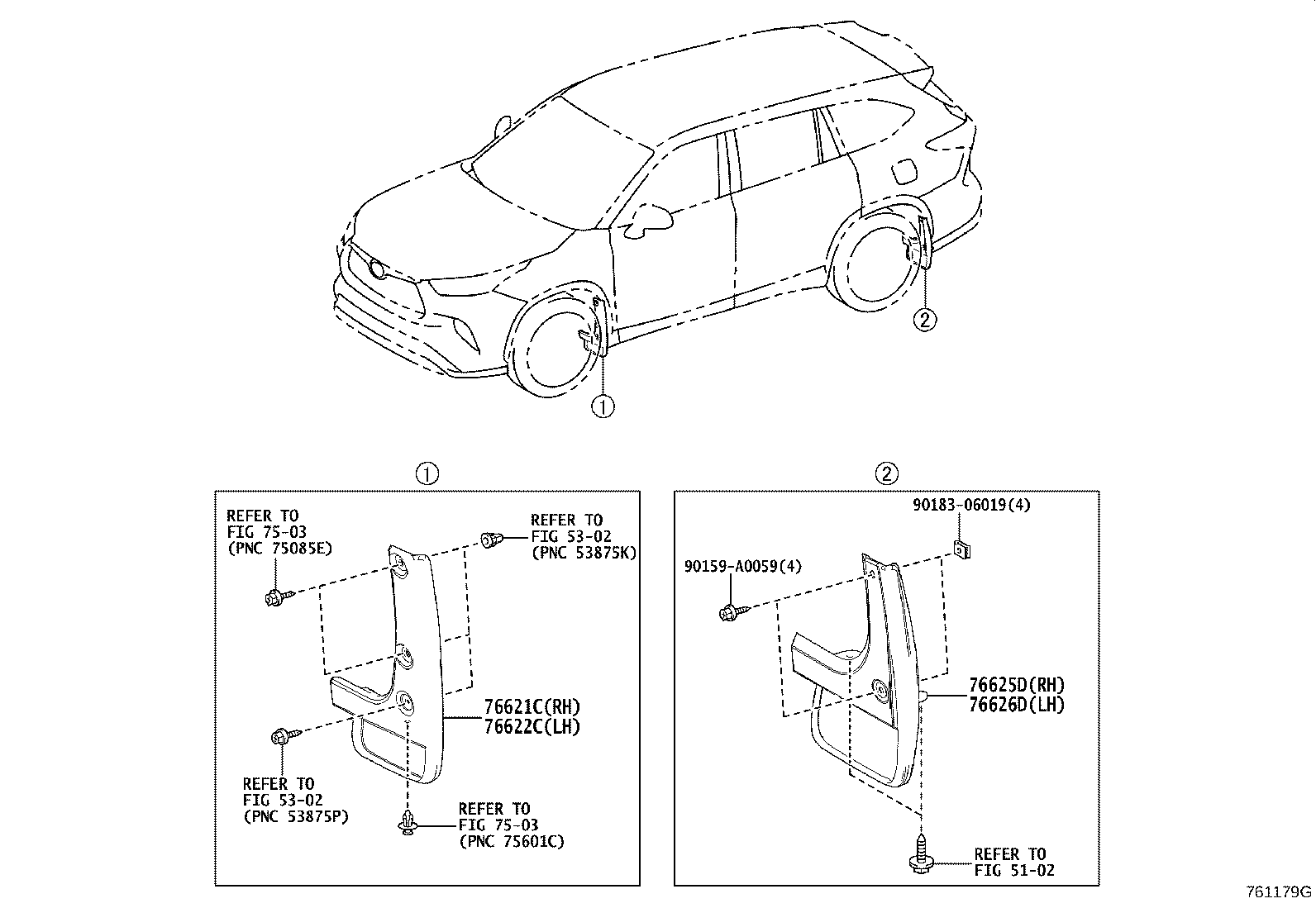

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 76621C — Mudguad, Front Fender, RH | ||||
| 76621-0E020 note |
Mudguad, Front Fender, RH
2020-11 → 2022-10
ended
|
AXUH78 EUR | — | |
| 76621-0E020 |
Mudguad, Front Fender, RH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# ARL,GCC,RUS | — | |
| 76621-0E020 |
Mudguad, Front Fender, RH
2022-10 → 2023-12
ended
|
AXUH7#,TXUA7# ARL,GCC,RUS | — | |
| 76621-0E020 note |
Mudguad, Front Fender, RH
2022-10 → 2023-12
ended
|
AXUH78 EUR | — | |
| 76621-0E020 |
Mudguad, Front Fender, RH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 76621-0E020 |
Mudguad, Front Fender, RH
2023-11 → —
|
AXUH70 LE,XLE;AXUH78,TXUA7# ARL,GCC,RUS | — | |
| 76621-0E020 note |
Mudguad, Front Fender, RH
2023-11 → —
|
AXUH78 EUR | — | |
| 76622C — Mudguard, Front Fender, LH | ||||
| 76622-0E020 |
Mudguard, Front Fender, LH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# ARL,GCC,RUS | — | |
| 76622-0E020 note |
Mudguard, Front Fender, LH
2020-11 → 2022-10
ended
|
AXUH78 EUR | — | |
| 76622-0E020 |
Mudguard, Front Fender, LH
2022-10 → 2023-12
ended
|
AXUH7#,TXUA7# ARL,GCC,RUS | — | |
| 76622-0E020 note |
Mudguard, Front Fender, LH
2022-10 → 2023-12
ended
|
AXUH78 EUR | — | |
| 76622-0E020 |
Mudguard, Front Fender, LH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 76622-0E020 |
Mudguard, Front Fender, LH
2023-11 → —
|
AXUH70 LE,XLE;AXUH78,TXUA7# ARL,GCC,RUS | — | |
| 76622-0E020 note |
Mudguard, Front Fender, LH
2023-11 → —
|
AXUH78 EUR | — | |
| 76625D — Mudguard, Quarter Panel, Rear RH | ||||
| 76625-0E020 |
Mudguard, Quarter Panel, Rear RH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# ARL,GCC,RUS | — | |
| 76625-0E020 note |
Mudguard, Quarter Panel, Rear RH
2020-11 → 2022-10
ended
|
AXUH78 EUR | — | |
| 76625-0E020 |
Mudguard, Quarter Panel, Rear RH
2022-10 → 2023-12
ended
|
AXUH7#,TXUA7# ARL,GCC,RUS | — | |
| 76625-0E020 note |
Mudguard, Quarter Panel, Rear RH
2022-10 → 2023-12
ended
|
AXUH78 EUR | — | |
| 76625-0E020 |
Mudguard, Quarter Panel, Rear RH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 76625-0E020 |
Mudguard, Quarter Panel, Rear RH
2023-11 → —
|
AXUH70 LE,XLE;AXUH78,TXUA7# ARL,GCC,RUS | — | |
| 76625-0E020 note |
Mudguard, Quarter Panel, Rear RH
2023-11 → —
|
AXUH78 EUR | — | |
| 76626D — Mudguard, Quarter Panel, Rear LH | ||||
| 76626-0E020 |
Mudguard, Quarter Panel, Rear LH
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# ARL,GCC,RUS | — | |
| 76626-0E020 note |
Mudguard, Quarter Panel, Rear LH
2020-11 → 2022-10
ended
|
AXUH78 EUR | — | |
| 76626-0E020 |
Mudguard, Quarter Panel, Rear LH
2022-10 → 2023-12
ended
|
AXUH7#,TXUA7# ARL,GCC,RUS | — | |
| 76626-0E020 note |
Mudguard, Quarter Panel, Rear LH
2022-10 → 2023-12
ended
|
AXUH78 EUR | — | |
| 76626-0E020 |
Mudguard, Quarter Panel, Rear LH
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 76626-0E020 |
Mudguard, Quarter Panel, Rear LH
2023-11 → —
|
AXUH70 LE,XLE;AXUH78,TXUA7# ARL,GCC,RUS | — | |
| 76626-0E020 note |
Mudguard, Quarter Panel, Rear LH
2023-11 → —
|
AXUH78 EUR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
