Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

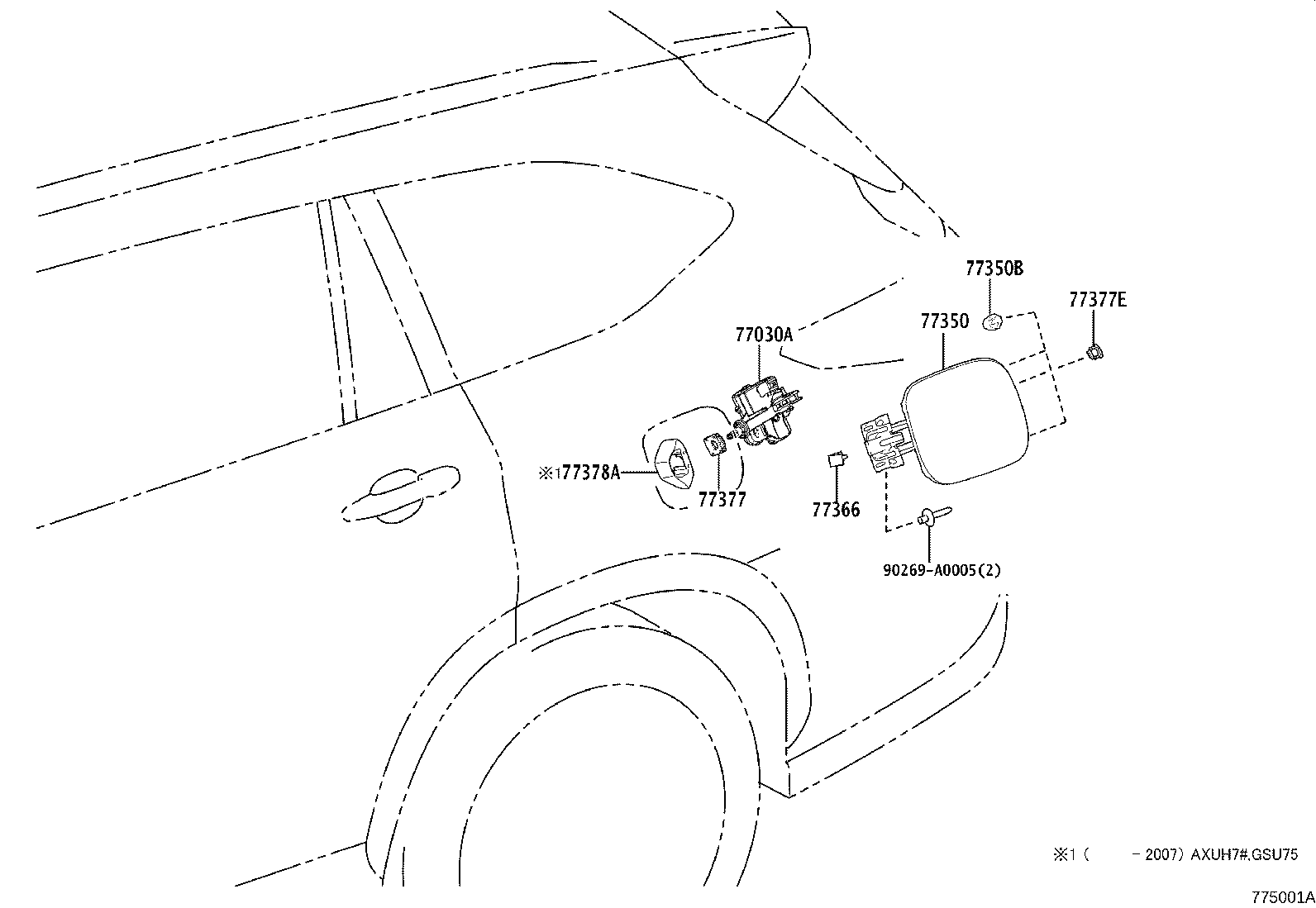

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77030A — Lock Assy, Fuel Lid W/Motor | ||||
| 77030-0E070 |
Lock Assy, Fuel Lid W/Motor
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 77030-0E070 |
Lock Assy, Fuel Lid W/Motor
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 77030-0E070 |
Lock Assy, Fuel Lid W/Motor
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 77030-0E070 |
Lock Assy, Fuel Lid W/Motor
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77030-0E070 |
Lock Assy, Fuel Lid W/Motor
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-0E070 |
Lid Assy, Fuel Filler Opening
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 77350-0E070 |
Lid Assy, Fuel Filler Opening
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 77350-0E070 |
Lid Assy, Fuel Filler Opening
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 77350-0E070 |
Lid Assy, Fuel Filler Opening
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77350-0E070 |
Lid Assy, Fuel Filler Opening
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 77350B — Cushion(FOR FUEL FILLER OPENING LID) | ||||
| 90541-06069 |
Cushion(FOR FUEL FILLER OPENING LID)
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 90541-06069 |
Cushion(FOR FUEL FILLER OPENING LID)
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 90541-06069 |
Cushion(FOR FUEL FILLER OPENING LID)
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 90541-06069 |
Cushion(FOR FUEL FILLER OPENING LID)
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 90541-06069 |
Cushion(FOR FUEL FILLER OPENING LID)
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 77366 — Spring, Fuel Filler Opening Lid Hinge | ||||
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77366-52010 |
Spring, Fuel Filler Opening Lid Hinge
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-0E040 |
Retainer, Fuel Filler Opening Lid Lock
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 77377-0E040 |
Retainer, Fuel Filler Opening Lid Lock
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 77377-0E040 |
Retainer, Fuel Filler Opening Lid Lock
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 77377-0E040 |
Retainer, Fuel Filler Opening Lid Lock
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77377-0E040 |
Retainer, Fuel Filler Opening Lid Lock
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 77377E — Retainer, Fuel Filler Opening Lid Lock, NO.2 | ||||
| 77377-0R030 |
Retainer, Fuel Filler Opening Lid Lock, NO.2
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 77377-0R030 |
Retainer, Fuel Filler Opening Lid Lock, NO.2
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 77377-0R030 |
Retainer, Fuel Filler Opening Lid Lock, NO.2
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 77377-0R030 |
Retainer, Fuel Filler Opening Lid Lock, NO.2
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77377-0R030 |
Retainer, Fuel Filler Opening Lid Lock, NO.2
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 77378A — Cover, Fuel Filler Opening Lid Lock | ||||
| 77378-0E010 |
Cover, Fuel Filler Opening Lid Lock
2020-02 → 2020-07
ended
|
AXUH7#,GSU75 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
