Toyota Highlander/Kluger
2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General
Supported model
Data version 2023-11

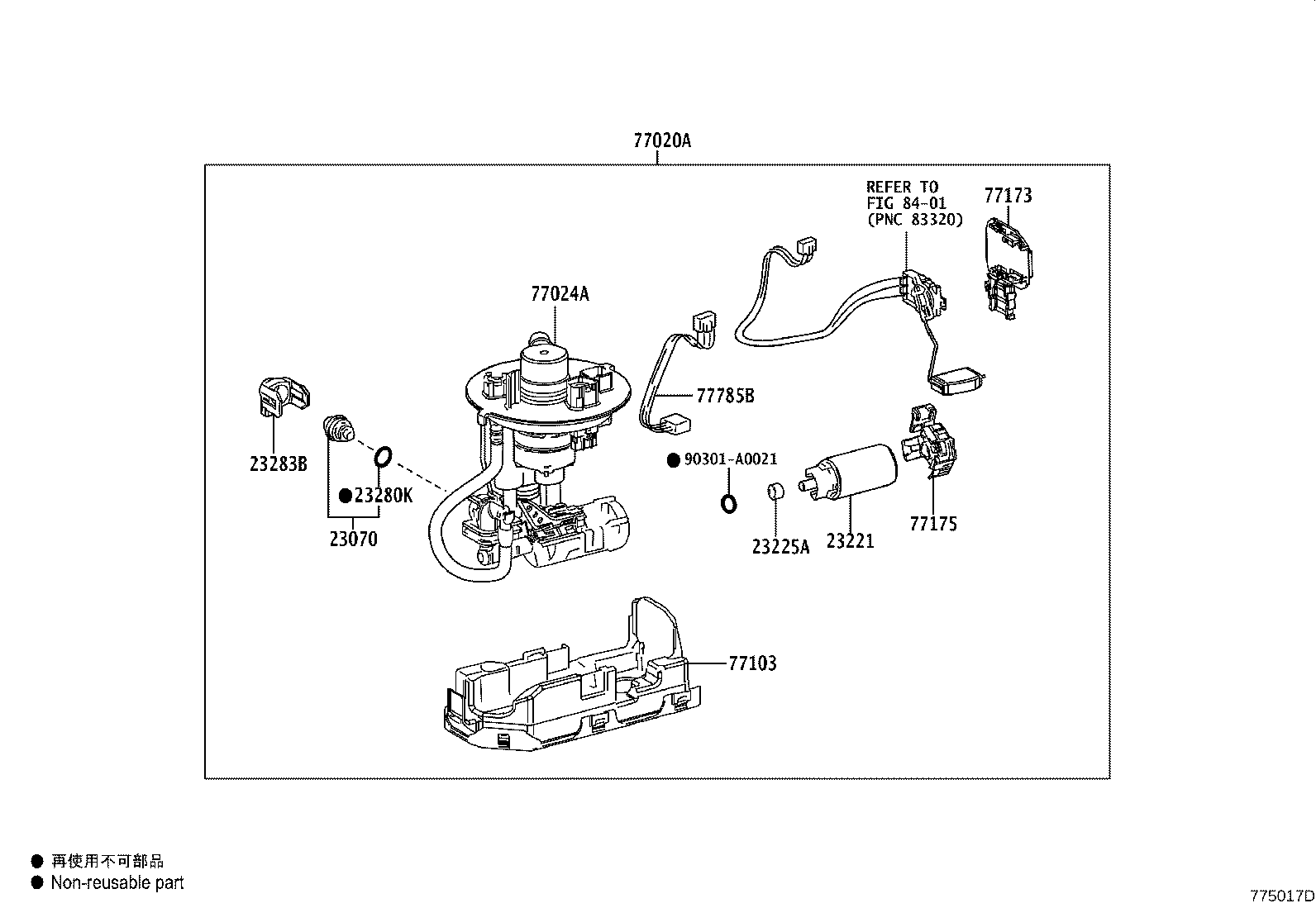

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 23070 — Valve Assy, Fuel Main | ||||
| 23070-25020 |
Valve Assy, Fuel Main
2020-02 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 23070-25020 |
Valve Assy, Fuel Main
2022-10 → 2023-11
ended
|
A25AFXS,T24AFTS AXUH7#,TXUA75 LHD | — | |
| 23070-25020 |
Valve Assy, Fuel Main
2022-10 → 2023-12
ended
|
A25AFXS,T24AFTS AXUH78,TXUA7# RHD | — | |
| 23070-25020 |
Valve Assy, Fuel Main
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 23070-25020 |
Valve Assy, Fuel Main
2023-11 → —
|
A25AFXS AXUH70 LE,XLE;A25AFXS,T24AFTS AXUH78,TXUA7# | — | |
| 23221 — Pump, Fuel | ||||
| 23221-25030 |
Pump, Fuel
2020-02 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 23221-25030 |
Pump, Fuel
2022-10 → 2023-11
ended
|
A25AFXS AXUH7# LHD | — | |
| 23221-25030 |
Pump, Fuel
2022-10 → 2023-12
ended
|
A25AFXS AXUH78 RHD | — | |
| 23221-25080 |
Pump, Fuel
2022-10 → 2023-11
ended
|
T24AFTS TXUA75 RUS | — | |
| 23221-25080 |
Pump, Fuel
2022-10 → 2023-12
ended
|
T24AFTS TXUA7# ARL | — | |
| 23221-25030 |
Pump, Fuel
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 23221-25030 |
Pump, Fuel
2023-11 → —
|
A25AFXS AXUH78;A25AFXS AXUH70 LE,XLE | — | |
| 23221-25080 |
Pump, Fuel
2023-11 → —
|
T24AFTS TXUA7# | — | |
| 23225A — Spacer, Fuel Pump | ||||
| 23225-F0010 |
Spacer, Fuel Pump
2020-02 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 23225-F0010 |
Spacer, Fuel Pump
2022-10 → 2023-11
ended
|
A25AFXS,T24AFTS AXUH7#,TXUA75 LHD | — | |
| 23225-F0010 |
Spacer, Fuel Pump
2022-10 → 2023-12
ended
|
A25AFXS,T24AFTS AXUH78,TXUA7# RHD | — | |
| 23225-F0010 |
Spacer, Fuel Pump
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 23225-F0010 |
Spacer, Fuel Pump
2023-11 → —
|
A25AFXS AXUH70 LE,XLE;A25AFXS,T24AFTS AXUH78,TXUA7# | — | |
| 23280K — Ring, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2020-02 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 90301-15024 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2022-10 → 2023-11
ended
|
A25AFXS,T24AFTS AXUH7#,TXUA75 LHD | — | |
| 90301-15024 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2022-10 → 2023-12
ended
|
A25AFXS,T24AFTS AXUH78,TXUA7# RHD | — | |
| 90301-15024 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 90301-15024 |
Ring, O(FOR FUEL PRESSURE REGULATOR)
2023-11 → —
|
A25AFXS AXUH70 LE,XLE;A25AFXS,T24AFTS AXUH78,TXUA7# | — | |
| 23283B — Holder, Fuel Pressure Regulator | ||||
| 23283-F0010 |
Holder, Fuel Pressure Regulator
2020-02 → 2022-10
ended
|
A25AFXS,2GRFKS AXUH7#,GSU7# | — | |
| 23283-F0010 |
Holder, Fuel Pressure Regulator
2022-10 → 2023-11
ended
|
A25AFXS,T24AFTS AXUH7#,TXUA75 LHD | — | |
| 23283-F0010 |
Holder, Fuel Pressure Regulator
2022-10 → 2023-12
ended
|
A25AFXS,T24AFTS AXUH78,TXUA7# RHD | — | |
| 23283-F0010 |
Holder, Fuel Pressure Regulator
2023-11 → 2024-10
ended
|
A25AFXS AXUH70 LIMD | — | |
| 23283-F0010 |
Holder, Fuel Pressure Regulator
2023-11 → —
|
A25AFXS AXUH70 LE,XLE;A25AFXS,T24AFTS AXUH78,TXUA7# | — | |
| 77020A — Tube Assy, Fuel Suction W/Pump & Gage | ||||
| 77020-0E150 |
Tube Assy, Fuel Suction W/Pump & Gage
2020-03 → 2022-10
ended
|
GSU7# | — | |
| 77020-0E170 |
Tube Assy, Fuel Suction W/Pump & Gage
2020-02 → 2021-01
ended
|
AXUH7# | — | |
| 77020-0E171 |
Tube Assy, Fuel Suction W/Pump & Gage
2021-02 → 2021-10
ended
|
AXUH7# | — | |
| 77020-0E172 |
Tube Assy, Fuel Suction W/Pump & Gage
2021-10 → 2022-10
ended
|
AXUH7# | — | |
| 77020-0E172 |
Tube Assy, Fuel Suction W/Pump & Gage
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 77020-0E172 |
Tube Assy, Fuel Suction W/Pump & Gage
2022-10 → 2023-12
ended
|
AXUH78 RHD | — | |
| 77020-0E260 |
Tube Assy, Fuel Suction W/Pump & Gage
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 77020-0E260 |
Tube Assy, Fuel Suction W/Pump & Gage
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 77020-0E172 |
Tube Assy, Fuel Suction W/Pump & Gage
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77020-0E172 |
Tube Assy, Fuel Suction W/Pump & Gage
2023-11 → —
|
AXUH78;AXUH70 LE,XLE | — | |
| 77020-0E260 |
Tube Assy, Fuel Suction W/Pump & Gage
2023-11 → —
|
TXUA7# | — | |
| 77024A — Plate Sub-assy, Fuel Suction | ||||
| 77024-0E120 |
Plate Sub-assy, Fuel Suction
2020-03 → 2022-10
ended
|
GSU7# | — | |
| 77024-0E140 |
Plate Sub-assy, Fuel Suction
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 77024-0E140 |
Plate Sub-assy, Fuel Suction
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 77024-0E140 |
Plate Sub-assy, Fuel Suction
2022-10 → 2023-12
ended
|
AXUH78 RHD | — | |
| 77024-0E150 |
Plate Sub-assy, Fuel Suction
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 77024-0E150 |
Plate Sub-assy, Fuel Suction
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 77024-0E140 |
Plate Sub-assy, Fuel Suction
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77024-0E140 |
Plate Sub-assy, Fuel Suction
2023-11 → —
|
AXUH78;AXUH70 LE,XLE | — | |
| 77024-0E150 |
Plate Sub-assy, Fuel Suction
2023-11 → —
|
TXUA7# | — | |
| 77103 — Sub-tank Sub-assy, Fuel | ||||
| 77103-0E040 |
Sub-tank Sub-assy, Fuel
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 77103-0E040 |
Sub-tank Sub-assy, Fuel
2022-10 → 2023-12
ended
|
AXUH78 RHD | — | |
| 77103-0E040 |
Sub-tank Sub-assy, Fuel
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 77103-0E050 |
Sub-tank Sub-assy, Fuel
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 77103-0E050 |
Sub-tank Sub-assy, Fuel
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 77103-0E040 |
Sub-tank Sub-assy, Fuel
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77103-0E040 |
Sub-tank Sub-assy, Fuel
2023-11 → —
|
AXUH78;AXUH70 LE,XLE | — | |
| 77103-0E050 |
Sub-tank Sub-assy, Fuel
2023-11 → —
|
TXUA7# | — | |
| 77173 — Bracket, Fuel Gage | ||||
| 77173-0E010 |
Bracket, Fuel Gage
2020-03 → 2022-10
ended
|
GSU7# | — | |
| 77173-0E020 |
Bracket, Fuel Gage
2020-02 → 2021-01
ended
|
AXUH7# | — | |
| 77173-0E021 |
Bracket, Fuel Gage
2021-02 → 2022-10
ended
|
AXUH7# | — | |
| 77173-0E010 |
Bracket, Fuel Gage
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 77173-0E010 |
Bracket, Fuel Gage
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 77173-0E021 |
Bracket, Fuel Gage
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 77173-0E021 |
Bracket, Fuel Gage
2022-10 → 2023-12
ended
|
AXUH78 RHD | — | |
| 77173-0E010 |
Bracket, Fuel Gage
2023-11 → —
|
TXUA7# | — | |
| 77173-0E021 |
Bracket, Fuel Gage
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77173-0E021 |
Bracket, Fuel Gage
2023-11 → —
|
AXUH78;AXUH70 LE,XLE | — | |
| 77175 — Support, Fuel Suction, NO.2 | ||||
| 77175-0R010 |
Support, Fuel Suction, NO.2
2020-02 → 2022-10
ended
|
AXUH7#,GSU7# | — | |
| 77175-0R010 |
Support, Fuel Suction, NO.2
2022-10 → 2023-11
ended
|
AXUH7#,TXUA75 LHD | — | |
| 77175-0R010 |
Support, Fuel Suction, NO.2
2022-10 → 2023-12
ended
|
AXUH78,TXUA7# RHD | — | |
| 77175-0R010 |
Support, Fuel Suction, NO.2
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77175-0R010 |
Support, Fuel Suction, NO.2
2023-11 → —
|
AXUH78,TXUA7#;AXUH70 LE,XLE | — | |
| 77785B — Harness, Fuel Pump, NO.2 | ||||
| 77785-0E090 |
Harness, Fuel Pump, NO.2
2020-03 → 2022-10
ended
|
GSU7# | — | |
| 77785-0R040 |
Harness, Fuel Pump, NO.2
2020-02 → 2022-10
ended
|
AXUH7# | — | |
| 77785-0E090 |
Harness, Fuel Pump, NO.2
2022-10 → 2023-11
ended
|
TXUA75 RUS | — | |
| 77785-0E090 |
Harness, Fuel Pump, NO.2
2022-10 → 2023-12
ended
|
TXUA7# ARL | — | |
| 77785-0R040 |
Harness, Fuel Pump, NO.2
2022-10 → 2023-11
ended
|
AXUH7# LHD | — | |
| 77785-0R040 |
Harness, Fuel Pump, NO.2
2022-10 → 2023-12
ended
|
AXUH78 RHD | — | |
| 77785-0E090 |
Harness, Fuel Pump, NO.2
2023-11 → —
|
TXUA7# | — | |
| 77785-0R040 |
Harness, Fuel Pump, NO.2
2023-11 → 2024-10
ended
|
AXUH70 LIMD | — | |
| 77785-0R040 |
Harness, Fuel Pump, NO.2
2023-11 → —
|
AXUH78;AXUH70 LE,XLE | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
