Toyota Highlander/Kluger

2020-02 → present · chassis AXUH7#,GSU7#,TXUA7# · catalogue 526230 · General

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

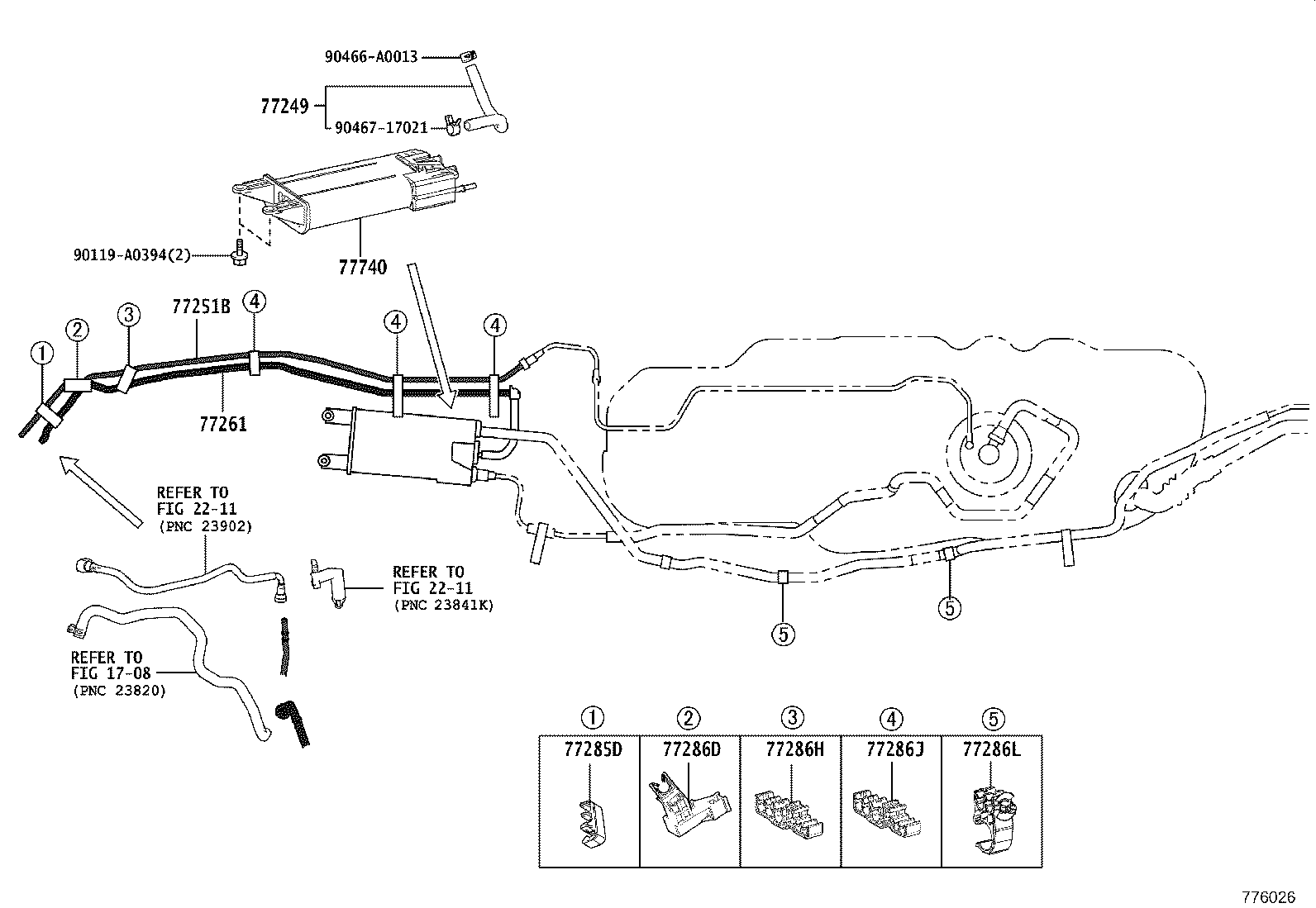

Exploded illustration 776026 1708 — not listed in this catalogue 77251B — TUBE, FUEL MAIN (9 parts) 77261 — TUBE SUB-ASSY, FUEL EMISSION (9 parts) 77285D — CLAMP, FUEL TUBE, NO.1 (9 parts) 77286D — CLAMP, FUEL TUBE, NO.2 (9 parts) 77286H — CLAMP, FUEL TUBE, NO.3 (8 parts) 77286J — CLAMP, FUEL TUBE, NO.4 (8 parts) 77249 — HOSE, FUEL EMISSION (5 parts) 77740 — CANISTER ASSY, CHARCOAL (5 parts) 90119A0394 — not listed in this catalogue 9046717021 — not listed in this catalogue 90466A0013 — not listed in this catalogue 77286L — CLAMP, FUEL TUBE, NO.5 (3 parts) 2211 — not listed in this catalogue 2211 — not listed in this catalogue
776026 · 9 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
65 parts on this figure
Part number Description Fitment Price
77249 — Hose, Fuel Emission
77249-42120 Hose, Fuel Emission
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
77249-42120 Hose, Fuel Emission
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
77249-42120 Hose, Fuel Emission
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
77249-42120 Hose, Fuel Emission
2023-11 → 2024-10 ended
AXUH70 LIMD —
77249-42120 Hose, Fuel Emission
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
77251B — Tube, Fuel Main
77251-0E180 Tube, Fuel Main
2020-03 → 2022-10 ended
GSU7# —
77251-0E190 Tube, Fuel Main
2020-02 → 2022-10 ended
AXUH7# —
77251-0E190 Tube, Fuel Main
2022-10 → 2023-11 ended
AXUH7# LHD —
77251-0E190 Tube, Fuel Main
2022-10 → 2023-12 ended
AXUH78 RHD —
77251-0E280 Tube, Fuel Main
2022-10 → 2023-12 ended
TXUA7# ARL —
77251-0E280 Tube, Fuel Main
2022-10 → 2023-11 ended
TXUA75 RUS —
77251-0E190 Tube, Fuel Main
2023-11 → 2024-10 ended
AXUH70 LIMD —
77251-0E190 Tube, Fuel Main
2023-11 → —
AXUH78;AXUH70 LE,XLE —
77251-0E280 Tube, Fuel Main
2023-11 → —
TXUA7# —
77261 — Tube Sub-assy, Fuel Emission
77261-0E180 Tube Sub-assy, Fuel Emission
2020-03 → 2022-10 ended
GSU7# —
77261-0E190 Tube Sub-assy, Fuel Emission
2020-02 → 2022-10 ended
AXUH7# —
77261-0E190 Tube Sub-assy, Fuel Emission
2022-10 → 2023-11 ended
AXUH7# LHD —
77261-0E190 Tube Sub-assy, Fuel Emission
2022-10 → 2023-12 ended
AXUH78 RHD —
77261-0E320 Tube Sub-assy, Fuel Emission
2022-10 → 2023-11 ended
TXUA75 RUS —
77261-0E320 Tube Sub-assy, Fuel Emission
2022-10 → 2023-12 ended
TXUA7# ARL —
77261-0E190 Tube Sub-assy, Fuel Emission
2023-11 → 2024-10 ended
AXUH70 LIMD —
77261-0E190 Tube Sub-assy, Fuel Emission
2023-11 → —
AXUH78;AXUH70 LE,XLE —
77261-0E320 Tube Sub-assy, Fuel Emission
2023-11 → —
TXUA7# —
77285D — Clamp, Fuel Tube, NO.1
77285-0E080 Clamp, Fuel Tube, NO.1
2020-03 → 2022-10 ended
GSU7# —
77285-0E110 Clamp, Fuel Tube, NO.1
2020-02 → 2022-10 ended
AXUH7# —
77285-0E110 Clamp, Fuel Tube, NO.1
2022-10 → 2023-11 ended
AXUH7# LHD —
77285-0E110 Clamp, Fuel Tube, NO.1
2022-10 → 2023-12 ended
AXUH78 RHD —
77285-78020 Clamp, Fuel Tube, NO.1
2022-10 → 2023-11 ended
TXUA75 RUS —
77285-78020 Clamp, Fuel Tube, NO.1
2022-10 → 2023-12 ended
TXUA7# ARL —
77285-0E110 Clamp, Fuel Tube, NO.1
2023-11 → 2024-10 ended
AXUH70 LIMD —
77285-0E110 Clamp, Fuel Tube, NO.1
2023-11 → —
AXUH78;AXUH70 LE,XLE —
77285-78020 Clamp, Fuel Tube, NO.1
2023-11 → —
TXUA7# —
77286D — Clamp, Fuel Tube, NO.2
77285-0R060 Clamp, Fuel Tube, NO.2
2020-02 → 2022-10 ended
AXUH7# —
77285-0R060 Clamp, Fuel Tube, NO.2
2020-03 → 2022-10 ended
GSU7# —
77285-0R060 Clamp, Fuel Tube, NO.2
2022-10 → 2023-11 ended
AXUH7# LHD —
77285-0R060 Clamp, Fuel Tube, NO.2
2022-10 → 2023-12 ended
AXUH78 RHD —
77285-78030 Clamp, Fuel Tube, NO.2
2022-10 → 2023-11 ended
TXUA75 RUS —
77285-78030 Clamp, Fuel Tube, NO.2
2022-10 → 2023-12 ended
TXUA7# ARL —
77285-0R060 Clamp, Fuel Tube, NO.2
2023-11 → 2024-10 ended
AXUH70 LIMD —
77285-0R060 Clamp, Fuel Tube, NO.2
2023-11 → —
AXUH78;AXUH70 LE,XLE —
77285-78030 Clamp, Fuel Tube, NO.2
2023-11 → —
TXUA7# —
77286H — Clamp, Fuel Tube, NO.3
77285-0R040 Clamp, Fuel Tube, NO.3
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
77285-0R040 Clamp, Fuel Tube, NO.3
2022-10 → 2023-11 ended
AXUH7# LHD —
77285-0R040 Clamp, Fuel Tube, NO.3
2022-10 → 2023-12 ended
AXUH78 RHD —
77285-78040 Clamp, Fuel Tube, NO.3
2022-10 → 2023-11 ended
TXUA75 RUS —
77285-78040 Clamp, Fuel Tube, NO.3
2022-10 → 2023-12 ended
TXUA7# ARL —
77285-0R040 Clamp, Fuel Tube, NO.3
2023-11 → 2024-10 ended
AXUH70 LIMD —
77285-0R040 Clamp, Fuel Tube, NO.3
2023-11 → —
AXUH78;AXUH70 LE,XLE —
77285-78040 Clamp, Fuel Tube, NO.3
2023-11 → —
TXUA7# —
77286J — Clamp, Fuel Tube, NO.4
77285-0R090 Clamp, Fuel Tube, NO.4
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
77285-0R040 Clamp, Fuel Tube, NO.4
2022-10 → 2023-11 ended
TXUA75 RUS —
77285-0R040 Clamp, Fuel Tube, NO.4
2022-10 → 2023-12 ended
TXUA7# ARL —
77285-0R090 Clamp, Fuel Tube, NO.4
2022-10 → 2023-11 ended
AXUH7# LHD —
77285-0R090 Clamp, Fuel Tube, NO.4
2022-10 → 2023-12 ended
AXUH78 RHD —
77285-0R040 Clamp, Fuel Tube, NO.4
2023-11 → —
TXUA7# —
77285-0R090 Clamp, Fuel Tube, NO.4
2023-11 → 2024-10 ended
AXUH70 LIMD —
77285-0R090 Clamp, Fuel Tube, NO.4
2023-11 → —
AXUH78;AXUH70 LE,XLE —
77286L — Clamp, Fuel Tube, NO.5
77285-0R090 Clamp, Fuel Tube, NO.5
2022-10 → 2023-11 ended
TXUA75 RUS —
77285-0R090 Clamp, Fuel Tube, NO.5
2022-10 → 2023-12 ended
TXUA7# ARL —
77285-0R090 Clamp, Fuel Tube, NO.5
2023-11 → —
TXUA7# —
77740 — Canister Assy, Charcoal
77740-42120 Canister Assy, Charcoal
2020-02 → 2022-10 ended
AXUH7#,GSU7# —
77740-42120 Canister Assy, Charcoal
2022-10 → 2023-11 ended
AXUH7#,TXUA75 LHD —
77740-42120 Canister Assy, Charcoal
2022-10 → 2023-12 ended
AXUH78,TXUA7# RHD —
77740-42120 Canister Assy, Charcoal
2023-11 → 2024-10 ended
AXUH70 LIMD —
77740-42120 Canister Assy, Charcoal
2023-11 → —
AXUH78,TXUA7#;AXUH70 LE,XLE —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
